Forum Index : Microcontroller and PC projects : Armmite H7 5V Tolerance

Author Message
PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 04:50pm 07 Feb 2024
Copy link to clipboard
Print this post

I get the impression from the manual that other-than the DAC outputs, the pins are 5V tolerant(?).
Yet reading the STM manual, it states that the pins are 3.3V. What am I missing?

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9115
Posted: 05:13pm 07 Feb 2024
Copy link to clipboard
Print this post

All pins with analogue capabilities must be limited to 3.6V maximum. See the datasheet FT vs TT pins

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6787
Posted: 05:14pm 07 Feb 2024
Copy link to clipboard
Print this post

According to the RP2040 specification all pins on the Pico are 3V3, with an absolute maximum of 3V6. However, Raspberry Pi have said that the pins will *withstand* 5V. That doesn't mean they are suitable for 5V systems, as they can provide over 5V and remain in spec.

You pay your money and you take your choice. My own preference is to keep to the spec - 3V6 absolute maximum. At least on anything that I want to have running for any length of time. :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9115
Posted: 05:20pm 07 Feb 2024
Copy link to clipboard
Print this post

Mick - check the thread title

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6787
Posted: 05:23pm 07 Feb 2024
Copy link to clipboard
Print this post

OOPS.....  :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 05:40pm 07 Feb 2024
Copy link to clipboard
Print this post

For SPI, I should be OK with a 5V device then.

I have a WeAct and just wondering what F-CS is?

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9115
Posted: 06:02pm 07 Feb 2024
Copy link to clipboard
Print this post

  Quote
I have a WeAct and just wondering what F-CS is?


Chip select for a flash chip that may or may-not be fitted

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 06:08pm 07 Feb 2024
Copy link to clipboard
Print this post

Dammit, I was trying to think of everything that begins with 'F' before asking

disco4now

Guru

Joined: 18/12/2014
Location: Australia
Posts: 896
Posted: 10:31pm 07 Feb 2024
Copy link to clipboard
Print this post

It looks like the gitHub site for the WeAct  H7 100 pin board is gone.
Here is the schematic for it I have previously downloaded.
STM32H7xx SchDoc V11-WeAct100.pdf

I have not looked to see if F-CS has a pullup, if not you will need to set it high  as the flash is sitting on SPI.
From the H7 manual for WeAct board.
  Quote
The onboard W25Q16 SPI Flash chip is connected to SPI1 and its F_CS pin is 87 (PD6). It can be accessed
from Basic. Use SPI and set pin 87 as an output and use as the F_CS. See appendix E
Latest F4 Latest H7

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 06:04am 08 Feb 2024
Copy link to clipboard
Print this post

  disco4now said  It looks like the gitHub site for the WeAct  H7 100 pin board is gone.
Here is the schematic for it I have previously downloaded.
STM32H7xx SchDoc V11-WeAct100.pdf

I have not looked to see if F-CS has a pullup, if not you will need to set it high  as the flash is sitting on SPI.
From the H7 manual for WeAct board.
  Quote
The onboard W25Q16 SPI Flash chip is connected to SPI1 and its F_CS pin is 87 (PD6). It can be accessed
from Basic. Use SPI and set pin 87 as an output and use as the F_CS. See appendix E


Thanks Gerry, I wanna build my own board (doesn't matter which variety) so this could be useful.

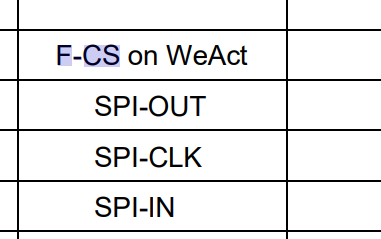

Don't know if this belongs in the manual-corrections thread but you have illustrated above, why I had to ask about 'F-CS'. It is shown on the table with a hyphen but naturally, a search of the manual found no explanation because elsewhere it has an underscore 'F_CS'.

Loving this H7. Currently have 150mm dupont wires between the WeAct and a SPI device. Happily talking @ 20MHz

Anything above that and I get bad data. Very impressive though.
SPI READ into an array (32bits) is also much faster than the 4-read method.

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4233
Posted: 08:36am 08 Feb 2024
Copy link to clipboard
Print this post

PhenixRising,

I would never rely on 5V compatibility of IO pins if I was making a new design anyway.
There is minimum cost involved to add a level shifter. And there are plenty of them.
It makes it so much more robust.

Volhout
PicomiteVGA PETSCII ROBOTS

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 09:54am 08 Feb 2024
Copy link to clipboard
Print this post

Hi Volhout,

The device will actually run on 3.3V so I'll probably switch to that.

What is not clear to me is that if the device is running on 3.3V, will the EncA, EncB and EncI inputs still be okay with 5V from the encoder.

counter-click-manual-v100.pdf

disco4now

Guru

Joined: 18/12/2014
Location: Australia
Posts: 896
Posted: 10:28am 08 Feb 2024
Copy link to clipboard
Print this post

  Quote  Don't know if this belongs in the manual-corrections thread but you have illustrated above, why I had to ask about 'F-CS'. It is shown on the table with a hyphen but naturally, a search of the manual found no explanation because elsewhere it has an underscore 'F_CS'.

Now corrected in the source document so will be fixed in the next update.
Latest F4 Latest H7

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6787
Posted: 11:17am 08 Feb 2024
Copy link to clipboard
Print this post

I'm not familiar with the chip, but if it has a pin for the IO supply then you may find that inputs must not exceed the voltage on that pin - no matter what the specified maximum is. That's because any protection diodes will probably go to that pin rather than VCC.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 01:38pm 10 Feb 2024
Copy link to clipboard
Print this post

  disco4now said
Now corrected in the source document so will be fixed in the next update.




Also, in a paragraph pertaining to the library topic, "existance" needs correcting.

Having lots of fun with this H7, Gerry. Getting all kinds of ideas.

Not critical but I really like SYNC on the Picomite. Not possible with ARMmite H7?

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 11:45am 11 Feb 2024
Copy link to clipboard
Print this post

"Adaptor" should be adapter.

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 858
Posted: 02:08pm 11 Feb 2024
Copy link to clipboard
Print this post

5V Tolerant (FT)


en.STM32G0-System-General-purpose-IO-interface-GPIO.pdf
