guma1975
Newbie

Joined: 13/01/2023
Location: Poland
Posts: 7
Posted: 06:56pm 10 Oct 2024
Copy link to clipboard
Print this post

list
' err for next ?
'sprawdzmy....
For r=0 To 15
Print r
Next r
Print "end of r=15"
Print "r=";r
> run
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
end of r=15
r= 16
>

Is this correct?? r should be 15 not 16?

----------------------------------------
MODE 4
'mode 4 for optior resolution 640!!! HDMI !!!
'320x240 32k colour
x=0
y=0
szer=179
dz=5
For g=0 To 255
Line (x+g)/dz,y,(x+g)/dz,y+szer,,RGB(255,g,b):Next g
g=255 '     =======   ERR r=256?   ======
For r=0 To 255
Line (x+r+256)/dz,y,(x+r+256)/dz,y+szer,,RGB(255-r,g,b):Next r
r=255
For b=0 To 255
Line (x+b+512)/dz,y,(x+b+512)/dz,y+szer,,RGB(0,g,b):Next b
b=255
For g=0 To 255
Line (x+g+768)/dz,y,(x+g+768)/dz,y+szer,,RGB(0,255-g,b):Next g
g=255
For r=0 To 255
Line (x+r+1024)/dz,y,(x+r+1024)/dz,y+szer,,RGB(r,0,b):Next r
r=255
For b=0 To 255
Line (x+b+1280)/dz,y,(x+b+1280)/dz,y+szer,,RGB(r,0,255-b):Next b
b=255
Print @(90,100,1)"HDMI MODE=4 320x240 32k colour"
Print @(0,190,0)

'Save image "HDMI_MODE4_320x240x32k_colour"
Option list


here is an example of a program drawing a rainbow in hdmi 640 mode 4 ... where I had to decrease the variable after the end of "FOR"
Edited 2024-10-11 05:06 by guma1975

Hans

Senior Member

Joined: 18/10/2022
Location: Canada
Posts: 116
Posted: 07:21pm 10 Oct 2024
Copy link to clipboard
Print this post

Hi All;

I have tried 6.0RC6 on a number of my PICO builds and have not had any problems except when I tried it out on the RP2040-Geek.

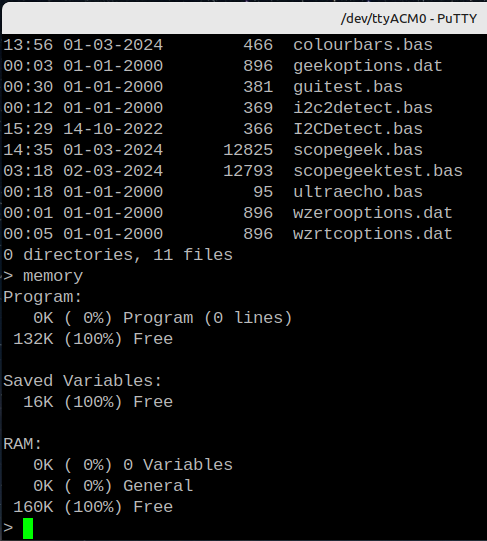

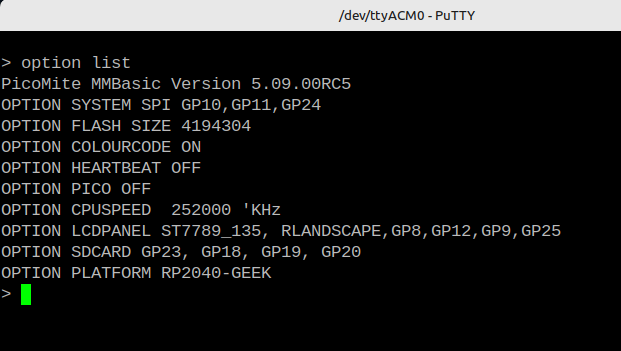

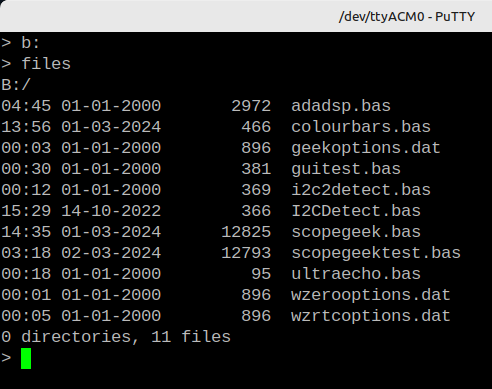

It worked properly on 5.9.0RC5 as in the screen shorts below;

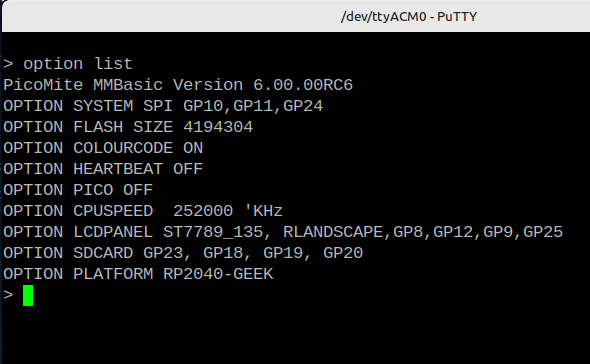

Cleared with clear_flash.uf2, Loaded 6.0RC6 shown with memory command, this shows normal at first.



Executed Option Reset RP2040-Geek

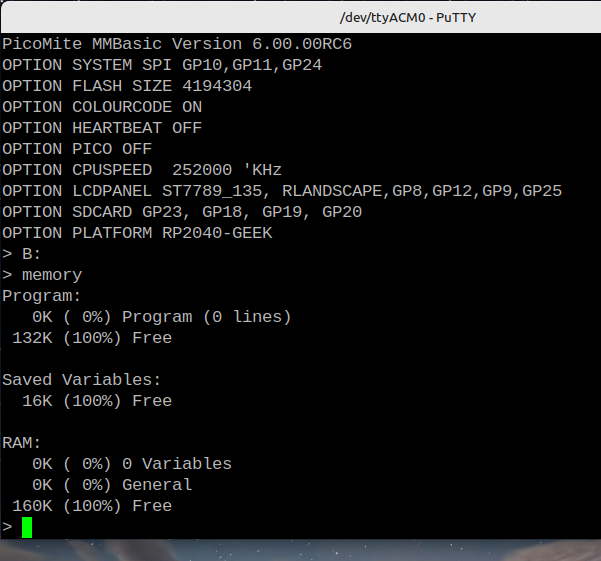

Executed B:[ENTER], note memory still looks normal

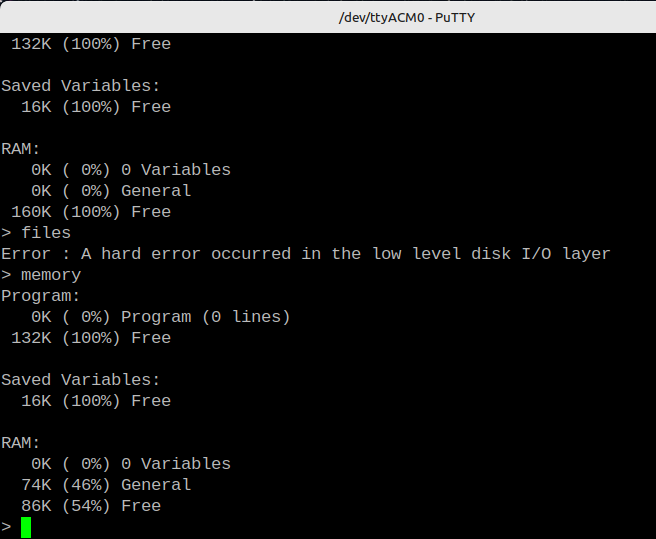

After executing the FILES command I got a drive error and the memory usage changed.



It would not read any sd cards that could be read on other PICO's.
Reading the A: was not a problem.

After I reloaded 5.9.0RC5 I was able to read the same SDCard again.

I have done this exercise twice now with the same results.

If you need more information please ask.

Thanks,
Hans ...

guma1975
Newbie

Joined: 13/01/2023
Location: Poland
Posts: 7
Posted: 06:12am 11 Oct 2024
Copy link to clipboard
Print this post

But I'm stupid... Sorry for this post for next.... this is normal behavior..... it exits the loop when the condition is not met and will be one bigger yh.... sorry.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9105
Posted: 08:18am 11 Oct 2024
Copy link to clipboard
Print this post

This is the way MMBasic works. In all versions (just tested a MM2) the loop terminates with the loop counter at 1 greater than the test value.

  Quote  I have tried 6.0RC6 on a number of my PICO builds and have not had any problems except when I tried it out on the RP2040-Geek.


I have made a change that should have already been in there ( I thought it was). The SD card is bitbanged to initialise it as the SPI baudrate needed is less than that possible with H/W SPI. Once initialised you can up the baudrate. All cards are supposed to support 12Mbit SPI. Previously, by error, the firmware continued to use bitbanging after the rate change. The firmware now switches to SPI at 12Mbit. I've tested this on multiple boards and with different cards and it gives no problems. The fact that the RP2040-Geek doesn't work suggests they have something odd about their SDcard implementation or their wiring of the sdcard relative to the display. Sorry but I don't intend to revert unless there are other reports of issues.

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4222
Posted: 08:31am 11 Oct 2024
Copy link to clipboard
Print this post

Hi Peter,

On the GEEK the SD card is SPI1 (GPIO18,19,20).
And SPI2 to the display is on GPIO10,11 is MOSI only (MISO is routed to GP24, that is NC).

So they are different SPI busses (unlike most ILI9341 alike systems).
Maybe that is part of the problem.
There is nothing odd in the GEEK circuit. See attached. Just pin-pin connections.

RP2040-GEEK-Schematic.zip

Volhout

Hans: if this can't be fixed then stay at 5.09.00. At this moment there are no changes in 6.0.0 that are important for GEEK applications. This may be different in the future, but main focus at the moment is 2350 features, and GEEK is 2040.
But even if it is fixed, when SPI1 is in use for SD card now, you cannot use it anymore for GP2/GP3/GP4. For me(personally) that is what I use to experiment on with GEEK.
Edited 2024-10-11 18:57 by Volhout
PicomiteVGA PETSCII ROBOTS

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9105
Posted: 08:54am 11 Oct 2024
Copy link to clipboard
Print this post

  Quote  On the GEEK the SD card is SPI1 (GPIO18,19,20).
And SPI2 to the display is on GPIO10,11 is MOSI only (MISO is routed to GP24, that is NC).


Oh, I'd forgotten all about that - another special case needed

Try the attached



PicoMite (2).zip
Edited 2024-10-11 18:59 by matherp

electricat

Senior Member

Joined: 30/11/2020
Location: Lithuania
Posts: 161
Posted: 09:25am 11 Oct 2024
Copy link to clipboard
Print this post

Peter,

Finnaly I found source of my problems !!

Sub PrintTime()
 Colour c(14),c(1)
 Print @(600,0);Mid$(Time$,1,5);
 Colour c(15),c(0)
End Sub


So case closed.
Bug in my head

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9105
Posted: 09:37am 11 Oct 2024
Copy link to clipboard
Print this post

  Quote  So case closed.


Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6778
Posted: 09:56am 11 Oct 2024
Copy link to clipboard
Print this post

I assume, Peter, that when a SD card is used with an assortment of pins rather than on a hardware SPI port it will continue to be bitbanged at the lower speed as before? That would make sense.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

electricat

Senior Member

Joined: 30/11/2020
Location: Lithuania
Posts: 161
Posted: 09:56am 11 Oct 2024
Copy link to clipboard
Print this post

Peter,

Still I might be missed something to read,
But why in monochrome mode it is alowed to use colour command at all as if it was used somehow like TILES ??

Working example


MODE 1
Print "No color";: Color RGB(RED), RGB(YELLOW) : Print "Now with colour"


It is comfort way, sure. But it raises problems with TILE as it seems
Edited 2024-10-11 19:57 by electricat

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9105
Posted: 10:10am 11 Oct 2024
Copy link to clipboard
Print this post

  Quote  I assume, Peter, that when a SD card is used with an assortment of pins rather than on a hardware SPI port it will continue to be bitbanged at the lower speed as before? That would make sense.


Yes, of course. The issue was the stupid design of the geek which uses a different set of SPI pins for the display than for the sdcard

  Quote  But why in monochrome mode it is alowed to use colour command at all as if it was used somehow like TILES ??


Colour sets the default foreground and background colours so, to the extent that text aligns with the tiles, the firmware uses these colours when outputting text with a print command and a text command unless it specifically overrides the defaults

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9105
Posted: 10:15am 11 Oct 2024
Copy link to clipboard
Print this post

V6.00.00RC7

Restores correct audio buffer size
Should fix an issue when the SDcard is not on the same SPI channel as the system spi


PicoMiteRP2040V6.00.00RC7.zip

PicoMiteRP2350V6.00.00RC7.zip

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1113
Posted: 10:37am 11 Oct 2024
Copy link to clipboard
Print this post

Peter

FLAC files can be played as usual, thanks for fixing it.

what still happens is that when using layers after pressing ctrl&c I get no cursor displayed, so far I could create an error by typing letters and the output appeared normally again. This no longer works, the output (EDIT etc,) only appears in the terminal but not on the screen. even a restart does not change this.
I was only able to get the console back on the screen with flash_nuke.uf2

edit: after flashing the firmware PicoMiteVGA MMBasic Version 6.00.00RC7 again, I get my console displayed again after generating an error message


Cheers
Martin
Edited 2024-10-11 21:17 by Martin H.
'no comment

homa

Guru

Joined: 05/11/2021
Location: Germany
Posts: 351
Posted: 02:25pm 11 Oct 2024
Copy link to clipboard
Print this post


Circle MM.HRes/2,MM.VRes/2,20,1,1,RGB(yellow),1

The circle remains unfilled ?!?

Solution:

Circle MM.HRes/2,MM.VRes/2,20,1,1,RGB(yellow),RGB(yellow)


Sorry.
Edited 2024-10-12 00:27 by homa

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9105
Posted: 03:40pm 11 Oct 2024
Copy link to clipboard
Print this post

It would be helpful if reports included which version you are using including which chip and any options.

  Quote  The circle remains unfilled ?!?


Are you sure it isn't filled with black which is what you have asked for?

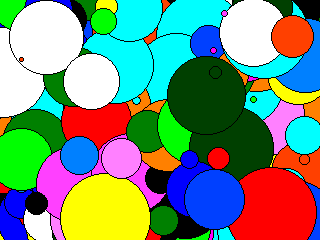

Martin: please run the following and stop it with ctrl-C. I see the normal command prompt and any subsequent typing with no issues

MODE 2
FRAMEBUFFER layer
FRAMEBUFFER layer top
FRAMEBUFFER write T
'Box i,MM.VRes\6*2,MM.HRes\4,MM.VRes\3,10,RGB(red),RGB(green)
FRAMEBUFFER write l
'Circle MM.HRes\2,MM.VRes\2,MM.HRes\4,10,1,RGB(blue),RGB(yellow)
'Text MM.HRes\2,MM.VRes\2,"MIDDLE",CM,,3,RGB(CYAN),-1
d=1
i=0
rr=0
x=Sin(Rad(0))*40
y=Cos(Rad(0))*40
Do
FRAMEBUFFER write n
r = Rnd * 255
g = Rnd * 255
b = Rnd * 255
Circle Rnd * MM.HRes, Rnd * MM.VRes, Rnd * MM.HRes/7,,, 0, RGB(r,g,b)
Inc rr,3
xl=x
yl=y
x=Sin(Rad(rr))*40
y=-Cos(Rad(rr))*40
FRAMEBUFFER wait
FRAMEBUFFER write l
Circle MM.HRes\2+xl,MM.VRes\2+yl,MM.HRes\6,0,1,0,0
Circle MM.HRes\2+x,MM.VRes\2+y,MM.HRes\6,10,1,RGB(blue),RGB(yellow)
Text MM.HRes\2+x,MM.VRes\2+y,"MIDDLE",CM,,2,RGB(CYAN),-1
FRAMEBUFFER write t
Box i,MM.VRes\6*2,MM.HRes\4,MM.VRes\3,0,0,0
Inc i,d
Box i,MM.VRes\6*2,MM.HRes\4,MM.VRes\3,10,RGB(red),RGB(green)
Text i+MM.HRes/8,MM.VRes\2,"TOP",CM,,3,RGB(magenta),RGB(green)
If i>=MM.HRes/4*3 Then d=-1
If i=0 Then d=1
Loop

Edited 2024-10-12 03:41 by matherp

Hans

Senior Member

Joined: 18/10/2022
Location: Canada
Posts: 116
Posted: 09:05pm 11 Oct 2024
Copy link to clipboard
Print this post

  matherp said
  Quote  On the GEEK the SD card is SPI1 (GPIO18,19,20).
And SPI2 to the display is on GPIO10,11 is MOSI only (MISO is routed to GP24, that is NC).


Oh, I'd forgotten all about that - another special case needed

Try the attached



PicoMite (2).zip


@Peter/@Harm

Thank you both!

Both the fix and RC7 work just fine on the Geek.

Hans ...

JanVolk
Senior Member

Joined: 28/01/2023
Location: Netherlands
Posts: 144
Posted: 09:31pm 11 Oct 2024
Copy link to clipboard
Print this post

Peter,

I finally figured out the reset issue in my previous comment.

"Did some tests with RP2040
Unstable after Version 6.00.00RC3 regarding Reset and USB connection.
After one or two resets, the USB connection is disconnected and must be reconnected manually."

The cause of the problem is TeraTerm.
Went back to version 4.106 and the reset problem no longer occurs.
So versions after 6.00.00RC3 through 6.00.00RC7 now work correctly.

Jan.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6778
Posted: 09:55pm 11 Oct 2024
Copy link to clipboard
Print this post

An alternative terminal emulator to try is YAT (Yet Another Terminal). It's rather nice and has a lot of options.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1113
Posted: 04:41am 12 Oct 2024
Copy link to clipboard
Print this post

Good morning Peter
I have finally found the culprit..
For debugging purposes, I usually use the following Line
Option lcdpanel noconsole

at the beginning of the program, To output events or variables in the terminal.that happens almost "automatically", so I didn't think about it anymore In the old versions (5.x), this was reset after the program was interrupted (ctrl/C).
this no longer happens, so the cursor etc. only appears back again when I enter
Option lcdpanel console

I can't tell if this is a bug or a feature.It can also be useful if you want to save a screenshot of (just) layer N, for example.




Cheers
Martin
Edited 2024-10-12 15:08 by Martin H.
'no comment

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9105
Posted: 07:28am 12 Oct 2024
Copy link to clipboard
Print this post

Option lcdpanel console/noconsole should not be used in a program and I will block this. It is deprecated in this usage.
Use OPTION CONSOLE SERIAL/SCREEN/BOTH to control output from PRINT statements. This is a temporary option that is reset whenever a program terminates.
In the next release I'll also add OPTION CONSOLE NONE as an option and in this case it will be reset by an error so error output isn't missed.
