stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 10:14pm 21 Aug 2023
Copy link to clipboard
Print this post

PWM 1,10000,30  'square wave ,this optional test signal comment out
adc open 500000,1 'samples per second
looks the same on lcd as
PWM 1,1000,30
adc open 50000,1
which looks like...really does
PWM 1,100,30
adc open 5000,1

hence auto range freq idea

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2137
Posted: 12:02am 22 Aug 2023
Copy link to clipboard
Print this post

1) ADC OPEN appears to have a minimum frequency of about 740Hz.
> n%=1000:do:? n% :adc open n%,1 :adc close :inc n%, -10:loop
1000
990
...
750
740
730
Error : Invalid frequency
>
With OPTION CPUSPEED (KHz) 378000
Edit - same at 126MHz - refined to 733Hz

2) freq% needs to be scaled to suit the screen width and the number of cycles you wish to display.
Setpin GP7, FIN
Pause 1000  'allow sampling time
Print " Input Frequency = ";pin(GP7)
If pin(GP7) < 2 then Print "No Signal"
cyc% = 2 'number of cycles to display.
f_samp = pin(GP7) * MM.HRES / cyc%  ' freq of ADC for cyc% cycles on screen

Do
 Inc freq%, f_samp
Loop  Until freq% > 732

If freq% > 500000 Then
 Do
  Inc freq%, -pin(GP7)
 Loop  Until freq% < 500001
Endif
Print "Sampling Freq. =";freq%
 Tested ok. If it's not quite right adjust to suit your needs.
Edited 2023-08-22 14:06 by phil99

amigawizard

Regular Member

Joined: 15/08/2023
Location: Australia
Posts: 43
Posted: 12:56pm 22 Aug 2023
Copy link to clipboard
Print this post

ch = 32



Sub DoDC CH

''   ADC close
  ch = CH
  SetPin ch , ain
  Tstop = 0
  SetTick 18.1 , tick , 2
  Timer = 0


  mDC
  Print Timer
  Tstop = 2
  SetTick 0 , 0 , 2

'Print  " DC = " ; DC ; " Vdc  "
Print Format$( DC , "    DC = %2.4f  Vdc  " )

End Sub

Sub tick

  Tstop = 1

End Sub

Sub mDC

     nDC = 0

  For n = 1 To 400
     nDC = nDC + Pin(ch)
     If Tstop = 1 Then Exit For
  Next n
  Print DC , nDC , nDC / n , n , Pin(ch)
  DC = (nDC / (n ) )
''   Print

End Sub



    DC Voltage  Meter

     this one remove`s  50 Hz  and  averages  (200+)  samples

       Wayne !

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9129
Posted: 01:04pm 22 Aug 2023
Copy link to clipboard
Print this post

The ADC clock is always 48MHz regardless of processor speed. Maximum divider of the clock is 65536 therefore 48000000/65536 = 732

amigawizard

Regular Member

Joined: 15/08/2023
Location: Australia
Posts: 43
Posted: 03:44pm 22 Aug 2023
Copy link to clipboard
Print this post

update !!



Sub dcx

ch = 32
SetPin ch , ain
m = 0
Timer = 0
Do While Timer < 19.86  '20 ms
Dc = Dc + Pin(ch)
Inc m
Loop
Print ,, Timer, m
Dc = Dc / m

  Print Dc
End Sub



    Option  F9 "dcx" + chr$(13) + chr$(10)


        Wayne  !!!!!!

.

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 05:38pm 22 Aug 2023
Copy link to clipboard
Print this post

From the manual
SETPIN GP7, FIN
print pin(GP7)
always returns 0
not the pwm frequency gp7 is connected to. Any idea why please?

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 06:21pm 22 Aug 2023
Copy link to clipboard
Print this post

Do you have to include the gate time as an option?
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 06:43pm 22 Aug 2023
Copy link to clipboard
Print this post

By default the gate time is one second which is the length of time that MMBasic will use to count the number
of cycles on the input and this means that the reading is updated once a second with a resolution of 1Hz. By
specifying a third argument to the SETPIN command it is possible to specify an alternative gate time between
10ms and 100000ms. Shorter times will result in the readings being updated more frequently but the value
PicoMite User Manual Page 32
returned will have a lower resolution. The PIN() function will always scale the returned number as the
frequency in Hz regardless of the gate time used.
For example, the following will set the gate time to 10ms with a corresponding loss of resolution:
> SETPIN GP7, FIN, 10
> PRINT PIN(GP7)
110300
It prints 0

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 08:15pm 22 Aug 2023
Copy link to clipboard
Print this post

doh..it's
 SetPin GP18,pwm1A 'this optional test signal comment out
 PWM 1,1000,50  'square wave ,this optional test signal comment out
 dim c%,x%,samples!(360),freq%
SETPIN GP7, FIN
pause 1000
print pin(GP7)' connected to gp18 pwm 1000Hz prints 1000

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 09:31pm 22 Aug 2023
Copy link to clipboard
Print this post

Phill your idea works up to 10KHz,nice start. cheers stan

 SetPin GP18,pwm1A 'this optional test signal comment out
 PWM 1,10000,30  'square wave ,this optional test signal comment out
 dim c%,x%,samples!(360),freq%,cyc%
SETPIN GP7, FIN
pause 1000
freq% = pin(GP7)
cyc% = 4 'number of cycles to display.
freq%=freq% * MM.HRES / cyc%  ' freq of ADC for cyc% cycles on screen
'print freq%
 SETPIN GP26, AIn
 adc open freq%,1 '500000,1 'samples per second


phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2137
Posted: 10:36pm 22 Aug 2023
Copy link to clipboard
Print this post

  Quote  works up to 10KHz,

In my example the the number of cycles self adjusts to keep the ADC frequency within the limits of 732 to 500000Hz to prevent an error.

Do
Inc freq%, f_samp
Loop  Until freq% > 732

If freq% > 500000 Then
Do
 Inc freq%, -pin(GP7)
Loop  Until freq% < 500001
Endif

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 10:59pm 22 Aug 2023
Copy link to clipboard
Print this post

I tried it with NPH scope but lots of code to follow.

 SetPin GP18,pwm1A 'this optional test signal comment out
 PWM 1,10000,30  'square wave ,this optional test signal comment out
 dim c%,x%,samples!(360),freq%,cyc%
SETPIN GP7, FIN
pause 1000
freq% = pin(GP7)
cyc% = 4 'number of cycles to display.
freq%=freq% * MM.HRES / cyc%  ' freq of ADC for cyc% cycles on screen
'print freq%
 SETPIN GP26, AIn
 adc open freq%,1

freq%=freq% * MM.HRES / cyc% overflows  like 20000*180/4=900000
so if freq%>500000 then cyc%=8 maybe

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 09:14pm 23 Aug 2023
Copy link to clipboard
Print this post

My simple scope needs the trigger sorted to be stable as NPH's with phil99 and other's contributions but it's simpler! so easier to mess with.
I still not figured why my plot version didn't work like NPH's but lines work.
The problem is the auto freq which works is one time so won't change if the input freq changes and testing the input freq every loop would slow it to be useless.
mmm?? dunno what to do.
edit it's not that bad if you change the adc test signal. it always looks the same up to freq>500000 then half it so twice the cycles. maybe pad them but not really exspecting high freq results from this "scope".

OPTION EXPLICIT
OPTION DEFAULT NONE
 SetPin GP18,pwm1A 'this optional test signal comment out
 PWM 1,10000,30  'square wave ,this optional test signal comment out
 dim c%,x%,samples!(360),freq%,cyc%

SETPIN GP7, FIN,10 'measure freq connect to GP26 a-d input
pause 10 'time to allow capture
freq% = pin(GP7)
cyc% = 4 'number of cycles to display.
freq%=freq% * MM.HRES / cyc%  ' freq of ADC for cyc% cycles on screen
if freq%>500000 then freq%=freq%/2
'print freq%

 SETPIN GP26, AIn 'sampling pin.. connected to GP7 and GP18 test sig
 adc open freq%,1 '500000,1 'samples per second

 FRAMEBUFFER CREATE F
 FRAMEBUFFER LAYER L
 FRAMEBUFFER WRITE L 'all graphics to LAYER L
 line 79,0,79,79,,rgb(blue) 'draw cursor
 line 0,39,159,39,,rgb(blue)
 FRAMEBUFFER WRITE F 'all graphics to buffer F

 do
   adc start samples!() 'get new samples
   'trigger, c% will be the element in samples!() to display from
   c%=0
  do:If samples!(c%) > 0.1 then if samples!(c%+1) < 0.2 then exit do
inc c%:loop while c%<160

math scale samples!(),79,samples!()'scale to 80 pixel height
FRAMEBUFFER COPY L,F 'copy cursor on layer L to buffer F
for x%=0 to 158 'screen width
     line x%,samples!(x%+c%),x%+1,samples!(x%+1+c%),,rgb(green) 'draw new sample from sample(c%)
next x%
FRAMEBUFFER COPY F,N 'copy buffer F to the display
loop


Edited 2023-08-24 07:48 by stanleyella

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2137
Posted: 10:06pm 23 Aug 2023
Copy link to clipboard
Print this post

  Quote   testing the input freq every loop would slow it to be useless.

Possibly, but once FIN is up and running you probably don't need the Pause 1000 to be in the loop. Also MMBasic on the Pico is quite fast so it is probably worth experimenting.

An alternative that might let you do away with FIN is to greatly increase the ADC buffer size so you can always run it at 500kHz.
Then count the number of times the data in the array rises (or falls) through the trigger voltage to determine how many cycles you have captured, and how many samples per cycle.
To display say 4 cycles across the screen re-scale 4 x Samples/Cycle to fit MM.HRES.

eg. if each cycle is 80 samples you will need to squeeze 320 samples into a 160 pixel screen by displaying every second sample.
For non-integer ratios some calculation will be involved in creating the output array but the Pico is quick.

When done your program won't be so short!

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 06:34am 24 Aug 2023
Copy link to clipboard
Print this post

Auto triggering like this can probably only work on a simple waveform. Anything more complex or with noise on it will very likely completely screw things up as it will be forced to recalculate on every little change.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 05:18pm 24 Aug 2023
Copy link to clipboard
Print this post

Yes Mick. all the coding in the world don't make a silk purse etc.
I think "real" scopes got a front end (daft) and hardware.
I'm expecting too much, like a sine would mess it up.
The idea of showing a-d is useful maybe to test functions like i2c or pwm but thinking if only digital signals then a-d not needed, just a pin ??

ttl to usb logic tester is not a  scope but easy to show on lcd... not tried mine.
stan lee. bruce lee next :)
Edited 2023-08-25 04:08 by stanleyella

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 06:13pm 24 Aug 2023
Copy link to clipboard
Print this post

Volhout has done a lovely logic analyser for the PicoMite.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4247
Posted: 07:44am 25 Aug 2023
Copy link to clipboard
Print this post

stanleyella,

Not sure if you ever need it in your oscilloscope, but in my morse decoder I needed to extract part of an array with FFT values into another array.
Assume you have an array size "samples()" and want to extract from starting point "x", a number of values into an other array.

You can do this using a for-next loop.
For 4 or 5 samples that is a fast solution.

If you need to copy 100 values, there is another way of doing it (much faster).
User memory copy....

' use memory copy as a replacement of a for-next loop to copy
' some data from one array to another

Dim a(5)=(1,2,3,4,5,6)
Dim b(3)

Print "extracting 4 elements from an array of 6 elements"

Print :Print "before"
Print "a()= ";:Math v_print a()
Print "b()= ";:Math v_print b()

Timer =0
Memory copy integer Peek(varaddr a())+8,Peek(varaddr b()),4
t=Timer
Print :Print "memory copy takes ";t;" ms"

Print : Print "after"
Print "a()= ";:Math v_print a()
Print "b()= ";:Math v_print b()

Print :Print "same function in a for/next loop"
Timer =0
For i=1 To 4
 b(i-1)=a(i)
Next i
t=Timer
Print :Print "for next takes ";t;" ms"

Print :Print :Print "extracting 100 elements from an array to another array"
Dim c(200)
Dim d(100)
Timer =0
Memory copy float Peek(varaddr c())+8*50,Peek(varaddr d()),100
t=Timer
Print "memory copy takes ";t;" ms"

Print :Print "same function in a for/next loop"
Timer =0
For i=50 To 150
 d(i-50)=c(i)
Next i
t=Timer
Print "for next takes ";t;" ms"


All you need to know is that each variable is 8 bytes in size.
You can also use MEMORY COPY FLOAT, MEMORY COPY INTEGER but these only adapts the size parameter, not the pointer. The starting point in the array you still need to multiply the offset by 8 (variable size = 64bits = 8 bytes).

Results:

extracting 4 elements from an array of 6 elements

before
a()=    1.0000,    2.0000,    3.0000,    4.0000,    5.0000,    6.0000
b()=    0.0000,    0.0000,    0.0000,    0.0000

memory copy takes  0.304 ms

after
a()=    1.0000,    2.0000,    3.0000,    4.0000,    5.0000,    6.0000
b()=    2.0000,    3.0000,    4.0000,    5.0000

same function in a for/next loop

for next takes  0.417 ms


extracting 100 elements from an array to another array
memory copy takes  0.231 ms

same function in a for/next loop
for next takes  6.916 ms


memory copy is 30x faster for 100 values copying

Volhout
Edited 2023-08-25 17:51 by Volhout
PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 10:41am 25 Aug 2023
Copy link to clipboard
Print this post

Any use to anyone?



This sort of RCA socket

----------------

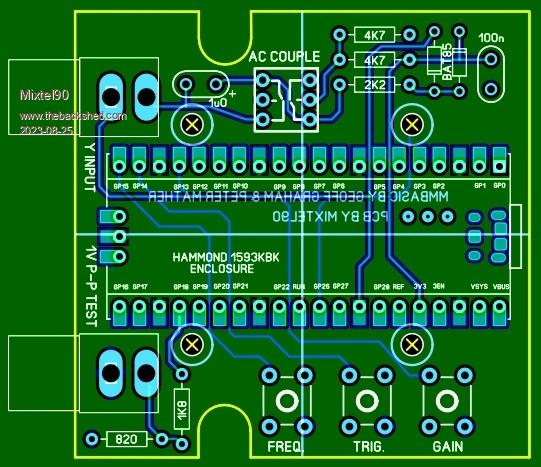

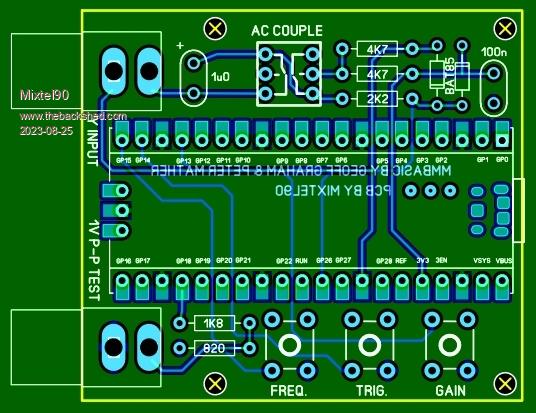

This version should fit a small, quite cheap (less than 4UKP) Hammond box. The end plates are at the sides. Obviously any buttons will have to be longer than the usual ones, so this may be for those with mechanical skills. If it could be mounted in the cover half then it may be a good version for battery operation.



.
Edited 2023-08-25 22:28 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200
Posted: 01:28pm 25 Aug 2023
Copy link to clipboard
Print this post

WOW! Absolutely.
What are next steps?
- Steve
Live in the Future. It's Just Starting Now!

     Page 8 of 17
Print this page
© JAQ Software 2024
