hitsware2 Guru  Joined: 03/08/2019 Location: United StatesPosts: 713 |
27 mm .... no enclosure ? my site |
||||
| mozzie Regular Member  Joined: 15/06/2020 Location: AustraliaPosts: 68 |
@Thwill Apologies for the cranial detonation  I hope you've recovered  Analog electronics takes years to learn, I'm at 40+ and still learning  If it's any consolation, my programs cause regular cranial detonation  For driving A small 8R speaker from a Pico: @Volhout As suggested, the DRV8838 H bridge module is now hooked up and makes an excellent PWM buffer amp. Output is almost (-200mV) rail to rail into a 8R voicecoil (8R + 37uH) and is virtually silent at no signal and equivalent to the 3W PAM at full output. Current draw is 50mA with a 100uH inductor in series with the speaker. Circuit is Module + Supply decoupling + Speaker + (optional) Inductor If designing anything with simple audio output this will be my choice. Output is better than the emitter follower design but you are reliant on the supply of the module or getting the tiny package soldered, I like discrete solutions sometimes due to an oversupply of transistors etc here  Regards, Lyle. |
||||
Turbo46 Guru Joined: 24/12/2017 Location: AustraliaPosts: 1611 |
Volhout, some questions about your latest clipping and filter circuit if I may please? - The capacitor C3 converts the PWM signal to an AC one. Does the AC signal need a high value resistor to refer it to zero volts or does the clipping action of the diodes do that? - Tom’s music does not use frequencies as high as 5kHz. Unless he does change to a triangle wave, do you really need a filter set to over 7kHz? - Just for me. Would you please temporarily remove one of the capacitors in the filter(s) and tell me if you can tell the difference? Thanks Bill Keep safe. Live long and prosper. |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
The 44kHz is always ON at 3.3Vpp levels, so the diode clipper turns it into a +0.6V/-0,6V 44kHz signal. Each Si diodes get 5mA current, so they present roughly 25/5=5 ohm dynamic resistance. With 330ohm drive resistor this attenuates the noise on the pico power rails with a factor 33. Not perfect, but significantly better. There is a DC path through the potmeter of the PAM8403, but that is not dominant. The DC output voltage is determined more by the imbalance of the diodes. Removing a capacitor makes no difference on the ears when using the small speakers and PLAY TONE with game frequencies. With music, it sounds a little brighter (which is logical, removing 1 stage brings -6dB to -3 dB). So you could use a single stage with 2.2k and 22nF The 7 kHz cut off makes a difference when using square waves, and triangle waves. Not with sine waves and 2kHz tones... I am excited about mozzie's findings. Simply replacimng the analog audio circuit with a digital one. A volume potmeter (100ohm in series with the speaker) and you are done. With a cheap aliexpress module. Volhout Edited 2023-04-01 16:52 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
phil99 Guru Joined: 11/02/2018 Location: AustraliaPosts: 2141 |
This is getting quite circular. "Simply replacimng the analog audio circuit with a digital one. A volume potmeter (100ohm in series with the speaker) and you are done." Something like that was proposed near the beginning, yet here we are turning PWM into analogue (and inheriting the noise) so it can be turned back to PWM to drive the speaker. Was this all planned to culminate on April 1? |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6814 |
If there isn't a lot of current draw on the 3V3 line, does OPTION POWER PWM help at all? Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Now totally confused Do we have a proposed solution that will provide reasonable non-clipped output into a 8 ohm speaker? i.e. sine wave that looks like a sine wave? |
||||
| Turbo46 Guru Joined: 24/12/2017 Location: AustraliaPosts: 1611 |
@Volhout, sorry I missed the resistance to 0v via the filter resistors and the volume control pot. Your results tell me that a single stage filter will do the job as long as Tom continues to use a sign wave. @Phil, I think I was the first to suggest an H-bridge chip after seeing mozzie's push-pull circuit. He says that it needs a 100mH in series with the speaker to reduce the current to 50mA, one of those rated at (say) 100mA to be on the safe side may be a little large. Without it mozzie said it would take 80mA. Is that too much current? Will that be OK for the voice coil? Will the 44.1kHz at full power overheat the voice coil? Bill Keep safe. Live long and prosper. |
||||
| phil99 Guru Joined: 11/02/2018 Location: AustraliaPosts: 2141 |
Using those measurements RMS power is unlikely to be more than 80mA x 3.3V = 260mW. Not an issue, but an inductor wouldn't hurt |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
No, this was my plan from the beginning. Just add a power buffer to the digital pwm output, powered from a clean (battery) voltage, and let it drive the speaker directly. A crude low pass filter to avoid destroying the speaker coil with 44kHz. Volume control through series potmeter in the speaker wire. But you cannot connect to a hifi set. This is pure gameboy circuit. Only drawback is that for stereo you need 2 circuits, and 2 speakers. That is why I looked at DVR8837. It has 2 half bridges, not 1 full bridge as 8838. 2 speakers is not bad if you want some decent air movement(sound). Started with PAM8403 since Tom had that already, and complained about the noise. Volhout Edited 2023-04-01 18:19 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
thwill Guru Joined: 16/09/2019 Location: United KingdomPosts: 4047 |
Hi folks, For the "final" version I'm not wedded to any particular components/modules as long as they are not made of unobtanium and ideally no SMD, and if it must be SMD then "big" SMD. If the brain trust decided it's the best option then I'm sure there will be room for an inductor and an extra filter stage even if the requirement for it is borderline. I'm playing with the PAM because it's what I have and because it's all educational. Thanks for your continued interest, Tom Game*Mite, CMM2 Welcome Tape, Creaky old text adventures |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
@peter So many solutions Headset/hifi Pico-lowpass filter-output Need: linear voltage regulator to limit ripple This is the inductor filter, or your opamp active filter. Gameboy Pico-lowpass filter-potmeter-pam8403-speaker Need: linear voltage regulator or pwm clipper Pico-buffer-lowpass filter-potmeter-speaker Need: power the buffer direct from battery. This is a full digital solution. Only at the speaker it becomes analig. Last option I still wait for parts, but Mozzie already has them. The gameboy options are not suited for hifi connection. These are specific for Toms handheld. Volhout Edited 2023-04-01 18:35 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| JohnS Guru Joined: 18/11/2011 Location: United KingdomPosts: 3816 |
Mozzie/Volhout Maybe a new thread for the H bridge version? Is it this John |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
Yes, in essence. but the 5 transistors are replaced by a chip. Edited 2023-04-01 19:00 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| JohnS Guru Joined: 18/11/2011 Location: United KingdomPosts: 3816 |
OK... I feel a schematic is about to be posted... maybe? John |
||||
| Turbo46 Guru Joined: 24/12/2017 Location: AustraliaPosts: 1611 |
That's a good idea. Maybe Tom could start a new one too: "Using the PAM4803 with the Tomboy" Maybe that would have less chance of being hijacked? Bill Edited 2023-04-01 20:00 by Turbo46 Keep safe. Live long and prosper. |
||||
| Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6814 |
"Everything You Ever Wanted To Know About PicoMite PWM Audio (But Were Afraid To Ask)" To paraphrase just a little. :) Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| mozzie Regular Member Joined: 15/06/2020 Location: AustraliaPosts: 68 |

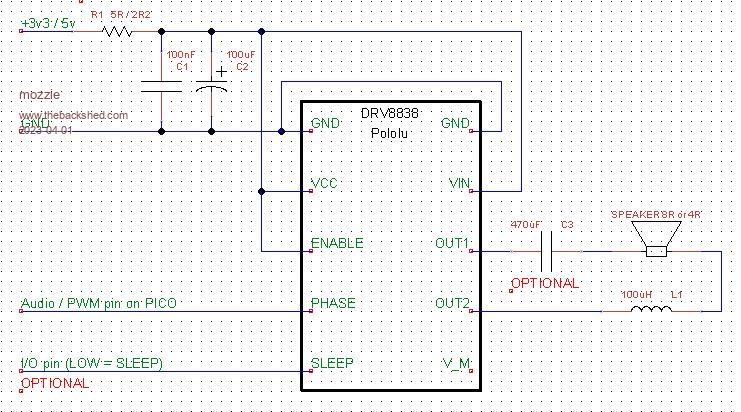

G'day All, madly attempting to stuff the worms back in to the can, alas I think the effort is in vain.. Fairly new here so apologies if offense has been caused or my efforts are seen as hijacking, I believe this thread is titled "PicoMite: driving a small speaker" and seeking filter and amp circuits for this purpose. As Tom has stated he is open to options other than the PAM amplifier and the "H bridge" is just that, except amp then filter. However I am more than happy to start (or follow) a new thread on this if he thinks this is diverging too far from the original intent of the thread or causing confusion, however I still believe for the TomBoy application, it would be perfect. Only downside is you have to buy it as a module due to the chip package  The circuit for those interested:  Current draw from Vsys on USB (4V8) 30mA idle - 160mA active (200HZ sine @ 100%) Current draw from Vsys on BATT (4V2) 26mA idle - 150mA active (200HZ sine @ 100%) Current draw with SLEEP LOW = SFA (very low) Volume control via software in sound function (or pot on A/D) As its class "D" the speaker coil resistance and inductance in series with the 100uH inductor at 44KHZ means the voice coil has around 130mW idle current, nothing to worry about. Also almost no real 44khz from the speaker using an ultrasonic transducer as a microphone (and our cats aren't bothered by it either) Happy to help either way. Regards, Lyle. |
||||
| JohnS Guru Joined: 18/11/2011 Location: United KingdomPosts: 3816 |
I'm thinking the 130mW is a better measure of tweeter survival than the transducer measurement (I guess a tweeter might fail to move adequately yet overheat, with rather more than 130mW). Er, 130mW isn't current, it's power, dunno whether you meant 130mA? John |
||||
| phil99 Guru Joined: 11/02/2018 Location: AustraliaPosts: 2141 |
It's about the same either way. 130mA^2 * 8R = 135mW at 160mA it's 205mW - barely warm. Edited 2023-04-01 22:32 by phil99 |
||||
