Forum Index : Microcontroller and PC projects : Ready to run PicoMiteVGA for GBP25 - good price?
  Page 6 of 7   |
|||||
| Author | Message | ||||
| matherp Guru  Joined: 11/12/2012 Location: United KingdomPosts: 9128 |

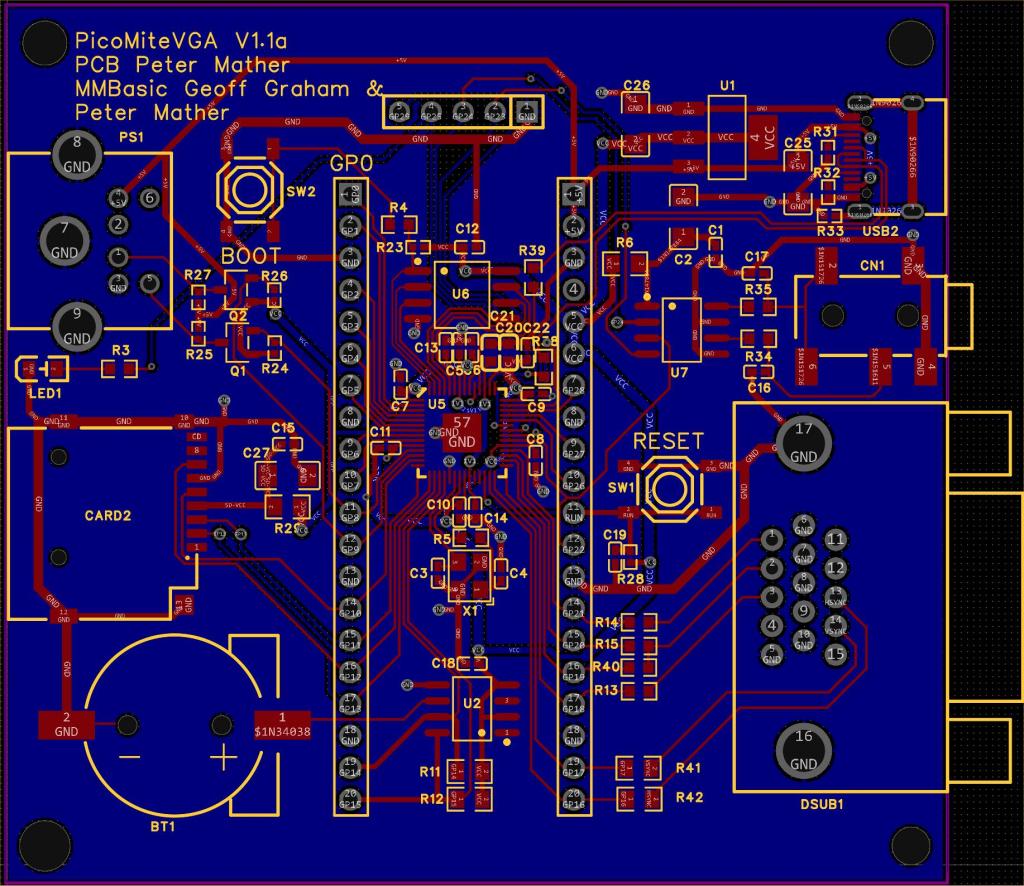

The latest versions of the gerbers etc. are here Attached below for convenience VGAboards.zip V1.0a and V1.1a V1.0a is the passive audio filter version V1.1a uses the MCP4822 DAC Changes from V1.0: Fix misplaced silkscreen Board now 75x70mm (was 75 x 67) to meet minimum 70mm width for JLC Added 47 ohm resistors in HSync and VSync When loading the files to JLC it is recommended to de-select headers J1, J2, and H1 to reduce cost  Edited 2023-06-15 19:43 by matherp |
||||
| Calli Regular Member  Joined: 20/10/2021 Location: GermanyPosts: 74 |
BTW: The RTC DS3231MZ+TRL is out-a-stock at JLCPCB now (ok, 2 left). And other suppliers call like 10$. Are there any compatible replacements? Cheers, Carsten |
||||
| hhtg1968 Senior Member  Joined: 25/05/2023 Location: GermanyPosts: 123 |
i sent the data to jlcpcb and ordered 5+5 boards… i am in tention… |
||||
atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
Do you have one Board left? I'am interested to play around with the VGA Version Danke, Dietmar |
||||
| hhtg1968 Senior Member Joined: 25/05/2023 Location: GermanyPosts: 123 |
yes of course i only ordered so many pieces because you cannot order one. i think in a week i have this boards. the price for 5 boards is 76 $. |
||||
| atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
@hhtg1968 I have send you a PM with this Forum Software. Grüße |
||||
| mclout999 Guru Joined: 05/07/2020 Location: United StatesPosts: 469 |
hhtg1968 HI. If you have another one left what would it cost including shipment to USA? Or do you need a DM for that? Dose this board have the ICs soldered on or is it just the PCB? Edited 2023-06-18 00:08 by mclout999 |
||||
| hhtg1968 Senior Member Joined: 25/05/2023 Location: GermanyPosts: 123 |
hello. the picomites are on the way. i will inform about the amount of $ to send them... |
||||
| mclout999 Guru Joined: 05/07/2020 Location: United StatesPosts: 469 |
Thanks. |
||||
| atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
@hhtg1968 any news regarding the boards?  |
||||
| hhtg1968 Senior Member Joined: 25/05/2023 Location: GermanyPosts: 123 |
still i have them not. i will remind to deliver but i am on journey until saturday. |
||||
| okwatts Regular Member Joined: 27/09/2022 Location: CanadaPosts: 59 |
I just received my batch of 5 v1.0a today. All working to the point of installing version 5.07.07 running at least on serial. One tested on the VGA with overclocking to 378Mhz and sound, SD card etc working. JLCPCB were out of the DS3231 so these came without the clock chip. Price $120 USD delivered by UPS with a $10 reduction coupon. The downside is I am waiting for 5 DS3231 from LCSC for $19USD including shipping. I will have to solder them myself but it looks doable. The real downside is paying UPS another $32 CDN for their broker fee and GST. Next time take the slow boat and get it by mail. So far I'm happy and I hope my grandson will be when I give him one to experience MMBasic. He just purchased a VIC20 with 5 K of memory so this should be a real step up for him. He has already had experience with Raspberry PI and python so he has now entered retro computing for real. |
||||
ice2642 Regular Member Joined: 27/05/2023 Location: BrazilPosts: 82 |
If I had seen this board before I bought mine, I would definitely have chosen it, $25 I thought was a good price. Good job! MMBasic 5.0707 on PicoMite VGA |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6798 |
It doesn't cost much to build one from scratch, but this version is great for those with limited soldering skills. It's just more work sourcing the components if you are scratch building. PCBs are cheap enough if you get the 100mm square special offer from JLCPCB. Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
Hello, any News about the Boards? Did you receive them? THX |
||||
| atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
Hello hhtg1968, i can see, that you are active again in the Forum, after your "Holidays". Please give me a short Update if the Boards have arrived and if you are still willingto sell/send me one of them. I'am still interested I have tried to contact you via the private Messanger several Times. THX Dietmar Edited 2023-07-20 23:24 by atmega8 |
||||
| atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
@hhtg1968 wieso meldest Du dich nicht mehr? BG |
||||
| atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
Die Besten sind die, die nichts versprechen, aber trotzdem alles halten;-( Danke |
||||
| Calli Regular Member Joined: 20/10/2021 Location: GermanyPosts: 74 |
Hey, I used that fine board for an article in the german Make Magazin. https://www.heise.de/ratgeber/Platinen-aus-China-bestueckt-bestellen-9211997.html All the beste and many thanks! Carsten |
||||
| atmega8 Guru Joined: 19/11/2013 Location: GermanyPosts: 722 |
Carsten, do you have one board left? What did you pay in €? Edited 2023-08-07 01:20 by atmega8 |
||||
