Forum Index : Microcontroller and PC projects : 2 new Picos announced!
  Page 5 of 6   |
|||||
| Author | Message | ||||
| PhenixRising Guru  Joined: 07/11/2023 Location: United KingdomPosts: 857 |
RPi: "Can be programmed in C or µpython" I wish to heck that they would acknowledge this amazing development.  |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |

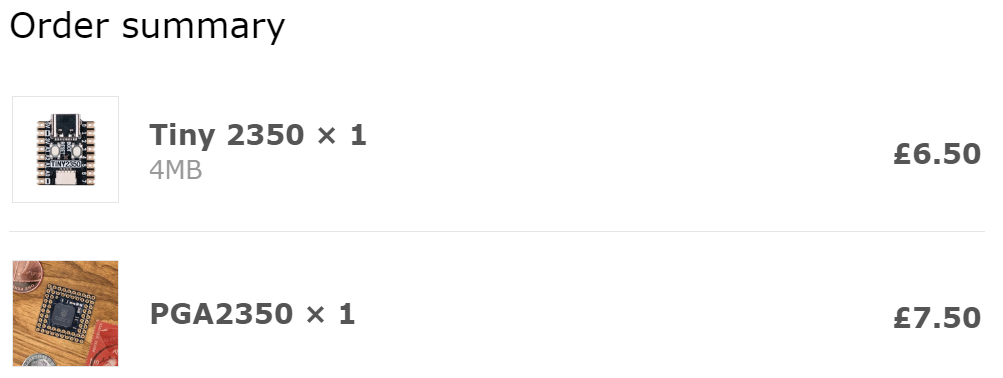

I'm such a copy-cat   |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6780 |
It can also be programmed in Rust if you prefer. Apparently it runs nicely using both the ARM and Hazard3 compilers. :) Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Yeah, I'll get right on that   |
||||
| zeitfest Guru Joined: 31/07/2019 Location: AustraliaPosts: 482 |
So, have I got this right ? There are two versions A and B. A (70 pin) has a set of two cores and is available as a Pico 2 board etc. B (80 pin) has the two cores but also a set of two RISC-V cores. If the A version 12-bit AD is only 9.2 bits effective, I doubt that the B version will be better, maybe worse as there may be more noise. |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9110 |
Mick, please can you point me to the reference for this - thanks |
||||
| Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6780 |
All versions of the RP2350x have the same, identical core chip. There are no differences. The type A 60-pin has 30 IO brought out, 4 ADC channels The type B 80-pin has 48 IO brought out, 8-ADC channels Also, there are the RP2354x packages. These are identical to the above but also have a 2MB flash chip internally, bond-wired in. This replaces the normal external flash chip. The ADC has yet to be proven, I think. Supposedly the silicon now works as specified. It could be that all degraded performance could be the result of poor noise performance because of the switcher and/or an instable reference supply. I wouldn't knock it yet. @Peter I saw it mentioned in a blog, but I think he was referring to the Errata section of the Datasheet. Page 1339. RP2350-E3. This looks like it might be the one. Edited 2024-08-16 17:09 by Mixtel90 Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6780 |
I'm part way there. I have a SL6 macro for the PGA2350 now. :) No way are JLCPCB going to silk screen that pin text though. I hadn't realized how big HDMI breakout boards seem to be either! . Edited 2024-08-16 20:46 by Mixtel90 Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6780 |
I feel swindled! GP47 is ADC7, but it's also the chip select for the external PSRAM. I only realized it *after* I'd used it for audio output as well. :) Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |

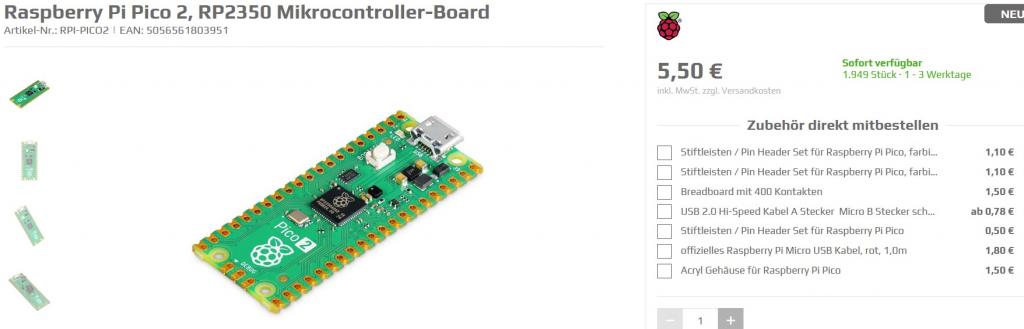

today i was able to order the Pico2 at Berrybase   'no comment |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Is this a private party? |
||||
| Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6780 |
Hehe....  Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
Will this work with mmbasic? https://shop.pimoroni.com/products/pimoroni-pico-plus-2 |
||||
| Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6780 |
Very likely. :) Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| Bleep Guru Joined: 09/01/2022 Location: United KingdomPosts: 509 |
What's wrong with this one, significantly cheaper, in stock, ships today? Pico 2 from Pimoroni Edited 2024-08-23 18:36 by Bleep |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4223 |
Pimoroni also have a pico2 with 8 Mbyte PSRAM and 16Mbyte flash. Same pinout as pico1 Volhout PicomiteVGA PETSCII ROBOTS |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9110 |
Pleased to confirm the M33 core now has the grunt to real-time decode mp3 files even at 133MHz so that functionality will be added to MMBasic like the CMM2 Edited 2024-08-23 22:14 by matherp |
||||
| cosmic frog Senior Member  Joined: 09/02/2012 Location: United KingdomPosts: 284 |
It just gets better and better  Many Thanks. Dave. |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
I ordered 2. thanks for the link |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
It looks like the one I asked if working with mmbasic. https://shop.pimoroni.com/products/pimoroni-pico-plus-2 early days and pico2 on order, see how it works. |
||||
