Martin H. Guru  Joined: 04/06/2022 Location: GermanyPosts: 1113 |
Yes, but I will give it a try, as soon as I have the Game*Mite here and running. In the little Scroll demo there is a Pause 75 Command so that it runs at a tolerable speed. This means that, if you don't take the rest of the program into account, it runs at 13 FPS and smoothly. If we can display that on the LCD at around 10 FPS, would it be worth implementing. But that's all in the future, so far we just have the graphics (80%), the maps (100%) and the fast Sprite screen routine. Edited 2023-09-22 23:36 by Martin H. 'no comment |
||||
| Bleep Guru Joined: 09/01/2022 Location: United KingdomPosts: 509 |
Hi Martin & Harm, I have tested on a LCD display, this is the code I used. 'CSUB scroll test 'MODE 2 FRAMEBUFFER create Dim LV$(64) Length 128 Open "Data\LEVEL-c" For input As #1 For f=0 To 63:LV$(f)=Input$(128,#1):Next Close #1 'make an index file create_index 'prepare screen 'path$="tiles\" FRAMEBUFFER layer FRAMEBUFFER write l Load image "layer.bmp" FRAMEBUFFER write f ox=0:oy=32 For y=0 To 8 For x=0 To 12 vl=Asc(Mid$(lv$(y+oy),ox+x+1,1)) Blit compressed tile_index%(vl),x*24,y*24 Next Next FRAMEBUFFER write l ox=13 x=0:oy=32 'scroll left f=4:y=0:sn=0 Do FRAMEBUFFER write l Blit compressed sprite_index%(4+sn),120,96 Inc sn:If sn=4 Then sn=0 FRAMEBUFFER write f 'Blit scroll -8,0 If f=7 Then 'draw next column For y=0 To 8 vl=Asc(Mid$(lv$(y+oy),ox,1)) Blit compressed tile_index%(vl),264,y*24 Next y=0:Inc ox:If ox>116 Then ox=1 f=4 EndIf Inc f:Pause 75 FRAMEBUFFER copy l,f FRAMEBUFFER copy f,n Loop ...... No changes from here on. This is Harms code as supplied in the zip a couple of posts back, but with a FRAMEBUFFER Create added to use in place of the N buffer. First problem is that I have had to comment out the Blit scroll -8,0 because I get a syntax error? I don't think my display can be read from, but I though that was why the F buffer was being used? Second problem is that transparency doesn't appear to work. This is the image I get with the code as shown above, the little man is animated, otherwise nothing is moving, (not surprising as I've removed the scroll).  Just to be sure the tiles are loading ok, I reversed the frame buffercopy, to become. FRAMEBUFFER copy f,l FRAMEBUFFER copy l,n Which gives:-  Now the strip of tiles on the Right are updating, but everything else is obliterated and static, no little man. As is, with the Pause removed each frame is taking between 89 and 93mS at default cpu speed, 81 to 84mS at cpuspeed 252, as expected, the speed is limited by the display communications. If I'm doing something wrong, let me know and I'll try again. :-) Regards, Kevin. Edited 2023-09-23 03:47 by Bleep |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4243 |
This is something to investigate. Scrolling on vga requires plainting new sprites, on the left side of the screen. That is correct. I am not sure the VGA layers N and L will work correct on a LCD. Maybe all must be painted in 1 layer. PicomiteVGA PETSCII ROBOTS |
||||
| Bleep Guru Joined: 09/01/2022 Location: United KingdomPosts: 509 |
Wouldn't that mean having to load the image "layer.bmp" each frame, which would be very slow? |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |
@harm Ready clicking Pixels  here is the enhanced Spriteset. I have now drawn a border around them to make them more clearly visible I also included the SPR Files, to be on the Save site. additionally I painted the 6 48x48 Health Sprites the spr_csub.bas should be replaced with the new set and the new Index file. The Healtz Sprites are new. New-Sprites.zip have fun 'no comment |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |
Kevin Nice to see your Work in Progress.. let me guess  ...Load the Layer.bmp to the normal Display.. Now switch to the Framebuffer do the Tilework temporarily capture the Area where the Player Sprite should be placed... draw the Player Sprite to its place the Framebuffer. use Peters new implemented command to copy just the area you need to see to the N screen should be BLIT FRAMEBUFFER F, N, 0,24,0,24,266,168 redraw the buffered area to delete the Playersprite and restore the Background,on the Framebuffer look if you can replace the missing Blit scroll -8,0 Command with blit 8,0,0,0,312,240 Sadly I have no working LCD Pico at the moment thats why I can not test it. its a Guess Cheers Martin Edited 2023-09-23 05:44 by Martin H. 'no comment |
||||
| Bleep Guru Joined: 09/01/2022 Location: United KingdomPosts: 509 |

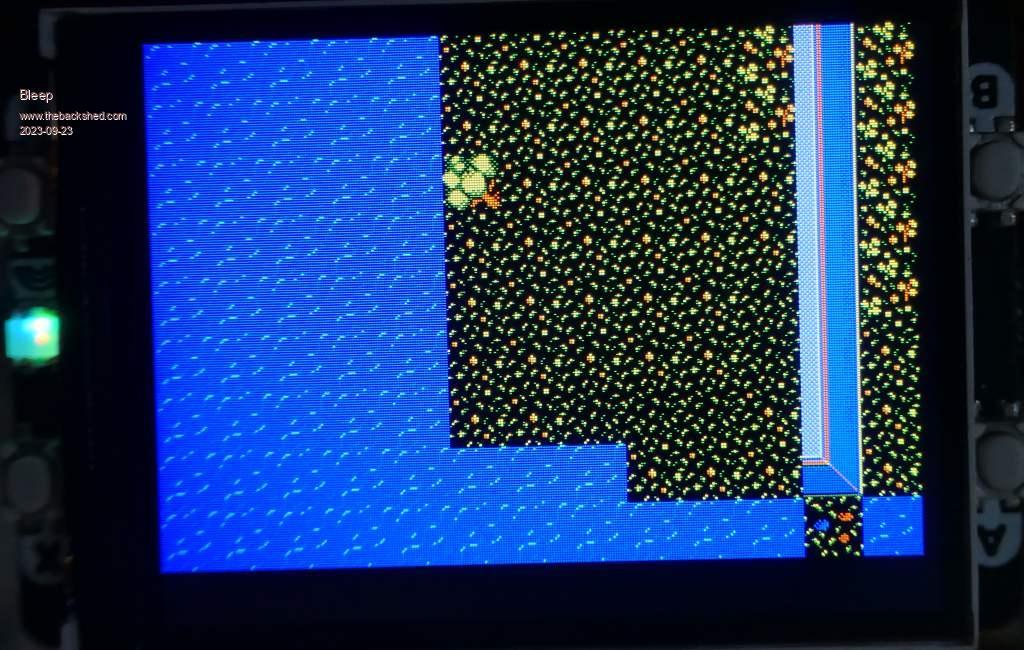

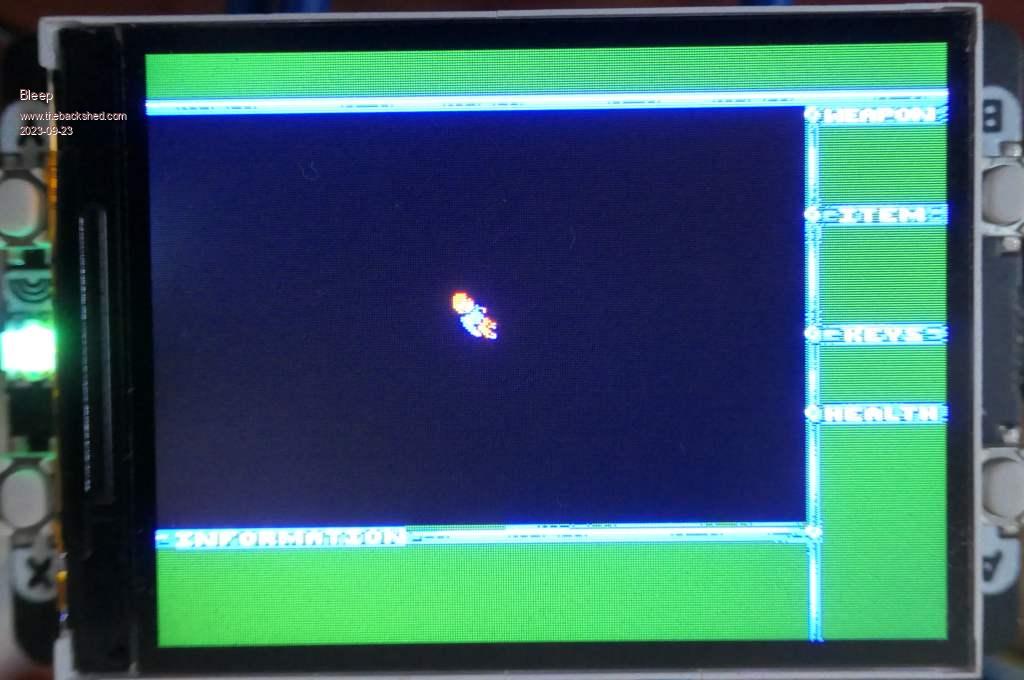

Hi Martin, Have got it basically working, the only thing wrong is the moving character has a black background, everything else is as it should be, I hope. 'CSUB scroll test FRAMEBUFFER create 'f FRAMEBUFFER layer 'l Dim LV$(64) Length 128 Open "Data\LEVEL-c" For input As #1 For f=0 To 63:LV$(f)=Input$(128,#1):Next Close #1 'make an index file create_index 'prepare screen 'path$="tiles\" Load image "layer.bmp" FRAMEBUFFER write f ox=0:oy=32 For y=0 To 8 For x=0 To 12 vl=Asc(Mid$(lv$(y+oy),ox+x+1,1)) Blit compressed tile_index%(vl),x*24,y*24 Next Next ox=13 x=0:oy=32 'scroll left f=4:y=0:sn=0 Do :Print Timer:Timer =0 FRAMEBUFFER write f Blit 8,0,0,0,312,240 If f=7 Then 'draw next column For y=0 To 8 vl=Asc(Mid$(lv$(y+oy),ox,1)) Blit compressed tile_index%(vl),264,y*24 Next y=0:Inc ox:If ox>116 Then ox=1 f=4 EndIf Inc f':Pause 75 FRAMEBUFFER Blit f,n,0,24,0,24,266,168 FRAMEBUFFER Write l Blit compressed sprite_index%(4+sn),120,96 Inc sn:If sn=4 Then sn=0 FRAMEBUFFER Blit l,n,120,96,120,96,24,24 Loop Seems like a waste to use one whole frame buffer for the character, but I couldn't find a way of pasting him straight to the N buffer, everything else I tried, he would always leave a trail. At 252MHz the update is about 130mS. Regards Kevin. Edited 2023-09-23 07:18 by Bleep |
||||
vegipete Guru Joined: 29/01/2013 Location: CanadaPosts: 1109 |
Just a request for anyone posting demo code - could you add a comment at the start of the program identifying what hardware the demo is for. VGA / LCD / etc. And if it needs an SD card or not, or any other special hardware. Thanks. Visit Vegipete's *Mite Library for cool programs. |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |
Kevin, yes, thats why i asked for buffering the background of the Sprite before painting it. Restore the Background before scrolling. so you dont need a extra Framebuffer for it. change the Part in your code: ... 'we are on Framebuffer "F" Inc f':Pause 75 'Buffer the Background Blit read 10,120,96,24,24 'draw the Player Blit compressed sprite_index%(4+sn),120,96 'copy all to Display FRAMEBUFFER Blit f,n,0,24,0,24,266,168 'restore the Background Blit write 10,120,96 Inc sn:If sn=4 Then sn=0 AFAIK the Blit compressed has no tranparency, so the Sprite will have a Black Background. Maybe in the Future it will extend it to boolean algebra, that one can AND a Mask and then OR the Sprite (something forthe Wishlist) Cheers Martin Edited 2023-09-23 20:10 by Martin H. 'no comment |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |

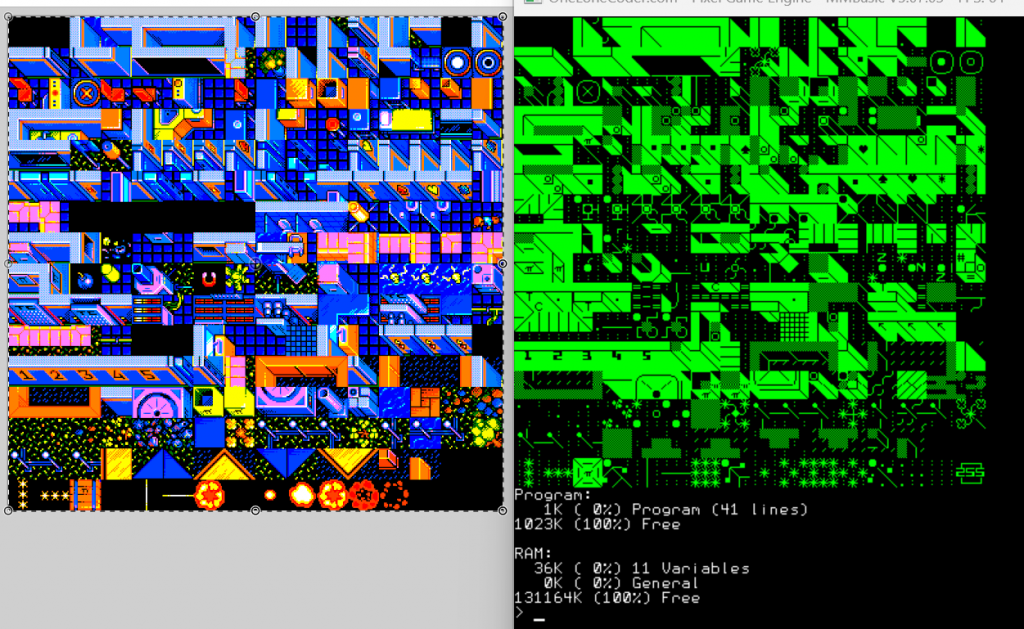

to whom it may concern WIP Imanaged to decode and display the PETSCII Tileset in MM Basic Here is a comparison between the graphic tiles we use and the tiles, generated with the PETSCII (GFX Font). (the 36 K Variables includes the Space for the LevelMap)  just for the case Or transfere it later to other Mites Edited 2023-09-24 01:47 by Martin H. 'no comment |
||||
thwill Guru Joined: 16/09/2019 Location: United KingdomPosts: 4042 |
It's looking really neat, if you can get this working on the PicoMite I think it will be the most impressive game since Mauro Xavier's work (on the much more powerful CMM2). Tom Edited 2023-09-24 02:05 by thwill Game*Mite, CMM2 Welcome Tape, Creaky old text adventures |
||||
| Bleep Guru Joined: 09/01/2022 Location: United KingdomPosts: 509 |

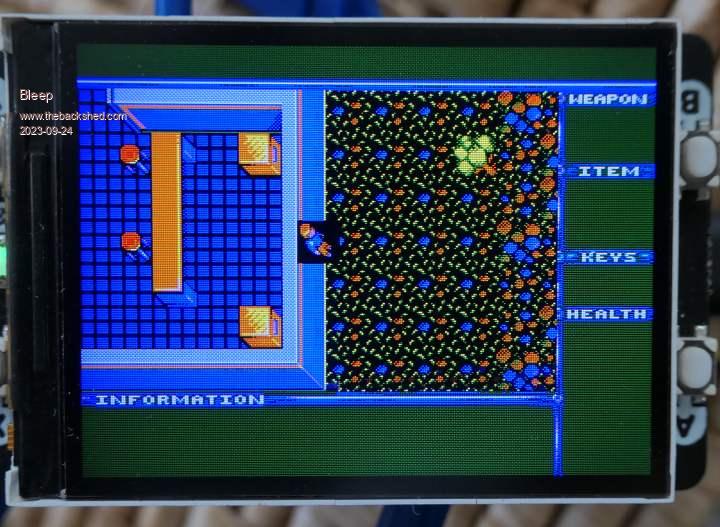

Hi Martin, Yes sorry I didn't quite see what you meant, the code example explained it. All working now with only one frame buffer. 'scroll left f=4:y=0:sn=0 Do :Print Timer:Timer =0 Blit 8,0,0,0,312,240 If f=7 Then 'draw next column For y=0 To 8 vl=Asc(Mid$(lv$(y+oy),ox,1)) Blit compressed tile_index%(vl),264,y*24 Next y=0:Inc ox:If ox>116 Then ox=1 f=4 EndIf Inc f':Pause 75 Blit read 1,120,96,24,24 'Draw the player Blit compressed sprite_index%(4+sn),120,96 'Copy to the display FRAMEBUFFER Blit f,n,0,24,0,24,266,168 Blit write 1,120,96 Blit close 1 Inc sn:If sn=4 Then sn=0 Loop  Unfortunately it hasn't really made any difference to the screen update rate, I'm now getting 128 to 130mS per screen update at 252MHz. |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6798 |
An SPI LCD will never really fly along, unfortunately. A parallel one would be much better. Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |
Thanks Tom, but if it gets finished it will be a joint "product" by the community. I can do my part for the graphics, possibly the screen routines and next the translation of the sounds and music. Experience has shown that I lack patience when it comes to implementing the game logic  'no comment |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |
This was to be expected since we didn't change the output. BUT: There were similar starting problems with the Apple 2 version. David reported that this was solved by only redrawing the parts of the screen where there were changes. In my opinion, you shouldn't give up on this yet 'no comment |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |

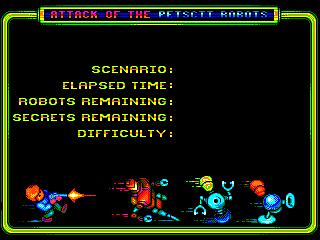

Good Morning, I converted / Repainted the next puzzle piece to Pico Colors for the Game Intro screen:  I left the Space for Messages while Loading, Copyright etc. End Screen:  Health phases (I already posted as CSUB)...  Have a nice Sunday Mart!n Edited 2023-09-24 19:10 by Martin H. 'no comment |
||||
| Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6798 |
This is lovely artwork, Martin. :) Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |
thankyou whats left to do are the Sprites for the Items (Bomb, Magnet, Gun, Keycards) the Animated Tiles and the Font then every graphic thing is ported to the Pico. then I start listening to the Sounds, and Music used in the Game. When I think about it, I immediately have the first question. @Volhout? (or anyone who is familiar with PWM programming on the Picomite) Is there a clever way to change thw Pulswith of a squarewave, while playing? SO the carrier is the actual tone and the pulse width is the modulation. Like they do on the Atari 7800 Soundtrak. Edited 2023-09-24 20:45 by Martin H. 'no comment |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9122 |
I've been offline for a day or two so catching up on my reading some thoughts to attend or ignore as you will 1. I believe this program can only work successfully on the PicoMiteVGA. It has a memory mapped screen like the retro computers. All transfers to a TFT display, whether SPI, or parallel, are and always will be blocking so you will always lose a big chunk of processor time. Without a big enough memory for true TFT framebuffer (RGB565) it is not possible to do background transfers using DMA or similar 2. At the moment the VGA SPRITE functionality (store background, display sprite, restore the background if sprite is moved) works well but is inefficient as sprites are stored as RGB888 images. I could re-code this to use RGB121. It is a fair amount of work and would only consider it if there was a genuine use case. 3. It is possible to conceive a process whereby the library is loaded from a binary file. So, from the perspective of the game provider, they would create the library using multiple loads as now. They could then execute a command LIBRARY SAVE fname$ which would write the library to a file as a binary image. A second command LIBRARY LOAD could then be used to read in that file and completely overwrite any existing library. These would be command-line commands. I can't think of a better approach but am open to ideas. |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4243 |
@Peter, Not sure how large the keyboard buffer is, we may ne able to send a file tp the buffer. A script file. Executing all separate commands in it. Only continur to the next command when the prompt is reveived from the parser. Volhout PicomiteVGA PETSCII ROBOTS |
||||
