scruss
Regular Member

Joined: 20/09/2021
Location: Canada
Posts: 86

Posted: 05:16am 02 Jan 2023

Copy link to clipboard

Print this post

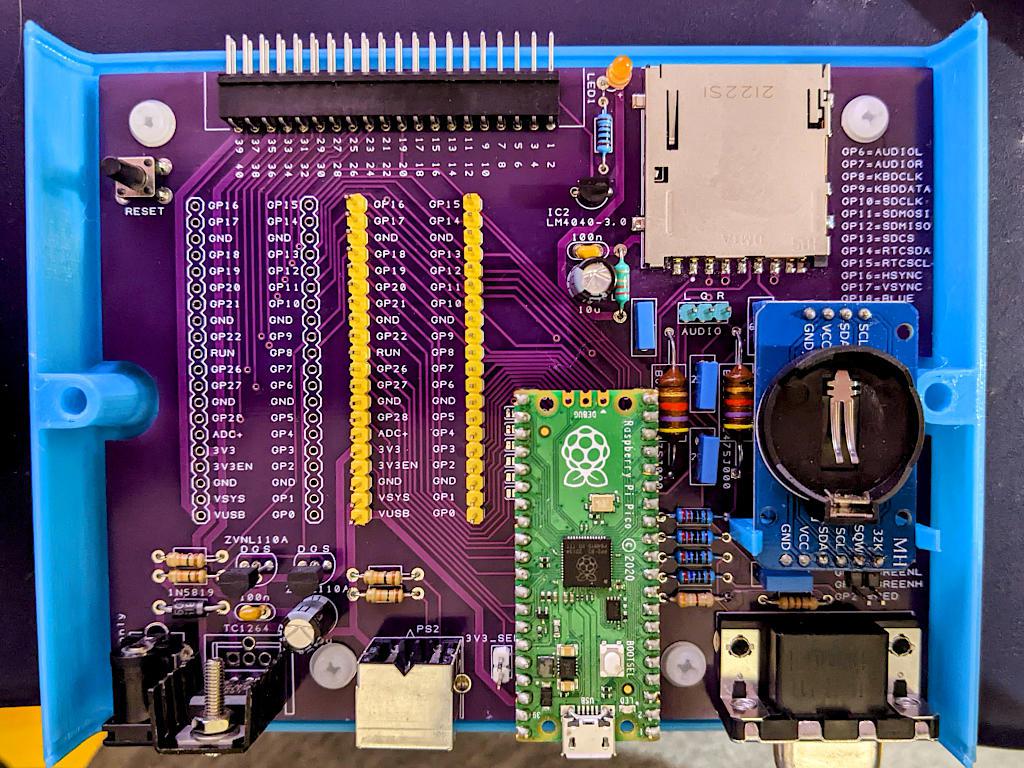

Here's my almost-complete build:

I've been designing my own 3d-printed case, as the Multicomp ones aren't all that easy to get here. It's almost entirely interchangeable with the original case. I'll release it when I've got one with proper cutouts for the ports

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4239

Posted: 07:11am 02 Jan 2023

Copy link to clipboard

Print this post

Nice build !

I like the purple board. Mine where "cheap" green...
But the combination with the blue casing is challenging !!
Welcome to the VGA club

Volhout

PicomiteVGA PETSCII ROBOTS

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 09:22am 02 Jan 2023

Copy link to clipboard

Print this post

It looks great!

John

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9122

Posted: 12:23pm 02 Jan 2023

Copy link to clipboard

Print this post

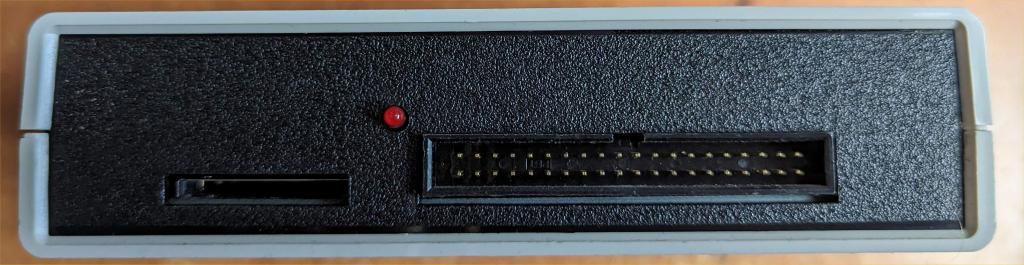

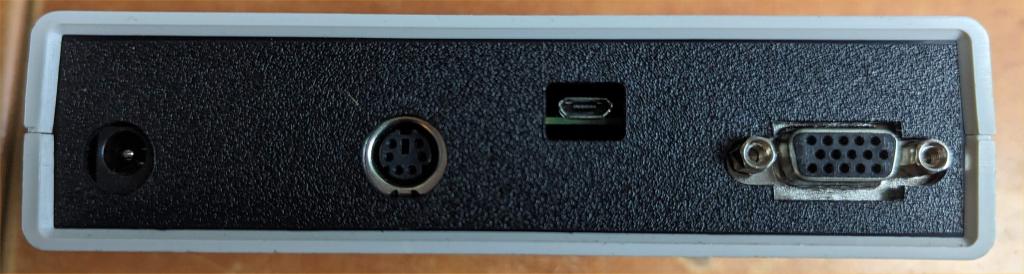

Attached dxf and the original Cambam design files for my end-plates. As pictured these were cut with a LED laser

PicoMiteVGApanels.zip

scruss
Regular Member

Joined: 20/09/2021
Location: Canada
Posts: 86

Posted: 01:10pm 02 Jan 2023

Copy link to clipboard

Print this post

Volhout said
But the combination with the blue casing is challenging !!

You ain't seen the bright pink endplates yet!

scruss
Regular Member

Joined: 20/09/2021
Location: Canada
Posts: 86

Posted: 01:15pm 02 Jan 2023

Copy link to clipboard

Print this post

matherp said Attached dxf and the original Cambam design files for my end-plates.

Much appreciated. Working out where the ports are supposed to live is harder than designing the case in OpenSCAD, so everything helps here.

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4239

Posted: 07:57am 06 Jan 2023

Copy link to clipboard

Print this post

matherp said Attached dxf and the original Cambam design files for my end-plates. �As pictured these were cut with a LED laser

Did you cut this on a Eleksmaker (like an A3 ?) or did you use more professional (higher power) cutter ?
I have one of these A3's and am still looking at how to use it best. It is quite accurate, but the laser itself is harder to focus for the real small stuff (PCB's). And it is only few watt. Maybe black plastic may work. Did not try that yet.

Volhout

P.S. scruss: I found PINK LED's....
Edited 2023-01-06 17:59 by Volhout

PicomiteVGA PETSCII ROBOTS

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9122

Posted: 09:31am 06 Jan 2023

Copy link to clipboard

Print this post

I use this although I've now upgraded it further with this laser module (I didn't pay that much!!!). Forget the 80W, it is actually two 7.5W laser diodes with the beams combined.

PaulZX
Newbie

Joined: 23/02/2023
Location: Germany
Posts: 3

Posted: 08:29am 26 Feb 2023

Copy link to clipboard

Print this post

scruss said Here's my almost-complete build:

I've been designing my own 3d-printed case, as the Multicomp ones aren't all that easy to get here. It's almost entirely interchangeable with the original case. I'll release it when I've got one with proper cutouts for the ports

Hello, I just want to ask if you got any further?
I'd love to 3d print my own case and make the front and back plate as PCBs.
Kind regards Paul

PaulZX
Newbie

Joined: 23/02/2023
Location: Germany
Posts: 3

Posted: 09:46am 26 Feb 2023

Copy link to clipboard

Print this post

Volhout said For those who do are running out of PS2 keyboards, this cheap keyboard works with picomite VGA. It has slightly larger travel than the real laptop keyboard, and slightly heavier force required. But for the price, you can't beat it...

Make sure you order the PS2 version, not the USB version....

small PS2 keyboard

Volhout

The link seems to be expired, can you please update it?

LucV

Regular Member

Joined: 19/02/2023
Location: Netherlands
Posts: 62

Posted: 12:52pm 26 Feb 2023

Copy link to clipboard

Print this post

Are these boards still available ???
And what would they cost ??

I was going to build a PicoMiteVGA first on breadboard and then on stripboard (whicH I might do anyway) but this looks much nicer !!!

I am in the Netherlands BTW.

Luc

Luc's tech Blog

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6797

Posted: 01:08pm 26 Feb 2023

Copy link to clipboard

Print this post

Most of the PCBs for PicoMite projects aren't available to buy as it often costs more in postage than it does for the boards!

There are Gerber files on Geoff's site for you to get your own boards made. The cost is pretty low, e.g. I pay a bit over 6 UKP for five 100mm x 100mm boards from JLCPCB, including cheapest shipping. I don't know the cost of that particular board but it won't be an awful lot more.

I'd advise that you find sources for the components before getting boards made as sometimes availability changes after design.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9122

Posted: 01:34pm 26 Feb 2023

Copy link to clipboard

Print this post

The latest gerbers are towards the bottom of page 3 of this thread - use these rather than the ones off Geoff's site which I think are an earlier version

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4239

Posted: 03:25pm 26 Feb 2023

Copy link to clipboard

Print this post

If you need 1 pcb, pm me. I have a spare.

Volhout

PicomiteVGA PETSCII ROBOTS

scruss
Regular Member

Joined: 20/09/2021
Location: Canada
Posts: 86

Posted: 06:57pm 26 Feb 2023

Copy link to clipboard

Print this post

PaulZX said Hello, I just want to ask if you got any further?
I'd love to 3d print my own case and make the front and back plate as PCBs.
Kind regards Paul

Oh, absolutely - sorry for the delay in posting it:

PicoMiteVGA case - Printables

You don't have to use the colours I did.

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4239

Posted: 10:17pm 26 Feb 2023

Copy link to clipboard

Print this post

PaulZX said

The link seems to be expired, can you please update it?

For me the link still works. I don’t knop how Munch stock they have after 6 Monti’s, but you van still order.

Volhout

PicomiteVGA PETSCII ROBOTS

PaulZX
Newbie

Joined: 23/02/2023
Location: Germany
Posts: 3

Posted: 07:30am 27 Feb 2023

Copy link to clipboard

Print this post

Sorry, I misinterpreted.
They just won't sell to germans

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 12:31pm 27 Feb 2023

Copy link to clipboard

Print this post

PaulZX said Sorry, I misinterpreted.
They just won't sell to germans

I can see it via non-NL URL in case that works.

John

IanT
Regular Member

Joined: 29/11/2016
Location: United Kingdom
Posts: 87

Posted: 03:53pm 08 Dec 2023

Copy link to clipboard

Print this post

matherp said Attached dxf and the original Cambam design files for my end-plates. As pictured these were cut with a LED laser

PicoMiteVGApanels.zip

Hi Peter,

Sorry to be a pain (and probably a bit idle too) but I've successfully 3D printed cases for the PicomiteVGA (and having just acquired a CNC Router) I've just downloaded these DXF files to cut some aluminium panels.

However, I seem to have two front panel DXFs (the 40 pin end). I wonder if you could publish the back panel DXF again please. :-)

Regards,

IanT

PS As a very occasional poster here (but an avid follower) can I again express my thanks to you, Geoff and all the others who have made this such a useful site and for the 'Mites' (of all types) that are just a delight to work with.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9122

Posted: 04:00pm 08 Dec 2023

Copy link to clipboard

Print this post

PicoMiteVGApanels.zip
