I'm using PicoMite V5.07.08B8 from: https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip

Live in the Future. It's Just Starting Now!

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136

Posted: 02:06am 03 Aug 2023

Copy link to clipboard

Print this post

Quote Have you looked at the new ADC RUN command

Extracting the data from this involves using MEMORY UNPACK, and that is where I am stuck.
I can unpack the first element only. Can anyone show this thicko how to get the rest?

PicoMite MMBasic Version 5.07.08b9
Copyright 2011-2023 Geoff Graham
Copyright 2016-2023 Peter Mather

> dim integer a(3), b(31)

> a(0)=&Hfffefdfcfbfaefee
> a(1)=&Hedecebeadfdedddc
> a(2)=&Hdbdacfcecdcccbca
> a(3)=&Hbfbebdbcbbbaafae

> MEMORY UNPACK a(),b(),8,8

> for n=0 to 31:? hex$(b(n)),:next
EE EF FA FB FC FD FE FF 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

> MEMORY UNPACK a(1),b(8),8,8

> for n=0 to 31:? hex$(b(n)),:next
EE EF FA FB FC FD FE FF 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
>

Edit. Ignore the above.
The thicko thunked again. Result!

> MEMORY UNPACK a(),b(),32,8
> for n=0 to 31:? hex$(b(n)),:next
EE EF FA FB FC FD FE FF DC DD DE DF EA EB EC ED CA CB CC CD CE CF DA DB AE AF BA BB BC BD BE BF
>

I used > MEMORY UNPACK a(),b(),8,8 as the manual seemed to indicate it would cut each 64-bit integer into eight 8-bit integers.
The first number is however the total number of slices for the whole array.
The order is reversed for each element of a() but that can be dealt with.

Another instance where a brief example would be worth a thousand words.

Edit 2
For the Scope program this is a more difficult way to get the same result.
Edited 2023-08-03 13:28 by phil99

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4247

Posted: 06:33am 03 Aug 2023

Copy link to clipboard

Print this post

Hi Phil,

I used a ping-pong technique before (i.e. in a mains voltage analyzer).

ping-pong buffer and ADC

You can use that also for a scope, and the ADC START will also read 2 (or 3) ADC
channels in 12 bit resolution. But since the ping-pong handling is in MMBasic you will either
- have a 0.1ms blind gap (that is roughly how long it takes the interpreter between ping and pong).
- have to limit the sampling speed to 10kHz.

In my mains voltage analyzer I use 2 or 4 kHz sampling speed.

The ADC RUN command will do that much faster, so better suited for a scope. Unpacking is FAST. So the ADC RUN and MEMORY UNPACK is the best MMBasic combination for a scope.

Regards,

Volhout
Edited 2023-08-03 16:34 by Volhout

PicomiteVGA PETSCII ROBOTS

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 06:05pm 03 Aug 2023

Copy link to clipboard

Print this post

I still can't get triggering to work, with the "trigger" no display so it must stick there..- do until (samples!(c%+1)>samples!(c%)):inc c%:loop 'trigger

SetPin GP18,pwm1A 'this optional test signal comment out
PWM 1,5000,50 ' 50% = square wave ,this optional test signal comment out

dim c%,x%,samples!(200),old_samples!(200)
SETPIN (31), AIn
adc open 500000,1 'samples per second
cls
do
adc start samples!() 'get new samples
c%=0
'do until (samples!(c%+1)>samples!(c%)):inc c%:loop 'trigger

math scale samples!(),79,samples!()'scale to 80 pixel
for x%=0 to 158 'screen width
line x%,old_samples!(x%+c%),x%+1,old_samples!(x%+1+c%),,rgb(black) 'erase old_sample
line x%,samples!(x%+c%),x%+1,samples!(x%+1+c%),,rgb(white) 'draw new sample
next x%
math add samples!(),0,old_samples!() 'copies new samples to old_samples
loop
end

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 06:20pm 03 Aug 2023

Copy link to clipboard

Print this post

Just an idea...

Very crude, but simply connect a DIN pin in parallel with the ADC pin. This will work because of the difference between Low and High logic signals. Wait for the DIN pin and a Trig Start button input to go high then ignore them and do one complete scan to fill the array(s) from the ADC. Make the array(s) big enough to give you several screen widths so that you can zoom and pan over the stored waveform. You now have a set of values that you can plot. Don't read any more samples until you manually restart the trigger.

Don't even attempt to synchronise the ADC collection with the waveform. You won't manage it.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 08:12pm 03 Aug 2023

Copy link to clipboard

Print this post

Mixtel90 said Just an idea...

Very crude, but simply connect a DIN pin in parallel with the ADC pin. This will work because of the difference between Low and High logic signals. Wait for the DIN pin and a Trig Start button input to go high then ignore them and do one complete scan to fill the array(s) from the ADC. Make the array(s) big enough to give you several screen widths so that you can zoom and pan over the stored waveform. You now have a set of values that you can plot. Don't read any more samples until you manually restart the trigger.

Don't even attempt to synchronise the ADC collection with the waveform. You won't manage it.

it was recommended ie get the samples and check them for a rising edge but it stops the display. I can't see my error checking the samples for the next greater than current sample.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 09:26pm 03 Aug 2023

Copy link to clipboard

Print this post

You aren't interested in the display until the array is full. At that point you are no longer interested in collecting samples and can concentrate on the display. Don't try to display anything while you are collecting samples, it will slow things down.

Once you have that working you can start looking at other ideas like variable trigger points - which is best handled with a comparator to compare the input signal with a trig level pot. You might be able to use the ADC for that but a comparator is easy and can be expanded later for negative waveforms (when you will have to level shift the input signal because the Pico can only accept positive signals).

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136

Posted: 10:43pm 03 Aug 2023

Copy link to clipboard

Print this post

Yes, that is the way to go. If you look back to my last scope program it does not look for the trigger until the array (at least double the elements of the screen width pixels) is full. It than scans through the array to find the trigger condition. Only then does it send the data to the display. Once the screen is full it repeats.
This method is reliable and stable. There are plenty of comments in it to help.

It should run as-is on your display. If the TEXT line is in the way use Font 8.

TEXT 0, 0, "T = "+Str$(HRes*1000/8/speed)+" mS/Div. V = 0.5V/Div.",,8
Edited 2023-08-04 09:22 by phil99

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 07:46pm 04 Aug 2023

Copy link to clipboard

Print this post

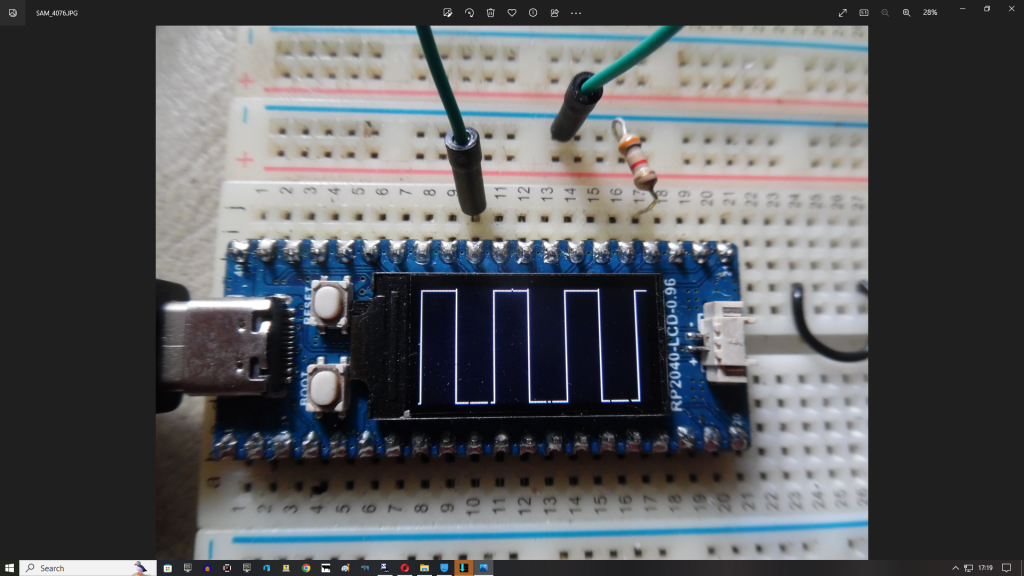

I tried another method using a buffer for graphics and the "trigger" works with pwm test signal.very stable.
SetPin GP18,pwm1A 'this optional test signal comment out
PWM 1,5000,50 ' 50% = square wave ,this optional test signal comment out
dim c%,x%,samples!(360)
SETPIN (31), AIn
adc open 500000,1 'samples per second

FRAMEBUFFER CREATE F
FRAMEBUFFER WRITE F
do
adc start samples!() 'get new samples

'trigger
for c%=0 to 180
If samples!(c%) > 0.1 then if samples!(c%+1)<0.2 then exit for
next c%

math scale samples!(),79,samples!()'scale to 80 pixel height
cls
for x%=0 to 158 'screen width
line x%,samples!(x%+c%),x%+1,samples!(x%+1+c%),,rgb(white) 'draw new sample
next x%
FRAMEBUFFER COPY F,N
loop
Edited 2023-08-05 06:05 by stanleyella

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 11:16pm 04 Aug 2023

Copy link to clipboard

Print this post

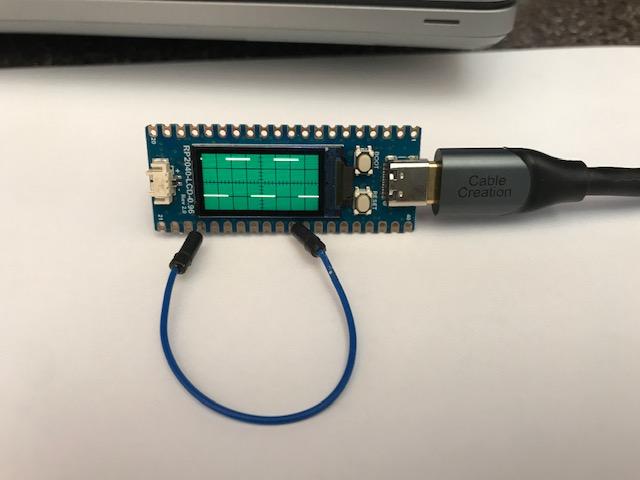

Very nice! I think the stability is due in some part to the divisibility of the square wave frequency into the AIN sampling frequency, though. With a PWM frequency of 7654 (not evenly divisible into 500000), you get some display jitter, but the triggering jitter is non-existent.

Also, brilliant use of pin 24 as a reference signal. I had just started wiring up a separate Pico for that, but hadn't yet got it going.

Here's a version that initializes the graticules, and then use array drawing commands for everything. The only thing I haven't figured out is how to use MATH commands to rapidly copy from the trigger point (at c%) to the display buffer without a FOR loop.

LOTS of setup (sorry!) in order to accomplish the Array graphics output.

' Sampling and Test Signal from Stanleyella
' Graticules and array drawing from NPHighview
' Test Signal output on GP18, PWM1A, or Pin 24
' Analog Signal input on GP26, or Pin 31

Const Hres = MM.HRes
Const Vres = MM.VRes
Const Voff = .75*Vres

Const Background = RGB(32,64,32)
Const GMajor = RGB(black)
Const GMinor = RGB(black)
Const Signal = RGB(yellow)

' Specifically For Waveshare RP2040-LCD-0.96

Const Major = Vres/4
Const Minor = Major/4

' Generic to all displays

Const HMajor = Hres/Major
Const VMajor = Vres/Major
Const HMinor = Hres/Minor
Const VMinor = Vres/Minor

'Const VScale = Vres/(-3.3)
Const VScale = Vres/(-5)

Dim Buffer!(Hres), Horizontal!(Hres)
Dim Integer x, y

Dim HMajorX1(HMajor+1), HMajory1(HMajor+1), HMajory2(HMajor+1) ' For Horizontal Major Axes
Dim VMajorX1(VMajor+1), VMajorx2(VMajor+1), VMajory1(VMajor+1) ' For Vertical Major Axes

Dim HMinorX1(HMinor+1), HMinory1(HMinor+1), HMinory2(HMinor+1) ' For Horizontal Minor Axes
Dim VMinorX1(VMinor+1), VMinorx2(VMinor+1), VMinory1(VMinor+1) ' For Vertical Minor Axes

Math Set 0, Buffer!()
Math Set 0, HMajory1() : Math Set Vres, HMajory2() ' Set Arrays for Horiz Major Axis
Math Set 0, VMajorX1() : Math Set Hres, VMajorx2() ' Set Arrays for Vert Major Axis

Math Set Vres/2+Minor/2, HMinory1() : Math Set Vres/2-Minor/2, HMinory2() ' Set Arrays for Horiz Minor Axis
Math Set Hres/2+Minor/2, VMinorx1() : Math Set Hres/2-Minor/2, VMinorx2() ' Set Arrays for Vert Minor Axis

For x = 0 To Hres-1 : horizontal!(x) = x : Next x ' used in array graphics
For x = 0 To HMajor : HMajorx1(x) = x*Major : Next x ' for time Major Axis graticule
For y = 0 To VMajor : VMajory1(y) = y*Major : Next y ' for Volts Major Axis graticule
For x = 0 To HMinor : HMinorx1(x) = x*Minor : Next x ' for time Minor Axis graticule
For y = 0 To VMinor : VMinory1(y) = y*Minor : Next y ' for Volts Minor Axis graticule

SetPin GP18,pwm1A 'this optional test signal comment out
PWM 1,7654,50 ' 50% = square wave ,this optional test signal comment out
Dim c%,samples!(2*HRes)
SetPin (31), AIn
ADC open 500000,1 'samples per second

FRAMEBUFFER CREATE F
FRAMEBUFFER WRITE F

Do
samples!(2*Hres-1) = -1
ADC start samples!() 'get new samples
Do While samples!(2*Hres-1) < 0 : Loop
'trigger
For c%=0 To HRes-1
If samples!(c%) > 0.1 Then If samples!(c%+1)<0.2 Then Exit For
Next c%
For x%=0 To HRes-1 : buffer!(x%) = samples!(x%+c%) : Next x%

Math Scale buffer!(), VScale, buffer!() ' Scale samples to fit vertically
Math Add buffer!(), Voff, buffer!() ' Offset to bottom of screen (positive is up)
CLS Background
Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Draw minor horiz graticules
Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Draw minor vert graticules
Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Draw major horiz graticules
Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Draw major vert graticules
Pixel Horizontal(), buffer!(), Signal
Next x%

FRAMEBUFFER COPY F,N
Loop

Live in the Future. It's Just Starting Now!

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 04:21pm 05 Aug 2023

Copy link to clipboard

Print this post

I think math scale only does the whole array ie samples() not from c% to c% + screen width and messing around defeats using math.

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 05:05pm 05 Aug 2023

Copy link to clipboard

Print this post

Quote The only thing I haven't figured out is how to use MATH commands to rapidly copy from the trigger point (at c%) to the display buffer without a FOR loop.

You can do this with memory copy

UNTESTED

a%=peek(varaddr samples!())
b%=peek(varaddr buffer!())
.....
memory copy FLOAT a%+c%*8,b%,HRes

Of course you can do the peeks outside the main loop

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 05:09pm 05 Aug 2023

Copy link to clipboard

Print this post

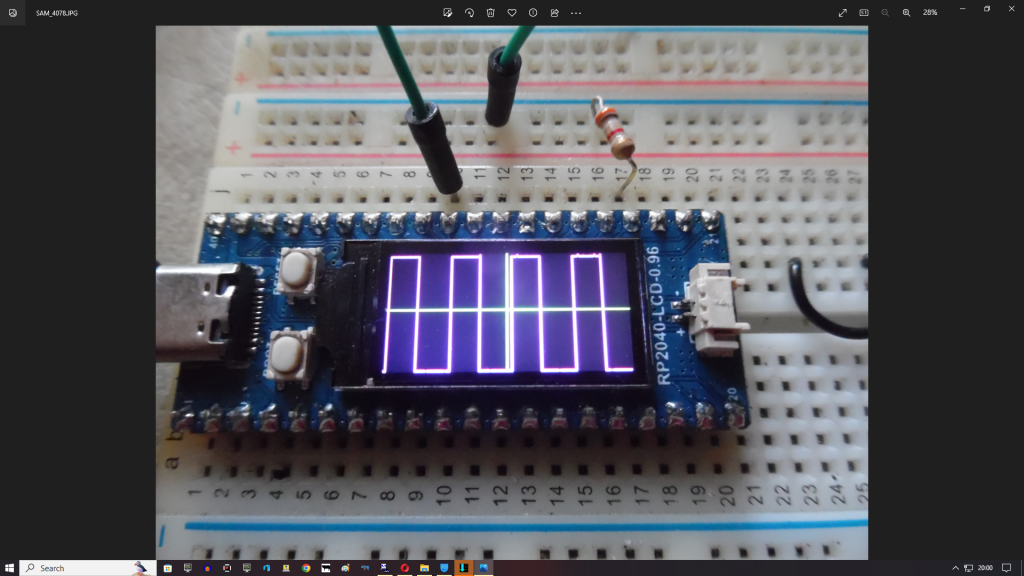

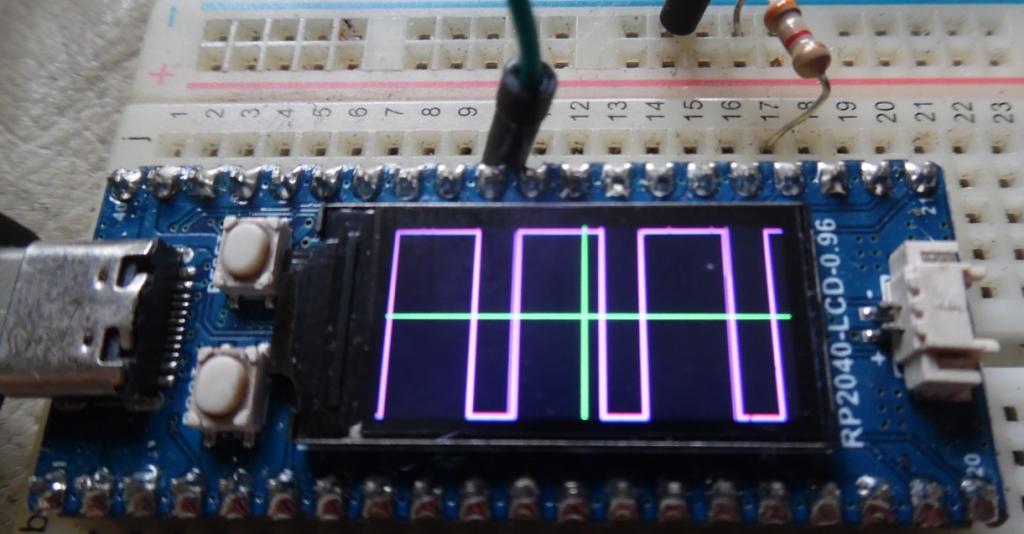

You can use the frame buffers to hold the cursor instead of redrawing it.

SetPin GP18,pwm1A 'this optional test signal comment out
PWM 1,10000,50 ' 50% square wave ,this optional test signal comment out
dim c%,x%,samples!(360)
SETPIN (31), AIn
adc open 500000,1 'samples per second

FRAMEBUFFER CREATE F
FRAMEBUFFER LAYER L
FRAMEBUFFER WRITE L
line 79,0,79,79,,rgb(red)
line 0,39,159,39,,rgb(red)
FRAMEBUFFER WRITE F

do
adc start samples!() 'get new samples

'trigger
c%=0
do:If samples!(c%) > 0.1 then if samples!(c%+1)<0.2 then exit do
inc c%:loop while c%<160

math scale samples!(),79,samples!()'scale to 80 pixel height
'cls

FRAMEBUFFER COPY L,F
for x%=0 to 158 'screen width
line x%,samples!(x%+c%),x%+1,samples!(x%+1+c%),,rgb(white) 'draw new sample
next x%
FRAMEBUFFER COPY F,N
loop

edit cls not needed
12345 Hz

Edited 2023-08-06 05:07 by stanleyella

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 11:40pm 08 Aug 2023

Copy link to clipboard

Print this post

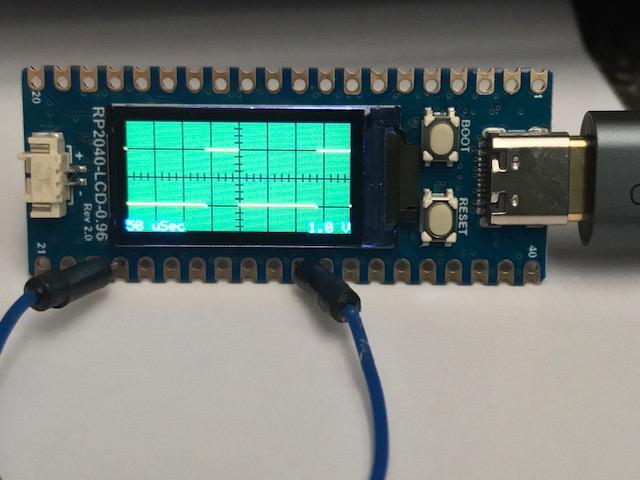

Thanks, Peter and Stanley! Framebuffer technique worked beautifully. But...

To test out a hypothesis, I had my main loop randomly adjust the duty cycle (between 10% and 30%) of a fixed frequency PWM on pin 24. This introduced a jitter in the displayed waveform (didn't affect triggering, only the jittery dance of the rising and falling display).

With the same trigger detection, I tried the Memory copy command, and got a screen with graticules & background, but no curve. Reverted to my one-line For loop, and got the jittery curve back. In the listing below, Peter's technique is commented out, and the one-line For loop is active.

Is this attributable to the firmware version? Don't know, but here is my setup:

PicoMite MMBasic Version 5.07.08b8
OPTION SYSTEM SPI GP10,GP11,GP28
OPTION AUTORUN 2
OPTION COLOURCODE ON
OPTION HEARTBEAT OFF
OPTION CPUSPEED (KHz) 250000
OPTION DISPLAY 50, 132
OPTION LCDPANEL ST7735S, LANDSCAPE,GP8,GP12,GP9,GP25
OPTION AUDIO GP0,GP1, ON PWM CHANNEL 0

Here are snippets of my code:

...
Dim B_addr%, S_addr% ' Memory addresses of Buffer and Signal arrays
...
B_Addr% = Peek(varaddr samples!()) ' from matherp's example on The Backshed Forum
S_Addr% = Peek(varaddr Buffer!()) ' https://www.thebackshed.com/forum/ViewTopic.php?TID=16081&P=4
...
...
Sub Get_Samples ' Obtains ADC samples into samples!(), then Buffer!() arrays
samples!(2*Hres-1) = -1 ' Samples never < 0
ADC start samples!() : Do While samples!(2*Hres-1) < 0 : Loop ' wait for ADC completion

For c%=0 To HRes-1 ' Find trigger point
If samples!(c%) > 0.1 Then If samples!(c%+1)<0.2 Then Exit For
Next c%

' Memory copy FLOAT S_Addr%+c%*8, B_Addr%, Hres ' Doesn't Work!
For x%=0 To HRes-1 : buffer!(x%) = samples!(x%+c%) : Next x% ' Offset-Copy into Display Buffer
End Sub

Here's the entire listing:

' Sampling, Test Signal, Framebuffers from stanleyella
' Math & Memory Copy from matherp
' Graticules and array drawing from NPHighview
' Test Signal output on GP18, PWM1A, or Pin 24
' Analog Signal input on GP26, or Pin 31
' Scale labels not calculated for the moment

Option EXPLICIT

Const Hres = MM.HRes ' Horizontal screen resolution
Const Vres = MM.VRes ' Vertical screen resolution
Const VScale = Vres/(-6.6) ' Scale factor for display buffer
Const Voff = .75*Vres ' Offset for display buffer

' Specifically For Waveshare RP2040-LCD-0.96

Const Major = Vres/4 ' Major tic mark spacing
Const Minor = Major/4 ' Minor tic mark spacing

' Generic to all displays

Const HMajor = Hres/Major ' How many Horiz Major Tic marks
Const VMajor = Vres/Major ' How many Vert Major Tic marks
Const HMinor = Hres/Minor ' How many Horiz Minor Tic marks
Const VMinor = Vres/Minor ' How many Vert Minor Tic marks

Const Background = RGB(32,64,32) ' Color for Display background, a la Tektronix scopes
Const GMajor = RGB(black) ' Color for Major tic marks
Const GMinor = RGB(black) ' Color for Minor tic marks
Const Signal = RGB(yellow) ' Color for displayed signal
Const TxtColor = RGB(cyan) ' Color for displayed text

Const PWM_Freq = 5000 ' Frequency for PWM test signal on Pin 24
Const ADC_Freq = 400000 ' Sampling frequency for signal input on Pin 31
' Note: >== Full waveform should be 100 pixels wide

Dim Horizontal!(Hres) ' Horizontal coordinate buffer for fast graticule draw
Dim Buffer!(Hres) ' Display buffer. As wide as LCD screen
Dim samples!(2*HRes) ' Allow for twice the display width to capture a trigger
Dim c% ' Index of trigger condition in signal
Dim B_addr%, S_addr% ' Memory addresses of Buffer and Signal arrays

Dim HMajorX1(HMajor+1), HMajory1(HMajor+1), HMajory2(HMajor+1) ' For Horizontal Major Axes
Dim VMajorX1(VMajor+1), VMajorx2(VMajor+1), VMajory1(VMajor+1) ' For Vertical Major Axes

Dim HMinorX1(HMinor+1), HMinory1(HMinor+1), HMinory2(HMinor+1) ' For Horizontal Minor Axes
Dim VMinorX1(VMinor+1), VMinorx2(VMinor+1), VMinory1(VMinor+1) ' For Vertical Minor Axes

Dim Integer x%, y% ' Index values for drawing graticules

' Initialization Section - executed once

Initialize_Arrays
Initialize_Hardware

' Processing Section - looped forever

Do
Randomize_Test_Signal
Get_Samples
Scale_Samples
Update_Display
Loop

' Subroutines

Sub Draw_Graticules
FRAMEBUFFER WRITE L ' Write this once into Framebuffer L
CLS Background ' Clear the screen to background color
Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Draw minor horiz graticules
Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Draw minor vert graticules
Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Draw major horiz graticules
Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Draw major vert graticules
Text 0, Vres, "50 uSec", LB, 7, 1, TxtColor, Background ' Draw Time Scale at LL
Text Hres, Vres, "1.0 V", RB, 7, 1, TxtColor, Background ' Draw Volts Scale at LR
End Sub

Sub Randomize_Test_Signal
PWM 1, PWM_Freq, 10+20*Rnd ' Randomize duty cycle to ensure displayed signal is refreshing
End Sub

Sub Get_Samples ' Obtains ADC samples into samples!() array
samples!(2*Hres-1) = -1 ' Samples will never be < 0
ADC start samples!() : Do While samples!(2*Hres-1) < 0 : Loop ' wait for ADC completion

For c%=0 To HRes-1 ' Find a trigger point
If samples!(c%) > 0.1 Then If samples!(c%+1)<0.2 Then Exit For
Next c%

' Memory copy FLOAT S_Addr%+c%*8, B_Addr%, Hres ' from matherp's example see URL above
For x%=0 To HRes-1 : buffer!(x%) = samples!(x%+c%) : Next x% ' Offset-Copy into Display Buffer
End Sub

Sub Scale_Samples
Math Scale buffer!(), VScale, buffer!() ' Scale samples to fit vertically
Math Add buffer!(), Voff, buffer!() ' Offset to bottom of screen (positive is up)
End Sub

Sub Update_Display
FRAMEBUFFER COPY L, F ' Pick up screen background and graticules
FRAMEBUFFER WRITE F : Pixel Horizontal(), buffer!(), Signal
FRAMEBUFFER COPY F,N
End Sub

Sub Initialize_Arrays
B_Addr% = Peek(varaddr samples!()) ' from matherp's example on The Backshed Forum
S_Addr% = Peek(varaddr Buffer!()) ' https://www.thebackshed.com/forum/ViewTopic.php?TID=16081&P=4

' Print "Buffer Address: "; Hex$(B_Addr%)
' Print "Samples Address: "; Hex$(S_Addr%)

Math Set 0, Buffer!() ' Zero out the display buffer
Math Set 0, HMajory1() : Math Set Vres, HMajory2() ' Set Arrays for Time Major Axis
Math Set 0, VMajorX1() : Math Set Hres, VMajorx2() ' Set Arrays for Volts Major Axis

Math Set Vres/2+Minor/2, HMinory1() : Math Set Vres/2-Minor/2, HMinory2() ' Set Arrays for Time Minor Axis
Math Set Hres/2+Minor/2, VMinorx1() : Math Set Hres/2-Minor/2, VMinorx2() ' Set Arrays for Volts Minor Axis

For x = 0 To Hres-1 : horizontal!(x) = x : Next x ' used in array graphics
For x = 0 To HMajor : HMajorx1(x) = x*Major : Next x ' for Time Major Axis graticule
For y = 0 To VMajor : VMajory1(y) = y*Major : Next y ' for Volts Major Axis graticule
For x = 0 To HMinor : HMinorx1(x) = x*Minor : Next x ' for Time Minor Axis graticule
For y = 0 To VMinor : VMinory1(y) = y*Minor : Next y ' for Volts Minor Axis graticule

End Sub

Sub Initialize_Hardware
SetPin GP18,pwm1A ' Set up pin 24 for PWM test signal out
PWM 1, PWM_Freq, 10 ' Square wave on Pin 24
SetPin (31), AIn ' ADC input on Pin 31
ADC open ADC_Freq, 1 ' Sample at specified samples per second

FRAMEBUFFER CREATE F
FRAMEBUFFER LAYER L
Draw_Graticules
End Sub

and here's its current appearance:

Live in the Future. It's Just Starting Now!

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136

Posted: 01:01am 09 Aug 2023

Copy link to clipboard

Print this post

A test version of Peters method, with minor adjustment, does work.
Integers are used in this example as ADC RUN returns 8-bit integers representing 0 to 3.3V (the top 8 bits of the raw ADC data I think) but FLOAT also works.

> LIST
Dim integer a, b, c = 5, n, HRes = 10
Dim integer s.in(20), s.out(10)

a=Peek(varaddr s.in())
b=Peek(varaddr s.out())

For n = 0 To 19 'fill the input sample array
s.in(n) = n
Next

Memory copy INTEGER a + c * 8, b, HRes

For n = 0 To 9 'read the output sample array
Print s.out(n),
Next
>
> RUN
5 6 7 8 9 10 11 12 13 14
>

Edited 2023-08-09 11:09 by phil99

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 09:57pm 09 Aug 2023

Copy link to clipboard

Print this post

OK - that makes sense. I've emulated your code (see below), but for floats (as ADC start sample returns floats from 0 to 3.3), and it works (probably no surprise). Now to figure out what I'm doing wrong in my much longer scope code (maybe depending on % and ! to control variable typing instead of explicitly stating).

Dim Integer c=5, n, HRes=MM.HRes

Dim Float signal(HRes*2), buffer(Hres)
Dim Integer addr.signal, addr.buffer

addr.signal = Peek(varaddr signal()) : Print "*signal = "; addr.signal
addr.buffer = Peek(varaddr buffer()) : Print "*buffer = "; addr.buffer

For n = 0 To (Hres*2)-1
signal(n) = n/100
Next

Memory copy FLOAT addr.signal + c*8, addr.buffer, Hres

For n = 0 To Hres-1
Print Str$(n, 3, 0), "Floats: ";Str$(signal(n+c),3,2); " -> "; Str$(buffer(n),3,2)
Next

Live in the Future. It's Just Starting Now!

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 01:02am 10 Aug 2023

Copy link to clipboard

Print this post

Well, it's a mystery. Basically, retyping the whole thing back in (making some structure and declaration changes along the way) now results in the memory copy working. Wow - it's fast!

Thanks again to stanleyella and matherp for hints :-)

I've added what are essentially ENUMs in other languages to specify whether the trigger condition should be positive, negative, or free-running, and added that to the code. I've also begun calculating the actual horizontal resolution and displaying it, as a precursor to adding some UI to adjust.

' Sampling, Test Signal, Framebuffers from stanleyella
' Math & Memory Copy from matherp
' Triggers, Graticules and Array Drawing from NPHighview
' Test Signal output on GP18, PWM1A, or Pin 24
' Analog Signal input on GP26, or Pin 31
' Time Scale labels are calculated; volts scale not calculated for the moment

Option EXPLICIT

Const PWM_Freq = 5000 ' Frequency for Test Signal on Pin 24
Const ADC_Freq = 500000 ' Sampling frequency for sample input on Pin 31
' Note: >== Full waveform should be ~100 pixels wide

Const Hres = MM.HRes ' Horizontal screen resolution
Const Vres = MM.VRes ' Vertical screen resolution

Const VScale = Vres/(-5) ' Scale factor for display buffer
Const Voff = .75*Vres ' Offset for display buffer

' Specifically For Waveshare RP2040-LCD-0.96

Const Major = Vres/4 ' Major tic mark spacing
Const Minor = Major/4 ' Minor tic mark spacing

' Generic to all displays

Const HMajor = Hres/Major ' How many Horiz Major Tic marks
Const VMajor = Vres/Major ' How many Vert Major Tic marks
Const HMinor = Hres/Minor ' How many Horiz Minor Tic marks
Const VMinor = Vres/Minor ' How many Vert Minor Tic marks

Const Background = RGB(32,64,32) ' Color for Display background, a la Tektronix scopes
Const GMajor = RGB(black) ' Color for Major tic marks
Const GMinor = RGB(black) ' Color for Minor tic marks
Const Signal = RGB(yellow) ' Color for displayed signal
Const TxtColor = RGB(cyan) ' Color for displayed text

Const Trig_None = 0
Const Trig_Down = 1 ' Enumerate possible trigger conditions
Const Trig_Up = 2

Dim INTEGER Horizontal(Hres) ' Horizontal coordinate buffer for fast graticule and buffer draw

Dim INTEGER c, n, x, y, trigger

Dim FLOAT sample(2*Hres) ' Extra size to hopefully pick up a trigger event
Dim FLOAT buffer(Hres) ' Display buffer for screen output
Dim INTEGER addr.sample, addr.buffer

Dim INTEGER HMajorX1(HMajor+1), HMajory1(HMajor+1), HMajory2(HMajor+1) ' For Horizontal Major Axes
Dim INTEGER VMajorX1(VMajor+1), VMajorx2(VMajor+1), VMajory1(VMajor+1) ' For Vertical Major Axes

Dim INTEGER HMinorX1(HMinor+1), HMinory1(HMinor+1), HMinory2(HMinor+1) ' For Horizontal Minor Axes
Dim INTEGER VMinorX1(VMinor+1), VMinorx2(VMinor+1), VMinory1(VMinor+1) ' For Vertical Minor Axes

' ========================== Initialization =================================
Initialize_Arrays
Initialize_Hardware
Draw_Graticules

' ========================== Processing Loop ================================
Do
Randomize_Test_Signal
Do
trigger = -1
Get_Samples
trigger = find_trigger(Trig_Down)
Loop Until trigger >= 0
Scale_Samples
Update_Display
Loop

' ========================== Subs and Functions ============================

Function find_trigger(a)
Select Case a
Case Trig_Down
For c = 0 To Hres-1
If sample(c) > 0.1 And sample(c+1) < 0.2 Then find_trigger = c : Exit Function
Next
find_trigger = -1 : Exit Function
Case Trig_Up
For c = 0 To Hres-1
If sample(c+1) > 0.1 And sample(c) < 0.2 Then find_trigger = c : Exit Function
Next
find_trigger = -1 : Exit Function
Case Else
find_trigger = 0 : Exit Function
End Select
End Function

Function volt_tic(VSc As Float, Maj As Integer) As Float
volt_tic = 1.0
End Function

Sub Initialize_Arrays
addr.sample = Peek(varaddr sample())
addr.buffer = Peek(varaddr buffer())

Math Set 0, HMajory1() : Math Set Vres, HMajory2() ' Set Arrays for Time Major Axis
Math Set 0, VMajorX1() : Math Set Hres, VMajorx2() ' Set Arrays for Volts Major Axis

Math Set 3*Vres/4+Minor/2, HMinory1()
Math Set 3*Vres/4-Minor/2, HMinory2() ' Set Arrays for Time Minor Axis
Math Set Hres/2+Minor/2, VMinorx1()
Math Set Hres/2-Minor/2, VMinorx2() ' Set Arrays for Volts Minor Axis

For x = 0 To Hres-1 : Horizontal(x) = x : Next ' used in array graphics
For x = 0 To HMajor : HMajorx1(x) = x*Major : Next ' for Time Major Axis graticule
For y = 0 To VMajor : VMajory1(y) = y*Major : Next ' for Volts Major Axis graticule
For x = 0 To HMinor : HMinorx1(x) = x*Minor : Next ' for Time Minor Axis graticule
For y = 0 To VMinor : VMinory1(y) = y*Minor : Next ' for Volts Minor Axis graticule

End Sub

Sub Initialize_Hardware
SetPin GP18, PWM1A ' Set up pin 24 for PWM test signal output
PWM 1, PWM_Freq, 10 ' Low Duty Cycle square wave on Pin 24
SetPin (31), AIn ' ADC input on Pin 31
ADC open ADC_Freq, 1 ' Sample at specified frequency

FRAMEBUFFER CREATE F
FRAMEBUFFER LAYER L
End Sub

Sub Draw_Graticules
Local STRING T$, V$
FRAMEBUFFER WRITE L
CLS Background
Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Draw minor horiz graticules
Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Draw minor vert graticules
Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Draw major horiz graticules
Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Draw major vert graticules

T$ = Str$(1000000*Major/ADC_Freq,3,0) + " uSec"
Text 0, Vres, T$, LB, 7, 1, TxtColor, Background ' Draw Time Scale at LL
V$ = Str$(1.0, 2, 1)+" V"
Text Hres, Vres, V$, RB, 7, 1, TxtColor, Background ' Draw Volts Scale at LR
End Sub

Sub Randomize_Test_Signal
PWM 1, PWM_Freq, 45+10*Rnd ' Randomize duty cycle to ensure displayed signal is refreshing
End Sub

Sub Get_Samples ' Load ADC inputs into sample() array
sample(2*Hres-1) = -1 ' Samples will never be < 0
ADC start sample() : Do While sample(2*Hres-1) < 0 : Loop
End Sub

Sub Scale_Samples
Memory copy FLOAT addr.sample + trigger*8, addr.buffer, Hres
Math Scale buffer!(), VScale, buffer!() ' Scale samples to fit vertically
Math Add buffer!(), Voff, buffer!() ' Offset to bottom of screen (positive is up)
End Sub

Sub Update_Display
FRAMEBUFFER COPY L, F
FRAMEBUFFER WRITE F : Pixel Horizontal(), buffer(), Signal
FRAMEBUFFER COPY F,N
End Sub

Edited 2023-08-11 00:34 by NPHighview

Live in the Future. It's Just Starting Now!

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 03:03pm 10 Aug 2023

Copy link to clipboard

Print this post

do:if pin(32) =1 then exit do:loop' the trigger
adc start samples!() 'get new samples.
No joy.
do until pin(32)=1:loop' no joy
pin (32) is connected to the pwm test signal pin and adc in pin.

I haven't installed the beta version with adcrun yet to try.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 03:18pm 10 Aug 2023

Copy link to clipboard

Print this post

The point is that collecting the samples into an array and displaying them are two different tasks that are done alternately, never together. Once you have an array of values you just plot them, with scale, zoom, pan or whatever. The waveform will *always* be rock solid as the ADC isn't running. You can, for example, refill the array every second then go back to plotting it. You don't *have* to synchronise anything.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 04:38pm 10 Aug 2023

Copy link to clipboard

Print this post

Ta Mick. It's not a "real" scope but could be useful.. my code is short and shows pwm signal or sound ..after filter.
Assuming it's a repetitive wave then oversampling more than the display width and finding a trigger sort of works ok but my trigger is too simple to be true.

SetPin GP18,pwm1A 'this optional test signal comment out
PWM 1,9876,30 'square wave ,this optional test signal comment out
dim c%,x%,samples!(320)
SETPIN (31), AIn
adc open 500000,1 'samples per second

FRAMEBUFFER CREATE F
FRAMEBUFFER LAYER L
FRAMEBUFFER WRITE L
line 79,0,79,79,,rgb(green)
line 0,39,159,39,,rgb(green)
FRAMEBUFFER WRITE F

do
adc start samples!() 'get new samples
'trigger
c%=0
do:If samples!(c%) > 0.1 then if samples!(c%+1) < 0.2 then exit do
inc c%:loop while c%<160

math scale samples!(),79,samples!()'scale to 80 pixel height
FRAMEBUFFER COPY L,F
for x%=0 to 158 'screen width
line x%,samples!(x%+c%),x%+1,samples!(x%+1+c%),,rgb(magenta) 'draw new sample from sample(c%)
next x%
FRAMEBUFFER COPY F,N
loop

Page 4 of 17

Print this page
