Forum Index : Microcontroller and PC projects : High Spec RP2040 Game PCB

Page 3 of 3

Author

Message

al18
Senior Member

Joined: 06/07/2019
Location: United States
Posts: 205

Posted: 04:06pm 29 Oct 2023

Copy link to clipboard

Print this post

Looks great.

Is there a power switch?

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 04:10pm 29 Oct 2023

Copy link to clipboard

Print this post

It's a little horizontal push switch next to the USB-C socket.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9122

Posted: 05:15pm 29 Oct 2023

Copy link to clipboard

Print this post

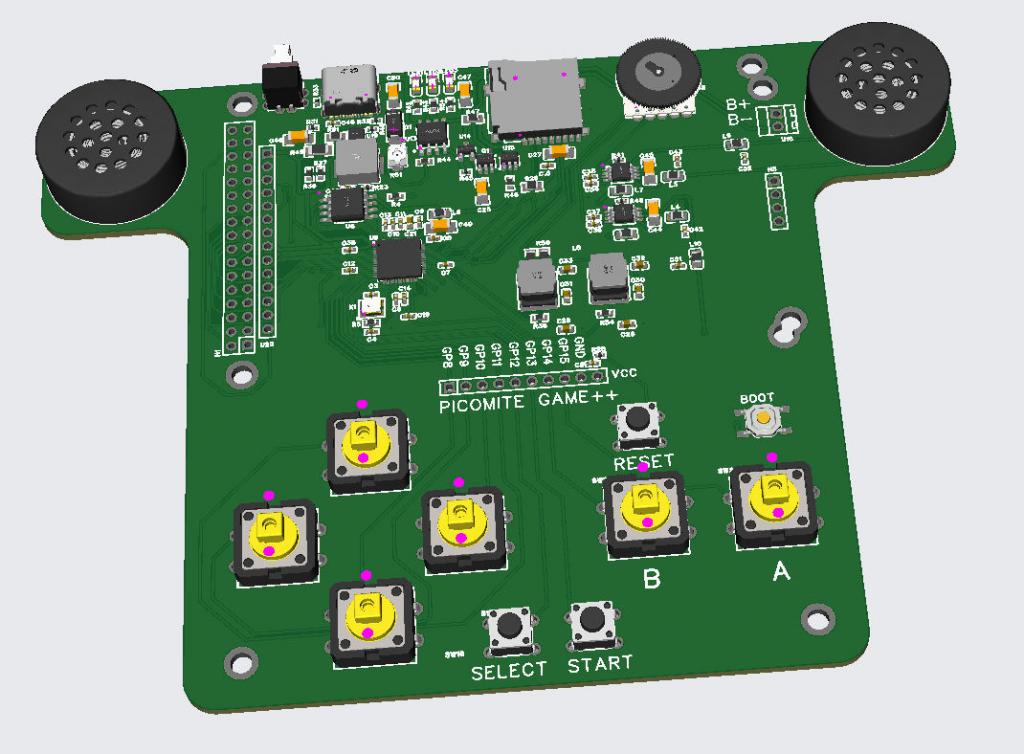

One more tweak - now takes both parallel 3.2" ILI9341 and 2.8" SPI ILI9341

3afa5828-c605-455f-8c1c-a997039f7aa0.pdf

Quote Looks like C5 is missing in the current PDF.

It was just a cap across the power pins on the header

Quote Will there be gerbers for

I can certainly make them available but won't have built any so there is a small amount of risk in getting some made
Edited 2023-10-30 03:17 by matherp

vegipete

Guru

Joined: 29/01/2013
Location: Canada
Posts: 1109

Posted: 05:22pm 29 Oct 2023

Copy link to clipboard

Print this post

Is the LCD module itself centered on these, or is the viewable area of the LCD centered? They never seem to match in my experience.

Visit Vegipete's *Mite Library for cool programs.

Quazee137

Guru

Joined: 07/08/2016
Location: United States
Posts: 571

Posted: 03:01pm 02 Nov 2023

Copy link to clipboard

Print this post

Sweet thats what gerber viewers are good for.

Quazee137

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9122

Posted: 07:42pm 03 Nov 2023

Copy link to clipboard

Print this post

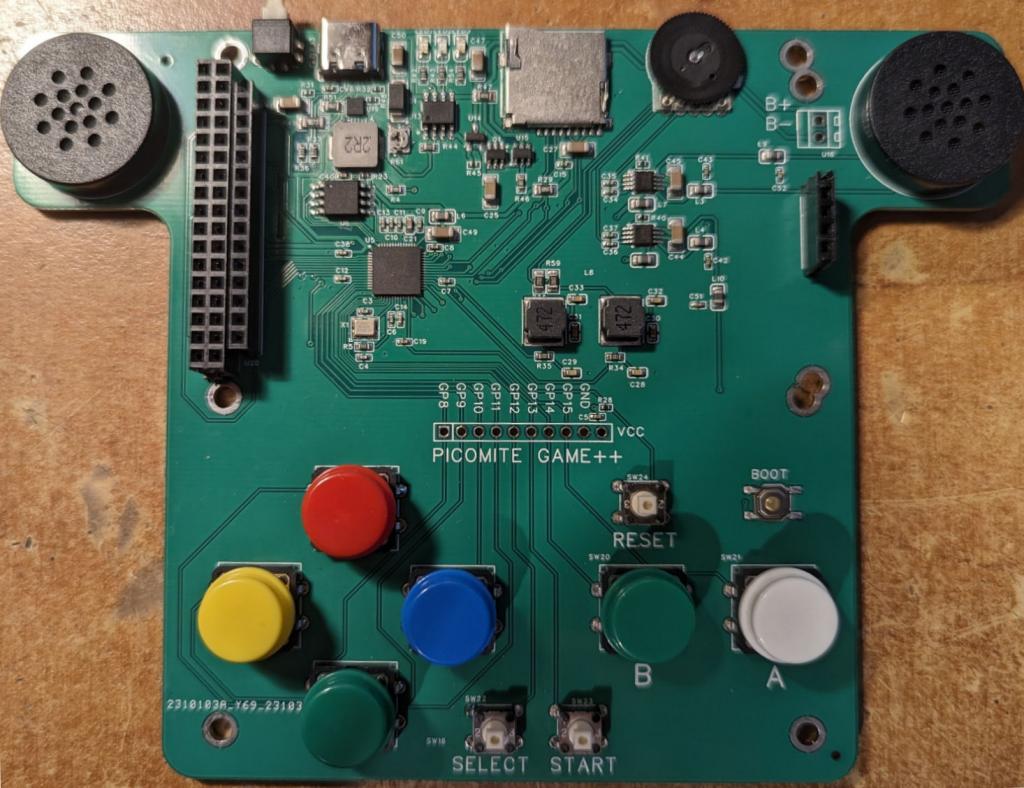

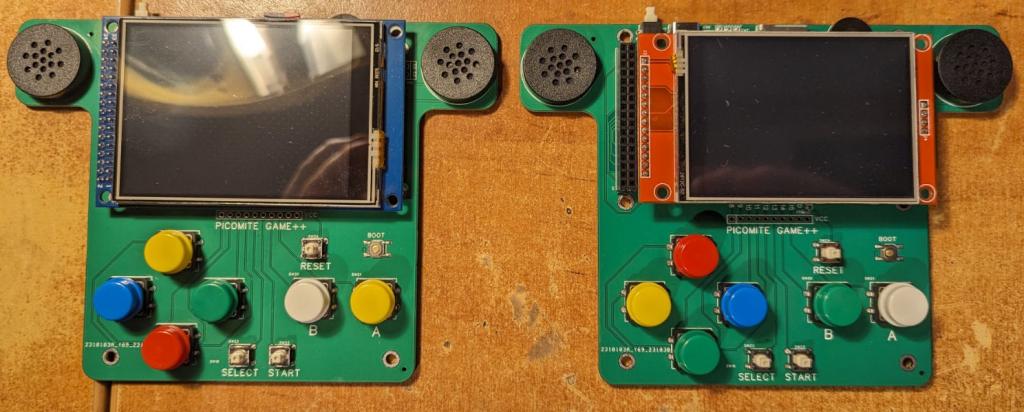

Boards arrived and work a treat - no errors at all for once
Amazing service from JLC. Order placed 2023-10-290 19:19:29. Boards arrived this morning 2023-11-03 and I didn't even pay for the fastest shipping. I'll post gerbers tomorrow.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 08:00pm 03 Nov 2023

Copy link to clipboard

Print this post

I like those. :) The "ears" are pretty cool!

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Hans

Senior Member

Joined: 18/10/2022
Location: Canada
Posts: 116

Posted: 03:46am 04 Nov 2023

Copy link to clipboard

Print this post

Hi all;

Nice board Peter!

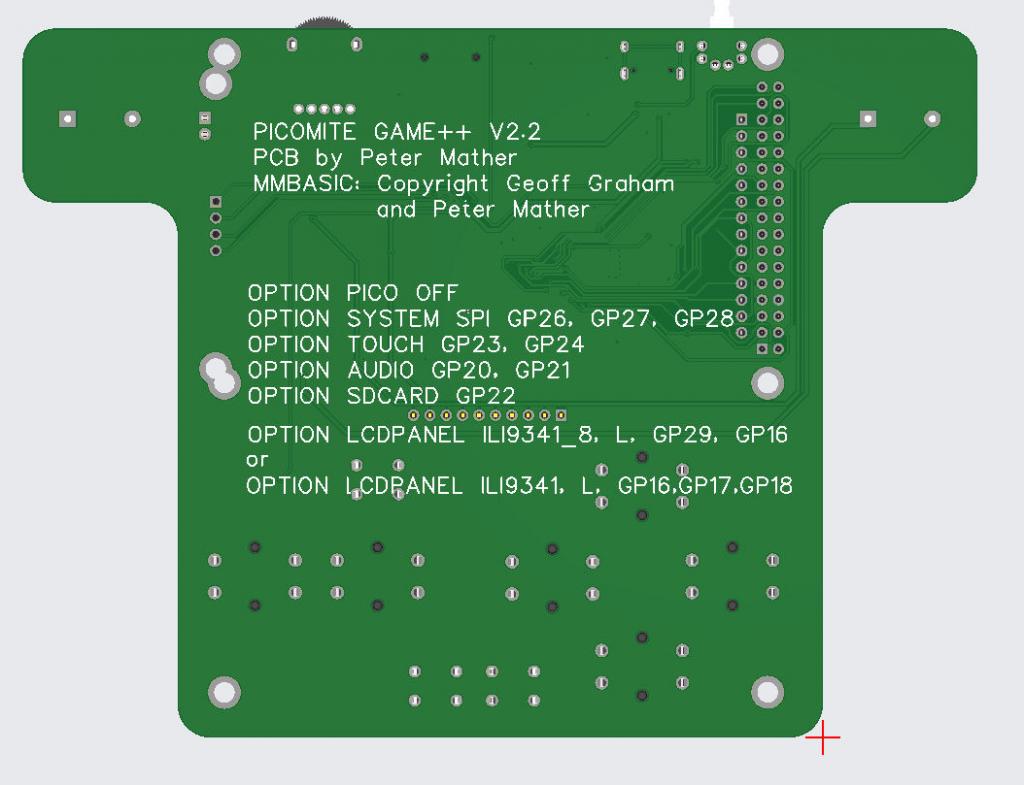

I need to know what is option pico off as on the backside of the board?

Thanks,
Hans…

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135

Posted: 04:03am 04 Nov 2023

Copy link to clipboard

Print this post

On a standard RP2040 Pico a few pins have reserved functions and are not available for general I/O in MMBasic. OPTION Pico Off makes them available for other RP2040 layouts.

Hans

Senior Member

Joined: 18/10/2022
Location: Canada
Posts: 116

Posted: 09:09pm 05 Nov 2023

Copy link to clipboard

Print this post

phil99 said On a standard RP2040 Pico a few pins have reserved functions and are not available for general I/O in MMBasic. OPTION Pico Off makes them available for other RP2040 layouts.

Thanks Phil99

I tried to find that in the 5.07.07 manual but must not have looked too close.

Hans ...

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135

Posted: 09:23pm 05 Nov 2023

Copy link to clipboard

Print this post

Quote I tried to find that in the 5.07.07 manual

It's a new feature in a recent 5.07.08 beta / RC, along with many others that aren't in the manual yet.

Peter has been busy!
Edited 2023-11-06 07:26 by phil99
