stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 08:20pm 16 Jul 2023

Copy link to clipboard

Print this post

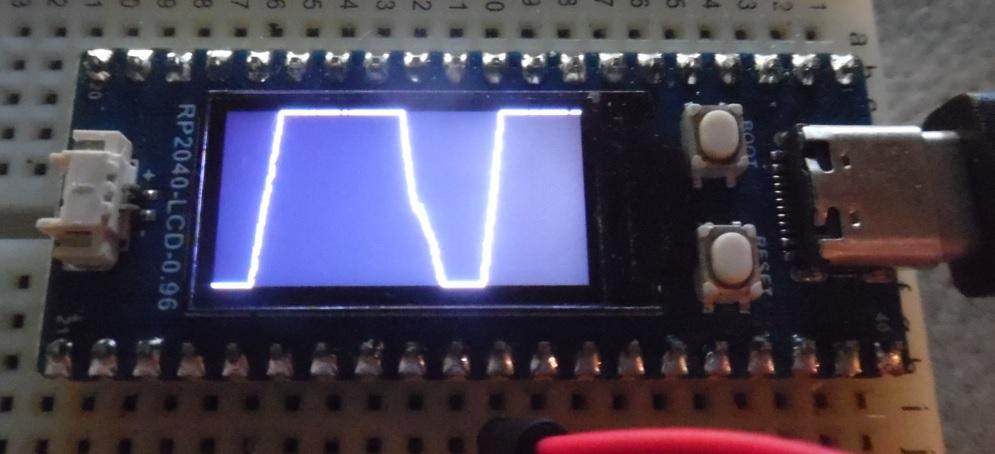

Using adc open 5000,1 'samples per second and the waveform is not moving around, it's like using pic/mega ??
just a finger on adc pin and stable but clipping the display.
Mick's advice for pin protection.

edit- still carp
Edited 2023-07-17 07:27 by stanleyella

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 11:17pm 16 Jul 2023

Copy link to clipboard

Print this post

Here's a version of my version above, parameterized so it will work on the WaveShare RP2040-LCD-0.96 board, and not clip :-)

'PicoMite "scope test.bas" for WaveShare RP2040-LCD-0.96
'Adapted by NPHighview from Phil99 on the Backshed Forum July 2023
'Adds double-buffering and array graphics (FAST!)
'ADC values range from 0.0 to 3.3. See scaling calculations below.
'Next on the to-do list: add interrupts.

Const Hres = 160 ' Horizontal resolution of display
Const Vres = 80 ' Vertical resolution of display
Const Grat = 10 ' Graticule size in pixels
Const HGrat = Hres/Grat
Const VGrat = Vres/Grat

' To scale 0-3.3v input to full height, but no clipping
Const VScale = Vres/(-3.3) ' 3.3 volts reference voltage

Dim Buffer1!(Hres), Buffer2!(Hres), Horizontal!(Hres)
Dim HGratx1(HGrat+1), HGraty1(HGrat+1), HGraty2(HGrat+1)
Dim VGratx1(VGrat+1), VGratx2(VGrat+1), VGraty1(VGrat+1)

Dim integer x, y

Const Background = RGB(48,64,48) ' medium dark grey/green a la Tektronix
Const Graticule = RGB(black)
Const Signal1 = RGB(yellow) ' dual colors used for debugging double-buffering
Const Signal2 = RGB(yellow)

' Pre-set array values for use in buffers and fast array graphics

Math Set 0, Buffer1!() : Math Set 0, Buffer2!() ' Pre-set Buffers to draw lines at the bottom
Math Set 0, HGraty1() : Math Set Vres, HGraty2() ' Pre-set Arrays for Horizontal Graticules
Math Set 0, VGratx1() : Math Set Hres, VGratx2() ' Pre-set Arrays for Vertical Graticules

For x = 0 To Hres-1 : horizontal!(x) = x : Next x ' used in array graphics
For x = 0 To HGrat : HGratx1(x) = x*Grat : Next x ' for time graticule
For y = 0 To VGrat : VGraty1(y) = y*Grat : Next y ' for volts graticule

' Set up the screen and ADC hardware

CLS Background
ADC open 500000,1 'samples per second

' Begin signal acquisition and display

Do

' While acquiring Buffer 1, display Buffer 2

Pixel Horizontal!(), Buffer1!(), Background 'Clear previous display of Buffer 1
Buffer1!(Hres-1) = -1 : ADC start Buffer1!() 'Start Acquisition into Buffer 1
Line HGratx1(), HGraty1(), HGratx1(), HGraty2(), 1, Graticule ' Redraw overwritten
Line VGratx1(), VGraty1(), VGratx2(), VGraty1(), 1, Graticule ' Graticules
Math scale Buffer2!(), VScale, Buffer2!() 'Scale Buffer 2 to fit screen
Math add Buffer2!(), Vres, Buffer2!() 'Offset Buffer 2 to bottom of screen
Pixel Horizontal!(), Buffer2!(), Signal2 'Display Buffer 2 scaled/offset
Do While Buffer1!(Hres-1) < 0 : Loop 'Wait until Buffer 1 is full

' While acquiring Buffer 2, display Buffer 1

Pixel Horizontal(), Buffer2!(), Background 'Clear previous display of Buffer 2
Buffer2!(Hres-1) = -1 : ADC start Buffer2!() 'Start acqusition into Buffer 2
Line HGratx1(), HGraty1(), HGratx1(), HGraty2(), 1, Graticule ' Redraw overwritten
Line VGratx1(), VGraty1(), VGratx2(), VGraty1(), 1, Graticule ' Graticules
Math scale Buffer1!(), VScale, Buffer1!() 'Scale Buffer 1 to fit screen
Math add Buffer1!(), Vres, Buffer1!() 'Offset Buffer 1 to bottom of screen
Pixel Horizontal(), Buffer1!(), Signal1 'Display Buffer 1 scaled/offset
Do While Buffer2!(Hres-1) < 0 : Loop 'Wait until buffer 2 is full

Loop

End

Live in the Future. It's Just Starting Now!

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136

Posted: 05:54am 17 Jul 2023

Copy link to clipboard

Print this post

Hi Stan,
It seems I am going senile, at last realizing your issue isn't in generating a stable display but in not getting reliable triggering.

Here is one way to do that.

MODE 2 'PicoMiteVGA "scope test.bas"
Dim samples!(640)
Dim Float V, Trig = 1.5 'Set trigger voltage
Dim integer x, y, TC, speed = 500000
ADC open speed, 1 'samples per second

Do
samples!(639) = -1 'set last element to -1

ADC start samples!() 'get new samples + extra for trig. search
Do While samples!(639) < 0 : Loop 'wait till array is full

'search for Trigger Condition
TC = 0
Do : Inc TC : Loop Until samples!(TC) < Trig Or TC > 320
Do : Inc TC : Loop Until samples!(TC) > Trig Or TC > 321
If TC > 320 Then TC = 0

Math scale samples!(), -72 , samples!() 'scale 3.3V to screen heihgt
Math add samples!(), 240, samples!() 'set 0V to bottom of screen

'plot graticule
For x = 1 To 320
  If x Mod 40 Then
   Line x, 0, x, 240, 1, 0 'delete old trace
   Else
   Line x, 0, x, 240, 1, RGB(0,64,0) 'Time grat.
  EndIf
  For y = 0 To 240 Step 30
   Pixel x, y, RGB(0,64,0) 'Voltage grat.
  Next
  'plot trace
  Line x-1, samples!(x-1 + TC), x, samples!(x + TC), 1, RGB(255,128,0)
Next
Loop
End

Change values to suit your display, or better yet add the trigger search to @NPHighview's superior version.
Edited 2023-07-17 16:41 by phil99

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4246

Posted: 06:57am 17 Jul 2023

Copy link to clipboard

Print this post

For MMBasic there are 3 ways to display a picture from a trigger.

1/ sample the trigger in MMBasic. This will have jitter, since the shortest loop you can create is around 0.09ms at 133MHz (a full cycle of 11kHz input signal) and has jitter due to the running interrupts (audio, if you have it enabled, and console).

2/ brute force capture data in find the trigger in the recorded data at index i. Display data starting at index i. You will have to capture more data than fit's on the screen. This gives you sample accuracy.

3/ create a trigger from an external pin (deluxe version: LM393 comparator and programmable trigger level from PWM output). When you combine this with a ring buffer, or alternaing buffers, you have a real scope. Where you can also determine pre-trigger.

Volhout
Edited 2023-07-17 16:58 by Volhout

PicomiteVGA PETSCII ROBOTS

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 09:40pm 23 Jul 2023

Copy link to clipboard

Print this post

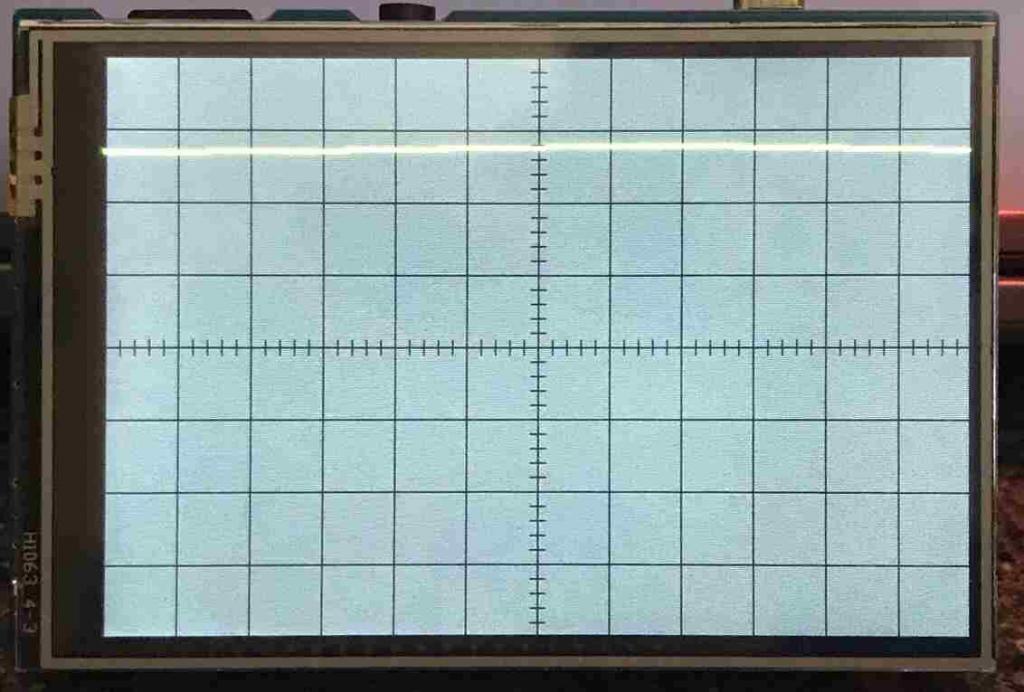

Here's an updated version of my scope code (above), adopted and significantly extended from previous versions. This single version now detects which LCD display it's running on, and displays nice major and minor graticules on the screen. Display is nice and stable.

Next steps: add scope controls (sweep rate, sampling rate, offset, amplitude, trigger) to startup screens or touch controls.

'Analog Oscilloscope for WaveShare LCD boards (Landscape mode)
'Adapted by NPHighview from Phil99 on the Backshed Forum July 2023
'Adds double-buffering and array graphics (FAST!)
'ADC values range from 0.0 to 3.3. See scaling calculations below.

Const Hres = MM.HRes ' Horizontal resolution of display
Const Vres = MM.VRes ' Vertical resolution of display

Dim integer x, y

Const Background = RGB(48,64,48) ' medium dark grey/green a la Tektronix
Const GMajor = RGB(black) ' Color for Major graticule
Const GMinor = RGB(12,12,12) ' Color for Minor graticule
Const Signal1 = RGB(yellow) ' dual colors used for debugging double-buffering
Const Signal2 = RGB(yellow)

' Let 'em know who we are

CLS Background

Select Case MM.Info(LCDPANEL)
Case "ILI9488W" ' A Waveshare P-E-B
Const Major = Vres/8 ' Major Axis Graticule size in pixels
Const Minor = Major / 5 ' Minor Axis Graticule size in pixels
Text Hres/2, Vres/2-2, "Analog Scope by NPHighview", "CB",1, 2, Signal1, Background
Text Hres/2, Vres/2+2, "on Waveshare Pico-Eval-Board", "CT",1, 2, Signal1, Background
Case "ST7735S" ' A Waveshare RP2040-LCD-0.96
Const Major = Vres/4 ' Major Axis Graticule size in pixels
Const Minor = Major/4 ' Minor Axis Graticule size in pixels
Text Hres/2, Vres/2-2, "Analog Scope by NPHighview", "CB",7, 1, Signal1, Background
Text Hres/2, Vres/2+2, "on RP2040-LCD-0.96", "CT",7, 1, Signal1, Background
Case Else
Print "Unsupported Hardware - Sorry!"
Text Hres/2, Vres/2, "Unknown Hardware", "CM",1, 1, Signal1, Background
End
End Select

Const HMajor = Hres/Major ' Number of Horizontal Major Axis divisions
Const VMajor = Vres/Major ' Number of Vertical Major Axis divisions
Const HMinor = Hres/Minor ' Number of Horizontal Minor Axis divisions
Const VMinor = Vres/Minor ' Number of Vertical Minor Axis divisions

' To scale 0.0 to Vres and 3.3 to 0,
Const VScale = Vres/(-3.3) ' 3.3 volts reference voltage

Dim Buffer1!(Hres), Buffer2!(Hres), Horizontal!(Hres) ' For signals

Dim HMajorx1(HMajor+1), HMajory1(HMajor+1), HMajory2(HMajor+1) ' For Horizontal Major Axes
Dim VMajorx1(VMajor+1), VMajorx2(VMajor+1), VMajory1(VMajor+1) ' For Vertical Major Axes

Dim HMinorx1(HMinor+1), HMinory1(HMinor+1), HMinory2(HMinor+1) ' For Horizontal Minor Axes
Dim VMinorx1(VMinor+1), VMinorx2(VMinor+1), VMinory1(VMinor+1) ' For Vertical Minor Axes

' Pre-set array values for use in buffers and fast array graphics

Math Set 0, Buffer1!() : Math Set 0, Buffer2!() ' Clear signal buffers

Math Set 0, HMajory1() : Math Set Vres, HMajory2() ' Set the Arrays for Horizontal Major Axis
Math Set 0, VMajorx1() : Math Set Hres, VMajorx2() ' Set the Arrays for Vertical Major Axis

Math Set Vres/2+Minor/2, HMinory1() : Math Set Vres/2-Minor/2, HMinory2() ' Set the Arrays for Horizontal Minor Axis
Math Set Hres/2+Minor/2, VMinorx1() : Math Set Hres/2-Minor/2, VMinorx2() ' Set the Arrays for Vertical Minor Axis

For x = 0 To Hres-1 : horizontal!(x) = x : Next x ' used in array graphics

For x = 0 To HMajor : HMajorx1(x) = x*Major : Next x ' for time Major Axis graticule
For y = 0 To VMajor : VMajory1(y) = y*Major : Next y ' for volts Major Axis graticule

For x = 0 To HMinor : HMinorx1(x) = x*Minor : Next x ' for time Minor Axis graticule
For y = 0 To VMinor : VMinory1(y) = y*Minor : Next y ' for volts Minor Axis graticule

Pause 2000

' Set up the screen and ADC hardware

CLS Background
ADC open 64000,1 'samples per second
SYNC 100000 'Set a one-tenth second "tick"

' Begin signal acquisition and display

Do
' While acquiring Buffer 1, display Buffer 2

SYNC
Pixel Horizontal!(), Buffer1!(), Background 'Clear previous display of Buffer 1
Buffer1!(Hres-1) = -1 : ADC start Buffer1!() 'Start Acquisition into Buffer 1
Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Redraw overwritten
Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Minor Graticules
Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Redraw overwritten
Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Major Graticules
Math scale Buffer2!(), VScale, Buffer2!() 'Scale Buffer 2 to fit screen
Math add Buffer2!(), Vres, Buffer2!() 'Offset Buffer 2 to bottom of screen
Pixel Horizontal!(), Buffer2!(), Signal2 'Display Buffer 2 scaled/offset
Do While Buffer1!(Hres-1) < 0 : Loop 'Wait until Buffer 1 is full

' While acquiring Buffer 2, display Buffer 1

SYNC
Pixel Horizontal(), Buffer2!(), Background 'Clear previous display of Buffer 2
Buffer2!(Hres-1) = -1 : ADC start Buffer2!() 'Start acqusition into Buffer 2
Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Redraw overwritten
Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Minor Graticules
Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Redraw overwritten
Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Major Graticules
Math scale Buffer1!(), VScale, Buffer1!() 'Scale Buffer 1 to fit screen
Math add Buffer1!(), Vres, Buffer1!() 'Offset Buffer 1 to bottom of screen
Pixel Horizontal(), Buffer1!(), Signal1 'Display Buffer 1 scaled/offset
Do While Buffer2!(Hres-1) < 0 : Loop 'Wait until buffer 2 is full

Loop

End

Edited 2023-07-24 07:45 by NPHighview

Live in the Future. It's Just Starting Now!

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 09:53pm 23 Jul 2023

Copy link to clipboard

Print this post

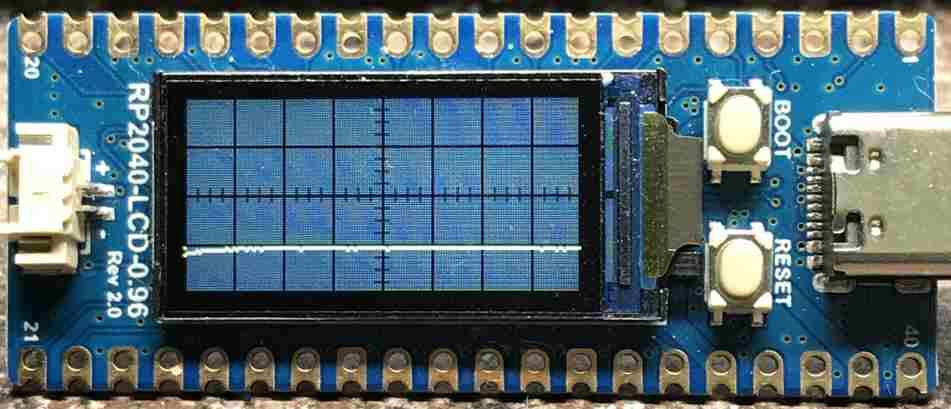

Is the second pic a micro-scope?

(gets hat and leaves the building)

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136

Posted: 11:17pm 23 Jul 2023

Copy link to clipboard

Print this post

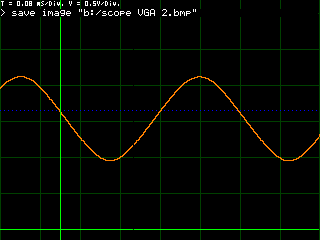

While NPHighview is doing things properly and will make an excellent standalone scope, this simpler offering is for those who rarely need a scope. It is intended for breadboard use, tailored for a particular job then recycled thus it has no external controls.

' PicoMite VGA / LCD (any screen size) "scope test 1g.bas"
' MODE 2 'can also use Mode 1 B&W
' Adjust trigger, gain, screen size, buffer size and speed to suit.

Dim Float Trig = -1.65 'Set trigger voltage, use "-" for falling trig. V.
Dim Float gain = 1.0 'boost weak signals - an op-amp is better
Dim integer HRes = MM.HRes, VRes = MM.VRes 'Change if not using full screen area
Dim integer buff = HRes * 3 'Capture buffer size - min = 2 x horiz. pixels
Dim integer speed = 450000 'Sampling rate (Hz)
Dim integer H.offset = 40 'Adjust to view pre/post-trigger signal (+/- pixels)
Dim float V.offset = 10 'Adjust vertical position (+/- pixels) - don't go off screen

Dim integer TV = Abs(Trig)*gain*-VRes/3.3+VRes ' pixel value of Trigger Voltage
Dim integer dot, x, y, TC
Dim float samples(buff) 'using OPTION BASE 0

ADC open speed, 1 'samples per second, GP26
CLS

Do
samples(buff-1) = -1 'set last element to -1
Text 1, 1, "T = "+Str$(HRes*1000/8/speed)+" mS/Div. V = 0.5V/Div."

ADC start samples() 'get new samples + extra for trig. search
Do While samples(buff-1) < 0 : Loop 'wait till array is full

'search for Trigger Condition
If H.offset > 0 Then TC = H.offset + 1 Else TC = 0 'allow for pre-trigger data
If Trig > 0 Then 'wait for signal to rise/fall through trigger voltage
   Do : Inc TC : Loop Until samples(TC) < Trig Or TC > buff - HRes
   Do : Inc TC : Loop Until samples(TC) > Trig Or TC > buff - HRes
  Else
   Do : Inc TC : Loop Until samples(TC) > -Trig Or TC > buff - HRes
   Do : Inc TC : Loop Until samples(TC) < -Trig Or TC > buff - HRes
EndIf
Inc TC, -H.offset 'adjust for desired offset
If TC > (buff-HRes) Or TC < 0 Then TC = 0 ' Trigger not found, plot from start

Math scale samples(), -VRes*gain/3.3 , samples() 'scale 3.3V to screen heihgt
Math add samples(), VRes, samples() 'set 0V to bottom of screen

'plot graticule
For x = 0 To HRes
  If x Mod (HRes \ 8) Then
   If x < MM.Info(FONTWIDTH) * 30 Then
   Line x, MM.Info(FONTHEIGHT), x, VRes, 1, 0 'delete old trace except text
   Else
   Line x, 0, x, VRes, 1, 0 'delete old trace
   EndIf
   Else
   Line x, 0, x, VRes, 1, RGB(0,64,0) 'Time grat.
  EndIf
  For y = VRes-1 To 0 Step -VRes/6.6
   Pixel x, y*gain-V.offset, RGB(0,64,0) 'Voltage grat. in 0.5V increments
  Next
  Pixel x, VRes-1-V.offset, RGB(0,128,0) '0V line
  If x Mod 4 = 0 Then dot = 255 Else dot = 0
  Pixel x, TV-V.offset, dot 'plot Trigger level.
  Line H.offset, 0, H.offset, VRes, 1, RGB(0,0,128) 'plot trigger time

  'plot trace
  Line x, samples(x+TC)-V.offset, x, samples(x+1+TC)-V.offset, 1, RGB(255,128,0)
Next
Loop
ADC close
End

Edited 2023-07-24 11:12 by phil99

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9126

Posted: 07:51am 24 Jul 2023

Copy link to clipboard

Print this post

Have you looked at the new ADC RUN command https://www.thebackshed.com/forum/ViewTopic.php?TID=16027&PID=206746#206746

This runs the ADC continuously alternating between buffers this hould give more flexibility so you can test for triggers etc. and get a longer trace pre and post trigger

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 06:44pm 25 Jul 2023

Copy link to clipboard

Print this post

Could not get to work
>
C:\Users\stanley555\Documents\mmbasic programs\oscillscope-forum1160x80.bas
Uploading using: 'target port\COM5:115200 s\picomite
Upload started
NEW
>
>
AUTOSAVE

Upload completed
Saved 3269 bytes
>
RUN
[19] Dim Buffer1!(Hres),
Error : Syntax
>
>
C:\Users\stanley555\Documents\mmbasic programs\oscillscope-forum1160x80.bas
Uploading using: 'target port\COM5:115200 s\picomite
Upload started
NEW
>
>
AUTOSAVE

Upload completed
Saved 3277 bytes
>
RUN
[19] Dim Buffer1!(Hres),
Error : Syntax
>
>
C:\Users\stanley555\Documents\mmbasic programs\oscillscope-forum1160x80.bas
Uploading using: 'target port\COM5:115200 s\picomite
Upload started
NEW
>
>
AUTOSAVE

Upload completed
Saved 3276 bytes
>
RUN
[34] Math Set 0, HGraty1() : Math Set Vres, HGraty2() ' Pre-set Arrays for Horizontal Graticules
Error : Cannot find HGRATY1
>

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 07:07pm 25 Jul 2023

Copy link to clipboard

Print this post

Hi, Stanleyella -

I'm suspicious that you're getting different byte counts for each upload attempt. Please try using XMODEM, or copy the file to an SD card if you have a card reader attached.

Also, here's what I have for version and options on the Waveshare RP2040-LCD-0.96 board (just copied from an OPTION LIST command output):

PicoMite MMBasic Version 5.07.08b8
OPTION SYSTEM SPI GP10,GP11,GP28
OPTION AUTORUN 2
OPTION COLOURCODE ON
OPTION HEARTBEAT OFF
OPTION CPUSPEED (KHz) 250000
OPTION DISPLAY 50, 132
OPTION LCDPANEL ST7735S, LANDSCAPE,GP8,GP12,GP9,GP25

Mine has been running without problems for at least three days now, using this code, just copied from my live system:

'Analog Oscilloscope for WaveShare LCD boards (Landscape mode)
'Adapted by NPHighview from Phil99 on the Backshed Forum July 2023
'Adds double-buffering and array graphics (FAST!)
'ADC values range from 0.0 to 3.3. See scaling calculations below.

Const Hres = MM.HRes ' Horizontal resolution of display
Const Vres = MM.VRes ' Vertical resolution of display

Dim integer x, y

Const Background = RGB(48,64,48) ' medium dark grey/green a la Tektronix
Const GMajor = RGB(black) ' Color for Major graticule
Const GMinor = RGB(12,12,12) ' Color for Minor graticule
Const Signal1 = RGB(yellow) ' dual colors used for debugging double-buffering
Const Signal2 = RGB(yellow)

' Let 'em know who we are

CLS Background

Select Case MM.Info(LCDPANEL)
Case "ILI9488W" ' A Waveshare P-E-B
Const Major = Vres/8 ' Major Axis Graticule size in pixels
Const Minor = Major / 5 ' Minor Axis Graticule size in pixels
Text Hres/2, Vres/2-2, "Analog Scope by NPHighview", "CB",1, 2, Signal1, Background
Text Hres/2, Vres/2+2, "on Waveshare Pico-Eval-Board", "CT",1, 2, Signal1, Background
Case "ST7735S" ' A Waveshare RP2040-LCD-0.96
Const Major = Vres/4 ' Major Axis Graticule size in pixels
Const Minor = Major/4 ' Minor Axis Graticule size in pixels
Text Hres/2, Vres/2-2, "Analog Scope by NPHighview", "CB",7, 1, Signal1, Background
Text Hres/2, Vres/2+2, "on RP2040-LCD-0.96", "CT",7, 1, Signal1, Background
Case Else
Print "Unsupported Hardware - Sorry!"
Text Hres/2, Vres/2, "Unknown Hardware", "CM",1, 1, Signal1, Background
End
End Select

Const HMajor = Hres/Major ' Number of Horizontal Major Axis divisions
Const VMajor = Vres/Major ' Number of Vertical Major Axis divisions
Const HMinor = Hres/Minor ' Number of Horizontal Minor Axis divisions
Const VMinor = Vres/Minor ' Number of Vertical Minor Axis divisions

' To scale 0.0 to Vres and 3.3 to 0,
Const VScale = Vres/(-3.3) ' 3.3 volts reference voltage

Dim Buffer1!(Hres), Buffer2!(Hres), Horizontal!(Hres) ' For signals

Dim HMajorx1(HMajor+1), HMajory1(HMajor+1), HMajory2(HMajor+1) ' For Horizontal Major Axes
Dim VMajorx1(VMajor+1), VMajorx2(VMajor+1), VMajory1(VMajor+1) ' For Vertical Major Axes

Dim HMinorx1(HMinor+1), HMinory1(HMinor+1), HMinory2(HMinor+1) ' For Horizontal Minor Axes
Dim VMinorx1(VMinor+1), VMinorx2(VMinor+1), VMinory1(VMinor+1) ' For Vertical Minor Axes

Pause 2000

' Pre-set array values for use in buffers and fast array graphics

Math Set 0, Buffer1!() : Math Set 0, Buffer2!() ' Clear signal buffers

Math Set 0, HMajory1() : Math Set Vres, HMajory2() ' Set the Arrays for Horizontal Major Axis
Math Set 0, VMajorx1() : Math Set Hres, VMajorx2() ' Set the Arrays for Vertical Major Axis

Math Set Vres/2+Minor/2, HMinory1() : Math Set Vres/2-Minor/2, HMinory2() ' Set the Arrays for Horizontal Minor Axis
Math Set Hres/2+Minor/2, VMinorx1() : Math Set Hres/2-Minor/2, VMinorx2() ' Set the Arrays for Vertical Minor Axis

For x = 0 To Hres-1 : horizontal!(x) = x : Next x ' used in array graphics

For x = 0 To HMajor : HMajorx1(x) = x*Major : Next x ' for time Major Axis graticule
For y = 0 To VMajor : VMajory1(y) = y*Major : Next y ' for volts Major Axis graticule

For x = 0 To HMinor : HMinorx1(x) = x*Minor : Next x ' for time Minor Axis graticule
For y = 0 To VMinor : VMinory1(y) = y*Minor : Next y ' for volts Minor Axis graticule

' Set up the screen and ADC hardware

CLS Background
ADC open 64000,1 'samples per second
SYNC 100000 'Set a one-tenth second "tick"
' Begin signal acquisition and display

Do
' While acquiring Buffer 1, display Buffer 2

SYNC
Pixel Horizontal!(), Buffer1!(), Background 'Clear previous display of Buffer 1
Buffer1!(Hres-1) = -1 : ADC start Buffer1!() 'Start Acquisition into Buffer 1
Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Redraw overwritten
Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Minor Graticules
Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Redraw overwritten
Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Major Graticules
Math scale Buffer2!(), VScale, Buffer2!() 'Scale Buffer 2 to fit screen
Math add Buffer2!(), Vres, Buffer2!() 'Offset Buffer 2 to bottom of screen
Pixel Horizontal!(), Buffer2!(), Signal2 'Display Buffer 2 scaled/offset
Do While Buffer1!(Hres-1) < 0 : Loop 'Wait until Buffer 1 is full

' While acquiring Buffer 2, display Buffer 1

SYNC
Pixel Horizontal(), Buffer2!(), Background 'Clear previous display of Buffer 2
Buffer2!(Hres-1) = -1 : ADC start Buffer2!() 'Start acqusition into Buffer 2
Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Redraw overwritten
Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Minor Graticules
Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Redraw overwritten
Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Major Graticules
Math scale Buffer1!(), VScale, Buffer1!() 'Scale Buffer 1 to fit screen
Math add Buffer1!(), Vres, Buffer1!() 'Offset Buffer 1 to bottom of screen
Pixel Horizontal(), Buffer1!(), Signal1 'Display Buffer 1 scaled/offset
Do While Buffer2!(Hres-1) < 0 : Loop 'Wait until buffer 2 is full

Loop

End

Live in the Future. It's Just Starting Now!

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6100

Posted: 09:24pm 25 Jul 2023

Copy link to clipboard

Print this post

Stan is using the default file header in MMEdit

Quote '
OPTION EXPLICIT
OPTION DEFAULT INTEGER

This is a good practice but when the source code doesn't follow the same practice, errors occur.
If I have the same version that Stan is using, there is an array Horizontal!() but Horizontal() without the type identifier is used further down the code.

[62] Pixel Horizontal(), Buffer2!(), Background 'Clear previous display of Buffer 2
Error : HORIZONTAL Different type already declared

The code runs without the OPTIONs set.

Jim

VK7JH
MMedit MMBasic Help

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 09:39pm 25 Jul 2023

Copy link to clipboard

Print this post

Thank you; that explains it. I use Atom or Notepad++ with BASIC language syntax highlighting instead.

- Steve

Live in the Future. It's Just Starting Now!

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 03:09pm 26 Jul 2023

Copy link to clipboard

Print this post

I tried the scope code posted, on - says rpi2040 lcd 0.96 and it worked.
I had used the mmedit option explicit as I can't spill vars the same in a var and it helps show carp :)
I then commented some lines to test and it moved the error further.
The double buffer's are new to me using normal picomite.
Still not stable sync.

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 03:30pm 26 Jul 2023

Copy link to clipboard

Print this post

Stanleyella - My code doesn't yet "trigger" on rising or falling edges of signals the way Phil99's does. I think he and I will eventually merge our codes, in such a way as to provide you what you may need. Think of my most recent version as a "free running" oscilloscope.

The way I've used the SYNC command just happens to work well for me because every 10th of a second locks up very nicely with the 60 cycle "hum" my finger picks up here in the States. It should also do so for you at 50Hz in the UK.

We have carp here in the States, but I much prefer fishing for bass or bluegills :-)

- Steve

Live in the Future. It's Just Starting Now!

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 04:24pm 26 Jul 2023

Copy link to clipboard

Print this post

I had not realised your's used an interrupt but it's only for when the array is full which is cool but maybe the search the samples for 3 following each increasing for a rising edge trigger then sample?
I did try
if sample>trig then sync but daft.

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 08:58pm 26 Jul 2023

Copy link to clipboard

Print this post

Stanley -

No interrupts; Sync is a new non-interrupt-based timing command. Still puzzling out Peter's new double-buffered ADC syntax, but will switch to that when I've figured it out.

- Steve

Live in the Future. It's Just Starting Now!

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 10:00pm 26 Jul 2023

Copy link to clipboard

Print this post

I tried
'do
'adc start samples!() 'get new samples
'loop until samples!(2)>samples!(1)
and it sticks there.

SetPin GP18,pwm1A 'this optional test signal comment out
PWM 1,5000,50 ' 50% = square wave ,this optional test signal comment out

dim count%,samples!(160),old_samples!(160)
SETPIN (31), AIn
adc open 500000,1 'samples per second
cls
do

'do 'mysync
'adc start samples!() 'get new samples '
'loop until samples!(2)>samples!(1) 'this is the point... carp.

adc start samples!() 'get new samples
math scale samples!(),79,samples!()'scale to 80 pixel
for count%=0 to 158 'screen width
line count%,old_samples!(count%),count%+1,old_samples!(count%+1),,rgb(black) 'erase old_sample
line count%,samples!(count%),count%+1,samples!(count%+1),,rgb(white) 'draw new sample
next count%
math add samples!(),0,old_samples!() 'copies new samples to old_samples
loop
end

edit looks like an overflow isr though a timer.
Edited 2023-07-27 08:53 by stanleyella

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200

Posted: 10:36pm 26 Jul 2023

Copy link to clipboard

Print this post

You could try zeroing out the buffer, and once it gets stuck, hit [ctrl]-[c] and print out the buffer contents from the command line to see what (if anything) it picked up.

Live in the Future. It's Just Starting Now!

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136

Posted: 04:25am 27 Jul 2023

Copy link to clipboard

Print this post

'do 'mysync
'adc start samples!() 'get new samples '
'loop until samples!(2)>samples!(1) 'this is the point... carp.

adc start samples!() 'get new samples

For this to synchronize properly it needs to restart filling the array before the first ADC START has finished. I am not sure that is possible.

In my example a random lump of samples (at least double the screen width) is captured then scanned for the trigger condition. From that point on the data is written to the display, up to MM.HRes.

It should work with your display. See first line

' PicoMite VGA / LCD (any screen size) "scope test 1g.bas"

Edit
This is what I get on an ILI9488 with the graphics area limited to 160 x 80. (the displayed trace is from a DHT11 sensor).

For best results on your display adjust settings in the first section and remove the TEXT command and section referring to FONTHEIGHT and WIDTH.

If x < MM.Info(FONTWIDTH) * 30 Then
Line x, MM.Info(FONTHEIGHT), x, VRes, 1, 0 'delete old trace
Else
Line x, 0, x, VRes, 1, 0 'delete old trace
EndIf

becomes

Line x, 0, x, VRes, 1, 0 'delete old trace

Also change the voltage graticule spacings.

> option list
PicoMite MMBasic Version 5.07.07
OPTION SYSTEM SPI GP18,GP19,GP16
OPTION SYSTEM I2C GP8,GP9
OPTION CPUSPEED (KHz) 376000
OPTION DISPLAY 55, 132
OPTION LCDPANEL ILI9488, LANDSCAPE,GP15,GP14,GP13,GP7
OPTION TOUCH GP12,GP11
GUI CALIBRATE 0, 3820, 408, -1306, 946
OPTION SDCARD GP22
>
Edited 2023-07-27 15:34 by phil99

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 04:54pm 27 Jul 2023

Copy link to clipboard

Print this post

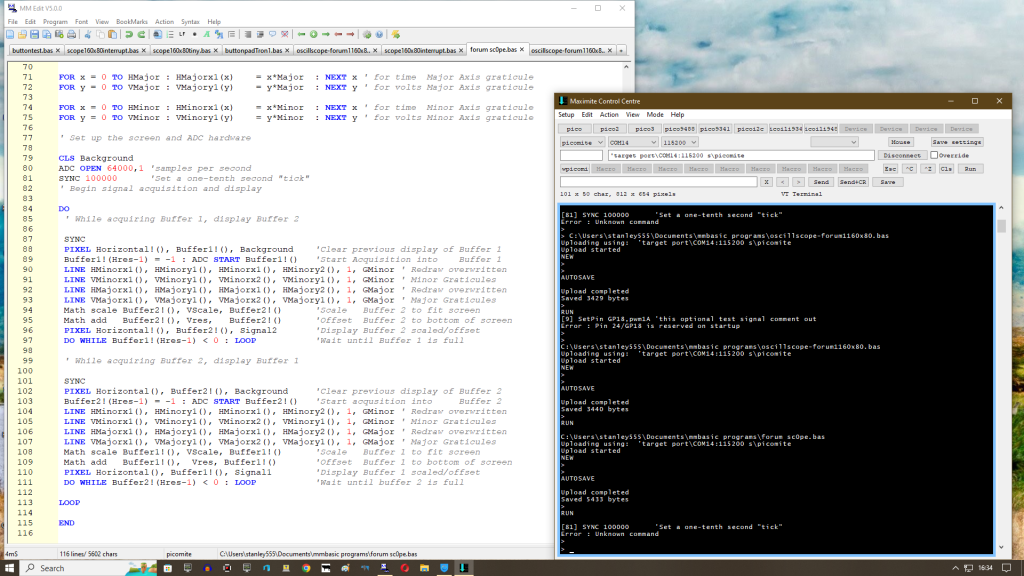

Doh. I got probs. Sorry, getting interesting

Page 3 of 17

Print this page
