Forum Index : Microcontroller and PC projects : Picomite(VGA) V5.07.07 betas - bug fixes + focus on PIO
  Page 3 of 16   |
|||||
| Author | Message | ||||
| Volhout Guru  Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
Hi Peter, Stumbing on something basic. Maybe you can help. Struggling to get the packed array into a normal array (never done that before, so expect stupid errors). This is the most basic sample that is holding me up. ' Test signal: Three phase motor drive - picomite V50706+ ' runs autonomously on GP0...GP5 50Hz SetPin gp0,pwm 'CH 0a SetPin gp1,pwm 'CH 0b SetPin gp2,pwm 'CH 1a SetPin gp3,pwm 'CH 1b SetPin gp4,pwm 'CH 2a SetPin gp5,pwm 'CH 2b PWM 0, 50, 33.33, -66.66, 1, 1 PWM 1, 50, 33.33, -66.66, 1, 1 PWM 2, 50, 33.33, -66.66, 1, 1 PWM sync 0, 100/3, 200/3 pause 20 '----------------------------------- LA code PIO -------------------------- 'PIO code to sample GP0..GP6 for logic analyzer pio clear 1 'in this program the PIO reads GP0..GP5 brute force 'and pushes data into FIFO. The clock speed determines the 'sampling rate. There are 2 instructions per cycle 'taking 10000/2 / 50 = 100 samples per cycle. 'the PIO program 'address code mnemonics comment '.wrap target ' 0 4006 IN pins 6 ' 1 8020 PUSH block '.wrap 'program pio1 pio program line 1,0,&h4006 pio program line 1,1,&h8020 'configuration f=1e4 'PIO run at 10kHz p=pio(pinctrl 0,0,0,gp0,,,) 'IN base = GP0 e=pio(execctrl gp0,0,1) 'wrap 1 to 0 'write the configuration, running 100kHz (data in FIFO 10us after rising edge GP0) PIO init machine 1,0,f,p,e,,0 'start address = 0 '---------------------------- LA code MMBasic ---------------------------------- 'do not start PIO, the DMA will do that. length%=128 DIM data%(2*length%) 'array to put the 32 bit samples dim packed%(length%) 'DMA array to pack 32 bit samples in 64 bit integers PIO DMA_IN 1,0,2*length%,packed%(),ReadyInt 'wait forever to complete do pause 1 loop end '-----------------------------------SUBS MMBasic -------------------------------- sub ReadyInt pio stop 1,0 memory unpack packed%(),data%(),length%,32 for i=0 to 2*length%-1 print hex$(data%(i)) next i end sub the error message I get has to do with missing dimensions.... Time taken: 2924mS RUN [66] Memory unpack packed%(),data%(),length%,32 Error : Dimensions Feel so stupid... Help... Edited 2023-01-18 22:49 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Sorry the manual is wrong - see my example Should be MEMORY PACK sourceaddress%, Destinationaddress%, number, size MEMORY UNPACK sourceaddress%, Destinationaddress%, number, size Also be careful of your definitions of the arrays How many elements in x(100) and how many in x(200) with default option base? Try Memory unpack Peek(varaddr packed%()),Peek(varaddr data%()),length%,32 In the next beta I'll modify memory pack and unpack so they match the manual and also optionally accept the address version Edited 2023-01-18 23:21 by matherp |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |

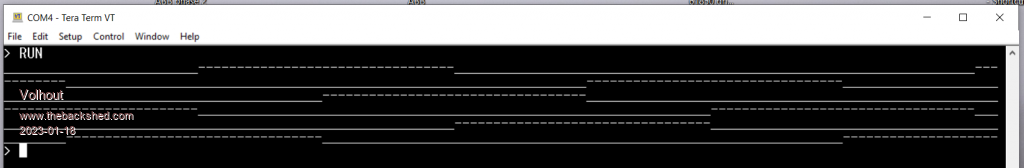

That did it.... '---------------------------- LA code MMBasic ---------------------------------- 'do not start PIO, the DMA will do that. length%=64 DIM data%(2*length%-1) 'array to put the 32 bit samples dim packed%(length%-1) 'DMA array to pack 32 bit samples in 64 bit integers PIO DMA_IN 1,0,2*length%,packed%(),ReadyInt 'wait forever to complete dim a$(1)=("_","-") do pause 1 loop end '-----------------------------------SUBS MMBasic -------------------------------- sub ReadyInt pio stop 1,0 memory unpack peek(varaddr packed%()),peek(varaddr data%()),2*length%,32 for j=0 to 5 mask%=2^j for i=0 to 2*length%-1 print a$(((data%(i) and mask%)=mask%)); next i next j 'for i=0 to 2*length%-1 'print hex$(data%(i)) 'next i end sub  Now I can start implementing the trigger in PIO code.... Volhout Edited 2023-01-18 23:56 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1115 |

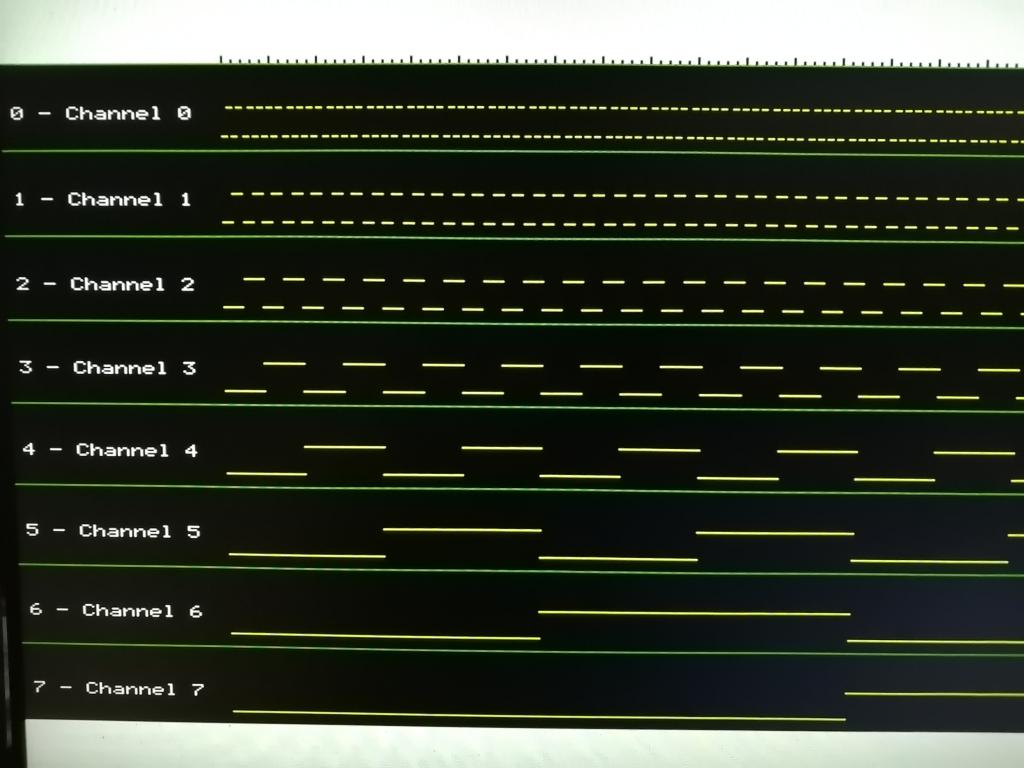

for VGA it might look like this:  At Top and Button you have Space for Information Text and settings Messages: You can also colorcode the first 16 Pixel of each Line with the CableColor as Tile BG-Color. MODE 1:Colour 0,RGB(WHITE):CLS :Font 7 For f%=0 To 7 Print @(0,88+48*f%) F%;" - Channel";f% TILE 0,5+f%*3,0,RGB(WHITE),6,2:TILE 6,5+f%*3,0,RGB(yellow),34,2 TILE 0,4+f%*3,0,RGB(midgreen),40,1 Line 0,64+f%*48,640,64+f%*48 Next scl%=5 For f%=96 To 640 Step 4 Line f%,62-2*(scl%=5),f%,63 Inc scl%:If scl%=6 Then scl%=1 Next 'testrun For F%=0 To 255 For n%=0 To 7 If f% And (2^n%) Then Plotline n%,1 Else Plotline n%,0 EndIf Next n% Next f% Sub plotline ch%,Vl% y%=ch%*48+88+16*(Vl%=0) x%=96+2.125*f% Line x%,y%,x%+2.125,y% End Sub cheers Mart!n Edited 2023-01-19 00:50 by Martin H. 'no comment |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
Yip, that is the ultimate goal.... I currently focus only on the heart of the analyzer. The user interface is not my strong side. What I like a lot about the Saleae analyzers is the fluent way they zoom (very quick). Currently only 128 samples in the array, but ultimately there may be 8000 samples 32 bit wide (32kb) and you want to zoom in / out to any block of 500 (640 screen, use 500 for waveformes, 140 for additional info), or scroll fluently. And also zoom in until only 50 samples of so on screen. In that case a vertical cursor is nice. It will be very hard to see time synchonisation with the bare eye. The VGA picomite has only limitted free IO pins. So we can sample 6 GPx pins very fast (40MHz or faster), but it would be nice to have more (16 pins or more). On the VGA picomite we can use 4 x 74LVC165 shift registers to input 32 bits (using the 6 free GPx pins) and sample at 2MHz (shift register is read at 16MHz). You could real time analyze a 6502, databus and address bus and R/W and Ph2 and NMI and IRQ. Something for the 8 bit guy.. In that case we need some extra hardware to get a programmable trigger. Working on that. But I am thinking ahead now. First trigger and reconstruction of the data arrays using the 6 pins. Another thing to think about is protocol analysis (UART decode/I2C decode). Edited 2023-01-19 00:54 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |

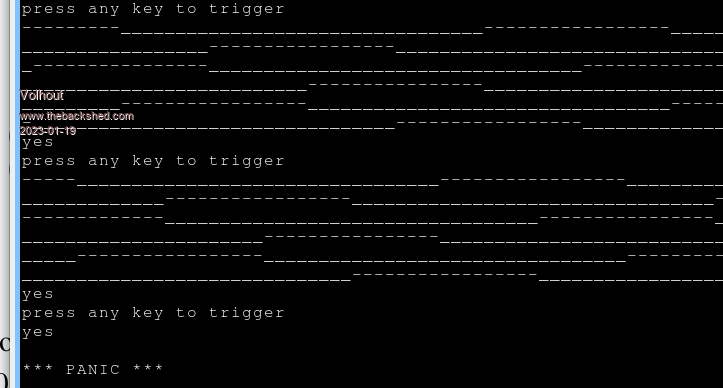

@Peter, When I use the normal DMA RX (no ring buffer) in below program, every keypress samples a new set of data from the GP0-5 pins. But after some 6 or 7 times, the program exits with a panic. I have tried forcing the DMA to a stop, and the message is DMA not running. So the DMA has stopped, but MMBasic has problems. Is this a memory leak ?  ' Test signal: Three phase motor drive - picomite V50706+ ' runs autonomously on GP0...GP5 50Hz SetPin gp0,pwm 'CH 0a SetPin gp1,pwm 'CH 0b SetPin gp2,pwm 'CH 1a SetPin gp3,pwm 'CH 1b SetPin gp4,pwm 'CH 2a SetPin gp5,pwm 'CH 2b PWM 0, 50, 33.33, -66.66, 1, 1 PWM 1, 50, 33.33, -66.66, 1, 1 PWM 2, 50, 33.33, -66.66, 1, 1 PWM sync 0, 100/3, 200/3 Pause 20 '----------------------------------- LA code PIO -------------------------- 'PIO code to sample GP0..GP6 for logic analyzer PIO clear 1 'in this program the PIO reads GP0..GP5 brute force 'and pushes data into FIFO. The clock speed determines the 'sampling rate. There are 2 instructions per cycle 'taking 10000/2 / 50 = 100 samples per cycle. 'the PIO program 'address code mnemonics comment ' 0 2016 WAIT GP22=0 wait for trigger to become low ' 1 2096 WAIT GP22=1 wait for trigger to become high '.wrap target ' 2 4006 IN pins 6 read 6 pins ' 3 8020 PUSH block and push '.wrap 'program pio1 PIO program line 1,0,&h2016 PIO program line 1,1,&h2096 PIO program line 1,2,&h4006 PIO program line 1,3,&h8020 'configuration f=1e4 'PIO run at 10kHz p=Pio(pinctrl 0,0,0,gp0,,,) 'IN base = GP0 e=Pio(execctrl gp22,2,3) 'wrap 3 to 2, gp22 is conditional JMP pin s=Pio(shiftctrl 0,0,0,0,0,0) 'shift in through LSB, out is not used 'write the configuration, running 10kHz (data in FIFO 10us after rising edge GP0) PIO init machine 1,0,f,p,e,s,0 'start address = 0 '---------------------------- LA code MMBasic ---------------------------------- 'prepare trigger signal set to idle setpin gp22,dout pin(gp22)=0 'do not start PIO, the DMA will do that. Dim a$(1)=("_","-") length%=64 Dim data%(2*length%-1) 'array to put the 32 bit samples Dim packed%(length%-1) 'DMA array to pack 32 bit samples in 64 bit integers ' PIO DMA_IN 1,0,2*length%,packed%(),ReadyInt 'let the machine run, and wait for trigger do PIO DMA_IN 1,0,2*length%,packed%(),ReadyInt print "press any key to trigger" do:loop while inkey$="" print "yes" pulse gp22,1 pause 200 loop End '-----------------------------------SUBS MMBasic -------------------------------- Sub ReadyInt PIO stop 1,0 Memory unpack Peek(varaddr packed%()),Peek(varaddr data%()),2*length%,32 For j=0 To 5 mask%=2^j For i=0 To 2*length%-1 Print a$(((data%(i) And mask%)=mask%)); Next i Next j 'PIO DMA_IN OFF end sub Edited 2023-01-19 05:01 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
See if this improves things.I assume you are developing on VGA? PicoMiteVGA (2).zip |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |

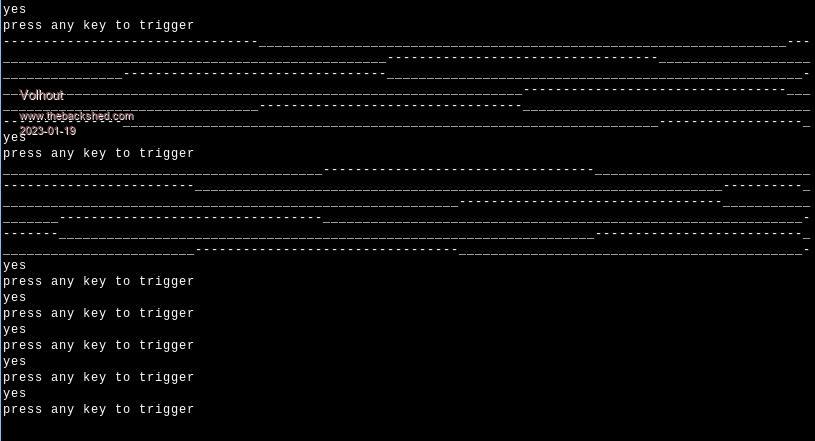

Hi Peter, This is improved. The ***PANIC*** message is gone. But the code simply refuses to do a DMA after a few tries. (-or- the DMA's do not complete).  I am developing on the standard picomite. Since I try to bring maximum functionality to the VGA version, I need to use all available IO pins on the VGA version. That leaves me with no IO pins for debug. So I develop on the normal pico, and keep VGA in mind. On my standard pico, I have SDcard connected to the VGA pins (GP16...GP21), to get a group of 16 successive IO pins free (GP0...GP15) for PIO debugging. Currently I work with 2 arrays. One packed array, and one data array. The packed array is resulting of the DMA action. The data array is where the display, data analysis, zooming etc.. will happen on. Until the moment that we can use a small data array and intelligen "unpacking" from the packed array (unpack small sections, like with a magnifier glass) the packed array is just eating up memory. At the moment I jave the data array (100%) and the packed array (size 50%) eating 150% variable space. This could be overcome by adding the "64" size to the DMA (currently 1,4,8,16,32). In that case storage in the "packed" array would be wasting 32 bits per sample, but the data would be in integer format. No need for a "packed" array anymore.. Or am I dreaming..? Volhout Edited 2023-01-19 18:04 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
OK, I think I've found it. You need to re-initialise the state machine after each run. The DMA call just enables it which runs from wherever the program counter happens to be. In the attached I've modified the PACK and UNPACK commands to match the manual PicoMite.zip Here is your code with the mod to make it reliable (call init in the interrupt routine) ' Test signal: Three phase motor drive - picomite V50706+ ' runs autonomously on GP0...GP5 50Hz SetPin gp0,pwm 'CH 0a SetPin gp1,pwm 'CH 0b SetPin gp2,pwm 'CH 1a SetPin gp3,pwm 'CH 1b SetPin gp4,pwm 'CH 2a SetPin gp5,pwm 'CH 2b PWM 0, 50, 33.33, -66.66, 1, 1 PWM 1, 50, 33.33, -66.66, 1, 1 PWM 2, 50, 33.33, -66.66, 1, 1 PWM sync 0, 100/3, 200/3 Pause 20 '----------------------------------- LA code PIO -------------------------- 'PIO code to sample GP0..GP6 for logic analyzer PIO clear 1 'in this program the PIO reads GP0..GP5 brute force 'and pushes data into FIFO. The clock speed determines the 'sampling rate. There are 2 instructions per cycle 'taking 10000/2 / 50 = 100 samples per cycle. 'the PIO program 'address code mnemonics comment ' 0 2016 WAIT GP22=0 wait for trigger to become low ' 1 2096 WAIT GP22=1 wait for trigger to become high '.wrap target ' 2 4006 IN pins 6 read 6 pins ' 3 8020 PUSH block and push '.wrap 'program pio1 PIO program line 1,0,&h2016 PIO program line 1,1,&h2096 PIO program line 1,2,&h4006 PIO program line 1,3,&h8020 'configuration f=1e4 'PIO run at 10kHz p=Pio(pinctrl 0,0,0,gp0,,,) 'IN base = GP0 e=Pio(execctrl gp22,2,3) 'wrap 3 to 2, gp22 is conditional JMP pin s=Pio(shiftctrl 0,0,0,0,0,0) 'shift in through LSB, out is not used 'write the configuration, running 10kHz (data in FIFO 10us after rising edge GP0) PIO init machine 1,0,f,p,e,s,0 'start address = 0 '---------------------------- LA code MMBasic ---------------------------------- 'prepare trigger signal set to idle SetPin gp22,dout Pin(gp22)=0 'do not start PIO, the DMA will do that. Dim a$(1)=("_","-") length%=64 Dim data%(2*length%-1) 'array to put the 32 bit samples Dim packed%(length%-1) 'DMA array to pack 32 bit samples in 64 bit integers ' PIO DMA_IN 1,0,2*length%,packed%(),ReadyInt 'let the machine run, and wait for trigger Do PIO DMA_IN 1,0,2*length%,packed%(),ReadyInt Print "press any key to trigger" Do :Loop While Inkey$="" Print "yes" Pulse gp22,1 Pause 200 Loop End '-----------------------------------SUBS MMBasic -------------------------------- Sub ReadyInt PIO stop 1,0 Memory unpack packed%(),data%(),2*length%,32 For j=0 To 5 mask%=2^j For i=0 To 2*length%-1 Print a$(((data%(i) And mask%)=mask%)); Next i Next j PIO init machine 1,0,f,p,e,s,0 'start address = 0 'PIO DMA_IN OFF End Sub Edited 2023-01-19 20:03 by matherp |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
Yes, there seems to be a relation with timing. See snip: PIO DMA_IN 1,0,2*length%,packed%(),ReadyInt Pause Rnd*200+200 If I remove the PAUSE, the PIO could potentially put one value in the FIFO before the DMA is ready. After few (6 or 7) triggers the codes tarts putting out "." (done%=0). If I change the pause to PAUSE 20 (1 whole cycle of 50Hz), the DMA should be ready, but after 6 or 7 triggers I get: Error: Invalid address - resetting So you are right, there is a critical timing somewhere. Could this be because you have put the priority of the DMA too high (conflict with USB ?). Regards, Volhout PicomiteVGA PETSCII ROBOTS |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Just completely changed my post - see above |
||||
| Pluto Guru Joined: 09/06/2017 Location: FinlandPosts: 359 |

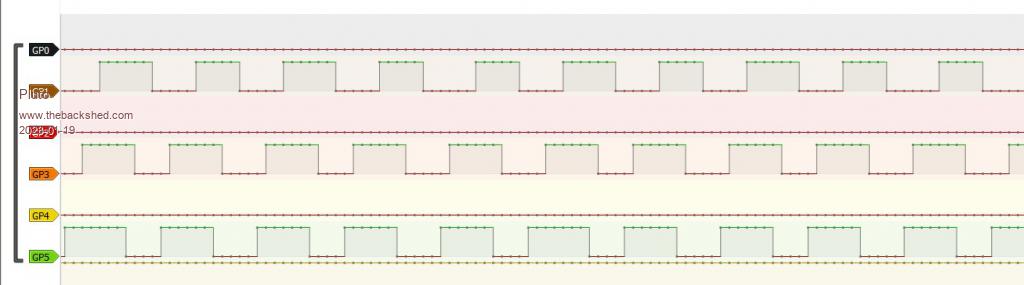

Peter & Volhout, you are doing a great job! I am following with great interest. I made some speed testing and in my opinion it looks very promising. option list PicoMite MMBasic Version 5.07.07b5 OPTION SYSTEM I2C GP16,GP17 OPTION FLASH SIZE 4194304 OPTION CPUSPEED (KHz) 378000 OPTION DISPLAY 50, 150 With PWM frequency set to 40MHz and PIO frequency set to 378MHz the program still works. Although the PWM output looks quite miserable. option list PicoMite MMBasic Version 5.07.07b5 OPTION SYSTEM I2C GP16,GP17 OPTION FLASH SIZE 4194304 OPTION CPUSPEED (KHz) 378000 OPTION DISPLAY 50, 150 OPTION LCDPANEL SSD1306I2C32, LANDSCAPE > ________________________________________________________________________________________________________________________________ __--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__-- ________________________________________________________________________________________________________________________________ -__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__- ________________________________________________________________________________________________________________________________ -__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__--__- press any key to trigger Very similar outlook by the logic analyzer. A few of the traces are just lines.  |
||||
| Pluto Guru Joined: 09/06/2017 Location: FinlandPosts: 359 |
Matherp: Matherp's program above: Sub ReadyInt PIO stop 1,0 Memory unpack packed%(),data%(),2*length%,32 For j=0 To 5 mask%=2^j For i=0 To 2*length%-1 Print a$(((data%(i) And mask%)=mask%)); Next i Next j PIO init machine 1,0,f,p,e,s,0 'start address = 0 'PIO DMA_IN OFF End Sub PIO frequency can then be adjusted "on line" via GUI while the program is running. A possible route for adjustment of sampling speed for Zoom-in and Zoom-out? |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
Thanks, Now it works... Thanks you for helping out... Next on my list is doing the circular buffer, to allow for pre-trigger data. This is what I envision: MMBasic------------------------------------------ PIO DMA start PIO write post trigger length (= 1/2 record length) in FIFO (starts capturing) wait for completion of DMA unpack data get DMA packed pointer -> data array index Write screen starting data index, with wrap around. PIO code ------------------------------------------ .wrap target pull OSR blocking (wait for MMBasic to provide 1/2 record lenth) move OSR->X loop: capturing data to fifo no trigger GPx jump to loop loop2: capture data to fifo jump (X<>0) loop2 X-- .wrap Volhout Nice idea Pluto. That is only zooming IN/OUT while sampling (the capturing). The zoom IN/OUT when the data is already captured must happen on the packed%() or data%(). Both are needed. Edited 2023-01-19 22:53 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
PicoMite(VGA)V5.07.07b6 https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip Various tidying up of recent changes MEMORY PACK and UNPACK now accept array specifications as per the manual or a memory address as previously |
||||
| Pluto Guru Joined: 09/06/2017 Location: FinlandPosts: 359 |
@Peter, your program earlier on this page gives this after loading the latest firmware: option list PicoMite MMBasic Version 5.07.07b6 OPTION SYSTEM I2C GP16,GP17 OPTION FLASH SIZE 4194304 OPTION DISPLAY 50, 150 OPTION LCDPANEL SSD1306I2C32, LANDSCAPE > RUN press any key to trigger yes [80] Memory unpack packed%(),data%(),2*length%,32 Error : Dimensions > |
||||
| Pluto Guru Joined: 09/06/2017 Location: FinlandPosts: 359 |
Is this not the correct way anymore? Memory unpack packed%(),data%(),2*length%,32 I also noticed that the variable "lenght%" shows now as "LENGHT%" formatted as a command in MM Edit. Don't think that it was like that earlier? |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Is this not the correct way anymore? That is what the manual says but up until today it didn't work. You had to use PEEK(VARADDR array%() Looks like there is still an issue - will post when fixed. In the meantime use peek(varaddr array%()) Edited 2023-01-20 05:43 by matherp |
||||
TassyJim Guru Joined: 07/08/2011 Location: AustraliaPosts: 6102 |
MMEdit choices of what to highlight as a keyword is irreverent. It does not have any effect on the program. LENGTH has been in the keyword list since it was a parameter for DIM AS STRING... Jim VK7JH MMedit  MMBasic Help |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Should be OK now, please re-download. No version change |
||||
