Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4257
Posted: 09:26am 27 Jun 2022
Copy link to clipboard
Print this post

Mick, Tom, and others,

Below an example of a game for the VGA picomite GAME platform.
It is very elementary, but has a lot of charm in it's simplicity.

The game requires the VGA picmite GAME board and 2 NES controllers.
It is a two player game. You need a partner to play it.

The screen shows 3 circles
Blue = player A
Red = player B
Green is the food you need to eat to grow.

Target is to grow to the size that exceeds the screen....yep that is big...
You grow when you eat.
You shrink when you collide into the other player...and have speed. So if you are not moving, you don't shrink. Let the other player collide into you. So blocking the food is a good tactic.

You can move diagonally, and across screen borders, so surprise is easy.

Me and my wife had a lot of laughter playtesting. This game is far from finished, but already nice to play. Due to Covid we where 1.5 meter appart, but due to the game...really close.

Future enhancement could be to restart the game from the NES controllers.

Have fun....

'circle, a 2 player game for VGA picomite GAME

'features PIONES2 - PIO SPI for dual NES controller
'VGApicomiteGAME board revision 1.4

'---------------------------- IO pin configuration -------------------------
'pin asignment K8/sm0 K7/sm1
'data (in)     gp1    gp4
'latch (out)   gp2    gp5
'clk (out)     gp3    gp22

'reserve pins for PIO1 sm0
SetPin gp1,pio1:SetPin gp2,pio1:SetPin gp3,pio1  'sm0
SetPin gp4,pio1:SetPin gp5,pio1:SetPin gp22,pio1 'sm1

'power the 2 ports K8 and K7 if needed
SetPin gp14,dout:Pin(gp14)=1
SetPin gp15,dout:Pin(gp15)=1


'------------------------------ PIO configuration --------------------------
'PIO1 execute frequency
f=100000

'pio config PIO1 sm0
s0=2^19                            'default with IN shift left, OUT shift right
p0=Pio(pinctrl 1,1,1,GP1,GP3,GP2,GP3)  'GP1=IN base GP2=SET GP3=OUT/SIDESET

'pio config PIO1 sm1
s1=2^19                           'default with IN shift left, OUT shift right
p1=Pio(pinctrl 1,1,1,GP4,GP22,GP5,GP22) 'GP4=IN base, GP5=SET GP22=OUT/SIDESET


'------------------------------ PIO program (comment) -----------------------
'pio1 sm0 program, identical code for sm0 and sm1, clock is side set pin
'adr/instr/comment
'0 E081 'set pindir latch, out     [side 0]
'1 E000 'set latch low             [side 0]
'2 A0EB 'MOV null inverted to OSR  [side 0]
'3 6081 'OUT 1 bit OSR to pindirs  [side 0] set clock output

'4 E001 'latch high                [side 0] latch pulse
'5 E000 'latch low                 [side 0]
'6 E027 'load X with value 7       [side 0]
'7 A0C3 'mov NULL to ISR           [side 0]

'8 4001 'shift 1 bit data in ISR   [side 0]
'9 1048 'JMP X-- to &h8            [side 1] this is the clock pulse
'A 8000 'push ISR                  [side 0] 8 bits to fifo
'B 0004 'jmp to &h4                [side 0] next cycle

'&h0C....&h1F not used
'------------------------- END PIO program (comment) --------------------------

'pio1 program in data statements
Dim a%(7)=(&h6081A0EBE000E081,&hA0C3E027E000E001,&h0004800010484001,0,0,0,0,0)

'program and start the PIO1 state machines
PIO program 1,a%()      'program PIO1
PIO init machine 1,0,f,p0,,s0,0       'init sm0 from address &h00
PIO init machine 1,1,f,p1,,s1,0       'init sm1 from address &h00 (same code)
PIO start 1,0                         'start PIO1 sm0
PIO start 1,1                         'start PIO1 sm1

Dim h%(5)

'------------------------------ MAIN level -----------------------------------

MODE 2

'initial values for the players and the target food
'target (green) index 0, left player (K8/port A/blue) index 1
'right player (K7/port B/ red) index 2
sz=MM.HRes/40

'x,y are coordinates, r=radius, c=color, s=speed
x0=MM.HRes/2:y0=MM.VRes/3:r0=sz:c0=RGB(green)
x1=MM.HRes/3:y1=2*MM.VRes/3:r1=sz:c1=RGB(blue):s1=5
x2=2*MM.HRes/3:y2=2*MM.VRes/3:r2=sz:c2=RGB(red):s2=5

FRAMEBUFFER create
FRAMEBUFFER write f

'initial target
Circle x0,y0,r0,,,c0,c0

'this is the main game loop. the gams stops when one player
'size exceeds the screen limits
Do
'read the FIFO's that contain the NES controller keys
PIO read 1,0,5,h%()  'read 5 words from FIFO sm0
p1=255-h%(4)         'converto to value 0-15
PIO read 1,1,5,h%()  'read 5 words from FIFO sm1
p2=255-h%(4)         'converto to value 0-15

'wipe old positions players
 Circle x1,y1,r1,,,0,0
 Circle x2,y2,r2,,,0,0

 'move players
   v1=0:v2=0
   if (p1 and 2) then v1=v1+s1:x1=x1-s1
   if (p1 and 1) then v1=v1+s1:x1=x1+s1
   if (p2 and 2) then v2=v2+s2:x2=x2-s2
   if (p2 and 1) then v2=v2+s2:x2=x2+s2
   if (p1 and 8) then v1=v1+s1:y1=y1-s1
   if (p1 and 4) then v1=v1+s1:y1=y1+s1
   if (p2 and 8) then v2=v2+s2:y2=y2-s2
   if (p2 and 4) then v2=v2+s2:y2=y2+s2

   'allow wrap around
   if x1<0 then x1=x1+mm.hres
   if x1>mm.hres then x1=x1-mm.hres
   if y1<0 then y1=y1+mm.vres
   if y1>mm.vres then y1=y1-mm.vres
   if x2<0 then x2=x2+mm.hres
   if x2>mm.hres then x2=x2-mm.hres
   if y2<0 then y2=y2+mm.vres
   if y2>mm.vres then y2=y2-mm.vres

  'calculate distances
  d12=Sqr((x1-x2)^2 + (y1-y2)^2)
  d10=Sqr((x1-x0)^2 + (y1-y0)^2)
  d20=Sqr((x0-x2)^2 + (y0-y2)^2)

  'game rules, collision between players is punished
  'player who moves is culprit
  If d12<(r1+r2) Then
     If v1>0 Then r1=r1/2
     If v2>0 Then r2=r2/2
     r1=max(r1,1)
     r2=max(r2,1)
  EndIf

  'you eat, you grow....
  If d10<(r1+r0) Then
    r1=r1*2
    newfood
  EndIf
  If d20<(r0+r2) Then
    r2=r2*2
    newfood
  EndIf

 'write new player /target positions and sizes
 Circle x1,y1,r1,,,c1,c1
 Circle x2,y2,r2,,,c2,c2
 Circle x0,y0,r0,,,c0,c0

 FRAMEBUFFER copy f,n,b
 Pause 50

Loop while r1<MM.Vres and r2<MM.vres
End

Sub newfood
 Circle x0,y0,r0,,,0,0
 x0=MM.HRes*Rnd()
 y0=MM.VRes*Rnd()
end sub

end sub

Edited 2022-06-27 19:27 by Volhout
PicomiteVGA PETSCII ROBOTS

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 10:34am 27 Jun 2022
Copy link to clipboard
Print this post

You've beat me to it @Volhout, I spent too much of yesterday playing with my RaspberryPi/MMB4L <-> PicoMite toolchain rather than making any progress on the end result.

  Volhout said  Due to Covid we where 1.5 meter apart ...


Sorry to hear about that @Volhout, hope you / your wife feel better soon.

Best wishes,

Tom
Edited 2022-06-27 21:01 by thwill
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 04:32pm 06 Jul 2022
Copy link to clipboard
Print this post

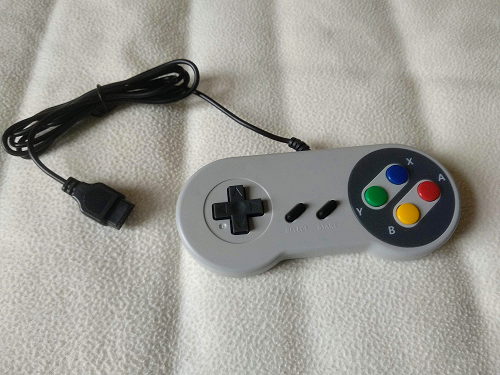

Hopefully another controller option for the PicoGAME VGA has just arrived from the Far-East:



4 directions + 6 independent fire-buttons + Start + Select

Reads like an NES controller except from a 16-bit shift-register instead of an 8-bit one.

Though whether you need all these buttons is debatable, the original NES version of Elite (not known for its limited number of controls) managed with just the standard NES controller.

On a related note:

As I understand it there are jumpers on the PCB that need to be set for NES gamepad vs. Atari joystick vs. "analogue". Is there any way an MMBasic program can determine the position of these jumpers and thus what controllers are attached (or at least what controllers the user has setup the board for) ?

Best wishes,

Tom
Edited 2022-07-07 03:59 by thwill
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6815
Posted: 05:52pm 06 Jul 2022
Copy link to clipboard
Print this post

On version 1.4:

For Port A and the PicoGAME Mini
For pins 1, 2, 3, 4 and 14 it's just the way you read the pins. There are no links to change.
Pins 5 and 9 are connected to ADC inputs, which have 10k resistors to pull them up or down or left off depending on the type of analogue input to be used.

For Port B (not fitted on the PicoGAME Mini)
Pins 2,3, 4 and 15 of Port B are always connected to their GP pins.
Pin 9 is always connected to GP28


Version 2.0 is slightly different for GP28
It can be linked to either Port B or to the SET pin of the JDY-40
The Port B end is connected to pin 9 as usual but has an additional link block to also connect it to pin 1, where it can act as the Up input.
Pin GP28 of LB1 will normally be set to UP to connect the necessary pull-up.

Because the system is so simple, and switched joysticks are always normally open, I can't think of any way for MMBasic to figure out what's fitted. I suppose you could try reading a controller with a timeout. If you don't get a data stream back within the timeout then there *may* be a switched joystick fitted. Analogue sticks / paddles can be read to see if they have a value, but they would share the same fire button as the switched joystick.
Edited 2022-07-07 04:01 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 08:16pm 06 Jul 2022
Copy link to clipboard
Print this post

Gave the "SNES" controller a quick smoke-test with @Volhout's NES PIO code and it reads the first 8-bits identically (same mapping) to the "NES" controller. I imagine reading the other 8 bits (only 4 of which are used) is simply a case of changing the PIO code to read 16 bits => 2 bytes of the FIFO after every pulse of the latch instead of 8 bits => 1 byte - Nice!

Best wishes,

Tom
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6815
Posted: 08:27pm 06 Jul 2022
Copy link to clipboard
Print this post

Nice. :)  It's an alternative controller anyway. :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 03:27pm 12 Jul 2022
Copy link to clipboard
Print this post

Hey Mick,

Before I take @bigmik up on an offer to CNC me a prototype Acrylic case can you confirm (or not) that the mounting holes on the v2 board are going to be the same as those on the v1.4 board ?

Best wishes,

Tom
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6815
Posted: 05:19pm 12 Jul 2022
Copy link to clipboard
Print this post

Identical. The only thing is that the "top right" one (under JS1, in front of the level shifter) isn't used if you fit the full size SD card socket, but the pillar is still there. I've only just avoided the mounting pillars in some places so don't make them any bigger in diameter (5mm) than the original case.

You should be able to find the Hammond drawing for the case. It gives exact dimensions.
Edited 2022-07-13 03:20 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 09:22pm 12 Jul 2022
Copy link to clipboard
Print this post

Good news:

Finally started integrating @Volhout's PIONES code with my game, works beautifully.

Bad news:

2 of my 6 el-cheapo NES controllers don't send a discrete 0x8 from their UP button, they send an 0xA which is a simultaneous UP and LEFT which is no good for a game requiring precision control. It seems to be a mechanical problem because if I dismantle them, remove the plastic D-pad insert and just leave the rubber nipples (presumably with some conductive crap on the back of them) then they work properly - though I can't see anything obviously mechanically wrong; they are of extremely simple construction.

I bought two batches of 4, both from the same vendor and both cosmetically identical. Both the bad ones are from the first batch. @Mixtel90 the two I sent you are also from this batch, perhaps you could test whether they are giving clear UP button presses ?

Best wishes,

Tom
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4257
Posted: 05:37am 13 Jul 2022
Copy link to clipboard
Print this post

  thwill said  Gave the "SNES" controller a quick smoke-test with @Volhout's NES PIO code and it reads the first 8-bits identically (same mapping) to the "NES" controller. I imagine reading the other 8 bits (only 4 of which are used) is simply a case of changing the PIO code to read 16 bits => 2 bytes of the FIFO after every pulse of the latch instead of 8 bits => 1 byte - Nice!

Best wishes,

Tom


The PIONES 16 bit version would be like this (I cannot test since I don't have a SNES controller).So please understand this is untested code...

'PIONES16 - PIO SPI for SNES controller
'VGApicomiteGAME board revision 1.4
'Shrink version (both stamemachines run same code)

'-------------------------------- IO pin configuration -------------------------
'pin asignment K8/sm0 K7/sm1
'data (in)     gp1    gp4
'latch (out)   gp2    gp5
'clk (out)     gp3    gp22

'reserve pins for PIO1 sm0
SetPin gp1,pio1:SetPin gp2,pio1:SetPin gp3,pio1  'sm0
SetPin gp4,pio1:SetPin gp5,pio1:SetPin gp22,pio1 'sm1

'power the 2 ports K8 and K7 if needed
SetPin gp14,dout:Pin(gp14)=1
SetPin gp15,dout:Pin(gp15)=1


'--------------------------------- PIO configuration --------------------------
'PIO1 execute frequency
f=200000   '200kHz to achieve same responsiveness as 100kHz 8 bit controller

'note: the PIO program for both PIO's is the same, only the IO definition
'in the pinctrl register is different. The statemachines actually run same code

'pio config PIO1 sm0
s0=2^19                            'default with IN shift left, OUT shift right
p0=Pio(pinctrl 1,1,1,GP1,GP3,GP2,GP3)  'GP1=IN base GP2=SET GP3=OUT/SIDESET

'pio config PIO1 sm1
s1=2^19                           'default with IN shift left, OUT shift right
p1=Pio(pinctrl 1,1,1,GP4,GP22,GP5,GP22) 'GP4=IN base, GP5=SET GP22=OUT/SIDESET


'------------------------------ PIO program (comment) -------------------------
---
'pio1 sm0 program, identical code for sm0 and sm1, clock is side set pin
'adr/instr/comment
'0 E081 'set pindir latch, out     [side 0]
'1 E000 'set latch low             [side 0]
'2 A0EB 'MOV null inverted to OSR  [side 0]
'3 6081 'OUT 1 bit OSR to pindirs  [side 0] set clock output

'4 E001 'latch high                [side 0] latch pulse
'5 E000 'latch low                 [side 0]
'6 E02F 'load X with value 15      [side 0]  <---------change no of bits to 15
'7 A0C3 'mov NULL to ISR           [side 0]

'8 4001 'shift 1 bit data in ISR   [side 0]
'9 1048 'JMP X-- to &h8            [side 1] this is the clock pulse
'A 8000 'push ISR                  [side 0] 16 bits to fifo
'B 0004 'jmp to &h4                [side 0] next cycle

'&h0C....&h1F not used
'------------------------- END PIO program (comment) --------------------------
-

'pio1 program in data statements
Dim a%(7)=(&h6081A0EBE000E081,&hA0C3E02FE000E001,&h0004800010484001,0,0,0,0,0)

'program and start the PIO1 state machines
PIO program 1,a%()      'program PIO1
PIO init machine 1,0,f,p0,,s0,0       'init sm0 from address &h00
PIO init machine 1,1,f,p1,,s1,0       'init sm1 from address &h00 (same code)
PIO start 1,0                         'start PIO1 sm0
PIO start 1,1                         'start PIO1 sm1


'------------------------------ MAIN level -----------------------------------
Print "running"
dim h%(4)

'read the FIFO's that contain the NES controller keys
Do
 PIO read 1,0,5,h%() 'read from FIFO sm0
 Print Hex$(65535-h%(4)), 'print value
 PIO read 1,1,5,h%() 'read from FIFO sm1
 Print Hex$(65535-h%(4)) 'print value
 Pause 100
Loop While Inkey$=""

End

Edited 2022-07-13 15:57 by Volhout
PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6815
Posted: 07:00am 13 Jul 2022
Copy link to clipboard
Print this post

They are both reasonably accurate, Tom. One has a tendency to sometimes go a bit south-east rather than south, but the other is fine. UP isn't a problem on either of them. Will the joystick button moulding rotate round to a different position? I've not had either of these to bits.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 08:40am 13 Jul 2022
Copy link to clipboard
Print this post

  Volhout said  The PIONES 16 bit version would be like this (I cannot test since I don't have a SNES controller).So please understand this is untested code...


Thanks @Volhout, I will try and give it a spin this evening.

  Mixtel90 said  They are both reasonably accurate, Tom. One has a tendency to sometimes go a bit south-east rather than south, but the other is fine. UP isn't a problem on either of them.


That's good; I'm glad I didn't send you a pair of EDIT: LEMONS, not MELONS .

  Mixtel90 said  Will the joystick button moulding rotate round to a different position? I've not had either of these to bits.


It will, but it didn't seem to make a significant difference when I played with it briefly last night. I need to give it a proper poke and also try mixing and matching parts between the working and non-working devices.

I'm currently thinking about how a program can determine what if any controllers are being used on startup - so that they can be used to navigate the game menus before the user has a chance to actually choose a controller type through the game.

- The hardware doesn't allow us to determine what controllers are attached, at least not without trying to read them and asking the user to try various input actions.

- Unlike the CMM2 the PicoMite firmware doesn't support flags to RUN so the user can't specify it that way.

My current plan, unless someone can suggest something better is that a PicoGAME VGA aware program should check for a file named "PicoGAME.ini" in the root directory of the SD card.

This will have the format:

# <type> can be one of "none", "nes", "snes" or "atari"
# without the quotes.
port-a=<type>
port-b=<type>


If the file or any value within it is missing then "none" should be assumed.

I'll write some standard code to read this file.

Ultimately we would have a utility "pgconfig.bas" to create and update this file and allow the user to test their controllers. Possibly it could expand to do other things as we go along.

Any thoughts ?

Tom
Edited 2022-07-13 19:14 by thwill
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4257
Posted: 09:08am 13 Jul 2022
Copy link to clipboard
Print this post

!@#$%^

I was again kicked out of the forum while typing a long explaining post. It is becoming a real annoyance.

So this time short:

@Tom,

PIONES16 should also support NES (as well as SNES) only the keys will have different values. But the keys between NES and SNES should match. So PIONES16 could be a universal protocol.

You can always program PIO1 and configure PIO1. Only defer the SETPIN xx,PIO1 and the PIO START until you are sure you configure for a NES or SNES controller.

I do not think I can write a PIO1 block for ATARI. The pins on K7 are simply not compliant with the way PIO works. Please do ATARI in basic (it is simple enough).

Volhout

P.S. if we ever plan to make changes to the board, then I would suggest to map the pins in such a way that we can use SPI for K7 and K6. PIONES is only created becuse SPI cannot. I am 100% convinced the NES and SNES controllers can simply be ready by SPI (I have already proven it in with picomite alpha27, 1 years ago). Only the wiring between pico and K7/K6 is not correct for the pico's hardware SPI.
Edited 2022-07-13 19:17 by Volhout
PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6815
Posted: 09:16am 13 Jul 2022
Copy link to clipboard
Print this post

I like the idea of pgconfig.bas. It could also read the ADC ports to check the current positions of LB1.

If Autorun was used to bring up an intro screen / menu as standard then that could read picogame.ini and give the option to run pgconfig.bas. Perhaps a cut-down version of the test program too? Just a thought.

EDIT:
Could it check for the presence of SYSTEM I2C as well? If that's present then GP26 and GP27 are required for that anyway so aren't available to the ADC. I suspect the pins will be RESERVED on boot.
Edited 2022-07-13 20:15 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4257
Posted: 05:26am 14 Jul 2022
Copy link to clipboard
Print this post

@Tom, Mick,

I can confirm that PIONES16 works with 8 bit NES controllers.
The response is a 16 bit number, where the 8 MSB are the NES buttons.
The 8 LSB should be ignored, as they should represent SNES keys.

Regards,

Volhout

P.S. What thread do you want to continue development in. The 2.0 thread ? Or this thread.
Edited 2022-07-14 15:28 by Volhout
PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6815
Posted: 06:01am 14 Jul 2022
Copy link to clipboard
Print this post

The 2.0 thread is only for that version. Development on 2.0 is finished and I probably won't be making any hardware changes unless it turns out that there is a PCB error somewhere.

This is a more general thread, I think, and it's been used for development since the beginning so it might be better to keep the dev stuff on here.  :)

Pin allocations for the ports has generally been based on where I can get traces to and from. :)  You have to bear in mind that the VGA and PS/2 connections are fixed. Port B has been allocated as a COM port since the beginning so two of its pins need to do that. I don't suppose it really matters which COM port or which pins are used as it can't take a standard DB9F RS-232 lead anyway. I need a PWM pair for the audio, but, once again, it doesn't really matter which.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 09:54am 14 Jul 2022
Copy link to clipboard
Print this post

  Volhout said  I can confirm that PIONES16 works with 8 bit NES controllers.
The response is a 16 bit number, where the 8 MSB are the NES buttons.
The 8 LSB should be ignored, as they should represent SNES keys.


Thanks @Volhout that's very convenient, good work. For the moment I've disappeared down a different rabbit hole but hopefully I will dig my way out by the end of the weekend so I can take a look at this.

  Mixtel90 said  This is a more general thread, I think, and it's been used for development since the beginning so it might be better to keep the dev stuff on here.  :)


It's good to have it all together, especially when I need to trawl it for content for the Wiki. Perhaps if we ask very nicely @Gizmo may agree to rename this thread to include the canonical PCB name, perhaps "PicoGAME VGA development". Thoughts ?

Best wishes,

Tom
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6815
Posted: 10:19am 14 Jul 2022
Copy link to clipboard
Print this post

That would be ideal, if it can be done.

(I've got my software hat on at the moment. I'm actually attempting to write some sort of a game. Not something I've really attempted before, although I've modified several and copied a lot more from books & magazines over the years.)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4047
Posted: 10:31am 14 Jul 2022
Copy link to clipboard
Print this post

  Mixtel90 said  That would be ideal, if it can be done.


We can but ask. I've sent him a PM asking for it to be named "PicoMite: PicoGAME VGA development", I thought it should still have "PicoMite" in the title as it is just a variant.

  Mixtel90 said  (I've got my software hat on at the moment. I'm actually attempting to write some sort of a game. Not something I've really attempted before, although I've modified several and copied a lot more from books & magazines over the years.)


Nice.

With regards my game, I keep getting distracted by writing/updating my development tools whenever I hit an inconvenience rather than just working around the issue as quickly as possible. It's the Professional Software Engineer in me, but it will only pay-back if I do a lot of subsequent MMBasic development - fingers crossed.

Best wishes,

Tom
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4257
Posted: 07:40pm 15 Jul 2022
Copy link to clipboard
Print this post

@Tom,

In line with the capabilities of the picomite VGA, I tried to improve the SSTV program by blitting 3x3 sprites in stead of drawing individual pixels for option 6.
This is 25% faster, which I have compensated in the pause statement.

I am also developing a version of the PIO demodulator that only PUSH-es data on request of the MMBasic program in stead of filling the fifo with data that may not be  used. This version is still WIP.

Both changes are more efficient, but actually... they do not result in a better video  representation. Anyway...it is a playground for SSTV.

The code still needs cleaning up...

'SSTV decoder program for ROBOT-8 mode for PICOMITE MMBasic
Option default integer
MODE 1

'pio program measure overlapping rising and falling period and send to FIFO
'loops increment both X and Y, alternating X and Y are reset and pushed.
'0 E020   'set X=0
'1 A029   'X -> fffffff
'2 00C5   'jmp (pin=1) to loop2
'3 0084   'Y-- (first loop Y contains rubbish)
'4 0042   'count X-- loop1
'5 A0CA   'mov -Y to ISR
'6 8000   'push noblock    //nopush A042 = MOV Y,Y
'7 E040   'set Y=0
'8 A04A   'Y -> fffffff
'9 004A   'count X-- loop2
'A 008B   'Y--
'B 00C9   'jmp (pin=1) in loop2
'C A0C9   'mov -X to ISR
'D 8000   'push noblock   //nopush A042 = MOV Y,Y
'E 0000   'jmp 0 (rest is filled with 0 = jmp->0)
'SSTV reference
Dim a%(7)=(&h008400C5A029E020,&hE0408000A0CA0042,&h00C9008B004AA04A,&h8000A0C9,0,0,0,0)
'SSTV nopush
'Dim a%(7)=(&h008400C5A029E020,&hE040A042A0CA0042,&h00C9008B004AA04A,&hA042A0C9,0,0,0,0)
f=3e6     '3MHz @ 3cycles per loop = 1us per tick

'configure pio1
e=Pio(execctrl 0,0,&h1f)  'use gp0 for PIN
s=Peek(word &h503000d0)   'use old value
p=0                       'no GPxx pins for PIO1

'program pio1 and start
PIO program 1,a%()
PIO init machine 1,0,f,p,e,s
PIO start 1,0

'pio fifo register
ff=&h50300020

'sstv specific frequecies converted to time in us
l=1e6/1100 'sync low
r=1e6/1200 'sync
u=1e6/1300 'sync high
b=1e6/1500 'black
v=1e6/1900 'black/white threshold
w=1e6/2300 'white

menu:
CLS
Print "SSTV Robot-8 playground":Print
Print "1 = measure frequency"
Print "2 = waterfall"
Print "3 = picture in burst mode (no hsync)"
Print "4 = picture monochrome"
Print "5 = picture in 4 green levels"
Print "6 = picture in dithered white"
Print "7 = stop"
Do
 kn$=Inkey$
Loop Until kn$<>""
Select Case Val(kn$)
 Case 1
   GoSub frequency
 Case 2
   GoSub waterfall
 Case 5
   GoSub greenvideo
 Case 3
   GoSub videobrute
 Case 6
   GoSub greyvideo
 Case 4
   GoSub video
 Case 7
   End
End Select
GoTo menu




frequency:
'measure time and convert to frequency
Do
 cnt=Peek(word ff) 'read fifo pio 1 seq 0
 period = cnt+3      'period
 Print @(300,240) Int(1e6/period);" Hz      "
 Pause 100
Loop While Inkey$=""
Return




waterfall:
'show frequency graph on horizontal axis, scolling down
CLS
Do
 Text 1,1,"frequency (Hz)","LT"
 Text r/2,1,"1200","CT"
 Text b/2,1,"1500","CT"
 Text w/2,1,"2300","CT"
 Line u/2,20,u/2,479
 Line l/2,20,l/2,479
 For y=20 To 479
   'poke word &h503000d8,&h8000 'push
   'pause 0.020
   cnt=Peek(word ff)
   Pixel cnt/2,y,1
   Pause 0.5   'delay to slow waterfall
 Next y
 CLS
Loop While Inkey$=""
Return




video:
'video decode using both hsync and vsync
're-syncing every line and frame
Do
 'CLS
 y=180
 Do
   x=240
   Timer =0
   'pixel video read an display
   Do
     Pause 0.3 'horizontal timing
     x=Min(390,x+1)
     p=Peek(word ff)
     Pixel x,y,(p<v)
   Loop Until p>u And Timer>58
   Timer =0
   'hsync detect > 3.5ms, vsync > 10ms
   Do
     Pause 0.3 'lower misses syncs
     p=Peek(word ff)
   Loop Until p<u And Timer>3.5
   If Timer > 10 Then Exit
   Inc y
 Loop
Loop While Inkey$=""
Return




videobrute:
'video decode fixed timing from vertical sync

brute:
'find vsync
Do
 Do
   p=Peek(word ff)
 Loop Until p>u
 Timer =0
 Do
   p=Peek(word ff)
 Loop Until p<b
Loop Until Timer > 10

'brute force process all pixels and hsync equally
For y=180 To 298
 For x=240 To 359
   p=Peek(word ff)
   Pixel x,y,(p<v)
   Pause 0.487
 Next x
Next y
If Inkey$="" Then GoTo brute
Return




greenvideo:
'video decode in mode 2 using 4 level green
're-syncing every line and frame
MODE 2
Dim c%(3)=(0,&h4000,&h8000,&hC000) '3 green levels and black

Do
 CLS
 y=50
 Do
   x=80
   'capture pixel data and display
   Timer =0
   Do
     Pause 0.3 'rough horizontal timing
     x=Min(220,x+1)
     p=Peek(word ff)
     i=(p<580)+(p<522)+(p<470)
     Pixel x,y,c%(i)
   Loop Until p>u And Timer>60
   Timer =0
   'detect end of hsync to start new line
   Do
     p=Peek(word ff)
   Loop Until p<b And Timer>4
   If Timer > 10 Then Exit 'sync is vsync
   Inc y
 Loop
Loop While Inkey$=""
MODE 1
Return


greyvideo:
'create greyscale out of 3x3 tiles in B/W pixels
're-syncing every line and frame

CLS
'create 10 3x3 sprites
make_dither
Do
 y=50
 Do
   x=100
   'dither pixels by blit of 3x3 sprite
   Timer =0
   Do
     Pause 0.24
     x=Min(500,x+3)
     p=Peek(word ff)
     n=min(max((640-p)/22,0),9) 'convert to sprite index
     blit 0,40+(3*n),x,y,3,3
   Loop Until p>u And Timer>60
   Timer =0
   Print @(0,0) x
   'detect end of hsync to start new line
   Do
     p=Peek(word ff)
   Loop Until p<u And Timer>3.5
   If Timer > 10 Then Exit 'sync is a vsync
   Inc y,3
 Loop Until y>407
Loop While Inkey$=""
Return



sub make_dither
'create 10 3x3 dither sprites that are blit onto the screen in stead of drawing pixels
x=0:y=40
'black = do nothing
y=y+3
'1 pixel
pixel x+1,y+1
y=y+3
'2pixels
pixel x,y:pixel x+2,y+2
y=y+3
'3pixels
pixel x,y:pixel x+1,y+2:pixel x+2,y+1
y=y+3
'4pixels
pixel x,y+1:pixel x+1,y:pixel x+1,y+2:pixel x+2,y+1
y=y+3
'5pixels
pixel x,y:pixel x,y+2:pixel x+1,y+1:pixel x+2,y:pixel x+2,y+2
y=y+3
'6 pixels
pixel x,y:pixel x,y+1:pixel x+1,y+1
pixel x+1,y+2:pixel x+2,y:pixel x+2,y+2
y=y+3
'7pixels
pixel x,y:pixel x,y+1:pixel x,y+2:pixel x+1,y+1
pixel x+1,y+2:pixel x+2,y:pixel x+2,y+2
y=y+3
'8pixels
pixel x,y:pixel x,y+1:pixel x,y+2:pixel x+1,y+1
pixel x+1,y+2:pixel x+2,y:pixel x+2,y+1:pixel x+2,y+2
y=y+3
'9pixels
box x,y,3,3,1,1,1
end sub


Edited 2022-07-16 05:41 by Volhout
PicomiteVGA PETSCII ROBOTS

     Page 25 of 31
Print this page
© JAQ Software 2024
