stanleyella Guru  Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
er, why's it say 2040? is it forum guys made it work for pico2 hdmi? |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Another outstanding achievement Mr. Mather.  I am not aware of anyone who has done anywhere near as much with the RPi Pico. |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
I did. £16.90 with postage. someone say "yoool beee sorrry" |
||||
homa Guru Joined: 05/11/2021 Location: GermanyPosts: 351 |

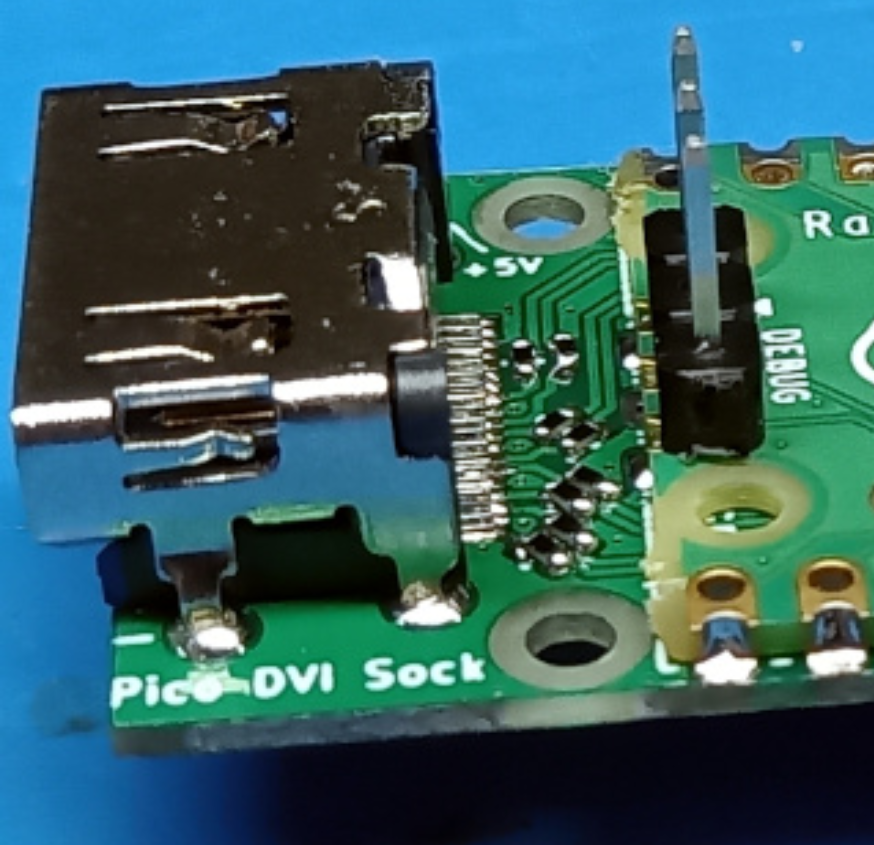

Hi Jan, I do not know. I bought it from a German distributor, I took adafruit as an example because of its internationality. https://www.reichelt.de/raspberry-pi-dvi-sock-fuer-pico-rpi-pico-dvi-p306670.html?search=pico+dvi Now I see in the second link that the original developer Luke Wren uses the board labeled "Pico DVI Sock" on his photo. https://picockpit.com/raspberry-pi/raspberry-pi-pico-video-output/ I happen to have this one as well. But I will also get the one from adafruit. And as I wrote above, I'm waiting for the board (from Peter) in the collective order and an Olimex is also on the way. There is still a lot of room for testing! Hopefully we will find the cause. Matthias |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
micropython take that back others have used micromite for years but me it's picomite for 2 years.... and it's all change. 2040 to pico2 differences. sure there's lots Edited 2024-09-07 06:16 by stanleyella |
||||
| homa Guru Joined: 05/11/2021 Location: GermanyPosts: 351 |
 |
||||
| Exile Newbie  Joined: 27/05/2023 Location: United KingdomPosts: 6 |
An interesting challenge is to get sound through the hdmi cable and remove the need for a separate audio connector. It is definitely possible, the pico based Sinclair ZX81 and ZX Spectrum emulators do it (at lower video resolutions) even with the the RP2040. picozx81 pico-zxspectrum The challenge is working out how to embed the audio islands when hstx is being used to generate the video stream |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6779 |
I'm using 220R terminating resistors for the DVI connection and it's fine. They were all I had at the time so I used them. I mentioned on the other thread that this monitor doesn't sync properly with the Pico 2 DVI signal. That's not the fault of the signal, I don't think, because a TV is rock solid. More likely that this monitor is marginal at the particular frequencies being used. Windows doesn't offer me a choice greater than 60Hz for refresh but the monitor manual shows a better range. [miniRANT] I really can't understand why anyone would want audio over HDMI. It's purely a convenience thing and does absolutely nothing for sound quality. TV speakers are almost always unbearably rubbish and easily bettered by cheap Chinese passive computer speakers in plastic boxes. Once you've got the audio to the monitor someone will want it quieter or you want bangs and crashes for games, which are immensely unsatisfying with nothing below 300Hz, so you end up having to plug headphones (and possibly an extension lead) into the monitor. Why not just plug them straight into the Pico and forget the complexity of putting audio over HDMI? :) [/miniRANT] . Edited 2024-09-07 06:36 by Mixtel90 Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
doh. dvi is hdmi without audio. sort video first sound it better boombox |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Not a chance. I've been making a living out of BASIC since 1988 and kicked some serious butt. There's lots of big-dollar industrial controllers on the market with an interpreter on the front end. Where is µpython? Nowhere. They all use BASIC. Go figure  Edited 2024-09-07 07:36 by PhenixRising |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
yeah, audio over hdmi. I use headphone socket to 2 spkr and sub but the iight thingy to adaptor to stereo amp and wharfdale diamond iv but not for pico |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
So, just to understand, this 720p currently needs the RP2350 that will o/c to 375MHz? My Tiny2350 achieves this but not my Pico-2+ and nor my PGA. It's all good and really darned exciting  Edited 2024-09-07 21:12 by PhenixRising |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9107 |
372MHz actually but near enough |
||||
| hhtg1968 Senior Member  Joined: 25/05/2023 Location: GermanyPosts: 123 |
A Question: Olimex says the HDMI-Board is for the pico. I understand you this way: it is possible to use the pico2 at this board because the picos are pin compatible, is this right? |
||||
| Exile Newbie Joined: 27/05/2023 Location: United KingdomPosts: 6 |

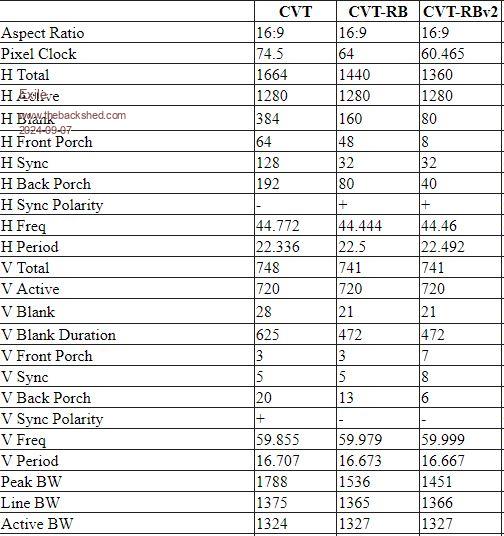

If 372MHz is too high for some Pico2s, is there a possibility to use CVT-RB or CVT-RBv2 timings instead? That would pull the clock rate back to either 320MHz or 300MHz Video Timings  |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9107 |
Yes: Just plug in a Pico2 and load the HDMI firmware. Then set the option. This is essential because Olimex use a non standard DVI pinout I'll have a play and see if it works - thanks for the info |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |

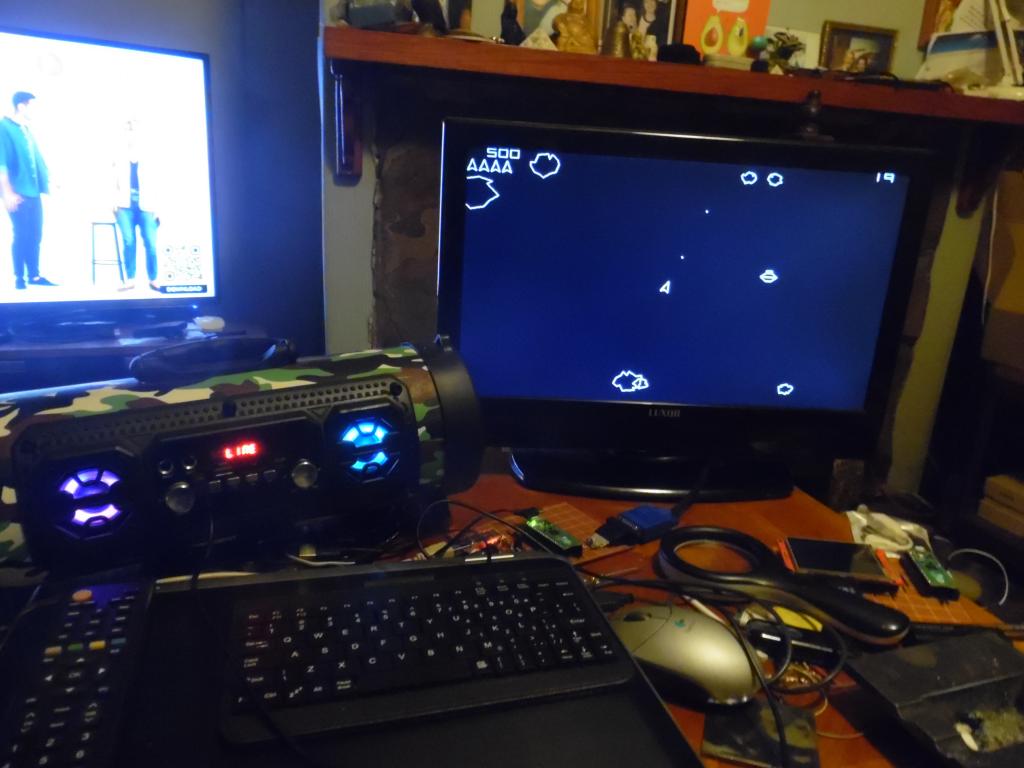

in anticipation of olimex arriving searched my tv's with hdmi and this was wide screen but analogue , no freeview digital but hdmi. in the mean time connected usb vga pico2. vga looks better than the vga monitor but then it's bigger. no 3.5 stereo input for vga sound but loads of other option so I used a stereo rechargeable £14 blaster with 3.5 aux in as well as guitar sockets, usb playback, and fm radio... and the sound in asteroids is proper.. not the bleeps from the vga monitor so I don't think sound through hdmi is important.  |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2120 |
My pico2 work at 378000 so is that ok for hdmi? |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Yup. Clock it down to 372000 |
||||
| hhtg1968 Senior Member Joined: 25/05/2023 Location: GermanyPosts: 123 |
I think i have to connect first via vt100 to set the options to olimex. after that it will be possible to connect a hdmi screen... i will try it. |
||||
