Forum Index : Microcontroller and PC projects : RP2040 Geek

     Page 2 of 3
Author Message
stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 07:29pm 06 Feb 2024
Copy link to clipboard
Print this post

Got to understand adc pin and pwm pin if available.
 SETPIN GP29, AIn
 adc open 500000,1
is ok but not working right

Edited 2024-02-07 06:34 by stanleyella

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4233
Posted: 10:02pm 06 Feb 2024
Copy link to clipboard
Print this post

Maybe gp26 is adc1
Gp29 is adc3 ???

Volhout
PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6787
Posted: 10:20pm 06 Feb 2024
Copy link to clipboard
Print this post

Only ADC2 (GP28) and ADC3 (GP29) are brought out, by the looks of things.
You can't use ADC0 (GP26) and ADC1 (GP27).
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 10:23pm 06 Feb 2024
Copy link to clipboard
Print this post

I got no idea how to set this up Volhout. strange errors. how to clear pins?
RUN
[9] ADC open 500000,3
Error : Invalid frequency
> C:\Users\stanley555\Documents\mmbasic programs\160x80trigscopev07.bas
Uploading using:  'target port\COM9:115200 s\picomite
Upload started
NEW
>
AUTOSAVE

Upload completed 1

Saved 862 bytes
>
Time taken: 2625mS
RUN
[9] ADC open 50000,3
Error : Pin GP28 is not off or an ADC input
> C:\Users\stanley555\Documents\mmbasic programs\160x80trigscopev07.bas
Uploading using:  'target port\COM9:115200 s\picomite
Upload started
NEW
>
AUTOSAVE

Upload completed 1

Saved 875 bytes
>
Time taken: 2673mS
RUN
[7] SetPin GP28,off
Error : Pin 34/GP28 is reserved on startup
>

 'SetPin GP28,pwm1A 'this optional test signal comment out
 'PWM 1,10000,50  'square wave ,this optional test signal comment out
'SetPin GP28,off

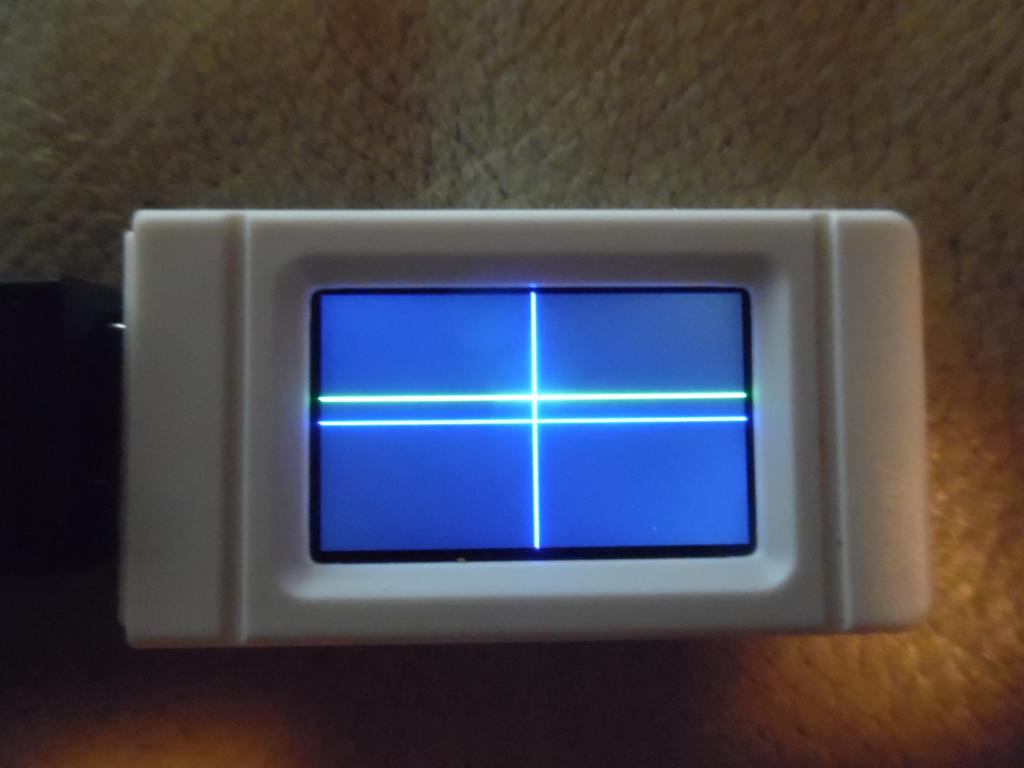

 dim c%,x%,samples!(480)
 SETPIN GP26, AIn
 adc open 50000,3
 FRAMEBUFFER CREATE F
 FRAMEBUFFER LAYER L
 FRAMEBUFFER WRITE L
 line 0,mm.vres/2,mm.hres,mm.vres/2,,rgb(blue)
 line mm.hres/2,0,mm.hres/2,mm.vres,,rgb(blue) 'draw cross to layer L
 'line 119,0,119,239,,rgb(blue)
 'line 0,119,239,119,,rgb(blue)
 FRAMEBUFFER WRITE F

 do
   adc start samples!() 'get new samples
   'trigger
   c%=0
  do:If samples!(c%) > 0.1 then if samples!(c%+1) < 0.2 then exit do
inc c%:loop while c%<160

math scale samples!(),239/3.3,samples!()'scale to 80 pixel height
FRAMEBUFFER COPY L,F
for x%=0 to 238 'screen width
     line x%,samples!(x%+c%),x%+1,samples!(x%+1+c%),,rgb(green) 'draw new sample from sample(c%)
next x%
FRAMEBUFFER COPY F,N
loop



Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6787
Posted: 10:39pm 06 Feb 2024
Copy link to clipboard
Print this post

You can't use GP26 as AIN. You can't read it.

ADC OPEN accepts n_channels as the number of channels. You can't use the first two as they aren't available, so set it to 3. Then you'll get GP26, GP27 and GP28.

You'll have to use GP28 as the input.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 11:06pm 06 Feb 2024
Copy link to clipboard
Print this post

  Mixtel90 said  Only ADC2 (GP28) and ADC3 (GP29) are brought out, by the looks of things.
You can't use ADC0 (GP26) and ADC1 (GP27).

duhrrr?, so no pwm, or much else? nice display, just loaded bubble universe version.
bubble burst. the 160x80 version was better imho, more normal. geek was sold as it is not the 160x80 in a case so my fault... but still could be useful... or not.

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 11:15pm 06 Feb 2024
Copy link to clipboard
Print this post

  Mixtel90 said  You can't use GP26 as AIN. You can't read it.

ADC OPEN accepts n_channels as the number of channels. You can't use the first two as they aren't available, so set it to 3. Then you'll get GP26, GP27 and GP28.

You'll have to use GP28 as the input.

thanks but I get
RUN
[9] SetPin GP28, AIn
Error : Pin 34/GP28 is reserved on startup
used by lcd

option list
PicoMite MMBasic Version 5.08.00
OPTION SYSTEM SPI GP10,GP11,GP28
OPTION AUTORUN  ON
OPTION FLASH SIZE 4194304
OPTION HEARTBEAT OFF
OPTION PICO OFF
OPTION LCDPANEL ST7789_135, LANDSCAPE,GP8,GP12,GP9,GP25
OPTION SDCARD GP23, GP18, GP19, GP20
OPTION AUDIO GP2,GP3', ON PWM CHANNEL 1
>

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 11:15pm 06 Feb 2024
Copy link to clipboard
Print this post

what pins can you use?
Edited 2024-02-07 09:20 by stanleyella

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 11:55pm 06 Feb 2024
Copy link to clipboard
Print this post

The geek has I2C/ADC as gp28 and gp29 but the manual says no?? no gp29
SETPIN sda, scl, I2C
Valid pins are SDA: GP0, GP4, GP8, GP12, GP16, GP20 or GP28
SCL: GP1, GP5, GP9, GP13, GP17 or GP21
And the following command for the second channel (referred to as I2C2):
SETPIN sda, scl, I2C2
Valid pins are SDA: GP2, GP6, GP10, GP14, GP18, GP22 or GP26
SCL: GP3, GP7, GP11, GP15, GP19 or GP27

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135
Posted: 11:56pm 06 Feb 2024
Copy link to clipboard
Print this post

  Volhout said  THIS should work and free pin GP28.

OPTION HEARTBEAT OFF
OPTION PICO OFF
OPTION SYSTEM SPI GP10,GP11,GP24
OPTION LCDPANEL ST7789_135, LANDSCAPE,GP8,GP12,GP9,GP25
OPTION SDCARD GP23, GP18, GP19, GP20
OPTION AUDIO GP2,GP3', ON PWM CHANNEL 1

That board does not use the standard Pico pin assignments so you must include the first two Options.

Its all explained on the previous page.
Edited 2024-02-07 09:58 by phil99

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 12:24am 07 Feb 2024
Copy link to clipboard
Print this post

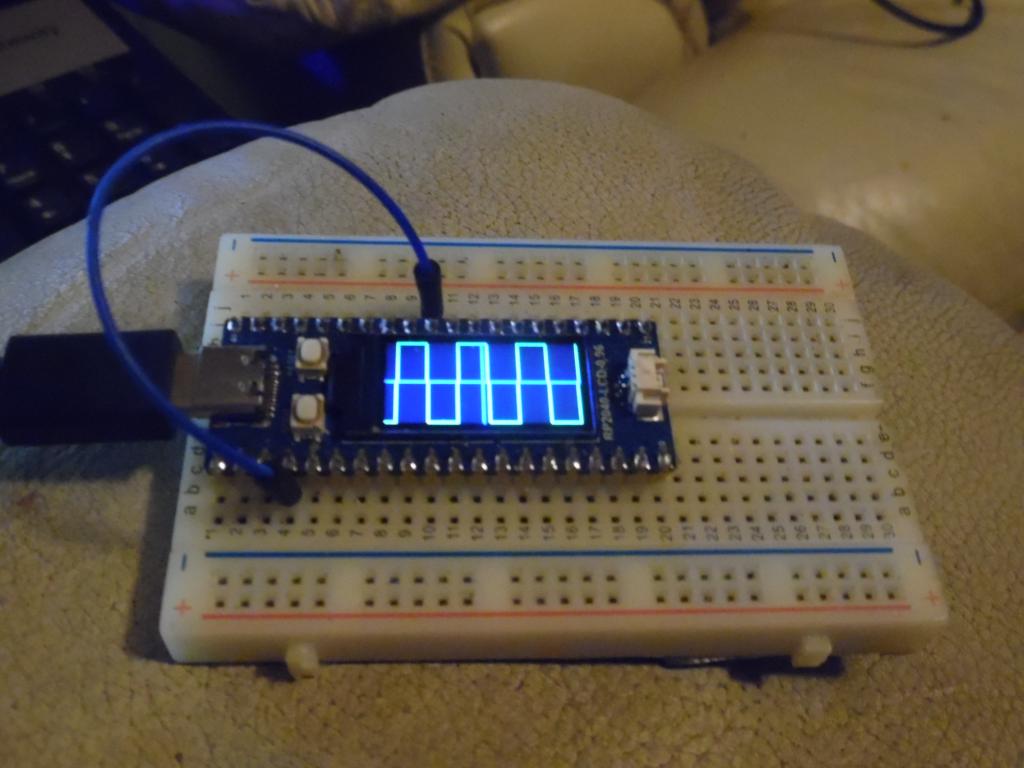

don't buy this unless you know what it does/doesn't
the 160x80 picomite was MUCH more like a pico and display to use, imho... and a usb c socket 2 me.
just worked.


Frank N. Furter
Guru

Joined: 28/05/2012
Location: Germany
Posts: 828
Posted: 07:59am 07 Feb 2024
Copy link to clipboard
Print this post

I once created a list:

Possibilities - UART connector GP4/GP5:
=======================================
COM2: TX-GP4, RX-GP5
PWM2: PWM2A-GP4, PWM2B-GP5
I2C1: SDA1-GP4, SCL1-GP5


Possibilities - DEBUG connector GP2/GP3:
========================================
I2C2: SDA2-GP2, SCL2-GP3
PWM1: PWM1A-GP2, PWM1B-GP3


Possibilities - I2C/ADC connector GP28/GP29:
============================================
ADC: ADC2-GP28, ADC3-GP29
PWM: PWM6A-GP28
I2C1: SDA1-GP28


There are certainly a few more possibilities. (...I haven't tried all of these options yet...)

Frank

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4233
Posted: 09:38am 07 Feb 2024
Copy link to clipboard
Print this post

Additional: GP29 is PWM6B / SCL1

GP28/GP29 can also be used as COM1 (the chip can, MMBasic may prevent this).
I will test it when I get my unit.

You can also combine DEBUG and UART connector to create a SPI bus.

GP2 = SPI CLK
GP3 = SPI TX
GP4 = SPI RX
GP5 can be used as CS.

Volhout
PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6787
Posted: 09:50am 07 Feb 2024
Copy link to clipboard
Print this post

If you can't get GP29 to work then use OPTION PICO OFF to free off the pins that are normally dedicated to the Pico.

The I2C/ADC connector should work fine.
Make GP28 the input that you are using.
You MUST specify 3 ACD channels in the ADC OPEN command, even though you can't use ADC0 and ADC1.
You will probably also have to use SETPIN GP26 AIN and SETPIN GP27 AIN as well as SETPIN GP28 AIN or you'll probably get an error from ADC OPEN

GP26 and GP27 are still there but they aren't connected to anything. They will read but return junk values. You'll probably have to think of this as a 3-channel scope but only plot ADC2 (GP28).

Unfortunately, because ADC0 and ADC1 are also being read your maximum usable frequency will be lower. In the "round robin" automatic reading of the ADC channels you have to read ADC0 and ADC1 if you want to read ADC2 - you can't get away from that.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4233
Posted: 12:06pm 07 Feb 2024
Copy link to clipboard
Print this post

Objective:

So we need to add....
- ADC header (GP26/GND/GP27)
- COM1 header (GP0/GND/GP1)

Curious if the design would allow for both headers (volume wise)

Volhout
PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6787
Posted: 12:23pm 07 Feb 2024
Copy link to clipboard
Print this post

It's a normal RP2040 board as far as I cab tell. Just think of it as if it's a PicoMite but with some pins chopped off.  :)
The headers are simply hard wired, just like a normal Pico, so all signals available on the headers are valid.

Pins used internally are: GP
8, 9, 10, 11, 12, 18, 19, 20, 21, 22, 23, 25

Pins not on that list, but not appearing on the headers, go nowhere.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 07:47pm 07 Feb 2024
Copy link to clipboard
Print this post

  NPHighview said  I just received two of the Waveshare RP2040-Geek boards. Originally, I was concerned that I wouldn't be able to find connectors for the three ports on the side of the enclosure, but they're included, with female-terminated wires (with GND:black, 3.3V:red, and signals blue, green, orange, and yellow). It's pretty easy to figure out which is which.

The little enclosures snap apart readily, but the Reset button cover sproings out - keep an eye on it :-)

Volhout's recommended OPTION configuration works wonderfully! With those, all of the necessary connections are there for my dual-trace scope code, but I haven't yet got all the kinks out (it looks like the ADC input channels may be scaled differently than on the "plain" RP2040 boards). So far, overclocking to 266,000 works fine.

As I finish up code, I'll post links to my GitHub.


Hi, seen the post about adc?
If you can't get GP29 to work then use OPTION PICO OFF to free off the pins that are normally dedicated to the Pico.

The I2C/ADC connector should work fine.
Make GP28 the input that you are using.
You MUST specify 3 ACD channels in the ADC OPEN command, even though you can't use ADC0 and ADC1.
You will probably also have to use SETPIN GP26 AIN and SETPIN GP27 AIN as well as SETPIN GP28 AIN or you'll probably get an error from ADC OPEN

GP26 and GP27 are still there but they aren't connected to anything. They will read but return junk values. You'll probably have to think of this as a 3-channel scope but only plot ADC2 (GP28).

Unfortunately, because ADC0 and ADC1 are also being read your maximum usable frequency will be lower. In the "round robin" automatic reading of the ADC channels you have to read ADC0 and ADC1 if you want to read ADC2 - you can't get away from that.
Mick

Steve, not this messin with 160x80 picomite, the geek is for geeks not a useful device for most.
Edited 2024-02-08 09:09 by stanleyella

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4233
Posted: 09:30am 08 Feb 2024
Copy link to clipboard
Print this post

Just Received my Geek unit...

It works with the above config as expected. But ..man!.. these connectors are small, and the wires flimsy (and short). I am not sure this is a robust debugging tool.

Since I hate looking at a black screen, I started out with a short program in flash slot 2 that just puts some text on the display "PicoMite V50800" indication it starts up, since there is no heartbeat LED. And then OPTION AUTORUN 2.

More for another day...

Volhout
Edited 2024-02-09 04:48 by Volhout
PicomiteVGA PETSCII ROBOTS

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200
Posted: 11:16pm 11 Feb 2024
Copy link to clipboard
Print this post

Thanks, Volhout and Stanleyella for the guidance regarding ADC channels, PWM, and pin assignments. While thinking about those, I adapted the Life program for this device, and generalized it to figure out the screen resolution and orientation by itself. Here's the code, with tip o' the hat to Vegipete:
' Game of Life by John CONWAY.
' Unfortunately, Covid19 took John's life on April 11, 2020. His
' legacy lives on in the countless people inspired by his invention
' of the cellular automaton called the Game of Life and his other works.
'
' Written by vegipete,       Apr  2020 for GFXTerm
' Modified by Steve Johnson, July 2023 for RP2040-LCD-0.96 in Landscape LCD
' Modified by Steve Johnson, Feb  2024 for any display & orientation

Option DEFAULT INTEGER

Const x      = MM.HRes/2     ' Horizontal Center of LCD
Const y      = MM.VRes/2     ' Vertical Center of LCD
Const top    = 0
Const bot    = MM.VRes-1
Const left   = 0
Const right  = MM.HRes-1
Const ltop   = top          ' Top edge of Universe display on LCD
Const lleft  = left         ' Left edge of Universe display on LCD
Const lspac  = 10           ' Cell spacing on Universe display on LCD
Const width  = lspac-1      ' Width And Height of Cells on LCD
Const height = lspac-1
Const live   = RGB(Cyan) : Const dead = RGB(Gray) : Const empty = RGB(Black)
Const HMax   = Int(MM.HRes/lspac)
Const VMax   = Int(MM.VRes/lspac)

Dim INTEGER i, j, count, w(HMax+1,VMax+1), Changed

Do
 CLS RGB(Yellow)
 Text x, y-36, "Conway's", "CM", 3, 1, RGB(Black), RGB(Yellow)
 Text x, y-12, "  GAME  ", "CM", 3, 1, RGB(Red),   RGB(Yellow)
 Text x, y+12, "   of   ", "CM", 3, 1, RGB(Red),   RGB(Yellow)
 Text x, y+36, "  LIFE  ", "CM", 3, 1, RGB(Red),   RGB(Yellow)
 Math SET 0, w()       ' clear the world to start

 Pause 4000 : CLS : Randomize Timer

 RandLife : Penta 3, 6

 LCDLife                ' Display the Universe

 Changed = 1

 Do While Changed
   i = i+1 : Changed = 0
   CONWAYLife           ' Calculate the next generation
   LCDLife              ' Display the Universe
 Loop
Loop

End

Sub Heavy ' Seed life with a Heavyweight Spaceship
              w(16, 9)=1 :              w(16,11)=1
 w(17, 8)=1
 w(18, 8)=1 :                                        w(18,12)=1
 w(19, 8)=1 :                                        w(19,12)=1
 w(20, 8)=1
 w(21, 8)=1 :                           w(21,11)=1
 w(22, 8)=1 : w(22, 9)=1 : w(22,10)=1
End Sub

Sub Penta h, v ' Seed life with a Pentadecathlon (period 15)
 w(h   ,v)=1 : w(h   ,v+1)=1 : w(h   ,v+2)=1
               w(h+ 1,v+1)=1
               w(h+ 2,v+1)=1
 w(h+ 3,v)=1 : w(h+ 3,v+1)=1 : w(h+ 3,v+2)=1

 w(h+ 5,v)=1 : w(h+ 5,v+1)=1 : w(h+ 5,v+2)=1
 w(h+ 6,v)=1 : w(h+ 6,v+1)=1 : w(h+ 6,v+2)=1

 w(h+ 8,v)=1 : w(h+ 8,v+1)=1 : w(h+ 8,v+2)=1
               w(h+ 9,v+1)=1
               w(h+10,v+1)=1
 w(h+11,v)=1 : w(h+11,v+1)=1 : w(h+11,v+2)=1
End Sub

Sub SeedLife ' Seed the world with a simple pattern
 w( 9,10) = 1 : w(10,10) = 1 : w(11,10) = 1
 w( 9,11) = 1 : w(11,11) = 1
 w( 9,12) = 1 : w(11,12) = 1
 w(10,13) = 1
 w( 7,14) = 1 : w( 9,14) = 1 : w(10,14) = 3: w(11,14) = 1
 w( 8,15) = 1 : w(10,15) = 1 : w(12,15) = 1
 w(10,16) = 1 : w(13,16) = 1
 w( 9,17) = 1 : w(11,17) = 1
 w( 9,18) = 1 : w(11,18) = 1
End Sub

Sub RandLife  ' Seed Life with a random pattern
 Local i
 For i = 1 To HMax*VMax/7

   w((1+Rnd*HMax),(1+Rnd*VMax)) = 1
 Next i
End Sub

Sub CONWAYLife ' Calculate a new generation of life
 Local integer i, j, count
 Math SCALE w(), 2, w() ' shift left & clear new generation

'   Wrap corners & edges To simplify neighbor count evaluation
 w(0,0)=w(HMax,VMax) : w(HMax+1,VMax+1)=w(1, 1)
 w(0,VMax+1)=w(HMax,1) : w(HMax+1, 0)=w(1,VMax)

 For i = 1 To VMax  ' wrap the edges
   w(0,i)=w(HMax,i) : w(HMax+1,i)=w(1,i)
 Next i

 For j = 1 To HMax
 w(j,0)=w(j,VMax) : w(j,VMax+1)=w(j,1)
 Next j

' calculate new generation
 For i = 1 To HMax
   For j = 1 To VMax
     count = Neighbors(i,j)
     If count=3 Then Inc w(i,j)
     If count=2 Then
       If w(i,j) And 2) = 2 Then Inc w(i,j)
     EndIf
   Next j
 Next i
End Sub

Function Neighbors(x,y) ' return number of neighbors around given point
 Local count = 0       ' good candidate for C subroutine.
 count = (w(x-1,y-1) And 2) + (w(x+0,y-1) And 2) + (w(x+1,y-1) And 2)
 count = count + (w(x-1,y+0) And 2) + (w(x+1,y+0) And 2) + (w(x-1,y+1) And 2)
 count = count + (w(x+0,y+1) And 2) + (w(x+1,y+1) And 2)
 Neighbors = count>>1 ' Previous lines are bitwise ANDs, not Logical :-(
End Function

Sub LCDLife ' display the current world on LCD. Indicate if changes occurring
 Local integer i,j, xcoord, ycoord
 xcoord = lleft       ' Left side of Universe display on LCD screen
 For i = 1 To HMax
   ycoord = ltop      ' top edge of Universe display on LCD screen
   For j = 1 To VMax
     Select Case (w(i,j) And 3) '  faster than IF..THEN..ELSE..ENDIF
       Case 1: Box xcoord, ycoord, width, height, 1, live, live  : Changed = 1
       Case 2: Box xcoord, ycoord, width, height, 1, dead, empty : Changed = 1
     End Select
     Inc ycoord, lspac
   Next j
   Inc xcoord, lspac
 Next i
End Sub

This doesn't detect cycles, but that's on my to-do list.
Edited 2024-02-12 09:38 by NPHighview
Live in the Future. It's Just Starting Now!

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4233
Posted: 07:13am 12 Feb 2024
Copy link to clipboard
Print this post

Works nice !! I like the fact that you can see what cells in the grid where alive once, and what cells that where never alive..

Volhout
PicomiteVGA PETSCII ROBOTS

     Page 2 of 3
Print this page
© JAQ Software 2024
