Forum Index : Microcontroller and PC projects : Ready to run PicoMiteVGA for GBP25 - good price?

Page 2 of 7

Author

Message

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 06:14pm 26 Apr 2023

Copy link to clipboard

Print this post

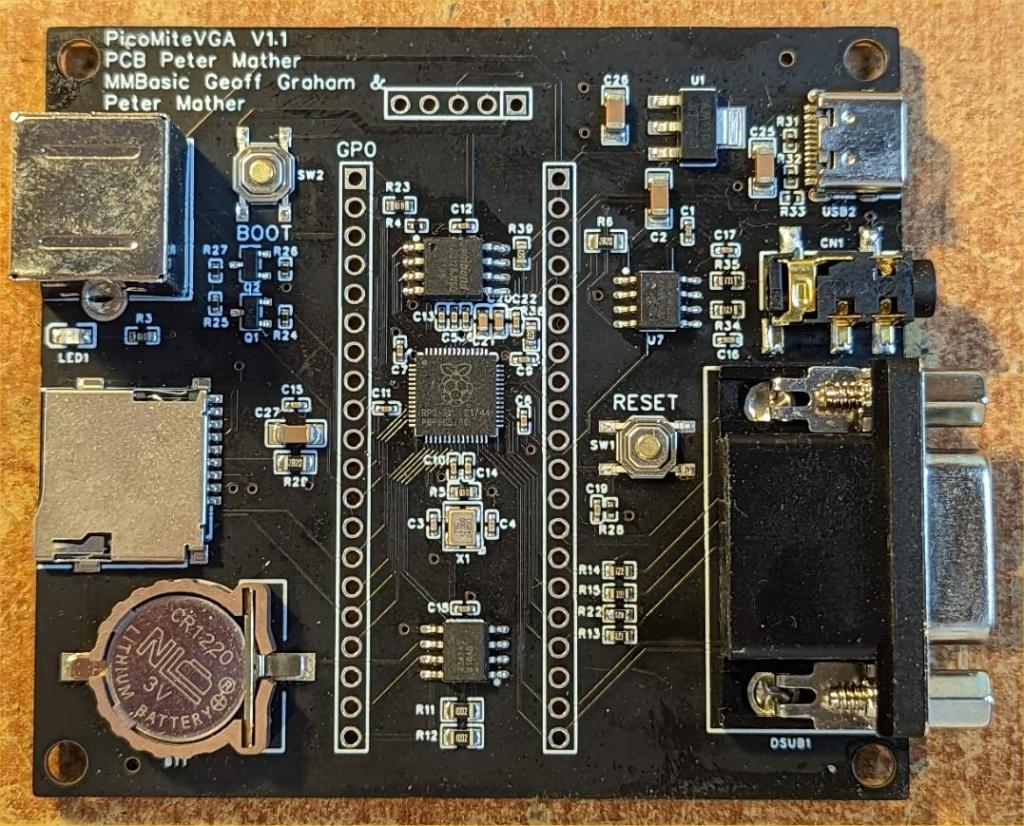

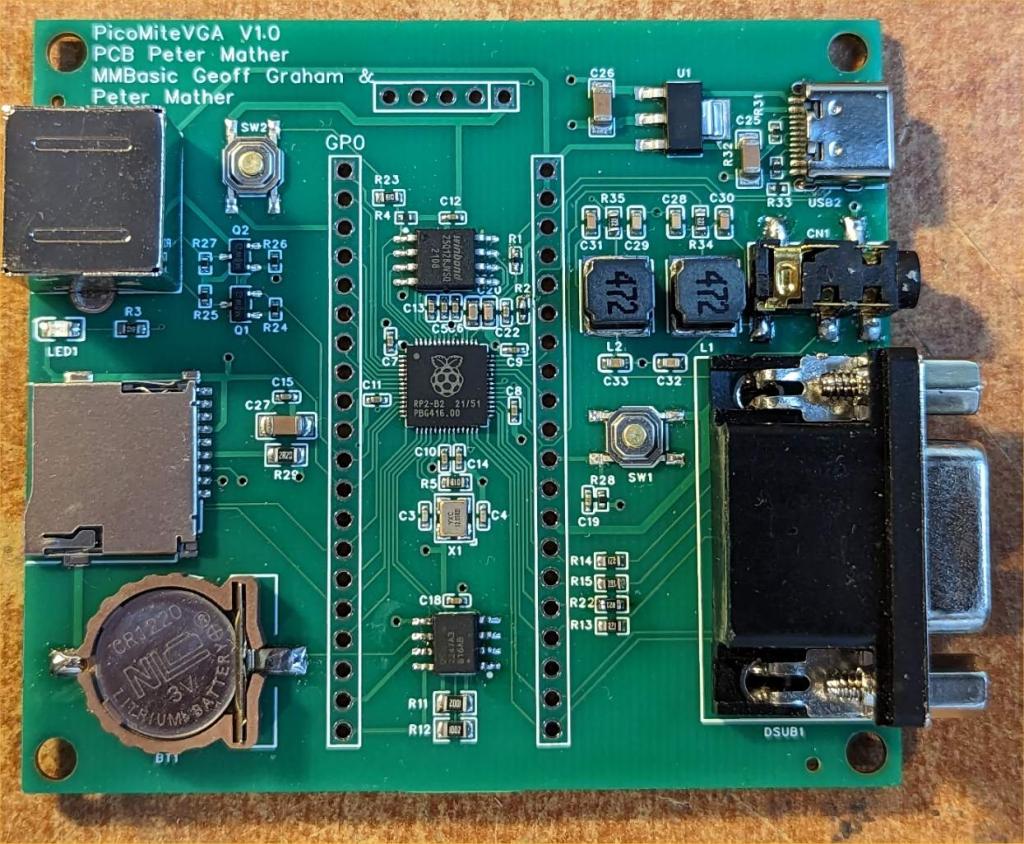

Here are the completed boards as received from JLC. Both the filter and DAC versions work perfectly for all functions with no errors.
If any one is interested I can post the gerbers and design files

Edited 2023-04-27 04:20 by matherp

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 06:30pm 26 Apr 2023

Copy link to clipboard

Print this post

Very neat indeed. :)

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 06:47pm 26 Apr 2023

Copy link to clipboard

Print this post

Yes please.

Er... why is one V1.0 & the other V1.1?

I'm guessing the files would be for V1.1 - right?

John

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 06:52pm 26 Apr 2023

Copy link to clipboard

Print this post

Quote why is one V1.0 & the other V1.1?

V1.0 has Volhout's inductor filter
V1.1 uses the MCP4822 DAC

I will make both sets available - not much cost difference. The DAC has better high frequency response but uses a bit more system resouerce

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 10:00pm 26 Apr 2023

Copy link to clipboard

Print this post

a good price? https://www.aliexpress.com/item/1005005344791603.html?

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4247

Posted: 06:57am 27 Apr 2023

Copy link to clipboard

Print this post

Yes, a very good price...

If you where to order 100.000 pieces you would get the price down to 10 dollar. But for a qty of 5 it is higher.

Economics work that way...

PicomiteVGA PETSCII ROBOTS

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 06:57am 27 Apr 2023

Copy link to clipboard

Print this post

Nice, but it's not the same thing at all.
Edited 2023-04-27 16:59 by Mixtel90

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4247

Posted: 07:09am 27 Apr 2023

Copy link to clipboard

Print this post

Cmm1 was 60 dollar
Cmm2 was 100 dollar
PM vga is 30 dollar (gbp 25)

Good price
Edited 2023-04-27 18:01 by Volhout

PicomiteVGA PETSCII ROBOTS

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 07:59am 27 Apr 2023

Copy link to clipboard

Print this post

All design files/gerbers etc. now uploaded to https://github.com/UKTailwind/PicoMite-VGA-Edition

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 03:45pm 27 Apr 2023

Copy link to clipboard

Print this post

matherp said All design files/gerbers etc. now uploaded to https://github.com/UKTailwind/PicoMite-VGA-Edition

Thanks.

I'm trying to order the V1.1.

After uploading the gerbers, then BOM & CPL, on processing BOM & CPL I get some errors (in red):

1 parts inventory shortfall, which I guess means they don't have them LOL
looks ike it means the J1,J2; shows 8 shortfall (of 10)

3 parts not selected
which are:
BT1
USB2
H1

Am I doing this right / what do I do next?

John

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 05:43pm 27 Apr 2023

Copy link to clipboard

Print this post

J1 and j2 are the 20 pin headers and you don't want these from them - too expensive as hand soldered.

You also don't want H1 which is the 5-pin header

The rest should be there. let me check the BOM and see what has happened

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 06:02pm 27 Apr 2023

Copy link to clipboard

Print this post

UPDATE

Seems like a glitch on their system as it is doing the same to the file I had the prototype built from.

Recommendations

edit the BOM and CPL files. Remove the lines for J1, J2, and H1

Then load up as before

In the JLC screen for the two "missing" components hit the search icon on the component line.
The battery holder comes up with the correct part so select it
The USB connector cones up with a selection of parts select the top one:
KH-TYPE-C-16P

The proceed to the board viewer - it all looks OK to me.

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 12:19pm 28 Apr 2023

Copy link to clipboard

Print this post

Thanks. I'll have a go at the weekend.

John

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 01:49pm 30 Apr 2023

Copy link to clipboard

Print this post

matherp said edit the BOM and CPL files. Remove the lines for J1, J2, and H1

Then load up as before

In the JLC screen for the two "missing" components hit the search icon on the component line.
The battery holder comes up with the correct part so select it
The USB connector cones up with a selection of parts select the top one:
KH-TYPE-C-16P

The proceed to the board viewer - it all looks OK to me.

That worked - thanks!

I just got an email from JLC saying "Approved".

Sorry to ask but I suppose when the boards arrive I need to fit the now-missing J1, J2 & H1, but I'm not sure what they are. Pins or receptacles (headers?)?

rows of 1 or 2?

I have various so may well have them.

Er... will the holes to put them in be there or not and/or full of solder?

John

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 01:55pm 30 Apr 2023

Copy link to clipboard

Print this post

The holes are done from the drill file, so they will be there - and not full of solder. :)

You don't need H1 at all. You only need J1 and J2 if you want to use an expansion module. The boards will run fine without.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 03:18pm 30 Apr 2023

Copy link to clipboard

Print this post

Thanks!

John

George H
Newbie

Joined: 03/07/2020
Location: United States
Posts: 24

Posted: 01:53am 01 May 2023

Copy link to clipboard

Print this post

Just ordered 5 of the V1.0. I edited the BOM and CPL files as Peter suggested, and the order went through no problem. I didn't have to search on those other parts so the glitch must be gone.

Total came to $85 shipped to the US or $17 per board. Very good deal IMHO. I did have a coupon for being a new customer that knocked $10 off the order.

Pretty inexpensive fun, per board. Thanks Peter, and all!

-G

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 07:46am 01 May 2023

Copy link to clipboard

Print this post

One note for configuring the boards.
The underside has silkscreen details for setting up the required options. However, both the boards use GP23 for audio and V1.1 also uses GP24. In order to configure this they need setting to OFF before executing the option command.

i.e.
for V1.0
SETPIN GP23,OFF:OPTION AUDIO GP22, GP23

for V1.1
SETPIN GP23,OFF: SETPIN GP24,OFF: OPTION AUDIO SPI GP24, GP22, GP23

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4247

Posted: 08:10am 01 May 2023

Copy link to clipboard

Print this post

@Peter,

Do these boards run CPUSPEED 378000 ?

Volhout

PicomiteVGA PETSCII ROBOTS

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9128

Posted: 08:28am 01 May 2023

Copy link to clipboard

Print this post

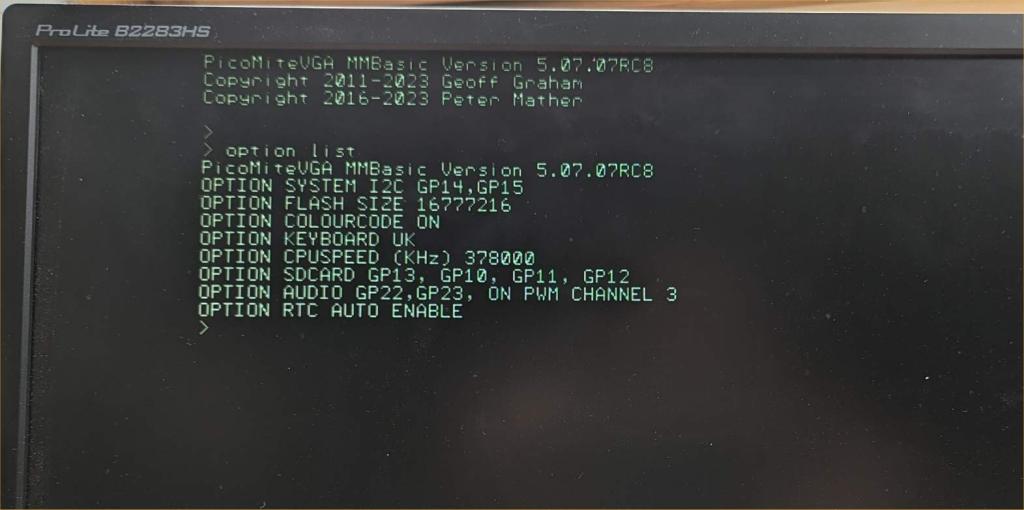

Quote Do these boards run CPUSPEED 378000 ?

Mine do but no guarantees any more than any other RP2040 variant

Edited 2023-05-01 18:30 by matherp
