Forum Index : Microcontroller and PC projects : Picomite(VGA) V5.07.07 betas - bug fixes + focus on PIO
Page 2 of 16 | |||||
Author | Message | ||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |

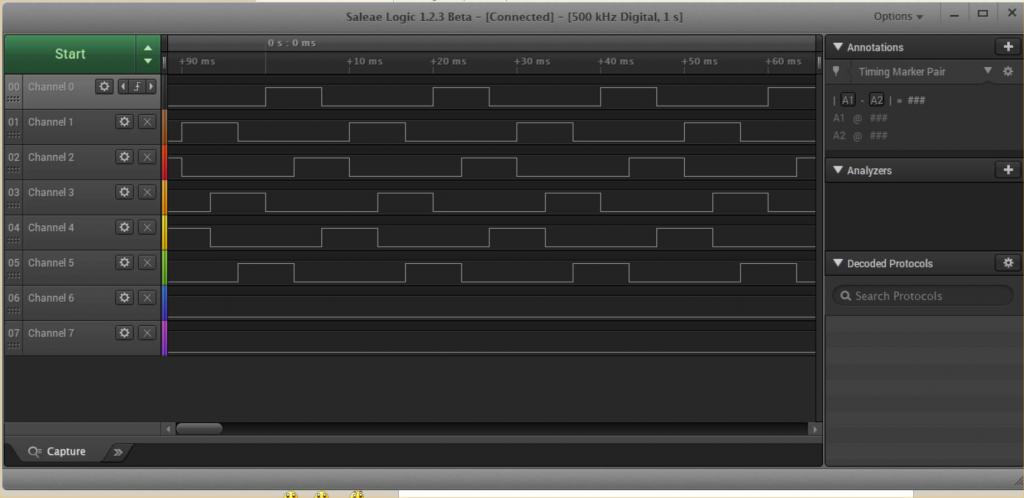

I'm confused. Are you saying that all is OK with channel 0? Certainly looks good on my logic analyser |
||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Attached is a b2 for the PicoMite. Only one minor change which fixes an error introduced in V5.07.06 in drawing on monochrome displays such as the SSD1306 PicoMiteV5.07.07b2.zip |
||||
phil99 Guru Joined: 11/02/2018 Location: AustraliaPosts: 2141 |
Yes all good, I put the edit at the start in the hope you wouldn't waste time on it. Brand new Pico has a dud GP0. Output pulls up but not down, with only the scope impedance pulling it down the pulses were wrong. |
||||
stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2134 |

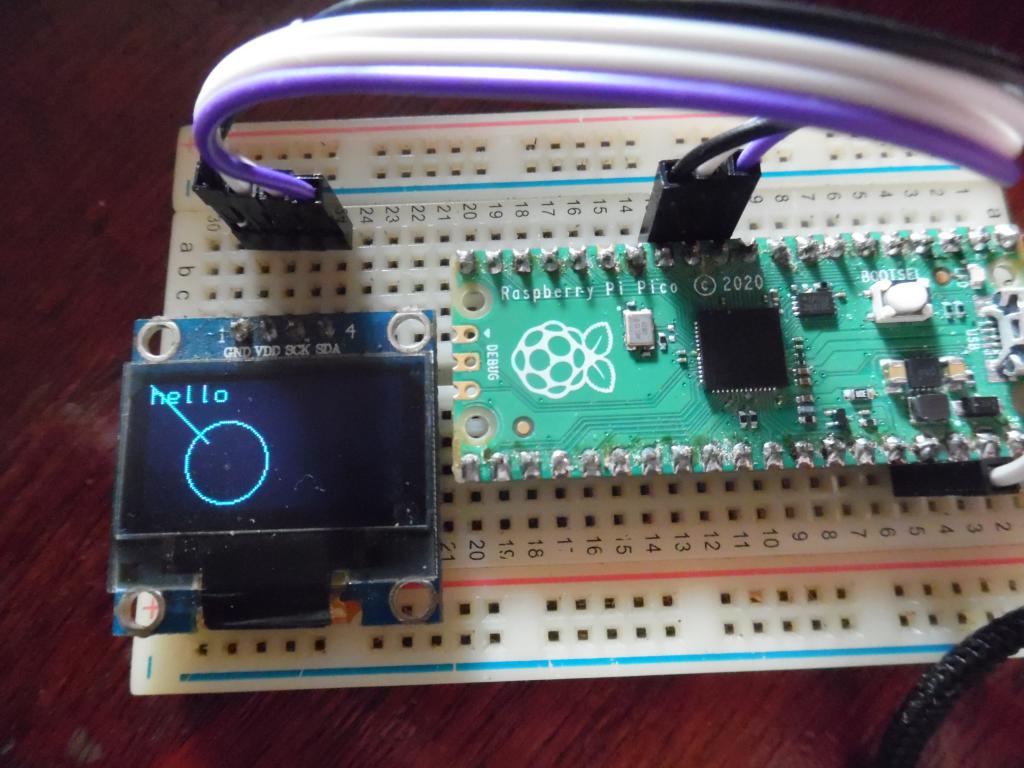

picomiteV5.07.07b2 sorted SSD1306 line and circle not working. Thanks. |
||||
JohnS Guru Joined: 18/11/2011 Location: United KingdomPosts: 3816 |
Just wondering which of these you mean: picomiteV5.07.07b2 sorted SSD1306. Line and circle not working. picomiteV5.07.07b2 sorted SSD1306 line. Circle not working. The pic you posted seems to have a circle, though. Also, posting the code probably makes sense. John |
||||
stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2134 |
It was a bug in the last release that ssd1306 had no graphics, only text but the beta made graphics work again. I did post the code or this bug would not probably be fixed. |
||||
Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |

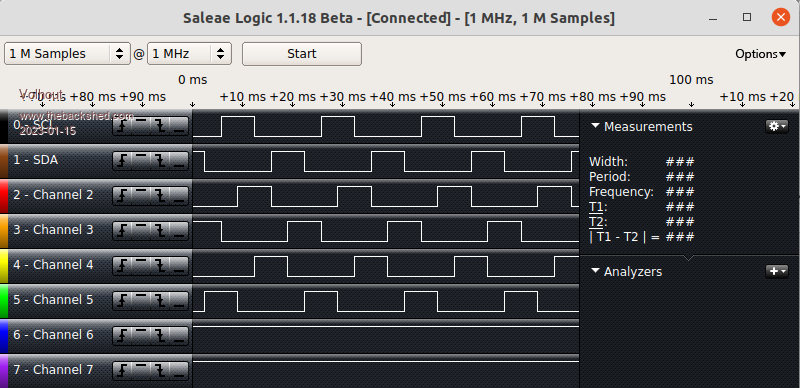

Confirm: all is good with phase correct PWM in PWM0 in beta 2. PicomiteVGA PETSCII ROBOTS |
||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Picomite(VGA) V5.07.07b https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip Fixes bug in CHDIR converting input to lower case. NB: all flash filenames and directory names are case sensitive Fixes bug in pixel drawing primitve for PicoMite (affected circle and line commands amongst others) using mono displays |
||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Picomite(VGA) V5.07.07b4 https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip Bug fix to PIO INTERRUPT not accepting 0 for TX interrupt This version adds significant functionality in support of PIO interfacing For high speed PIO access Basic is limited to the rate at which instructions can be executed by the interpreter. So, if we assume 240,000 instructions/second at 378MHz, allowing for a loop we can perhaps output or input a maximum of 80,000 data items per second whilst doing nothing else. This is fine for many applications but what about for using PIO to implement a logic analyser? The solution for this is to avoid the processor having to do the work and use direct memory access (DMA) to transfer the data to or from the PIO FIFOs The way that DMA works is as follows: When reading from the FIFO the DMA controller waits on data being in the FIFO and when it appears transfers that data into processor memory. Each time it reads it increments the pointer into the processor memory so that it can, for example, incrementally fill an array as each and every data item is made available. When writing to the FIFO the DMA controller writes data from processor memory to the FIFO automatically waiting whenever the FIFO is full. Thus data can be prepared in an array and the DMA controller will stream that data to the PIO FIFO as fast as the PIO program requires it. In both cases the DMA transfers a 32-bit word to match the FIFO and when setting up DMA you need to tell it how many words to transfer. Because each transfer will increment the memory pointer by 4 bytes (a word) MMBasic must deal with the data packed into memory as 32-bit values rather than the 64-bits used for MMbasic integers and floats. Luckily MMBasic implements two commands MEMORY PACK and MEMORY UNPACK to do this very efficiently but it could equally be done using standard BASIC arithmetic. The new commands in this release are: PIO DMA_IN pio, sm, nbr, data%() [,completioninterrupt] [,transfersize] PIO DMA_OUT pio, sm, nbr, data%() [,completioninterrupt] [,transfersize] In both cases: pio specifies which of the two pio instances to use (0 or 1) NB: 1 only for the VGA version sm specifies which of the state machine to use (0-3) nbr specifies how many 32-bit words to transfer data%() is the array that will either supply or receive the PIO data The optional parameter completioninterrupt is the name of a MMBasic subroutine that will be called when the DMA completes and in the case of DMA_OUT the FIFO has been emptied. The optional parameter transfersize allows the user to override the normal 32-bit transfers and select 8, 16, or 32. This allows the MMBasic data arrays to be smaller if less than 32-bits is required. In all cases MEMORY PACK and UNPACK can be used to move between the compressed data and normal MMbasic integers. If the optional interrupt is not used then the status of the DMA can be checked using the functions NB: Do not use PIO START when using DMA. The PIO state machine is automatically started by the DMA MM.INFO(PIO RX DMA) MM.INFO(PIO TX DMA) In both case these return 1 if the DMA is still running and 0 if it has completed. Self contained examples of the DMA transfers are provided here. Thanks to Volhout for the spade work on these examples. Now who is going to write a multichannel logic analyser with trigger for us? Edited 2023-01-17 21:25 by matherp |
||||
Pluto Guru Joined: 09/06/2017 Location: FinlandPosts: 359 |
Matherp, V5.07.07b4 PicoMite_readme.txt ..The optional parameter transfersize allows the user to override the normal 32-bit transfers and select 8, 16, or 32.... Assume it is a second optional parameter for these commands: PIO DMA_IN pio, sm, nbr, data%() [,completioninterrupt] PIO DMA_OUT pio, sm, nbr, data%() [,completioninterrupt] |
||||
Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
Hi Peter, Logic analyzer: Gathering data is not a problem. Triggering a bit bigger problem (especially when you need complex sources). Best to do this "a-la" old Saleae's. Not really trigger, but add the trigger as a separate channel (invisible) to the DMA data, and re-aligh while processing the data. But saleae got away with huge memory. We don't have that. So we have to do real triggering. And if you want pre-trigger data, and post trigger data, then the data capture must use a circular buffer. I will give it a try, but will most likely end up with something that shows data starting with the trigger, and not before the trigger. Regards, Volhout PicomiteVGA PETSCII ROBOTS |
||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Picomite(VGA) V5.07.07b5 https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip One more powerful tweak to the MMBasic PIO interface - might help the logic analyser or an arbitrary waveform generator Another optional parameter for PIO DMA PIO DMA_IN pio, sm, nbr, data%() [,completioninterrupt] [,transfersize] [,loopbackcount] PIO DMA_OUT pio, sm, nbr, data%() [,completioninterrupt] [,transfersize] [,loopbackcount] The optional parameter loopbackcount specifies how many data items are to be read or written before the DMA starts again at the beginning of the buffer The parameter must be a power of 2 between 2 and 32768 Due to a limitation in the RP2040 if loopbackcounter is used the MMBasic array must be aligned in memory to the number of bytes in the loop (transfer size in bytes * number of transfers) Thus if the array is 64 integers long which is 512 bytes then the array must be aligned to a 512byte boundary in memory All MMBasic arrays are aligned to a 256 byte boundary but to create an array which is guaranteed to be aligned to a 512 byte boundary or greater a new sub command is used PIO MAKE RING BUFFER ivar%, size To use this command create a simple integer variable then call the command and it will be converted into an array of the size specified and aligned to the number of bytes specified. e.g. dim packed% PIO MAKE RING BUFFER packed%,4096 packed% will then be an integer array holding 4096/8=512 integers This can then be used by the DMA for a loopbackcounter with DMA of 1024 32-bit words, 2048 16-bit shorts or 4096 8-bit bytes If a DMA is running you can abort it with PIO DMA_IN OFF PIO DMA_OUT OFF Example code running ' demo program to demonstrate the use of the PIO interrupt ' the PIO is programmed to pull 1 word from FIFO at every rising edge of the GP pin. ' the LSB 5 bits are shown on GP1..GP5 (diagnostics) ' the GP0 pin is controlled from MMBasic in this demo, but could also be driven from ' an external source. '-------------------------------- PIO state machine ----------------------------------- 'PIO clear, and attach pins to PIO 1 PIO clear 1 SetPin gp1,pio1 SetPin gp2,pio1 SetPin gp3,pio1 SetPin gp4,pio1 SetPin gp5,pio1 Dim integer unpacked%(31),packed%(15) Dim integer packedadd=Peek(varaddr packed%()) Dim integer unpackedadd=Peek(varaddr unpacked%()) For i=0 To 31 unpacked%(i)=i Next Memory pack unpackedadd,packedadd,32,16 'the PIO program 'address code mnemonics comment ' 0 E09F SET pindirs &b11111 GP1..GP5 out ' 1 2000 WAIT GP0=0 wait for external trigger on GP0 to pull ' 2 2080 WAIT GP0=1 ' 3 8080 PULL noblock pulls data off fifo ' 4 6005 OUT OSR > pins 5 shift 5 bits to GP1..5 pins ' 5 0001 JMP 1 repeat PIO program line 1,0,&hE09F PIO program line 1,1,&h2000 PIO program line 1,2,&h2080 PIO program line 1,3,&h8080 PIO program line 1,4,&h6005 PIO program line 1,5,&h0001 'write the configuration, running 1MHz f=1e6 p=Pio(pinctrl 0,5,5,gp0,,gp1,gp1) 'pins GP1...GP5 = out, GP0 = in ' s=PIO(shiftctrl 0,0,0,0,1,1) 'default value ' e=PIO(execctrl gp0,0,31) 'default value: wrap defaults, GP0 = cond JMP pin ' PIO init machine 1,0,f,p,e,s,0 'PIO 1 SM 0 start adress = 0 PIO init machine 1,2,f,p,,,0 'PIO 1 SM 0 start adress = 0 '-------------------------------- MMBasic MAIN --------------------------------------- 'Halt the PIO from GP0 from MMBasic before it fills the FIFO out of control SetPin gp0,dout Pin(gp0)=0 'variables Dim d%=0 'start the pio1 code, state machine 1.0 will be waiting for a rising edge on the GP0 pin 'then it will pull 1 word from fifo. Then it will wait for the falling edge. The cycle repeats. 'set the dma to loop over 32 16-bit shorts for a very long time PIO DMA_OUT 1,2,&H10000,packed%(),dmadone,16,32 'freguently PIO pull data from the fifo SetTick 200,PullFifo 'Main: interrupt free loop polling the NOT TX_FULL flag in FSTAT Do If a% Then SetTick 0,0 End EndIf Loop End '----------------------------------- SUBS --------------------------------------- 'in this sub we toggle the GP0 pin to force the PIO to fetch data from the FIFO Sub PullFifo Pulse gp0,10 End Sub Sub dmadone Print "All done" a%=1 End Sub Edited 2023-01-18 03:03 by matherp |
||||
Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4256 |
Peter, Is there a peek to find the pointer in the array where I stopped the dma? Not sure if I really need it, I think I can get it to work with what is in b5. Trying some things now. May get the foundation layed tonight. It is a miracle what is happening here. Yesterday: I may look into DMA, 24 hours later we have a working platform. ..respect man...deep bow. Volhout P.S. only the VGA version in the ZIP. Is that intended ? Edited 2023-01-18 04:21 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
I've updated the download with both versions and added PIO(DMA RX POINTER) PIO(DMA TX POINTER) to return the current data item being written or read by the PIO as always TX and RX from the perspective of MMBasic so: PIO(DMA TX POINTER)-PEEK(VARADDR packed%()) will give you the location in the data array Edited 2023-01-18 05:03 by matherp |
||||
disco4now Guru Joined: 18/12/2014 Location: AustraliaPosts: 899 |
I think its Still only the VGA version in the ZIP. Gerry Latest F4 Latest H7 |
||||
vegipete Guru Joined: 29/01/2013 Location: CanadaPosts: 1110 |
Is there a way to read a single value (32 bit integer?) into a variable continuously? For example, suppose the PIO is reading a suitable signal and placing the, say, total running count, into a variable. Then MMBasic can read the current value, much like it can magically read the current value of TIME$. Plus MMBasic can zero the variable, or write an arbitrary value to it as might be useful. Visit Vegipete's *Mite Library for cool programs. |
||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
Definitely OK now https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip Edited 2023-01-18 18:29 by matherp |
||||
JohnS Guru Joined: 18/11/2011 Location: United KingdomPosts: 3816 |
Yes, thanks. (Unable to test at all currently.) John |
||||
JohnS Guru Joined: 18/11/2011 Location: United KingdomPosts: 3816 |
The parameter must be a power of 2 between 2 and 32768 Is there a way to read a single value (32 bit integer?) into a variable continuously? For example, suppose the PIO is reading a suitable signal and placing the, say, total running count, into a variable. Then MMBasic can read the current value, much like it can magically read the current value of TIME$. Plus MMBasic can zero the variable, or write an arbitrary value to it as might be useful. Could you (DMA) read the same thing but live with the power of 2 i.e. 2 in this case? Both values would be the same lots of the time so just ignore one of them. John |
||||
matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9139 |
I'll include that in the next beta, both in and out |
||||
