Posted: 08:20am 25 Oct 2024

Copy link to clipboard

Print this post

A lot of development has happened since 5.08. :)

This is a stopgap file that is intended ro fill the gap since the 5.08 manual and is more or less up to date:
MMBasic catchup - 22-10-24.pdf
RC9 is the latest, but is basically a bug-squashing release. I'm not aware of anything new in it.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9110

Posted: 11:32am 25 Oct 2024

Copy link to clipboard

Print this post

V6.00.00RC10

PicoMiteRP2350V6.00.00RC10.zip

PicoMiteRP2040V6.00.00RC10.zip

I've reverted to compiler version 12.2.1 as it generates slightly faster code than the current version

Changes USB channel allocations so that:
This will always try and allocate slot 1 to the keyboard and slot 2 to a mouse.
It will always try to allocate slot 3, if free, to the first game controller and slot 4 to the second.

In the event that you are trying to use three of more game controllers or two or more keyboards or mice then this of course will break down and the extra ones will be allocated to the highest available slot.

In addition, this version now assumes that generic gamepads pid/vid use either 2079/58369 or
2064/58625 so you shouldn't see the phantom (NB: Sony ds3/ds4 are already handled separately)
Hopefully, this change doesn't exclude any of the available generics but if anyone does find a gamepad is no longer found then please run the previous posted version and report the VID/PID to me so I can special case it as well.

This version also unlocks the ADC speed for the ADC command. Valid total frequecies are now anywhere between CPU_speed_in_Hz/96/65536 and CPU_speed_in_Hz/96.
Normal ADCinput using the pin function is not affected and uses the default sampling rate.

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 04:51pm 25 Oct 2024

Copy link to clipboard

Print this post

it didn't change options, which is safe now, only if necessary?

option list
PicoMiteHDMI MMBasic USB Version 6.00.00RC10
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION AUTORUN ON
OPTION FLASH SIZE 4194304
OPTION COLOURCODE ON
OPTION KEYBOARD UK, 0, 0, 600, 150
OPTION CPUSPEED (KHz) 315000
OPTION HDMI PINS 1, 3, 7, 5
OPTION SDCARD GP22, GP6, GP7, GP4
OPTION AUDIO GP26,GP27', ON PWM CHANNEL 5
OPTION MODBUFF ENABLE 192
>

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 05:34pm 25 Oct 2024

Copy link to clipboard

Print this post

quick example of pixel folowing mouse movements :)
(Correct mouse device channel must be if not 3 as in my case)

MODE 2
Device mouse set 3,MM.HRes\2,MM.VRes\2,0

Do
If DEVICE(MOUSE 3,x) <> tmpx Or DEVICE(MOUSE 3,y) <> tmpy Then
Pixel tmpx,tmpy,0
Pixel DEVICE(MOUSE 3,x),DEVICE(MOUSE 3,y)
tmpx=DEVICE(MOUSE 3,x)
tmpy=DEVICE(MOUSE 3,y)
End If
Loop

Edited 2024-10-22 15:37 by electricat

don't work?
this wireless kb works but not the mouse pad

Bleep
Guru

Joined: 09/01/2022
Location: United Kingdom
Posts: 509

Posted: 07:01pm 25 Oct 2024

Copy link to clipboard

Print this post

Hi Peter,
Trying to test the VGA 2040 and can't get my options programmed in

> option list
PicoMiteVGA MMBasic USB Edition 6.00.00RC10
OPTION SERIAL CONSOLE COM2,GP24,GP25
OPTION FLASH SIZE 16777216
OPTION COLOURCODE ON
OPTION KEYBOARD ES
OPTION HEARTBEAT OFF
OPTION PICO OFF
OPTION CPUSPEED (KHz) 252000
> option system spi gp18,gp19,gp16
Error : Invalid Option

Any ideas.
Regards Kevin

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4223

Posted: 07:08pm 25 Oct 2024

Copy link to clipboard

Print this post

Hi Kevin,

In the VGA (without re-defining the VGA pins) gp16,18 and gp19 are used for VGA.
Maybe you should first re-allocate the VGA pins...

Volhout

PicomiteVGA PETSCII ROBOTS

Bleep
Guru

Joined: 09/01/2022
Location: United Kingdom
Posts: 509

Posted: 08:25pm 25 Oct 2024

Copy link to clipboard

Print this post

Ah, ok, it's a bit confusing that it doesn't show those options in the options list, also the error would be more useful if it said GP16... already allocated, rather than Invalid Option. Anyway I'll try de-allocating the VGA and then re-allocating to the pins I actually use. Thanks Harm. :-)

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135

Posted: 08:55pm 25 Oct 2024

Copy link to clipboard

Print this post

PicoVGA doesn't have SYSTEM SPI, you setup the SD card something like this:-
OPTION SDCARD GP13, GP10, GP11, GP12

Other SPI devices use the regular SPI commands

OPTION VGA PINS is in the 5.08 manual.
Edited 2024-10-26 06:56 by phil99

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 09:12pm 25 Oct 2024

Copy link to clipboard

Print this post

PicoMiteVGA MMBasic USB Edition 6.00.00RC2
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION FLASH SIZE 4194304
OPTION COLOURCODE ON
OPTION KEYBOARD US
OPTION CPUSPEED (KHz) 315000
OPTION DISPLAY 30, 53
OPTION HDMI PINS 1, 3, 7, 5
OPTION SDCARD GP22, GP6, GP7, GP4
OPTION AUDIO GP26,GP27', ON PWM CHANNEL 5
OPTION MODBUFF ENABLE 192
>

disco4now

Guru

Joined: 18/12/2014
Location: Australia
Posts: 896

Posted: 09:45pm 25 Oct 2024

Copy link to clipboard

Print this post

stanleyella said
don't work?
this wireless kb works but not the mouse pad

Your mouse is most likely on USB 2 not USB 3

Print "Device: 0=not used,1=Keyboard,2=Mouse,128=PS4,129=PS3,130=SNES/Generic"
Print "chan device VID PID"
For x=1 To 4
Print x,MM.Info(USB x),Hex$(MM.Info(USB VID x),4),Hex$(MM.Info(USB PID x),4)
Next

> run
Device: 0=not used,1=Keyboard,2=Mouse,128=PS4,129=PS3,130=SNES/Generic
chan device VID PID
1 1 046D C52B
2 2 046D C52B
3 0 046D C52B
4 0 0000 0000
>
Test the mouse.

no=2 'Set correct mouse channel
MODE 2
Device mouse set no,MM.HRes\2,MM.VRes\2,0

Do
If DEVICE(MOUSE no,x) <> tmpx Or DEVICE(MOUSE no,y)
<> tmpy Then
Pixel tmpx,tmpy,0
Pixel DEVICE(MOUSE no,x),DEVICE(MOUSE no,y)
tmpx=DEVICE(MOUSE no,x)
tmpy=DEVICE(MOUSE no,y)
End If
Loop

Footnote added 2024-10-26 11:12 by disco4now
Correction - needs to be on a single line

If DEVICE(MOUSE no,x) <> tmpx Or DEVICE(MOUSE no,y)<> tmpy Then

Latest F4 Latest H7

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 09:48pm 25 Oct 2024

Copy link to clipboard

Print this post

this was posted to show pin use
MM.Startup
end

Sub MM.Startup
Local Integer m, n
For m=0 To 28
n = MM.Info(pinno "GP"+Str$(m))
If MM.Info(pin n)="OFF" Then SetPin n, DIN, PULLUP
print n,"GP"+Str$(m), MM.Info(pin n)
Next
End Sub

but get
RUN
1 GP0 DIN
2 GP1 DIN
4 GP2 DIN
5 GP3 DIN
6 GP4 OFF: Boot Reserved
7 GP5 DIN
9 GP6 OFF: Boot Reserved
10 GP7 OFF: Boot Reserved
11 GP8 OFF: Boot Reserved
12 GP9 OFF: Boot Reserved
14 GP10 DIN
15 GP11 DIN
[8] n = MM.Info(pinno "GP"+Str$(m))
Error : Invalid pin

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135

Posted: 10:10pm 25 Oct 2024

Copy link to clipboard

Print this post

My guess is HDMI pins are not treated as GPIO pins.

To test this idea, at the command prompt type:-

? MM.INFO(pinno GP12)
then
? MM.INFO(pin GP12)

If either gives an error modify MM.STARTUP to exclude the HDMI pins from testing.

I don't have a HDMI setup so can't test.

It works without error on VGA
Edited 2024-10-26 08:19 by phil99

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 10:12pm 25 Oct 2024

Copy link to clipboard

Print this post

for n=0 to 28
print MM.Info$(pin n)
next
gives
RUN
Invalid
OFF
OFF
Invalid
OFF
OFF
OFF: Boot Reserved
OFF
Invalid
OFF: Boot Reserved
OFF: Boot Reserved
OFF: Boot Reserved
OFF: Boot Reserved
Invalid
OFF
OFF
Invalid
Invalid
Invalid
Invalid
Invalid
Invalid
Invalid
Invalid
Invalid
Invalid
OFF
OFF
Invalid
>

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135

Posted: 10:25pm 25 Oct 2024

Copy link to clipboard

Print this post

try

For m=0 To 28
n = MM.Info(pinno "GP"+Str$(m))
print n,"GP"+Str$(m), MM.Info(pin n)
Next

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 10:48pm 25 Oct 2024

Copy link to clipboard

Print this post

my actual vga usb options are
Connected to COM11 at 115200
> option list
PicoMiteVGA MMBasic USB Edition 6.00.00RC10
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION AUTORUN ON
OPTION FLASH SIZE 4194304
OPTION COLOURCODE ON
OPTION KEYBOARD UK, 0, 0, 600, 150
OPTION CPUSPEED (KHz) 378000
OPTION SDCARD GP13, GP10, GP11, GP12
OPTION AUDIO GP0,GP1', ON PWM CHANNEL 0
>

Phil

RUN
1 GP0 OFF: Boot Reserved
2 GP1 OFF: Boot Reserved
4 GP2 OFF
5 GP3 OFF
6 GP4 OFF
7 GP5 OFF
9 GP6 OFF
10 GP7 OFF
11 GP8 OFF: Boot Reserved
12 GP9 OFF: Boot Reserved
14 GP10 OFF: Boot Reserved
15 GP11 OFF: Boot Reserved
16 GP12 OFF: Boot Reserved
17 GP13 OFF: Boot Reserved
19 GP14 OFF
20 GP15 OFF
21 GP16 OFF: Boot Reserved
22 GP17 OFF: Boot Reserved
24 GP18 OFF: Boot Reserved
25 GP19 OFF: Boot Reserved
26 GP20 OFF: Boot Reserved
27 GP21 OFF: Boot Reserved
29 GP22 OFF
41 GP23 DOUT
42 GP24 DIN
43 GP25 HEARTBEAT
31 GP26 OFF
32 GP27 OFF
34 GP28 OFF
>

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 11:51pm 25 Oct 2024

Copy link to clipboard

Print this post

disco4now said

stanleyella said
don't work?
this wireless kb works but not the mouse pad

Your mouse is most likely on USB 2 not USB 3

> run
Device: 0=not used,1=Keyboard,2=Mouse,128=PS4,129=PS3,130=SNES/Generic
chan device VID PID
1 1 046D C52B
2 2 046D C52B
3 0 046D C52B
4 0 0000 0000
>
Test the mouse.

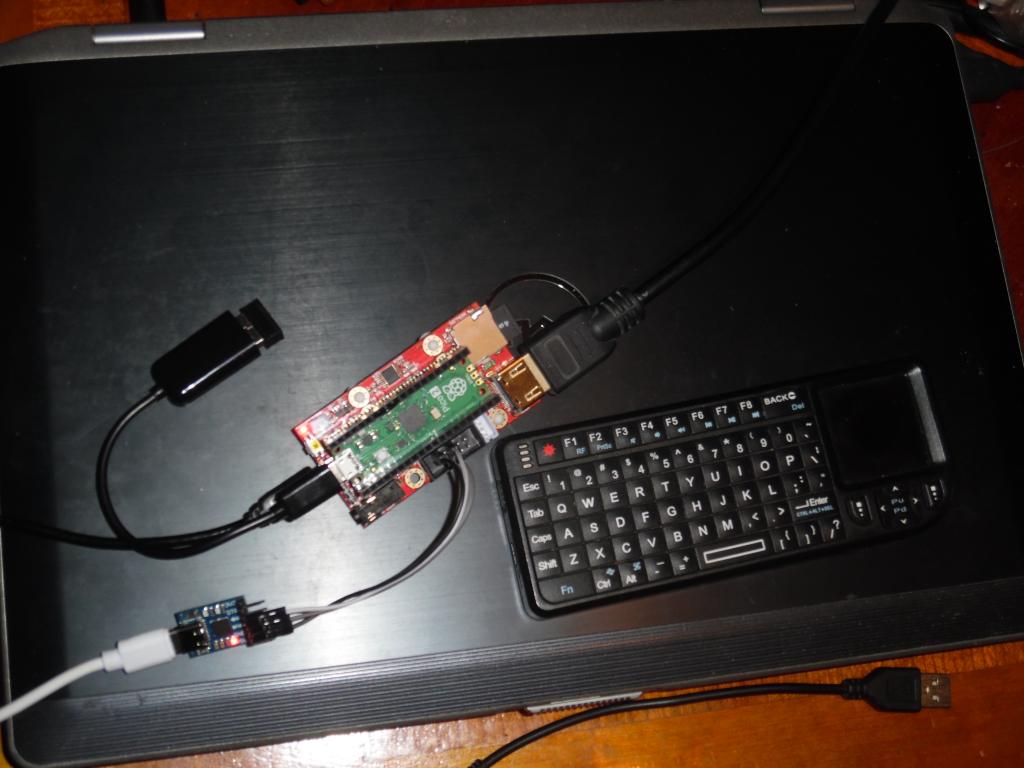

the mouse demo works now and the micro wireless keyboard touch pad. yippee!
dunno why didn't work before when should . rc10 maybe? but it's nice it works!
maybe the usb adaptors from big to little.
I can think of uses... missile command :) but click icon like gui touch for whatever
thanks Peter for sorting. looking forward to checking new ain. stan

If DEVICE(MOUSE no,x) <> tmpx Or DEVICE(MOUSE no,y)
<> tmpy Then
has to be on one line
If DEVICE(MOUSE no,x) <> tmpx Or DEVICE(MOUSE no,y)<> tmpy Then
Edited 2024-10-26 09:59 by stanleyella

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6781

Posted: 06:31am 26 Oct 2024

Copy link to clipboard

Print this post

Correct - HSTX (HDMI) pins are not GPIO pins and are not available. The Pico has probably disconnected them from the GPIO pin matrix and connected them to the HSTX peripheral internally so they no longer exist. :)

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135

Posted: 07:51am 26 Oct 2024

Copy link to clipboard

Print this post

Thanks for confirming that Mick.

Stan, try this version for the Olimex HDMI board.
It should skip over the HDMI pins, but as I don't have one it is untested.

Sub MM.Startup
Local Integer m, n
For m=0 To 28
if m=12 then m=20
n = MM.Info(pinno "GP"+Str$(m))
If MM.Info(pin n)="OFF" Then SetPin n, DIN, PULLUP
print n,"GP"+Str$(m), MM.Info(pin n)
Next
End Sub

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9110

Posted: 09:02am 26 Oct 2024

Copy link to clipboard

Print this post

For m=0 To 28
a$="mm.info(pin GP"+Str$(m)+")"
Print Eval(a$)
Next

Edited 2024-10-26 19:03 by matherp

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2120

Posted: 02:18pm 26 Oct 2024

Copy link to clipboard

Print this post

phil99 said Thanks for confirming that Mick.

Stan, try this version for the Olimex HDMI board.
It should skip over the HDMI pins, but as I don't have one it is untested.

Sub MM.Startup
Local Integer m, n
For m=0 To 28
if m=12 then m=20
n = MM.Info(pinno "GP"+Str$(m))
If MM.Info(pin n)="OFF" Then SetPin n, DIN, PULLUP
print n,"GP"+Str$(m), MM.Info(pin n)
Next
End Sub

Phil. results, get one, they're tidy boards.
RUN
1 GP0 DIN
2 GP1 DIN
4 GP2 DIN
5 GP3 DIN
6 GP4 OFF: Boot Reserved
7 GP5 DIN
9 GP6 OFF: Boot Reserved
10 GP7 OFF: Boot Reserved
11 GP8 OFF: Boot Reserved
12 GP9 OFF: Boot Reserved
14 GP10 DIN
15 GP11 DIN
26 GP20 DIN
27 GP21 DIN
29 GP22 OFF: Boot Reserved
41 GP23 DOUT
42 GP24 DIN
43 GP25 HEARTBEAT
31 GP26 OFF: Boot Reserved
32 GP27 OFF: Boot Reserved
34 GP28 DIN
>
stan

Page 15 of 24

Print this page
