adc start samples!() 'get new samples
   'trigger
   c%=0
  do:If samples!(c%+1) > 0.1 then if samples!(c%) < 0.2 then exit do
inc c%:loop while c%<240

for x%=0 to 238 'screen width
     line x%,239-samples!(x%+c%),x%+1,239-samples!(x%+1+c%),,rgb(green) 'draw new sample from sample(c%)
     pixel x%,239-samples!(x%+c%),rgb(white) 'plot new sample from sample(c%)
   next x%

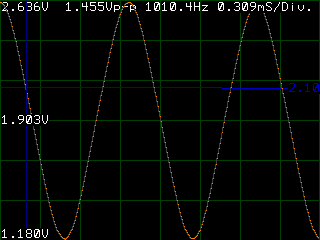

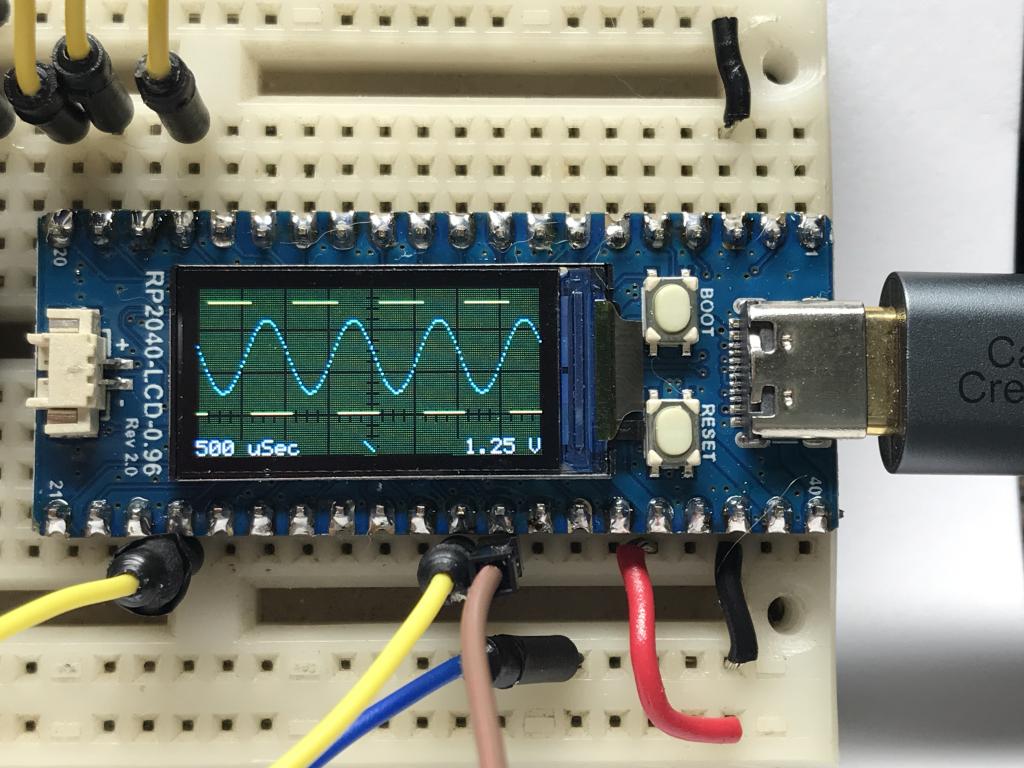

' TwoTrace - a 2-channel oscilloscope on the RP2040-LCD-0.96
' Steve Johnson  September, 2023
'
' Analog Signal input 1    on GP26 / Pin 31 - trace 1 / trigger
' Analog Signal input 2    on GP27 / Pin 32 - trace 2 / trigger
' Test   Signal output     on GP18 / Pin 24 - 1 KHz square wave
'
' Scope controls via momentary contact switches to ground
'   Vertical Scale switch on GP13 / Pin 17
'   Trigger Select switch on GP14 / Pin 19
'   Time Scale     switch on GP15 / Pin 20
'
' Scope Controls (via serial input from terminal emulator):
'   Voltage: 0, 1, 2         to change vertical scale
'   Time:    Faster, Slower  to change horizontal scale
'   Trigger: Up, Down, None  to change trigger criteria
'
' Sampling, Test Signal, Triggering, Framebuffers from stanleyella
' Math & Memory Copy from matherp
' Ganssle's switch debounce routine from CaptainBoing and Steve Johnson
' Graticules, Array Drawing, variable scales & triggering from Steve Johnson
' Interrupt Service Routines from Steve Johnson

Option EXPLICIT
Option Base 0

' Specifically For Waveshare RP2040-LCD-0.96

Const Hres       = MM.HRes        ' Horizontal screen resolution
Const Vres       = MM.VRes        ' Vertical   screen resolution

Const Major      = Vres/4         ' Major tic mark pixel spacing
Const Minor      = Major/4        ' Minor tic mark pixel spacing

Const PWM_Pin    = MM.Info(PINNO GP18) ' Pin 24 - PWM Test signal output pin
Const ADC1_Pin   = MM.Info(PINNO GP26) ' Pin 31 - Analog to Digital Converter 1
Const ADC2_Pin   = MM.Info(PINNO GP27) ' Pin 32 - Analog to Digital Converter 2

Const V_sw       = MM.Info(PINNO GP13) ' Pin 17 - Vertical Scale pushbutton switch
Const T_sw       = MM.Info(PINNO GP14) ' Pin 19 - Trigger Select pushbutton switch
Const A_sw       = MM.Info(PINNO GP15) ' Pin 20 - Time Scale     pushbutton switch

Const PWM_Freq   = 1000           ' Frequency for Test Signal on Pin 24
Const PWM_Duty   =   50           ' Base duty cycle for test signal PWM in %
Const PWM_Jitter =    0           ' Jitter in % for test signal PWM
Const Debounce   =  200           ' Debounce delay in mSec for front panel switches

' Generic to all displays - calculations done off screen dimensions

Const HMajor     = Hres/Major     ' How many Horiz Major Tic marks
Const VMajor     = Vres/Major     ' How many Vert  Major Tic marks
Const HMinor     = Hres/Minor     ' How many Horiz Minor Tic marks
Const VMinor     = Vres/Minor     ' How many Vert  Minor Tic marks

Const Background = RGB(32,64,32)  ' Color for Display background, a la Tektronix scopes
Const GMajor     = RGB(black)     ' Color for Major tic marks
Const GMinor     = RGB(black)     ' Color for Minor tic marks
Const T1_color   = RGB(yellow)    ' Color for displayed Trace1
Const T2_color   = RGB(cyan)      ' Color for displayed Trace2
Const TxtColor   = RGB(white)     ' Color for displayed text
Const ShadColor  = RGB(black)     ' Color for text shadows

Const Trig_None_1  = 0
Const Trig_Down_1  = 1              ' Enumerate possible trigger conditions for GP26
Const Trig_Up_1    = 2
Const Trig_None_2  = 3
Const Trig_Down_2  = 4              ' Enumerate possible trigger conditions for GP27
Const Trig_Up_2    = 5

Const ADC_Max    = 7              ' Maximum index into ADC Time Scale array (0-7)
Const V_Max      = 3              ' Maximum index into Voltage  Scale array (0-3)
Const Trig_Max   = 5

' Declare storage

Dim INTEGER c, n, x, y, trigger, trigger_timeout, Vselect, Trig_Type, ADC_select
Dim INTEGER v_time, v_diff, v_state, v_old, v_press ' Volts   scale button debouncing and status
Dim INTEGER t_time, t_diff, t_state, t_old, t_press ' Trigger type  button debouncing and status
Dim INTEGER a_time, a_diff, a_state, a_old, a_press ' ADC frequency button debouncing and status

Dim INTEGER Horizontal(Hres)      ' Horizontal coordinate buffer for fast graticule and buffer draw
Dim FLOAT   trace1(2*Hres)        ' Extra size to hopefully pick up a trigger event
Dim FLOAT   trace2(2*Hres)        ' Extra size to hopefully pick up a trigger event
Dim FLOAT   buffer1(Hres)         ' Display buffer for screen output
Dim FLOAT   buffer2(Hres)         ' Display buffer for screen output
Dim INTEGER addr.trace1, addr.trace2, addr.buffer1, addr.buffer2

Dim INTEGER HMajorX1(HMajor+1), HMajory1(HMajor+1), HMajory2(HMajor+1) ' For Horizontal Major Axes
Dim INTEGER VMajorX1(VMajor+1), VMajorx2(VMajor+1), VMajory1(VMajor+1) ' For Vertical   Major Axes
Dim INTEGER HMinorX1(HMinor+1), HMinory1(HMinor+1), HMinory2(HMinor+1) ' For Horizontal Minor Axes
Dim INTEGER VMinorX1(VMinor+1), VMinorx2(VMinor+1), VMinory1(VMinor+1) ' For Vertical   Minor Axes

Dim Float   V.Scale(10), V.Offset(10), V.MajVolts(10)
Dim Float   H.Freq(10),  H.Seconds(10)

Dim String  H.Units$(10), keypress$

' ========================== Initialization =================================
Timer = 0
Initialize_Arrays
Initialize_Hardware
Display_Instructions
Draw_Graticules

' ========================== Processing Loop ================================
Do
 Randomize_Test_Signal
 trigger_timeout = Timer
 Do
   Handle_Keypresses
   Handle_Switches
   trigger = -1
   Get_Samples
   trigger = find_trigger(Trig_Type)
   If Timer-trigger_timeout > 2500 Then Display_No_Trigger ' Waiting too long for a trigger.
 Loop Until trigger >= 0
 If Timer-trigger_timeout > 2500 Then Draw_Graticules      ' OK, we've got a trigger. Clear message.
 Scale_Samples
 Update_Display
Loop

' ========================== Interrupt Service Routines ====================

Sub V_ISR ' Interrupt Service Routine for Voltage SPST Button
 If v_press = 0 Then ' Ignore further  button presses until handled in main loop
   If (Timer - v_time) > debounce Then v_press = 1 : v_time = Timer
 EndIf
End Sub

Sub T_ISR ' Interrupt Service Routine for Trigger SPST Button
 If t_press = 0 Then ' Ignore further  button presses until handled in main loop
   If (Timer - t_time) > debounce Then t_press = 1 : t_time = Timer
 EndIf
End Sub

Sub A_ISR ' Interrupt Service Routine for ADC Frequency SPST Button
 If a_press = 0 Then ' Ignore further  button presses until handled in main loop
   If (Timer - a_time) > debounce Then a_press = 1 : a_time = Timer
 EndIf
End Sub

' ========================== Subs and Functions ============================

Sub Handle_Keypresses
 keypress$ = Inkey$
 Select Case keypress$
   Case "0"      : Vselect = 0
   Case "1"      : Vselect = 1
   Case "2"      : Vselect = 2
   Case "3"      : Vselect = 3
   Case "u", "U" : Trig_Type  = Trig_Up
   Case "d", "D" : Trig_Type  = Trig_Down
   Case "n", "N" : Trig_Type  = Trig_None
   Case "f", "F" : ADC_select = Min(ADC_select+1, ADC_Max) : Set_ADC_Timing
   Case "s", "S" : ADC_select = Max(ADC_select-1, 0) : Set_ADC_Timing
   Case "" : Exit Sub               ' No key pressed. No change.
   Case Else : Display_Instructions ' Unknown key pressed.
 End Select
 Draw_Graticules
End Sub

Sub Handle_Switches ' switch press detection done in Interrupt Service Routines
 Local INTEGER V, T, A

 If v_press = 1 Then
   v_press = 0
   Print "Voltage: ", V.MajVolts(Vselect);" -> ";
   Vselect = (Vselect+1) Mod (V_Max+1)
   Print V.MajVolts(Vselect);" V/div"
 EndIf

 If t_press = 1 Then
   t_press = 0
   Select Case Trig_Type
     Case Trig_Up_1:   Print "Trigger: ", " Trig_Up_1   -> Trig_Down_1" : Trig_Type = Trig_Down_1
     Case Trig_Down_1: Print "Trigger: ", " Trig_Down_1 -> Trig_None_1" : Trig_Type = Trig_None_1
     Case Trig_None_1: Print "Trigger: ", " Trig_None_1 -> Trig_Up_2"   : Trig_Type = Trig_Up_2
     Case Trig_Up_2:   Print "Trigger: ", " Trig_Up_2   -> Trig_Down_2" : Trig_Type = Trig_Down_2
     Case Trig_Down_2: Print "Trigger: ", " Trig_Down_2 -> Trig_None_2" : Trig_Type = Trig_None_2
     Case Trig_None_2: Print "Trigger: ", " Trig_None_2 -> Trig_Up_1"   : Trig_Type = Trig_Up_1
     Case Else :       Print "Trigger: ", " *Unknown*   -> Trig_Up_1"   : Trig_Type = Trig_Up_1
   End Select
 EndIf

 If a_press = 1 Then
   a_press = 0
   Print "Timebase: ", ADC_select;" ";H.seconds(ADC_select);" ";H.units(ADC_select); " -> ";
   ADC_select = (ADC_select+1) Mod (ADC_Max+1) : Set_ADC_Timing
   Print ADC_select;" ";H.seconds(ADC_select);" ";H.units(ADC_select)
 EndIf

 Draw_Graticules

End Sub

Function find_trigger(a)
 Local median = Math(MEAN trace1())

 Select Case a
   Case Trig_Down_1
     median = Math(MEAN trace1())
     For c = 0 To Hres-1
       If trace1(c) > median+0.1 And trace1(c+1) < median+0.2 Then find_trigger = c : Exit Function
     Next
     find_trigger = -1 : Exit Function
   Case Trig_Up_1
     median = Math(MEAN trace1())
     For c = 0 To Hres-1
       If trace1(c+1) > median+0.1 And trace1(c) < median+0.2 Then find_trigger = c : Exit Function
     Next
     find_trigger = -1 : Exit Function
   Case Trig_Down_2
     median = Math(MEAN trace2())
     For c = 0 To Hres-1
       If trace2(c) > median+0.1 And trace2(c+1) < median+0.2 Then find_trigger = c : Exit Function
     Next
     find_trigger = -1 : Exit Function
   Case Trig_Up_2
     median = Math(MEAN trace2())
     For c = 0 To Hres-1
       If trace2(c+1) > median+0.1 And trace2(c) < median+0.2 Then find_trigger = c : Exit Function
     Next
     find_trigger = -1 : Exit Function
   Case Else
     find_trigger = 0 : Exit Function
 End Select
End Function

Sub Display_Instructions
 Local i, j
 FRAMEBUFFER WRITE L
 CLS Background
 Text   6, Vres/2, "Pico", CMV, 1, 1, T1_Color, Background
 Text   Hres-6, Vres/2, "Scope", CMV, 1, 1, T2_Color, Background
 Text   18,  3,     "Keyboard:", LT, 7, 1, TxtColor, Background
 Text   25, 15,     "Volt: 0, 1, 2, 3", LT, 7, 1, TxtColor, Background
 Text   25, 27,     "Time: Faster, Slower", LT, 7, 1, TxtColor, Background
 Text   25, 39,     "Trig: Up, Dn, None", LT, 7, 1, TxtColor, Background
 Text   25, 51,     "Pin 24: Test Signal", LT, 7, 1, TxtColor, Background
 FRAMEBUFFER COPY L, F
 FRAMEBUFFER COPY F,N
 Pause 4000

 Select Case Trig_Type
   Case Trig_Up_1, Trig_Down_1, Trig_None_1: Text 20, 79, "Waiting for Trigger, Ch 1", LB, 7, 1, T1_Color, Background
   Case Trig_Up_2, Trig_Down_2, Trig_None_2: Text 20, 79, "Waiting for Trigger, Ch 2", LB, 7, 1, T2_Color, Background
 End Select

 FRAMEBUFFER COPY L, F
 FRAMEBUFFER COPY F,N
End Sub

Sub Display_No_Trigger
 FRAMEBUFFER WRITE L
 Select Case Trig_Type
   Case Trig_Up_1, Trig_Down_1, Trig_None_1: Text Hres/2, Vres/2, "Waiting for Trigger, Ch 1", CM, 7, 1, T1_Color, Background
   Case Trig_Up_2, Trig_Down_2, Trig_None_2: Text Hres/2, Vres/2, "Waiting for Trigger, Ch 2", CM, 7, 1, T2_Color, Background
 End Select
 FRAMEBUFFER COPY L, F
 FRAMEBUFFER COPY F,N
End Sub

Sub Initialize_Arrays
 addr.trace1  = Peek(varaddr trace1())
 addr.trace2  = Peek(varaddr trace2())
 addr.buffer1 = Peek(varaddr buffer1())
 addr.buffer2 = Peek(varaddr buffer2())

 Math Set 0, HMajory1() : Math Set Vres, HMajory2()  ' Set Arrays for Time  Major Axis
 Math Set 0, VMajorX1() : Math Set Hres, VMajorx2()  ' Set Arrays for Volts Major Axis

 Math Set 3*Vres/4+Minor/2, HMinory1()
 Math Set 3*Vres/4-Minor/2, HMinory2() ' Set Arrays for Time  Minor Axis
 Math Set Hres/2+Minor/2,   VMinorx1()
 Math Set Hres/2-Minor/2,   VMinorx2() ' Set Arrays for Volts Minor Axis

 For x = 0 To Hres-1 : Horizontal(x) = x     : Next ' used in array graphics
 For x = 0 To HMajor : HMajorx1(x) = x*Major : Next ' for Time  Major Axis graticule
 For y = 0 To VMajor : VMajory1(y) = y*Major : Next ' for Volts Major Axis graticule
 For x = 0 To HMinor : HMinorx1(x) = x*Minor : Next ' for Time  Minor Axis graticule
 For y = 0 To VMinor : VMinory1(y) = y*Minor : Next ' for Volts Minor Axis graticule

 ' RP2040-LCD-0.96 - specific values here.
 '
 ' For Voltage, Zero is at pixel 60, 3/4 down the display
 V.Scale(0)= -4.0 : V.Offset(0)=60 : V.MajVolts(0) = 5.000 ' 5.000 Volts per Major Division
 V.Scale(1)= -8.0 : V.Offset(1)=60 : V.MajVolts(1) = 2.500 ' 2.500 Volts per Major Division
 V.Scale(2)=-16.0 : V.Offset(2)=60 : V.MajVolts(2) = 1.250 ' 1.250 Volts per Major Division
 V.Scale(3)=-32.0 : V.Offset(3)=60 : V.MajVolts(3) = 0.675 ' 0.675 Volts per Major Division

 ' For Time,

 H.Freq(0) =   1000 : H.Units(0)="mSec" : H.Seconds(0) = 20.0
 H.Freq(1) =   2000 : H.Units(1)="mSec" : H.Seconds(1) = 10.0
 H.Freq(2) =   4000 : H.Units(2)="mSec" : H.Seconds(2) = 5.0
 H.Freq(3) =  10000 : H.Units(3)="mSec" : H.Seconds(3) = 2.0
 H.Freq(4) =  20000 : H.Units(4)="mSec" : H.Seconds(4) = 1.0
 H.Freq(5) =  40000 : H.Units(5)="uSec" : H.Seconds(5) = 500.0
 H.Freq(6) = 100000 : H.Units(6)="uSec" : H.Seconds(6) = 200.0
 H.Freq(7) = 200000 : H.Units(7)="uSec" : H.Seconds(7) = 100.0
'  H.Freq(8) = 400000 : H.Units(8)="uSec" : H.Seconds(8) = 50.0 - too fast for 2 channels

 ADC_select = 3              ' Select from a number of time scales
 Vselect    = 1              ' Select from a number of Scale factors and offsets for volts
 Trig_Type  = Trig_Down_1    ' Select from a number of trigger types

End Sub

Sub Initialize_Hardware
 SetPin V_SW, INTL, V_ISR, PULLUP ' Switch to cycle through Voltage scales
 SetPin T_SW, INTL, T_ISR, PULLUP ' Switch to cycle through Trigger types
 SetPin A_SW, INTL, A_ISR, PULLUP ' Switch to cycle through ADC Frequency (Time) scales
 SetPin GP18, PWM1A               ' Set up pin 24 for PWM test signal output
 PWM 1, PWM_Freq, PWM_Duty        ' Square wave on Pin 24
 SetPin ADC1_Pin, AIn             ' ADC input on Pin 31
 SetPin ADC2_Pin, AIn
 ADC open H.Freq(ADC_Select), 2   ' Sample at specified frequency

 FRAMEBUFFER CREATE F
 FRAMEBUFFER LAYER  L
End Sub

Sub Set_ADC_Timing
 ADC FREQUENCY H.Freq(ADC_Select)
End Sub

Sub Draw_Graticules
 Local STRING T$, V$, A$
 FRAMEBUFFER WRITE L
 CLS Background
 Line HMinorx1(), HMinory1(), HMinorx1(), HMinory2(), 1, GMinor ' Draw minor horiz graticules
 Line VMinorx1(), VMinory1(), VMinorx2(), VMinory1(), 1, GMinor ' Draw minor vert  graticules
 Line HMajorx1(), HMajory1(), HMajorx1(), HMajory2(), 1, GMajor ' Draw major horiz graticules
 Line VMajorx1(), VMajory1(), VMajorx2(), VMajory1(), 1, GMajor ' Draw major vert  graticules

 A$ = Str$(H.Seconds(ADC_Select),3,0) + " " + H.Units(ADC_Select)
 Text    0, Vres, A$, LB, 7, 1, TxtColor, Background     ' Draw Time Scale at Lower Left
 V$ = Str$(V.MajVolts(Vselect), 2, 2)+" V"
 Text Hres, Vres, V$, RB, 7, 1, TxtColor, Background     ' Draw Volts Scale at Lower Right
 Select Case Trig_Type
   Case Trig_Up_1:   Text Hres/2, Vres, "/", CB, 7, 1, T1_Color, Background
   Case Trig_Down_1: Text Hres/2, Vres, "\", CB, 7, 1, T1_Color, Background
   Case Trig_None_1: Text Hres/2, Vres, "-", CB, 7, 1, T1_Color, Background
   Case Trig_Up_2:   Text Hres/2, Vres, "/", CB, 7, 1, T2_Color, Background
   Case Trig_Down_2: Text Hres/2, Vres, "\", CB, 7, 1, T2_Color, Background
   Case Trig_None_2: Text Hres/2, Vres, "-", CB, 7, 1, T2_Color, Background
   Case Else :       Text Hres/2, Vres, " ", CB, 7, 1, T1_Color, Background
 End Select
End Sub

Sub Randomize_Test_Signal
 PWM 1, PWM_Freq, PWM_Duty+PWM_Jitter*Rnd  ' Randomize duty cycle to ensure displayed signal is refreshing
End Sub

Sub Get_Samples               ' Load ADC inputs into sample() array
 trace1(2*Hres-1) = -1       ' Samples will never be < 0
 ADC start trace1(), trace2()
 Do While trace1(2*Hres-1) < 0 : Loop
End Sub

Sub Scale_Samples
 Memory copy FLOAT addr.trace1 + trigger*8, addr.buffer1, Hres
 Memory copy FLOAT addr.trace2 + trigger*8, addr.buffer2, Hres
 Math Scale buffer1!(), V.Scale(Vselect),  buffer1!()  ' Scale samples to fit vertically
 Math Scale buffer2!(), V.Scale(Vselect),  buffer2!()  ' Scale samples to fit vertically
 Math Add   buffer1!(), V.Offset(Vselect), buffer1!()  ' Offset to bottom of screen (positive is up)
 Math Add   buffer2!(), V.Offset(Vselect), buffer2!()  ' Offset to bottom of screen (positive is up)
End Sub


Sub Update_Display
 FRAMEBUFFER COPY L, F
 FRAMEBUFFER WRITE F : Pixel Horizontal(), buffer1!(), T1_color
 FRAMEBUFFER WRITE F : Pixel Horizontal(), buffer2!(), T2_color
 FRAMEBUFFER COPY F,N
End Sub

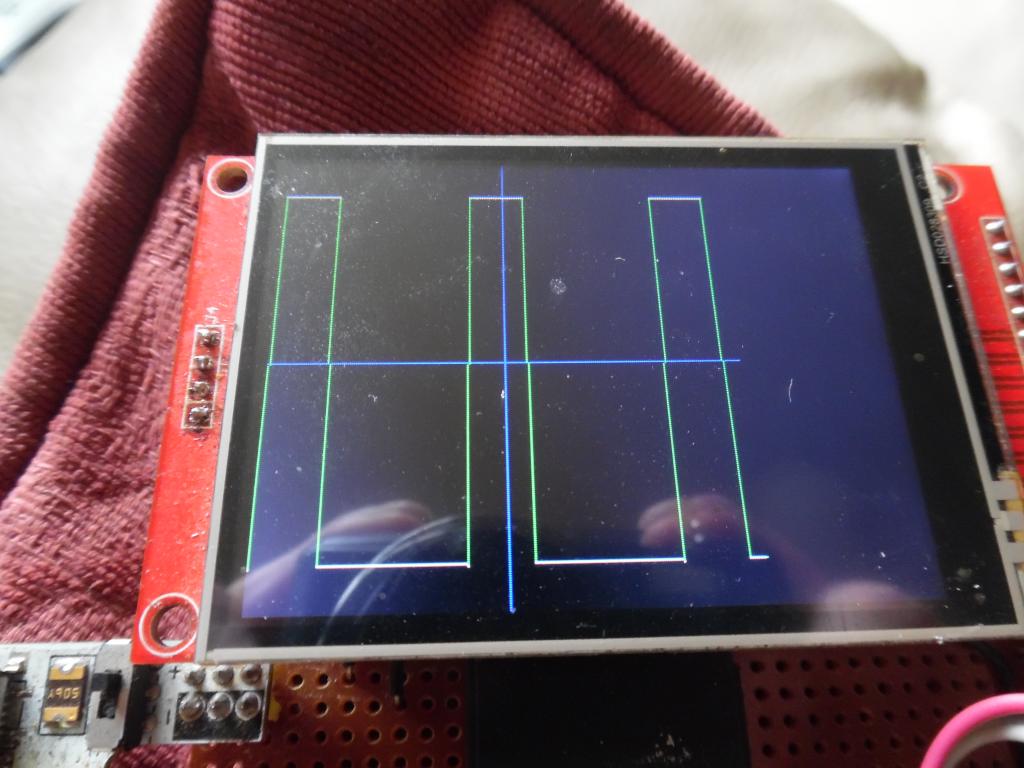

 SetPin GP2,pwm1A 'this optional test signal comment out
 PWM 1,1000,30  'square wave ,this optional test signal comment out
 dim c%,x%,samples!(480)
 SETPIN (31), AIn 'this is adc input pin
 adc open 50000,1 'this is sampling rate
 FRAMEBUFFER CREATE F:FRAMEBUFFER LAYER L:FRAMEBUFFER WRITE L 'all graphics to layer L
 line 119,0,119,239,,rgb(blue):line 0,119,239,119,,rgb(blue) 'draw cross to layer L
 FRAMEBUFFER WRITE F 'all graphics to framebuffer

 do
   adc start samples!() 'get new samples
   'trigger
   c%=0
   do:If samples!(c%+1) > 0.1 then if samples!(c%) < 0.2 then exit do
   inc c%:loop while c%<240

math scale samples!(),199/3.3,samples!():math add samples!(),20,samples!():FRAMEBUFFER COPY L,F 'copy cross on layer L to framebuffer
for x%=0 to 238 'screen width
     line x%,239-samples!(x%+c%),x%+1,239-samples!(x%+1+c%),,rgb(red)  'draw new sample from sample(c%)
     pixel x%,239-samples!(x%+c%),rgb(white) 'plot new sample from sample(c%)
   next x%
FRAMEBUFFER COPY F,N 'copy frame buffer to display
loop

[17] Math (MIN samples!(), c%) <-------space Math  (
Error : Syntax
MATH(MIN a(), [index%]) <-------no space Math(

   adc start samples!() 'get new samples

Math(MIN samples!(), c%)
print c%
