stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 10:09pm 02 Sep 2023
Copy link to clipboard
Print this post

GP16 pin21 is spi so use any free pin if 3 button option. I'll try ili9341 not 9488.
I'll try my 3.3V vga kb clk, data, +,-.
my intentions gui touch area for 3 button option but need to follow code to implement.

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136
Posted: 08:22am 03 Sep 2023
Copy link to clipboard
Print this post

More playing with ADC RUN and Math Window.
It makes an excellent AGC for signals from 20mVp-p to 3300mVp-p
At the low end noise and the ADC steps (about 1.24mV) make anything less unusable.

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 08:24pm 03 Sep 2023
Copy link to clipboard
Print this post

I tried Jims's scope on ili9341 but errors
>
RUN

[303] PWM 1, PWM_Freq, PWM_Duty+PWM_Jitter*Rnd  ' Randomize duty cycle to ensure displayed Signal isg
Error : Pin not set for PWM
>
> C:\Users\stanley555\Downloads\2023-09-01_071921_cro\cro.bas
Uploading using:  'target port\COM13:115200 s\picomite
Upload started
NEW
>
>
AUTOSAVE

Upload completed
Saved 12426 bytes
>
RUN
[267] SetPin GP18, PWM1A               ' Set up pin 24 for PWM test Signal output
Error : Pin 24/GP18 is reserved on startup
>
>
C:\Users\stanley555\Downloads\2023-09-01_071921_cro\cro.bas
Uploading using:  'target port\COM13:115200 s\picomite
Upload started
NEW
>
>
AUTOSAVE

Upload completed
Saved 12425 bytes
>
RUN

[315] Math window buffer(), limit1,limit2, buffer2()
Error : Syntax
>

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 09:04pm 03 Sep 2023
Copy link to clipboard
Print this post

Ilil9341 works with frame and layer L.


Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 09:10pm 03 Sep 2023
Copy link to clipboard
Print this post

You really must check what pins you have allocated to stuff before you attempt to use them for something else. I suspect yo have GP18 on SPI.

... and don't even consider using board pin numbers unless you *really* have to, you'll only get confused. :)  I think GP numbers work for just about everything apart from CONST values, and you have MM.INFO(PINNO GPn) to fix that. If necessary, i.e. board numbers are used in the comments, then change them to their GPn equivalents.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136
Posted: 01:54am 04 Sep 2023
Copy link to clipboard
Print this post

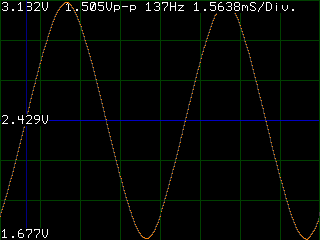

And here we are, back in Venice with more... Scope progs. *

Now with optional automatic Frequency and Voltage adjustment, thanks to Peters Math Window.

Hopefully the comments in it are helpful.
' PicoMite VGA / LCD (any screen size) "Scope_Auto F & V.bas"
' MODE 2  'can also use Mode 1 B&W
' Adjust trigger, gain, screen size, buffer size and speed to suit.

Dim Float Trig = 0 'Set trigger voltage, use "-" for falling trig. V, or 0 = automatic
Dim Float Cycles = 2.5  'number of cycles to display in automatic mode
Dim Integer HRes = MM.HRes, VRes = MM.VRes 'Change if not using full screen area
Dim Integer buff = HRes * 10  'Capture buffer size - min = 2 x horiz. pixels
Dim Integer ADC_Hz = 0  'Set sampling rate (Hz) min 733, max 500000, or 0 = automatic
Dim Integer H.offset = HRes \ 12  'Adjust to view pre/post-trigger signal (+/- pixels)

Dim Integer TV, Auto_Hz = 0  'trigger voltage converted to pixels, Flag for auto ADC frequency
If trig = 0 Then TV = VRes / 2 'switch to auto trigger voltage
Dim Integer  x, y, TC, TC2  'screen coordinates, Sample counters for triggering
Dim Float samples(buff) 'input buffer using OPTION BASE 0
Dim Float samples2(buff)  'output buffer
Dim Float Min, Max, p2p  ' sample amplitudes, peak-to-peak value

If ADC_Hz = 0 Then : ADC_Hz = 10000 : Auto_Hz = 1 : EndIf ' set initial ADC_Hz for automatic adjustment

ADC open ADC_Hz, 1 'samples per second, GP26
CLS

Do
 samples(buff-1) = -1   'set last element to -1

 ADC start samples() 'get new samples + extra for trig. search
 Do While samples(buff-1) < 0 : Loop 'wait till array is full

 Math WINDOW samples(), VRes - 1, 0,  samples2() 'Make samples fit screen, min at bottom, max at top

 Max = Math(max samples()) : Min = Math(min samples())
 p2p = Max - Min  'peak-to-peak sample values

 If trig >-.01 And trig <.01 Then  ' set auto trigger
   TV = VRes / 2
  Else           ' set manual trigger
   If trig > Max Then trig = Max - .02 'trig too high
   If trig < Min Then trig = Min + .02 'trig too low
   TV  = (Abs(Trig)-Min) * -VRes / p2p + VRes 'calc. pixel value of Trigger Voltage
 EndIf

 'search for Trigger Condition
 If H.offset > 0 Then TC = H.offset + 1 Else TC = 0 'allow for pre-trigger data

 If Trig > -0.001 Then  'wait for signal to rise/fall through trigger voltage
   Do : Inc TC : Loop Until samples2(TC) > TV Or TC > buff - HRes
   Do : Inc TC : Loop Until samples2(TC) < TV Or TC > buff - HRes
  Else
   Do : Inc TC : Loop Until samples2(TC) < TV Or TC > buff - HRes
   Do : Inc TC : Loop Until samples2(TC) > TV Or TC > buff - HRes
 EndIf

 TC2 = TC + 1
 If Trig > -0.001 Then  'wait for second rise/fall through trigger voltage
   Do : Inc TC2 : Loop Until samples2(TC2) > TV Or TC2 > buff - 2
   Do : Inc TC2 : Loop Until samples2(TC2) < TV Or TC2 > buff - 2
  Else
   Do : Inc TC2 : Loop Until samples2(TC2) < TV Or TC2 > buff - 2
   Do : Inc TC2 : Loop Until samples2(TC2) > TV Or TC2 > buff - 2
 EndIf

 If Auto_Hz Then  'Auto adjust ADC_Hz to display 'Cycles' across the screen
  ADC_Hz = ADC_Hz * HRes \ ((TC2 - TC) * Cycles)
  If ADC_Hz > 500000 Then ADC_Hz = 500000 'Max ADC_Hz
  If ADC_Hz < 733 Then ADC_Hz = 733 'Min ADC_Hz
  ADC Close
  ADC open ADC_Hz, 1 'samples per second, GP26
 EndIf

 Inc TC, -H.offset  'adjust for desired offset
 If TC > (buff-HRes) Or TC < 0 Then TC = 0 ' Trigger not found, plot from start

 'plot graticule

 For x = 0 To HRes
  If x Mod (HRes \ 8) Then
   If x < MM.Info(FONTWIDTH) * 37 Then
     Line x, MM.Info(FONTHEIGHT), x, VRes, 1, 0 'delete old trace except text area
    Else
     Line x, 0, x, VRes, 1, 0 'delete old trace
   EndIf
   Else
    Line x, 0, x, VRes, 1, 64<<8 'Time graticule
  EndIf

  For y= 0 To VRes-1 Step VRes/6
   Pixel x, y, 64<<8 'Voltage graticule
  Next

  Pixel x, TV, 192 'plot Trigger voltage level.
  Line H.offset, 0, H.offset, VRes, 1, 128 'plot trigger time

  'plot trace
  Line x, samples2(x+TC)-V.offset, x, samples2(x+1+TC)+V.offset,, RGB(64,64,64)
  Pixel x, samples2(x+TC)-V.offset, RGB(255,128,0)

  'Show voltages
  If x>MM.Info(FONTWIDTH)*6 Then
   Text 1,(Vres-MM.Info(FONTHEIGHT)),Str$(Min,1,3)+"V"
   Text 1,(Vres-MM.Info(FONTHEIGHT))\2,Str$(Max + Min)*.5,1,3)+"V"
  EndIf
 Next

 'Show signal data
 Text 1, 1, Str$(max,1,3)+"V  "+Str$(p2p,1,3)+"Vp-p "+Str$(ADC_Hz\(TC2-TC),1,0)+"Hz "+Str$(HRes*1000/8/ADC_Hz,1,4)+"mS/Div."

Loop
ADC close
End

Stan, no Subs, all linear to make following it easier.

* Python.
Edited 2023-09-04 17:25 by phil99

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 396
Posted: 10:21am 04 Sep 2023
Copy link to clipboard
Print this post

Hello

@ phil99

I tried it with the latest firmware "PicoMiteVGAV5.07.08b15.uf2" but get the
error:

  Quote  [16] Dim Float samples2(buff)  'output buffer
Error : Not enough memory
>


Changing the output buffer to "5" gives another error:
[101] Text 1,(Vres-MM.Info(FONTHEIGHT))\2,Str$(Max + Min)*.5,1,3)+"V"
Error : Incompatible types in expression
>
  Quote


Did I something wrong?

Greetings
Daniel

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 10:59am 04 Sep 2023
Copy link to clipboard
Print this post

What size display?

Dim Integer HRes = MM.HRes, VRes = MM.VRes 'Change if not using full screen area
Dim Integer buff = HRes * 10  'Capture buffer size - min = 2 x horiz. pixels

On a larger display you may need to reduce that 10 to as low as 2, but it looks like 5 might be working.



If x>MM.Info(FONTWIDTH)*6 Then
  Text 1,(Vres-MM.Info(FONTHEIGHT)),   Str$(Min,1,3)+"V"
  Text 1,(Vres-MM.Info(FONTHEIGHT))\2, Str$(Max + Min)*.5,1,3)+"V"
EndIf

The third line is an error. It's trying to multiply a string by a float.

Try:
Str$((Max + Min)*.5),1,3)+"V"
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 396
Posted: 11:15am 04 Sep 2023
Copy link to clipboard
Print this post

Hi Mick,

I am just using the picoVGA with an VGA monitor, with Output Buffer "5" it works.

Thank you, with the missig parenthesis it works!

Really impressive what can be done with the pico.


Greetings
Daniel

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 396
Posted: 12:04pm 04 Sep 2023
Copy link to clipboard
Print this post

Aaaah another problem!

I modified

  Quote
 ADC open ADC_Hz, 1 'samples per second, GP26


To

  Quote
 ADC open ADC_Hz, 3 'samples per second, GP28


Since GP26 is already used by a physical button on my device...

But it seems ADC 1 is still active, because when I press the button, which is wired
to GND, the scope shows this action.

And after some seconds I get an error:

  Quote
[69] ADC open ADC_Hz, 3 'samples per second, GP28
Error : Invalid frequency


Hmmm...

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 12:17pm 04 Sep 2023
Copy link to clipboard
Print this post

There is actually only one ADC in the RP2040, preceded by a multiplexer. When you use ADC OPEN you are running the multiplexer in "round robin" mode. A single channel will use ADC0 (GP26), two channels will use ADC0 and ADC1 (GP26 and GP27) etc. You can't change this behaviour so I'm afraid that you'll have to move the button input.
Edited 2023-09-04 22:19 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136
Posted: 12:29pm 04 Sep 2023
Copy link to clipboard
Print this post

  Quote   with the missing parenthesis it works!
Yes, I don't know how I did that. The line should be:-
Text 1,(Vres-MM.Info(FONTHEIGHT))\2,Str$((Max + Min)*.5,1,3)+"V"

And as Mick says the ADC pin usage has no flexibility.

Amnesie
Guru

Joined: 30/06/2020
Location: Germany
Posts: 396
Posted: 12:43pm 04 Sep 2023
Copy link to clipboard
Print this post

Okay, thank you both for this explanation!

So I keep in mind, that GP26 is crucial for ADC... So I just move my physical button layout to another pin.

Good to know!

Greetings
Daniel

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 12:51pm 04 Sep 2023
Copy link to clipboard
Print this post

Mission Impossible - Recorded voice:
  Quote  Your mission, gentlemen, should you choose to accept it, is to create a dual channel beginner's oscilloscope based on the PicoMite or PicoMite VGA. Ideally it should be selectable for single/dual trace mode. As always, should you or any of your IM Force be caught or killed, the Secretary will disavow any knowledge of your actions. This tape/disc will self-destruct in ten seconds. Good luck gentlemen.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802
Posted: 12:55pm 04 Sep 2023
Copy link to clipboard
Print this post

  Amnesie said  Aaaah another problem!

I modified

  Quote
 ADC open ADC_Hz, 1 'samples per second, GP26


To

  Quote
 ADC open ADC_Hz, 3 'samples per second, GP28



I know you've made other changes but in addition...

Everything after the quote (') up to the end of line is ignored.

John

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 02:05pm 04 Sep 2023
Copy link to clipboard
Print this post

In the last photo I posted "frame and layer L works on ili9341" the button pad is analogue to gp26 but now that's scope input adc0. Could I still use adc1 for the button pad or would I lose adc resolution?
The button pad works, it was a Tron game running and was more responsive than gui touch area for playing the game.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 02:27pm 04 Sep 2023
Copy link to clipboard
Print this post

No, you should probably be fine using ADC1 or ADC2 for your buttons if you are using SETPIN GP27, AIN for example. Only ADC0 is being scanned automatically.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 02:46pm 04 Sep 2023
Copy link to clipboard
Print this post

phil99. My original adc to graph on arduino 328p I used a new sample and old sample array and erased each old sample and redrew new sample one sample at a time so the wave updated not erase whole graph and redraw it, only 8bit ucontroller remember.
This worked fine on rpipico but the frame and layer L is Much better if you want a faster screen update. Redrawing a complex graticule and the graph each frame isn't my idea of a scope.
Maybe draw the graticule once, make it a sprite then
in a loop
draw sprite, erases old sample graph if background not black
get samples and display over sprite graticule
loop.
I found using large sprites bit slow though.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 02:57pm 04 Sep 2023
Copy link to clipboard
Print this post

You will do. Sprites on the PicoMite are handled in software.
Compact code to redraw a graticule is probably about the same speed or may be even faster as background  pixels don't have to be copied or stored.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 03:00pm 04 Sep 2023
Copy link to clipboard
Print this post

  Mixtel90 said  No, you should probably be fine using ADC1 or ADC2 for your buttons if you are using SETPIN GP27, AIN for example. Only ADC0 is being scanned automatically.

The pad code was

'check user button pressed
bp!=pin(31)
select case bp!
  case <.02
    if pdx=0 then pdy=0:pdx=-1 'left pressed
  case 1.5 to 1.8
    if pdx=0 then pdy=0:pdx=1 'right pressed
  case 0.3 to 0.6
    if pdy=0 then pdx=0:pdy=-1 'up pressed
  case 0.9 to 1.1
    if pdy=0 then pdx=0:pdy=1 'down pressed
  case 2.3 to 2.5 'fire button
end select
px=px+pdx:py=py+pdy

It works on 3.3V but sold as arduino so meant for 5V but 5 buttons using 1 pin is neat and it was cheap. stan
ps. no debounce code
Edited 2023-09-05 01:07 by stanleyella

     Page 13 of 17
Print this page
© JAQ Software 2024
