AMUN-RA Senior Member  Joined: 10/03/2007 Location: AustraliaPosts: 144 |
I have a customer that refuses to use a controller on his solar system cannot convince him at all. he has asked me to provide him with some blocking diodes to stop his batteries from draining back at night How would I go about building such a beast Mick. Every day the sun shines & gravity sucks= free energy. |
||||
Gizmo Admin Group  Joined: 05/06/2004 Location: AustraliaPosts: 5078 |
Hi Mick A blocking diode is just another name for a single rectifier. It connects in series from the solar cells and his battery bank.
You need to find out what the rating of his panel is, ie how many watts, and the voltage of his batt bank. Convert the watts to amps ( watts / volts ), and use the volts and amps rating to choose a rectifier. Double the values to play it save, ie if he runs a 24volt battery and his panel can supply 10 amps, then use a rectifier that can safely pass 48 volts at 20 amps or better. Glenn The best time to plant a tree was twenty years ago, the second best time is right now. JAQ |
||||
Gill Senior Member Joined: 11/11/2006 Location: AustraliaPosts: 669 |

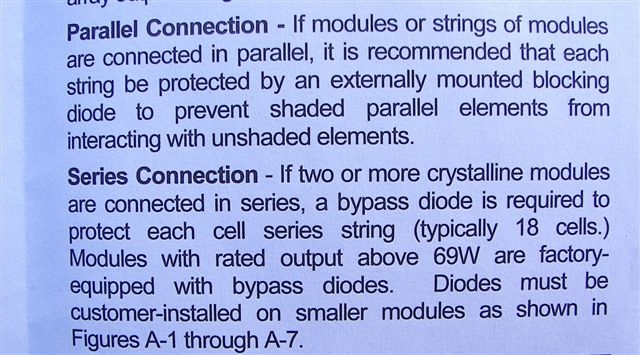

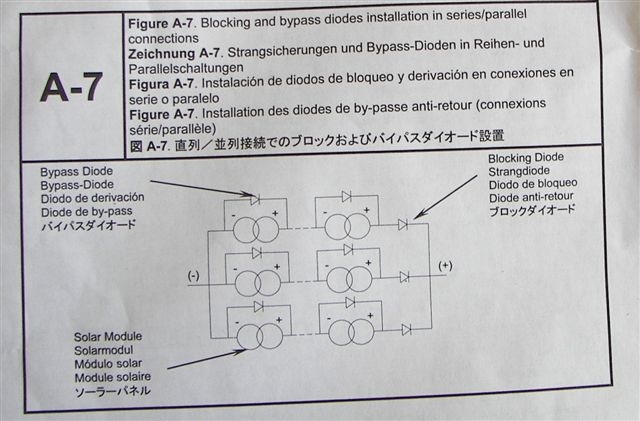

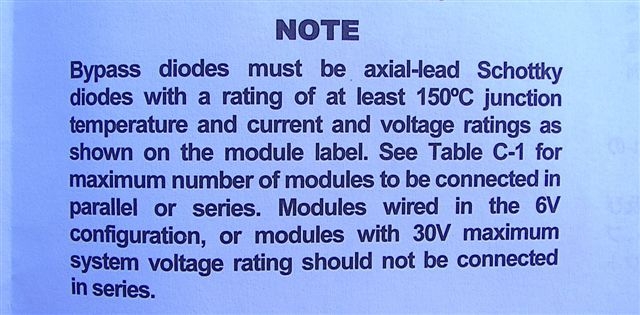

Hello Mick, Here's some info extracted from the instruction sheet from BP for their "Crystalline Silicon Photovoltaic Modules" (Solar Panel range[polycrystal]) For my new 80w panels they reckon they are already fitted with by-pass diodes, but for the life of me I can't see where they are located.
Sorry the Table C-1 they refer to does not exist on the Instruction Sheet. was working fine... til the smoke got out. Cheers Gill _Cairns, FNQ |
||||
| AMUN-RA Senior Member Joined: 10/03/2007 Location: AustraliaPosts: 144 |
Gill the sharp NE80 has bypass dioded in the Jbox I dont sell bp gear so have never seen the pics you posted thank you very much for that I will visit J c*** today and see what I can find. I just wish I could talk him into a controller but he's set in his ways Thanks again Mick Townsville Every day the sun shines & gravity sucks= free energy. |
||||
