Forum Index : Electronics : Switching AC with TRIACs via Picaxe

Author Message
domwild
Guru

Joined: 16/12/2005
Location: Australia
Posts: 873
Posted: 04:26am 31 Oct 2006
Copy link to clipboard
Print this post

Hi,

Am dreaming (again!) to switch AC via a Picaxe. Saw a circuit with a MOC3041 TRIAC driver (zero-crossing, 15mA control current) and a TIC226M TRIAC(600V for inductive loads, 8 Amps with cooling = 1750W).

Is this cheaper to build than buying the 40A SSR from Jaycars? Not that I need 40Amps anyway. Cost is $40.

Says 25mA max. to drive this relay, is this OK for a Picaxe, which can only source/sink 15mA?? Does max. in this case mean it will also switch for 15mA?

Taxation as a means of achieving prosperity is like a man standing inside a bucket trying to lift himself up.

Winston Churchill

RossW
Guru

Joined: 25/02/2006
Location: Australia
Posts: 495
Posted: 04:43am 31 Oct 2006
Copy link to clipboard
Print this post

Forget it. Buy the SSR.

Sure, you could use a picaxe, but you wouldn't get all the benefits of zero-crossing detector, or the snubbing circuit, or probably the opto-isolation, and you would still need to provide it with power.

Not to mention the time it will take you to build it...

domwild
Guru

Joined: 16/12/2005
Location: Australia
Posts: 873
Posted: 03:50am 02 Nov 2006
Copy link to clipboard
Print this post

Ross,
Thanks for that. I mentioned that it had a zero-crossing detector, it has a snubber and an opto and all it needs is the control signal and not the power. But it could be the time to build it!

Taxation as a means of achieving prosperity is like a man standing inside a bucket trying to lift himself up.

Winston Churchill

mrpackethead

Newbie

Joined: 11/11/2006
Location: New Zealand
Posts: 17
Posted: 10:41am 09 Jan 2007
Copy link to clipboard
Print this post

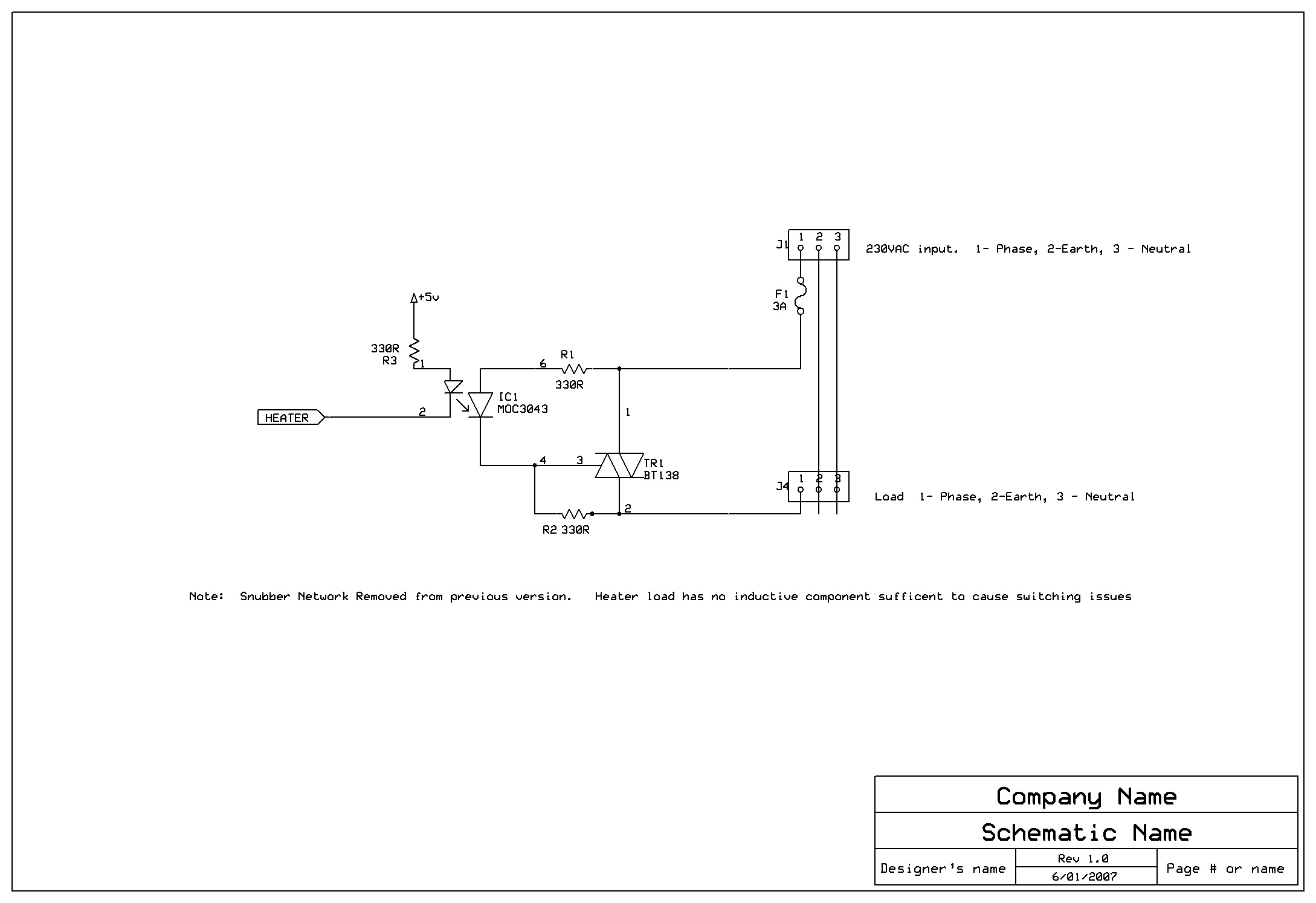

Suggest you use a MOC3043, almost the same as the 3041, but it only needs 5mA to turn it on. If you have an inductive load, you might want to put a 39ohm resistor and .01uF Cap in parrallel with triac.

You can use the FETS you suggested in a similar way.   I've got lots and lots of mains switching being done this way of a PIC (picaxe).

Just be careful. The mains bites.

Every thing should be as simple as possible. Not simpler.
