Forum Index : Microcontroller and PC projects : Final PicoMite Release - V6.00.01
Page 1 of 2   |
|||||
| Author | Message | ||||
Geoffg Guru  Joined: 06/06/2011 Location: AustraliaPosts: 3244 |
Announcing the release of firmware version 6.00.01 for the PicoMite family from Peter Mather (no more betas). This release combines the old PicoMite/PicoMiteVGA/WebMite versions and manuals into one download with one manual. The download link is: https://geoffg.net/Downloads/picomite/PicoMite_Firmware.zip To make it easier for newcomers to the PicoMite world I have retained the three web pages describing the different aspects of the PicoMite firmware but the download link is the same on each page. These pages are: PicoMite: https://geoffg.net/picomite.html PicoMite VGA/HDMI: https://geoffg.net/picomitevga.html WebMite: https://geoffg.net/webmite.html This is a major release and is the result of a lot of hard work by Peter. Geoff Geoff Graham - http://geoffg.net |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9321 |
Geoff Please see email All: please wait for Geoff to update the binaries. The ones posted still say RC10 Edited 2024-12-29 21:10 by matherp |
||||
| Geoffg Guru Joined: 06/06/2011 Location: AustraliaPosts: 3244 |
OK, the download has been updated. Don't forget to clear your cache if you downloaded the previous file. Geoff Geoff Graham - http://geoffg.net |
||||
homa Guru Joined: 05/11/2021 Location: GermanyPosts: 392 |
 |
||||
mikeb Senior Member  Joined: 10/04/2016 Location: AustraliaPosts: 174 |
Well done to Geoff, Peter, and Gizmo. I'm sure I can speak for all in saying your efforts are very much appreciated by all. Happy and safe new year to all Regards, Mike B. There are 10 kinds of people in the world. Those that understand binary and those that don't. |
||||
karlelch Senior Member Joined: 30/10/2014 Location: GermanyPosts: 185 |
Geoff, Peter, and all who contributed - Thanks!! This is a fantastic project and a great community! Happy New Year, stay healthy and safe Best Thomas |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4375 |
Congratulations Peter and Geoff, This is a major milestone in the MMBasic family. Thank you for your sustained support. Volhout PicomiteVGA PETSCII ROBOTS |
||||
stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2216 |
The manual is better. "To generate the DVI/HDMI signal the firmware needs to overclock the RP2350 to as high as 372MHz and most Raspberry Pi Pico 2 modules will not have any trouble at these speeds." but it has to be 315000, yes? option cpuspeed 372000 Error : Invalid Option |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2216 |

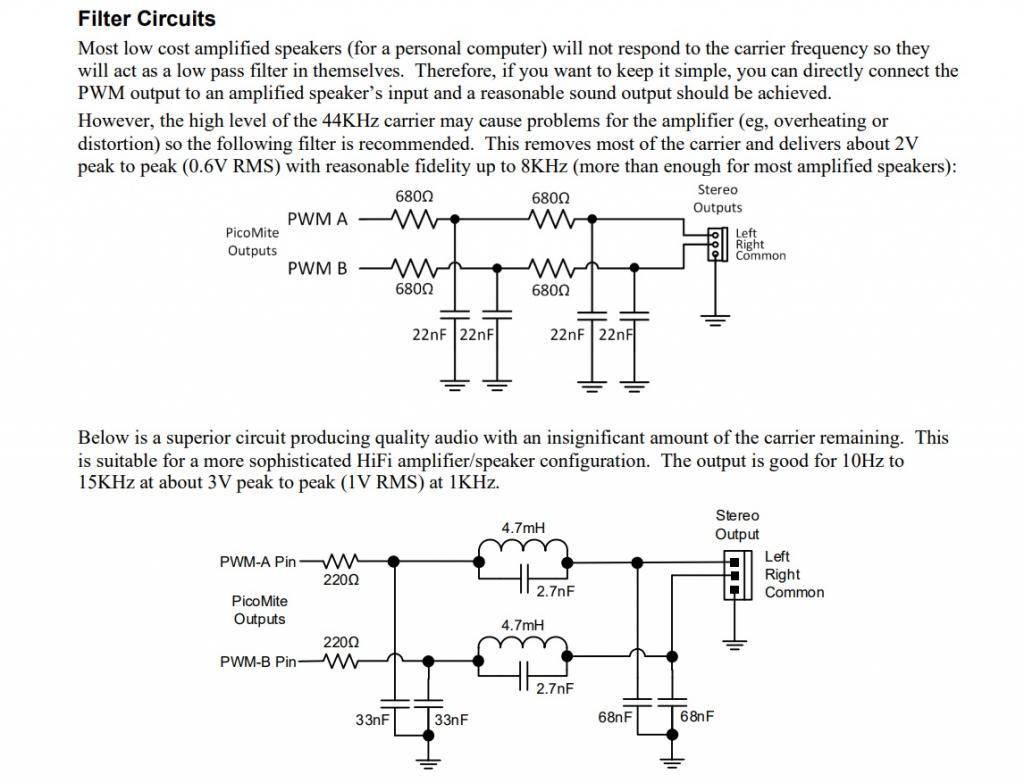

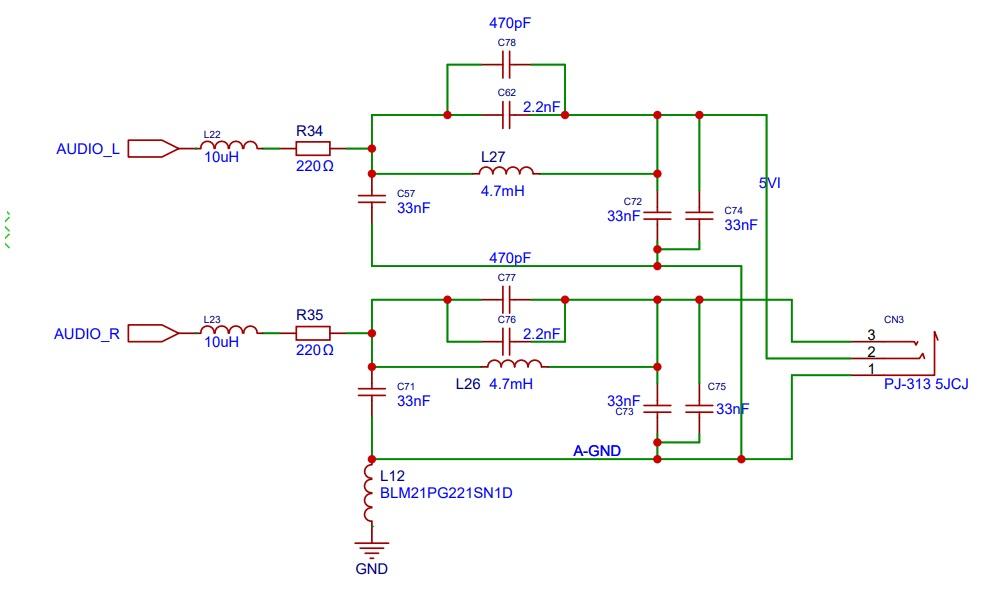

New audio filter circuit and usb-hdmi circuit   Edited 2024-12-30 07:45 by stanleyella |
||||
| homa Guru Joined: 05/11/2021 Location: GermanyPosts: 392 |
As has often been noted, the frequency of the HDMI version correlates with the resolution: OPTION RESOLUTION 640x480 <==> OPTION CPUSPEED (KHz) 315000 OPTION RESOLUTION 1280x720 <==> OPTION CPUSPEED (KHz) 372000 OPTION RESOLUTION 1024x768 <==> OPTION CPUSPEED (KHz) 324000 Edited 2024-12-30 07:47 by homa |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6948 |
Basically, in HDMI mode you have no control over the CPU speed. It's automatic. Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2216 |
As has often been noted, the frequency of the HDMI version correlates with the resolution: not often enough imho Basically, in HDMI mode you have no control over the CPU speed. It's automatic. I figured that all by myself from trying to change it :) the latest no rc version is fine but no difference to previous as far as use for me. I like the work done to the manual though. always was loads of new stuff to try. libraries explained. lots more to read.  |
||||
Zonker Guru Joined: 18/08/2012 Location: United StatesPosts: 764 |

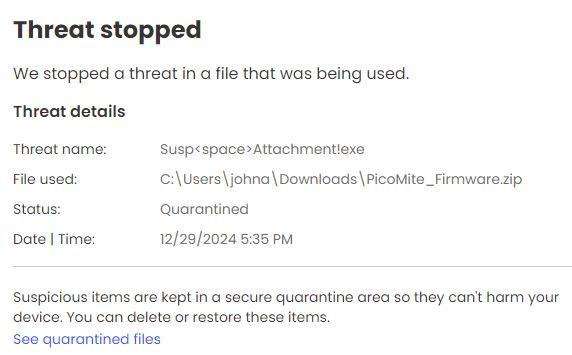

Humm... I got this from McAfee after the download... Anybody else..??   |
||||
| Geoffg Guru Joined: 06/06/2011 Location: AustraliaPosts: 3244 |
Mcafee needs to get a life. As if Peter or I would insert a virus in this. Geoff Edited 2024-12-30 10:03 by Geoffg Geoff Graham - http://geoffg.net |
||||
| homa Guru Joined: 05/11/2021 Location: GermanyPosts: 392 |
It was you who infected me with the mmbasic virus many years ago ;-) Matthias |
||||
| twofingers Guru Joined: 02/06/2014 Location: GermanyPosts: 1333 |

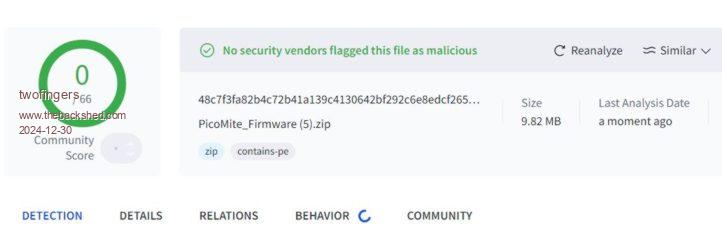

 Everything fine!  Regards Michael causality ≠ correlation ≠ coincidence |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2216 |
no probs for me with links to download earlier. hdmi usb 2350. win 10, no defender message, do you want to run this file anyway. I get defender message with vga demo progs posted but click run |
||||
| Zonker Guru Joined: 18/08/2012 Location: United StatesPosts: 764 |
No problem folks..!! I didn't mean to point the finger at anyone...  I just was wondering if anyone else got a hit... Okay... No worries then... Edit: So, I re-ran a scan on just this file and McAfee said nothing found.. Humm.. So, Is McAfee a POS virus package..?? If so, What IS a good package..?? Edited 2024-12-30 12:03 by Zonker |
||||
| zeitfest Guru Joined: 31/07/2019 Location: AustraliaPosts: 496 |
I think I saw an early post saying the source code was on Github ? |
||||
phil99 Guru Joined: 11/02/2018 Location: AustraliaPosts: 2200 |
https://www.thebackshed.com/forum/ViewTopic.php?TID=17466&P=22#231680 |
||||
