Forum Index : Microcontroller and PC projects : hdmi breakout board

Author Message
stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2108
Posted: 06:25pm 18 Nov 2024
Copy link to clipboard
Print this post

I ordered one of these.
https://thepihut.com/products/adafruit-dvi-breakout-board-for-hdmi-source-devices
it suggests using
GP12 to D0+
GP13 to D0-
GP14 to CK+
GP15 to CK-
GP16 to D2+
GP17 to D2-
GP18 to D1+
GP19 to D1-

how do the D0+ etc. relate to the board labelsplease if any ideas?
going to make pico 2350 usb hdmi sound and sdcard
cheers, stan

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1113
Posted: 07:11pm 18 Nov 2024
Copy link to clipboard
Print this post

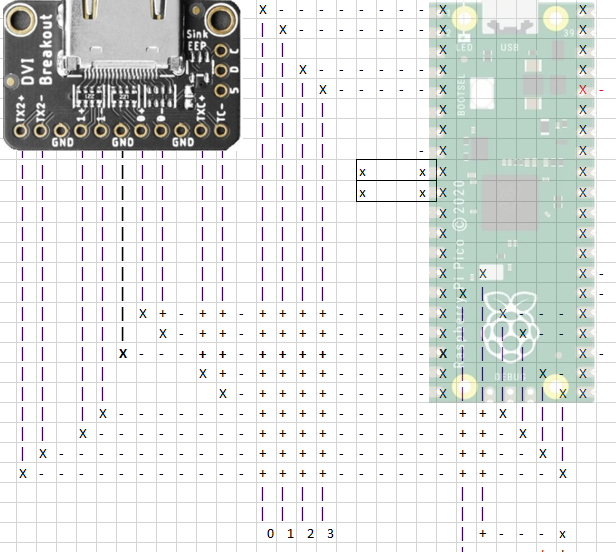

I connected the HDMI module according to this plan


sorry, I just had Excel to draw the design and ignore the other lines
Edited 2024-11-19 05:14 by Martin H.
'no comment

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6757
Posted: 07:20pm 18 Nov 2024
Copy link to clipboard
Print this post

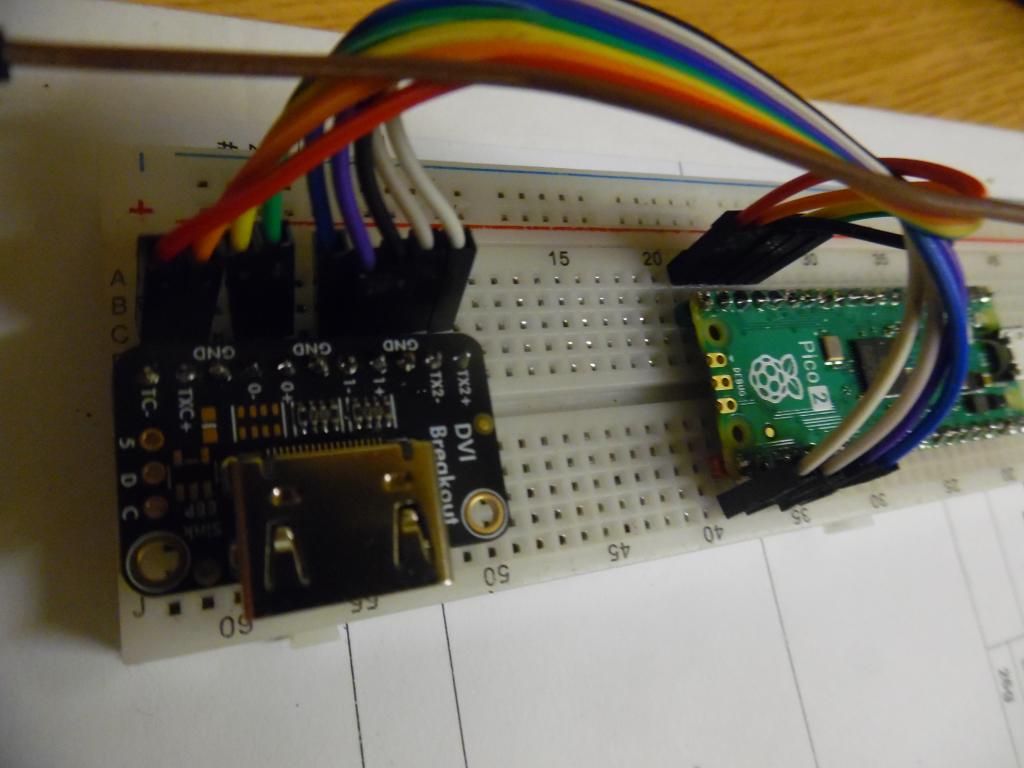

TX2+ = D2+
TX2- = D2-
1+ = D1+
1- = D1-
0+ = D0+
0- = D0-
TXC+ = CK+
TC- = CK-

You should also connect "5" to 5V.
You'll also need GND, of course.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2108
Posted: 07:38pm 18 Nov 2024
Copy link to clipboard
Print this post

Thanks Martin and Mick. great help for me.
I got one pico2 2350 left from 4 and stripboard a hdmi usb mmbasic compatible with sd card reader and audio.
The olimex board was too good to be true.

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2108
Posted: 09:54pm 18 Nov 2024
Copy link to clipboard
Print this post

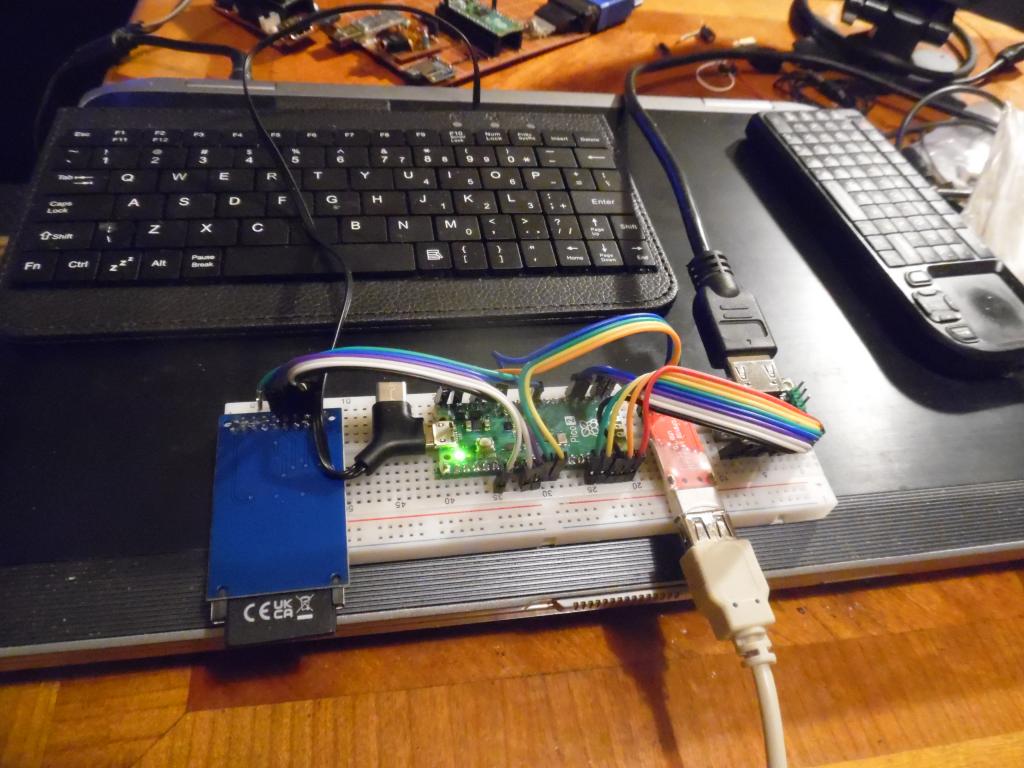

If I use this from the manual config suggestion and works vga usb
OPTION SERIAL CONSOLE COM2,GP8,GP9
OPTION SDCARD GP13, GP10, GP11, GP12
OPTION AUDIO GP0,GP1', ON PWM CHANNEL 0

Gp14=pin19
Gp15=pin20
Gp16=pin21
Gp17=pin22
Gp18=pin24
Gp19=pin25
Gp20=pin26
Gp21=pin27


would OPTION HDMI PINS 19, 21, 26, 24  work or I got it wrong?
