What level shifter is the best for using on the Picomite? Plasma |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
If uni-direction, I like the 74HC4050 74HC4050.pdf |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4222 |
This works as well for I2C and signals up to few hundred kHz.  Volhout PicomiteVGA PETSCII ROBOTS |
||||
Marcel27 Regular Member  Joined: 13/08/2024 Location: NetherlandsPosts: 53 |
Double entry ..... link Edited 2024-10-22 21:19 by Marcel27 If you use AI, you lose your mind. |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6772 |
If you only need two channels then I've found that 2 mosfets and four resistors can often be squeezed into spaces that you wouldn't expect them to fit. Mind you, I've put one of those suggested by Volhout between the legs of a Pico. :) For shifting downwards only, a simple potential divider often works. Edited 2024-10-22 22:42 by Mixtel90 Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
Martin H. Guru Joined: 04/06/2022 Location: GermanyPosts: 1113 |
I have successfully used ZVNL110A for PS2 Level shift so far 'no comment |
||||
stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2114 |

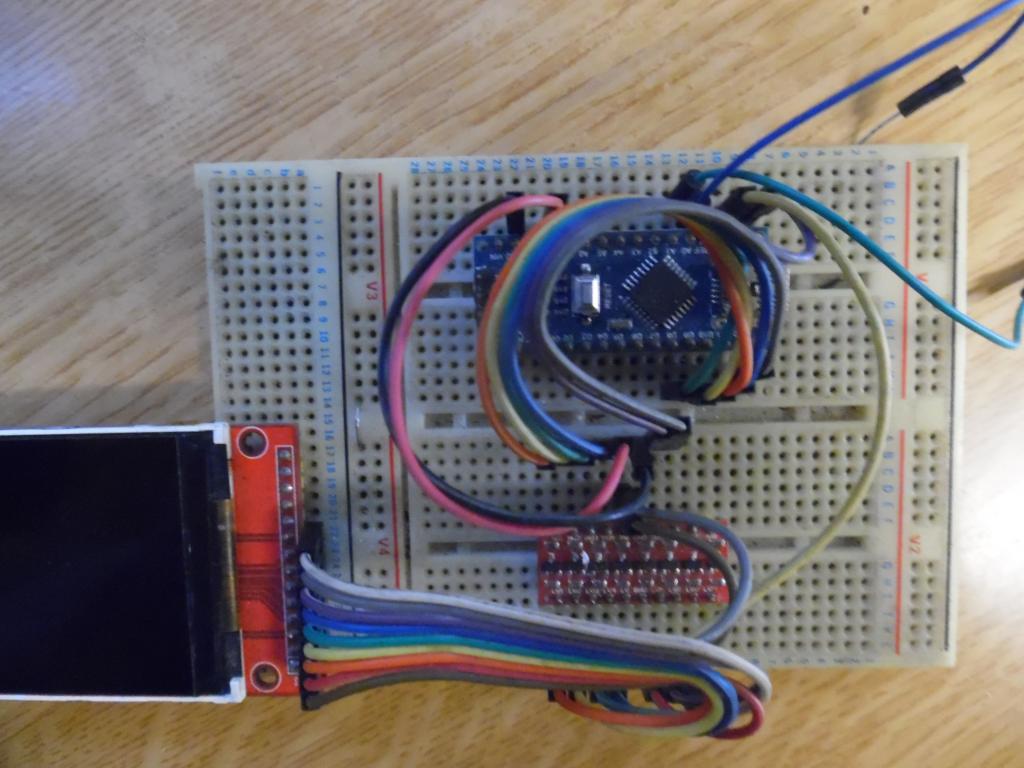

I used 8 channel bi-direction level inverter with arduino and ili9341 as arduino 5v logic and ili 3.3v their cheap and should be ok to raise 3.3v logic to 5v  |
||||
| Plasmamac Guru Joined: 31/01/2019 Location: GermanyPosts: 554 |
Thx for all , @stanleyella link please Plasma |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2114 |
bought years ago, something like this. 8 fets, marked LV and HV, LV is 3.3 device, HV is 5V device https://www.ebay.co.uk/itm/192441573509 |
||||
| stanleyella Guru Joined: 25/06/2022 Location: United KingdomPosts: 2114 |
what's it for? |
||||
| Marcel27 Regular Member Joined: 13/08/2024 Location: NetherlandsPosts: 53 |
I use most of the time a voltage devider for low speed or BS170 for 2-way or an optocoupler for 1-way communication. I've a lot of optocouplers lying around and work fine. If you use AI, you lose your mind. |
||||
