Forum Index : Microcontroller and PC projects : Anyone still wire wrap?
Page 1 of 2   |
|||||
| Author | Message | ||||
| PhenixRising Guru  Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Can't believe that I didn't think of doing this for prototyping. |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9103 |

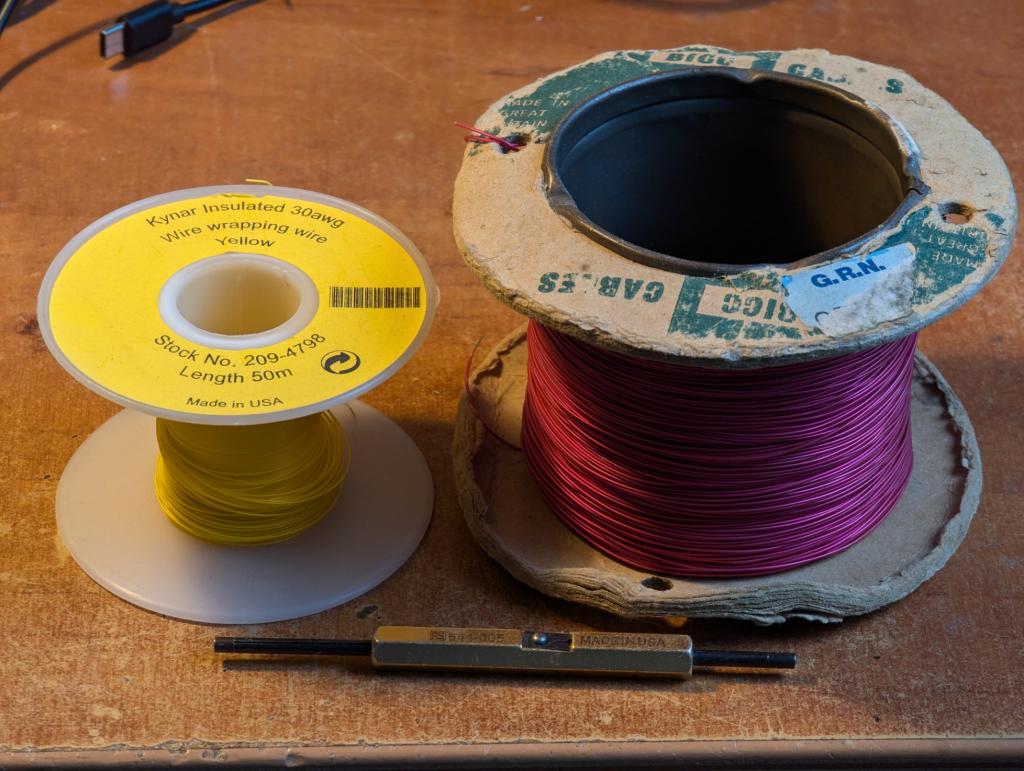

Not recently but........  The red kynar is at least 45 years old and still as good as new |
||||
| Canada_Cold Newbie  Joined: 11/01/2020 Location: CanadaPosts: 37 |

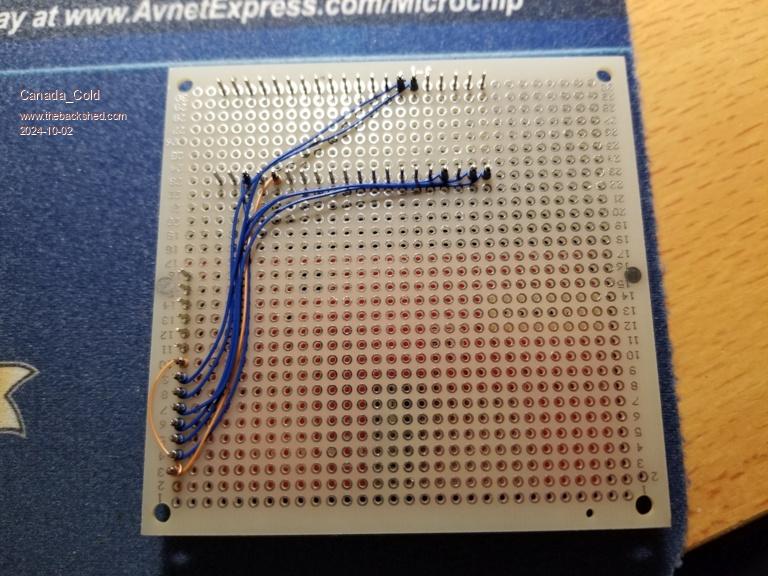

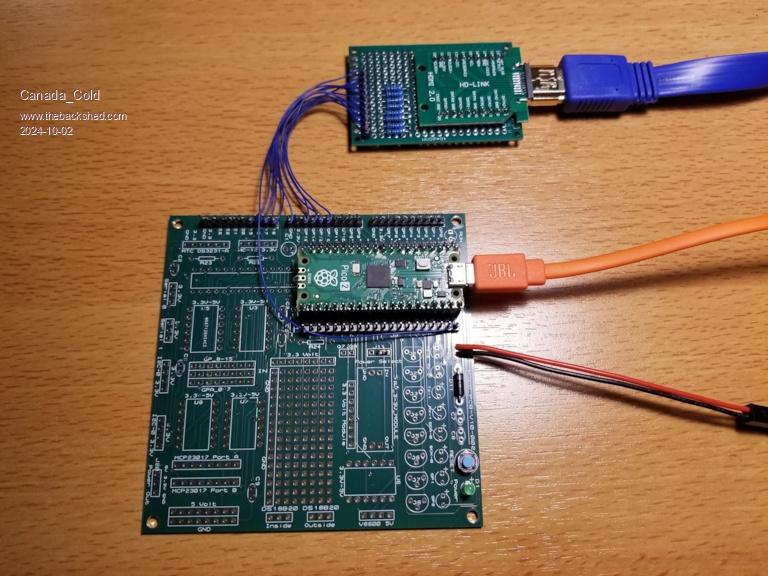

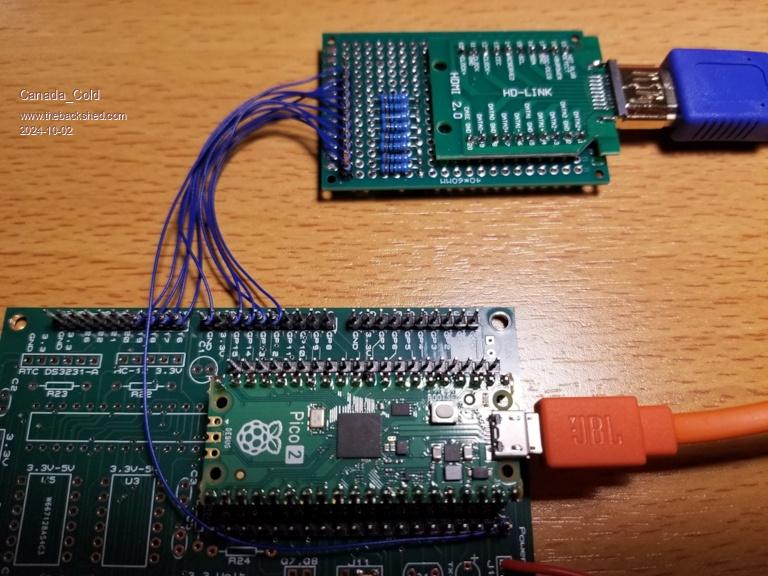

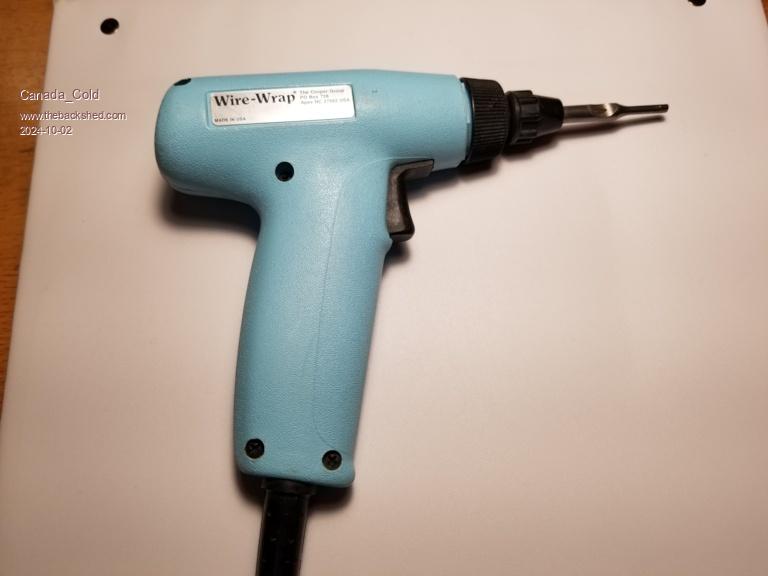

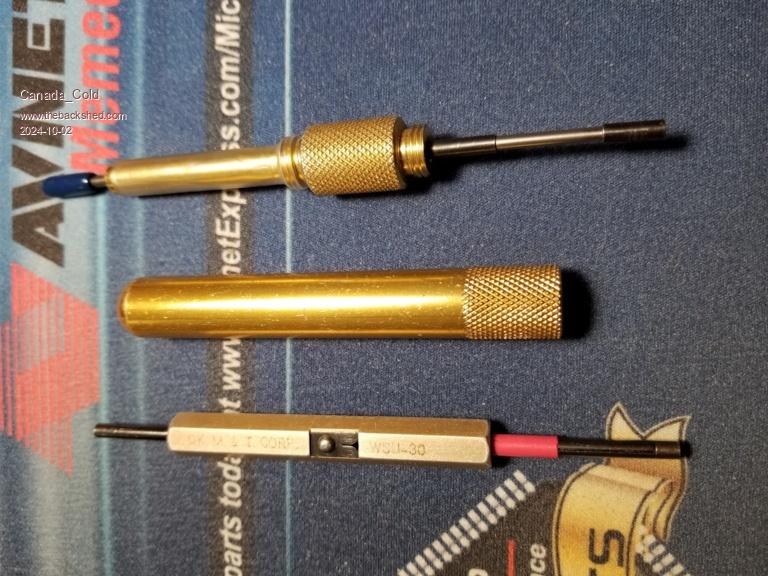

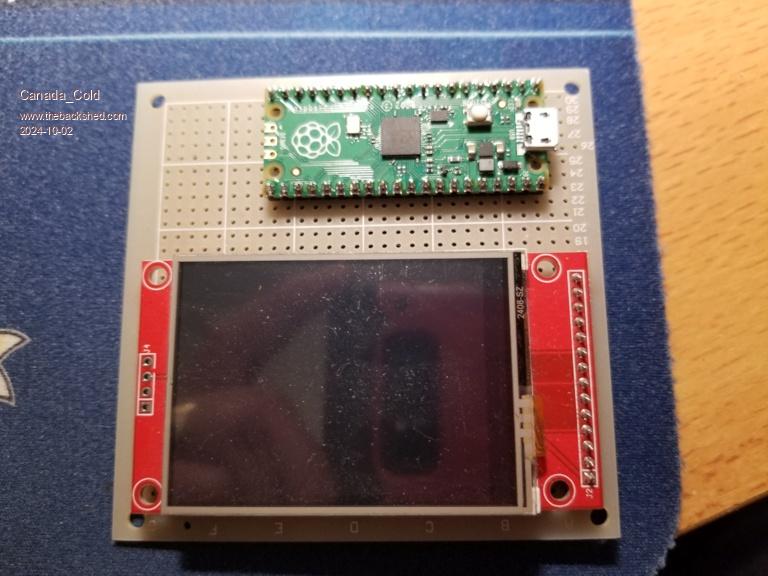

Yes, I still do a lot of WW for prototo typing. Here is the HDMI interface I pulled together.   The tools I use for small projects. The tool at the top of the picture is a an original OK Tool hand wrapper I still use most often.  WW gun for larger projects  The VGA board  And a very old board when I started with the Picomite and an LCD.   Wire wrap might require more time to build, however it makes good gas tight connections and is very easy to modify or pull apart. |
||||
Marcel27 Regular Member  Joined: 13/08/2024 Location: NetherlandsPosts: 53 |
I built once a IEC/IEEE bus interface with wirewrap in 1979 on an Eurocard. After that I forgot WW. If you use AI, you lose your mind. |
||||
SimpleSafeName Guru Joined: 28/07/2019 Location: United StatesPosts: 319 |
I mostly just use the wire anymore. |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |

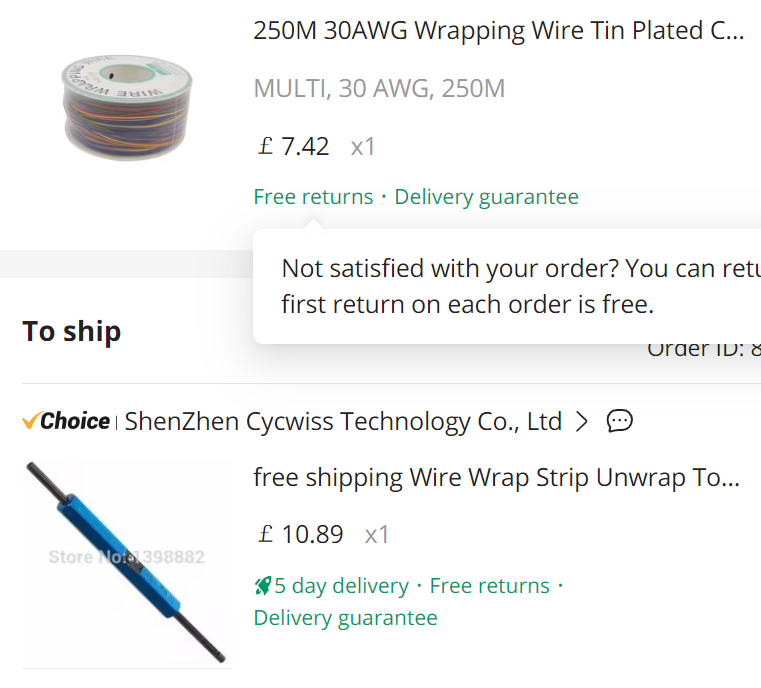

I love it  Duponts get messy.Just ordered from AE   |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Sure but sometimes I want a temporary but secure connection with male header and want to keep the wiring low/tight/neat. |
||||
| mclout999 Guru Joined: 05/07/2020 Location: United StatesPosts: 469 |
I have an entire kit with all the tools, headers, and spools of wire, but I haven't used that method in many years. I mostly used breed boards. |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4222 |
At one time there was wire-wrap wire that you did not need to strip. The isolation was so flexible, the sharp edges of the square pins could protrude. So it was simply wrap-cut-wrap, wrap-cut-wrap. And the most expesive tools did the cutting for you. wrap-wrap (auto-cut) wrap-wrap.... I use the wire to solder it now (when it is not too much oxidized). Volhout PicomiteVGA PETSCII ROBOTS |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Ah, yeah...I remember that. A few years ago, I was called out to a machine that was built in 1976. The PCB was wire-wrapped and they couldn't remember ever having a problem with it. The problem this time though, was that the PCB was on the inside of a horizontally opening panel door that also had pushbuttons mounted on it. When closed, the door was at the typical 45° of a control surface. They'd opened the door for some reason and when they let it slam-shut, most of the TTL devices just jumped out of their sockets  I had no-chance of figuring out where each device was supposed to go so it remained dead. I remember the wire-wrapped PCB though and was darned impressed. |
||||
| tgerbic Regular Member Joined: 25/07/2019 Location: United StatesPosts: 47 |
I still use wire wrap both the strip and non-strip types. I have all the tools shown and quite a bit of wire, some on spools, plus lots of WW sockets, perf board and special pins/sockets for mounting parts. It can be easy and is reliable in my experience. If something requires heavier wire or many less connections I solder wire and use regular through-hole sockets. If I feel it is too complicated, I switch to a PCB design. Certain techniques are better for certain things. |
||||
TassyJim Guru Joined: 07/08/2011 Location: AustraliaPosts: 6094 |
Thank you for reminding me about wirewrap. I didn't use it much myself, I was more interested in putting lugs on 300mm2 cables. That requires a rather large crimping tool! I think wirewrap might be a solution to a problem I have so off to ebay... Jim VK7JH MMedit MMBasic Help |
||||
| Solar Mike Guru Joined: 08/02/2015 Location: New ZealandPosts: 1138 |
Don't use wire-wrap now, but 40 years ago, used extensively constructing prototype boards for Z80 micro-control systems. Once working then pcb layouts were made using Bishop Graphic tapes and stick on pads on drafting film sitting over large light tables. Still have a few rolls of the teflon coated wire, wrapper and un-wrapper tools, battery operated wrapper with spool of wire. Memories... |
||||
| grumpyoldgeek Newbie Joined: 30/07/2018 Location: United StatesPosts: 31 |
It's been at least 20 years since I picked up a wire-wrap gun. Before that, probably a dozen non-trivial boards, including a 80386 controller running at 25mhz and having a 50mhz oscillator. I miss wire-wrap - NOT. |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6772 |
I've never used wire wrap (but seen quite a bit of it). I did a little Z80 board using Vero Wire, that's the closest I ever got. Nice little system in its own way. Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |
Yup, I go to YT and slap bang in the middle Identical to the kit I ordered. No matter what I do, it shows up on YT. Even my lousy song renditions if I play guitar near my Android device. Edited 2024-10-04 19:42 by PhenixRising |
||||
| lizby Guru Joined: 17/05/2016 Location: United StatesPosts: 3150 |

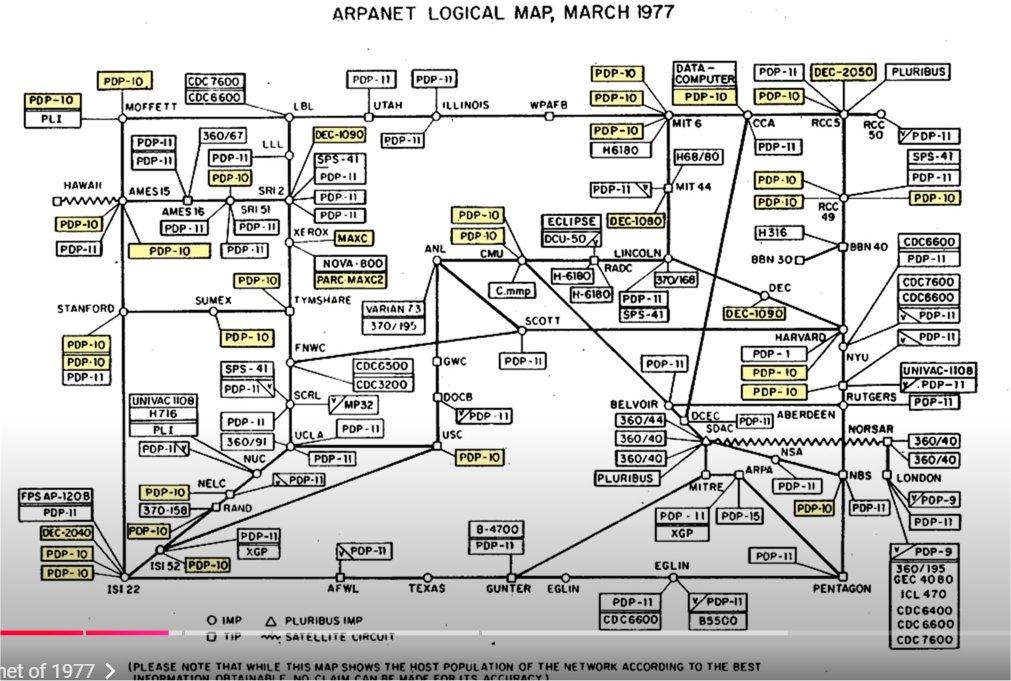

From that link--the entire internet as of 1977. I recognize about half the nodes.  NORSAR (connected by a squiggly line--"satellite circuit") and connected to it, London, are the only non-U.S. nodes (unless there's a Canadian node in there somewhere). I had to google NORSAR--"NORSAR is a foundation established in 1968 as part of the Norwegian-US agreement for the detection of earthquakes and nuclear explosions". Ah, nuclear explosions. And look now--"all growed up". Edited 2024-10-05 00:24 by lizby PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed |
||||
| tgerbic Regular Member Joined: 25/07/2019 Location: United StatesPosts: 47 |
This brings back memories of attaching through an acoustic MODEM to, I believe a "Silent 700 style" terminal, and a teletype back in 1975. Though the experience was really slow, it seemed so fantastically futuristic at the time. |
||||
| PhenixRising Guru Joined: 07/11/2023 Location: United KingdomPosts: 857 |

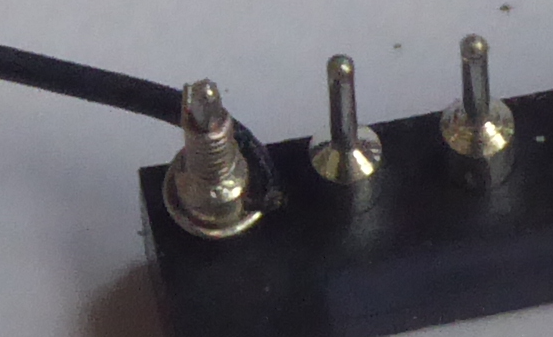

Just for giggles, tested the new toy on a thin, round, IC socket pin. It certainly doesn't want to pull off and there aren't any corners to bite into. Does a perfect job, every time, no fiddle-farting at all. This is a great solution for some of the stuff I do. No-wonder it wasn't the typical AE price because the tool is an actual OK Industries device, in original packaging. Even liking the seemingly crude wire-stripper which I expected to hate (I'm a Knipex fool ) |
||||
| barewires Newbie Joined: 13/04/2015 Location: United KingdomPosts: 30 |
I used a Vector Slit-N-Wrap tool with a bobbin on top in the 70s. It was great for daisy-chaining many bus pins on RAM and EPROM chips for my Altair 8800 (Intel 8080) proto boards. I also had a Gardner-Denver hand-squeez wrap tool. I used to travel North America fixing WW systems and regularly had to repair and diagnose circuits with my tools. https://ia801709.us.archive.org/21/items/manuallib-id-2597707/2597707.pdf Edited 2024-10-09 19:15 by barewires |
||||
