Forum Index : Microcontroller and PC projects : 3D-printed case for the Picomite HDMI and Peter's adapter board

Author Message
twofingers
Guru

Joined: 02/06/2014
Location: Germany
Posts: 1240
Posted: 07:28pm 20 Sep 2024
Copy link to clipboard
Print this post

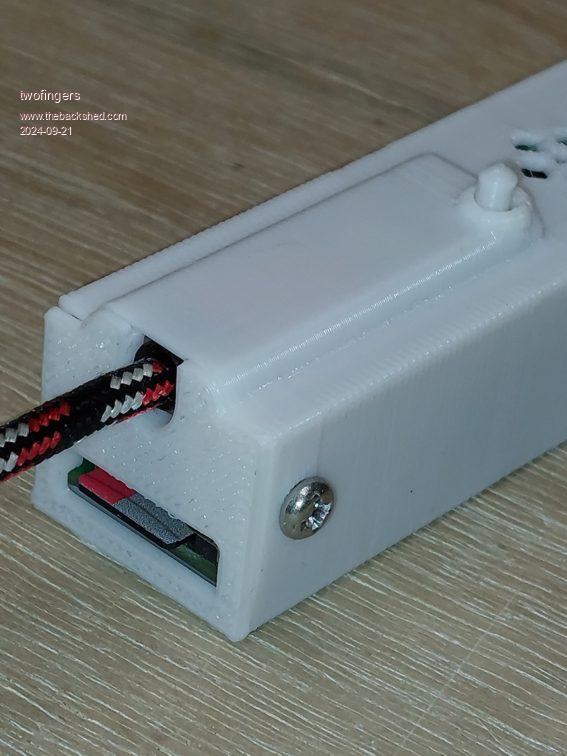

A 3D-printed case for the Picomite HDMI and Peter's adapter board (supplied by Plasma).

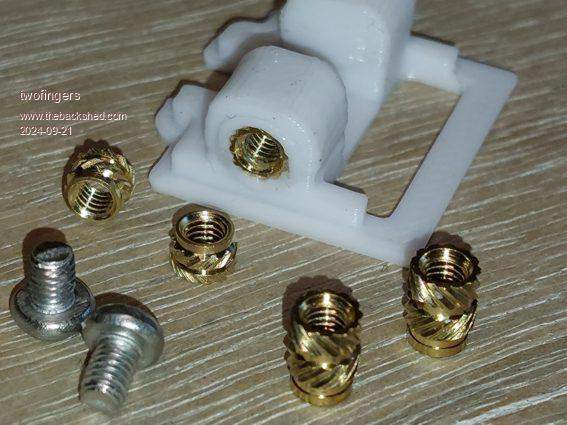

The required components are the printed two (or three) case parts, two M3/3mm threaded screws, and two M3 hot melt insert nuts, h=6.0mm, OD=4.6mm, core=3.9mm (or M3x3x4.5).

If you don't like hot melt insert nuts, there is also a version for sheet metal screws.










PicoHDMI Case.zip


Feedback appreciated.

Best regards
Michael
Edited 2024-09-22 00:43 by twofingers
causality ≠ correlation ≠ coincidence

Plasmamac

Guru

Joined: 31/01/2019
Location: Germany
Posts: 554
Posted: 06:51pm 21 Sep 2024
Copy link to clipboard
Print this post

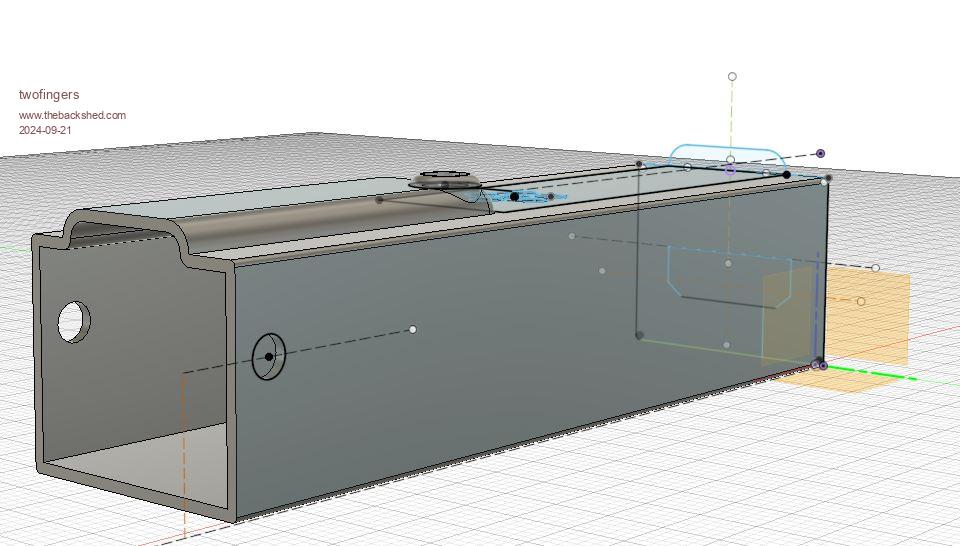

thx Michael , fusion 360?
Plasma

twofingers
Guru

Joined: 02/06/2014
Location: Germany
Posts: 1240
Posted: 09:38am 22 Sep 2024
Copy link to clipboard
Print this post

  Plasmamac said  thx Michael , fusion 360?

Yes, it is always good to keep practicing.
Kind regards
Michael
causality ≠ correlation ≠ coincidence
