Hello everyone I'm trying to connect a Webmite and a Picomite (both on the same board) with I2c. I want to read out the 4 CIN pins of the Picomite the example (picomite 5.08 page 157) works. But I would like to carry out the transfer without interrupt. The example below (page 157) doesn't work. Error: Invalid configuration DIM AS INTEGER RData(2) ' this will hold received data SETPIN GP6, GP5, I2C2 ' assign the I/O pins for I2C2 I2C2 OPEN 100, 1000 ' open the I2C channel I2C2 WRITE &H51, 0, 1, 3 ' set the first register to 3 I2C2 READ &H51, 0, 2, RData() ' read two registers I2C2 CLOSE ' close the I2C channel PRINT "Time is " RData(1) ":" RData(0) The names I2C2 and I2C confuse me. See example "SETPIN GP6, GP5, I2C2 ' assign the I/O pins for I2C2" "I2C2 OPEN 100, 1000 ' open the I2C channel" "I2C2 CLOSE ' close the I2C channel" Which channel is used? My second question: How is the I2C address generated? Via hardware or software? After 2 days of try and error, I ask the BackShed Community for help Gerad Edited 2024-04-23 22:31 by Gerad |
||||
| Volhout Guru  Joined: 05/03/2018 Location: NetherlandsPosts: 4226 |

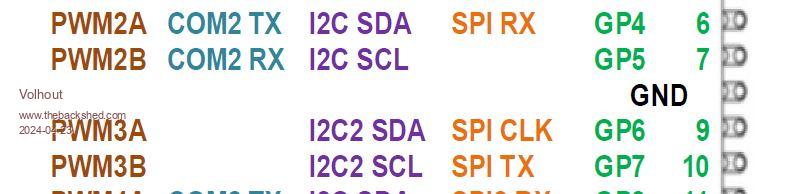

All PicoMites (also the webmite) have 2 hardware I2C blocks inside. These are called I2C and I2C2. In the pin diagram in the user manual (page 9 for webmite) you can see which hardware block can be assigned the which pins. But you can write software for 2 independent I2C busses.  Your problem os that GP5 and GP6 belong to different hardware blocks. I suggest you connect the GP5 wire to GP7, change the SETPIN to include GP7 is stead of GP5, then all will be fine. Regards, Volhout Edited 2024-04-23 23:14 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9110 |
You can't. One of them must be an I2C slave and in slave mode it only operates under interrupt control. Only the slave has an address and this is set up in software when the slave open command is executed. |
||||
| lizby Guru Joined: 17/05/2016 Location: United StatesPosts: 3150 |
Try serial instead: https://www.thebackshed.com/forum/ViewTopic.php?FID=16&TID=16862#220194 Good code examples on page 2. The serial comms buffering makes this a breeze in MMBasic. Communication can be both ways, or client can just send new readings when values change and main 'mite can retrieve them from the serial buffer when it is convenient. ~ Edited 2024-04-23 23:26 by lizby PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed |
||||
| Gerad Regular Member Joined: 10/01/2024 Location: GermanyPosts: 42 |
Thank you for your reply Isn't there a simpler way to transfer 10-20 bytes per day? Regards Gerad |
||||
Mixtel90 Guru Joined: 05/10/2019 Location: United KingdomPosts: 6783 |
The COM ports are probably the easiest way. No addresses to bother about and just connect TX-RX and RX-TX. I like to put a 220R series resistor in each line just for safety. Mick Zilog Inside! nascom.info for Nascom & Gemini Preliminary MMBasic docs & my PCB designs |
||||
| lizby Guru Joined: 17/05/2016 Location: United StatesPosts: 3150 |
The programs in the link above provided a way for one 'mite to control another. If all you want to do is send data from time to time, just open a serial port and send it, terminated with carriage return and line feed. There is no need to coordinate with the receiver. If the receiver has its serial port open, then it just needs to test in its main loop whether LOC(port#) is non zero. If it is, then data has arrived. A short pause will assure that the entire transmission is in the buffer. Then you can read it and process it. If the transmission is all one way, it hardly matters how often the sender sends--it will all be buffered and can be extracted and processed at the convenience of the receiver. LINE INPUT #fnbr, variable$ is a good way to get an entire transmission in a string (if it has been terminated with carriage return and line feed). You can then break out separate pieces of information with FIELD$. PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed |
||||
