Forum Index : Microcontroller and PC projects : FOR SALE in USA: PicoMite VGA design 2
| Author | Message | ||||
| Colin Ames Newbie  Joined: 04/12/2023 Location: United StatesPosts: 8 |

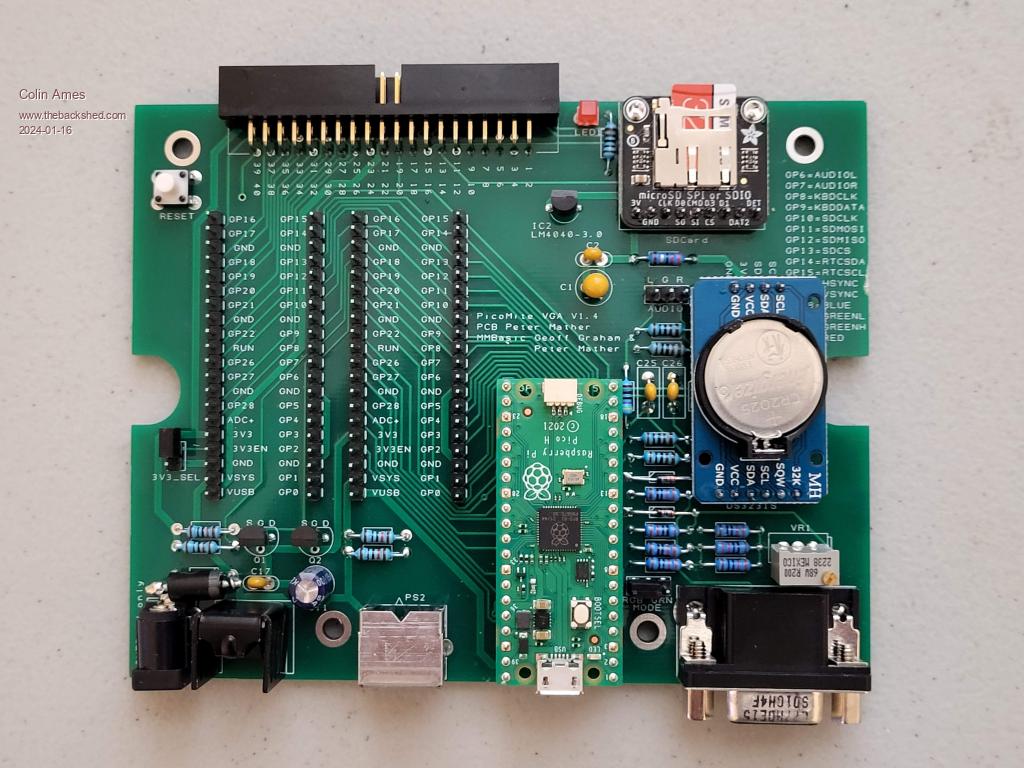

I have for sale a PicoMite VGA design 2 that I recently built. It comes with a Real Time Clock, all the headers, and a Micro SD card with PETSCII Robots installed. It is fully functional, but I'm not a programmer, and will never get the use out of it that it deserves. I built it because I really enjoy building things. I also have four bare PCBs that I will include if the buyer wants them. I would like to get $50, which includes Priority shipping to anywhere in the contiguous USA. I accept PayPal. I'm not sure how sales are handled in this forum. In another forum of which I'm a member, an interested party posts an "I'll take It", followed by a private message. If there are different rules here, please advise. Thanks for looking.  Edited 2024-01-16 07:28 by Colin Ames Colin Ames |
||||
Justplayin Guru  Joined: 31/01/2014 Location: United StatesPosts: 326 |
I don't have any working Picomites, so I'll buy it. PM your info so I can PayPal you. --Curtis I am not a Mad Scientist... It makes me happy inventing new ways to take over the world!! |
||||
| Colin Ames Newbie Joined: 04/12/2023 Location: United StatesPosts: 8 |
Many thanks Curtis. PM sent. Colin Colin Ames |
||||
| Justplayin Guru Joined: 31/01/2014 Location: United StatesPosts: 326 |
Now I'll be able to tryout a few of the Picomite programs everyone talks about.🤗 --Curtis I am not a Mad Scientist... It makes me happy inventing new ways to take over the world!! |
||||
| Volhout Guru Joined: 05/03/2018 Location: NetherlandsPosts: 4234 |
Hi Justplayin, This is a good board. I used it for development for over 1 year. One thing to be carefull about is: the 40 pin connector that gives access to the IO pins (the right angle connector) has a strange order of pins (compared to the PICO itself). I glued a sticker on my board/housing explaning the pinout to myself, so I would not get confused. A later revision of the board (V1.7) has a different pinout. I see thatthe linear regulator is installed (including heatsink). That being the case, the jumper "3V3_SEL" must be used (it is not connected in the photo). Volhout Edited 2024-01-17 00:38 by Volhout PicomiteVGA PETSCII ROBOTS |
||||
| Justplayin Guru Joined: 31/01/2014 Location: United StatesPosts: 326 |
Thanks, those are good things to know. I will have to see if I can find the message threads and do a little catch up reading. --Curtis I am not a Mad Scientist... It makes me happy inventing new ways to take over the world!! |
||||
