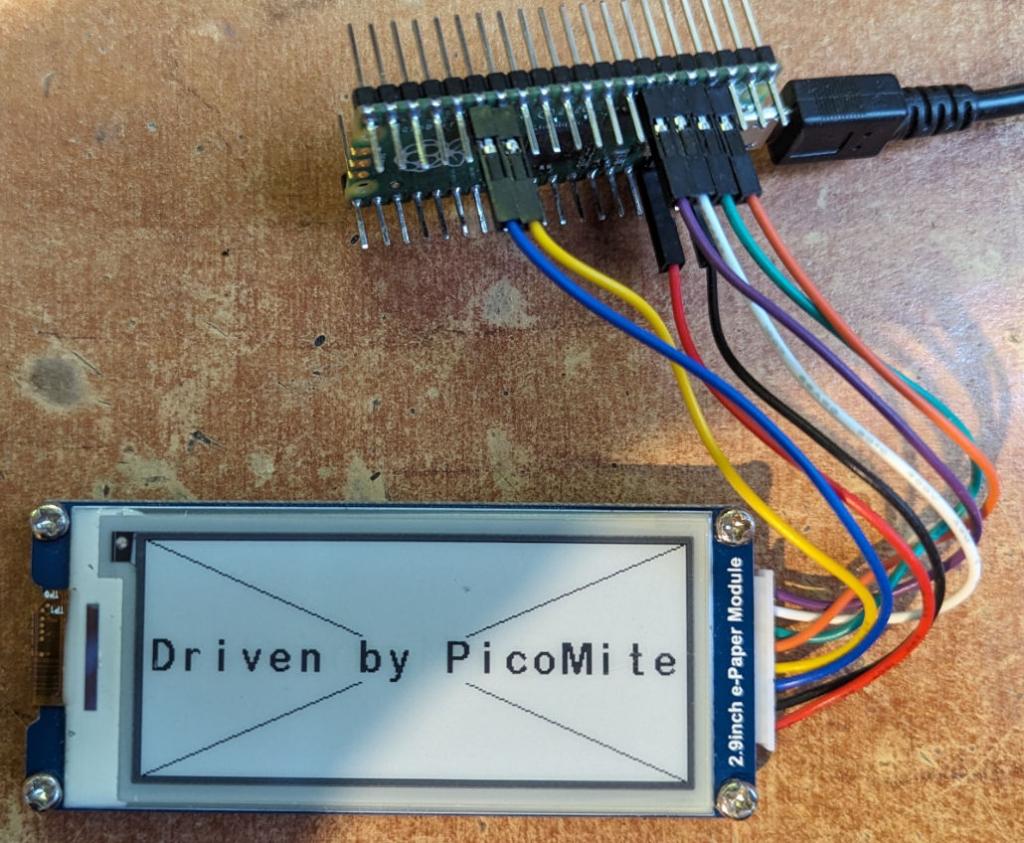

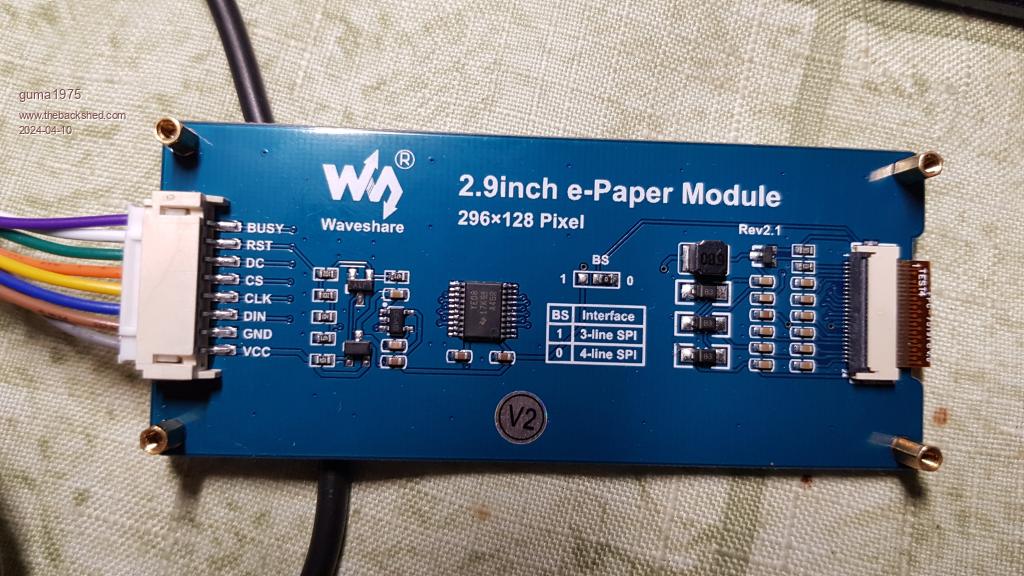

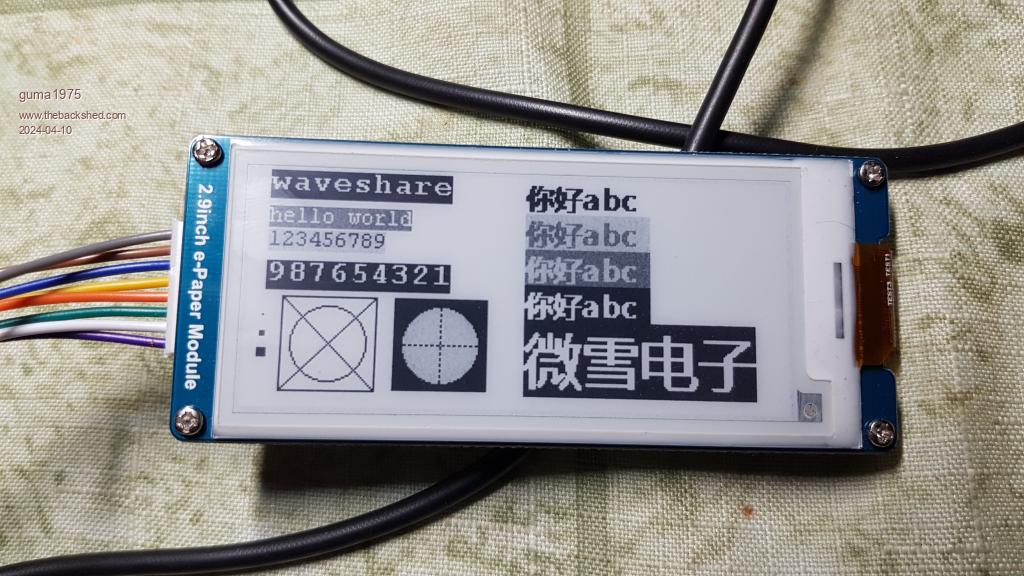

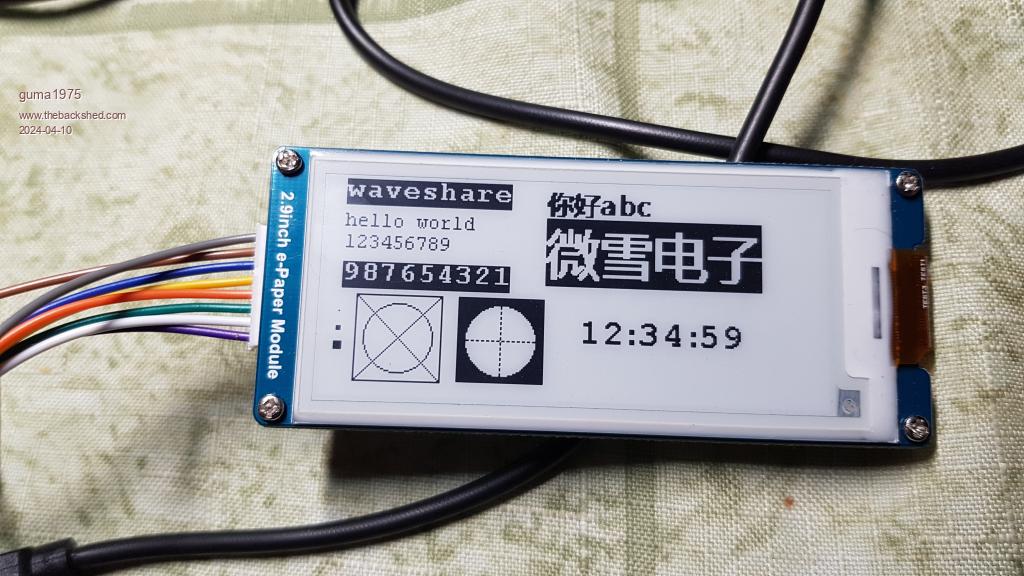

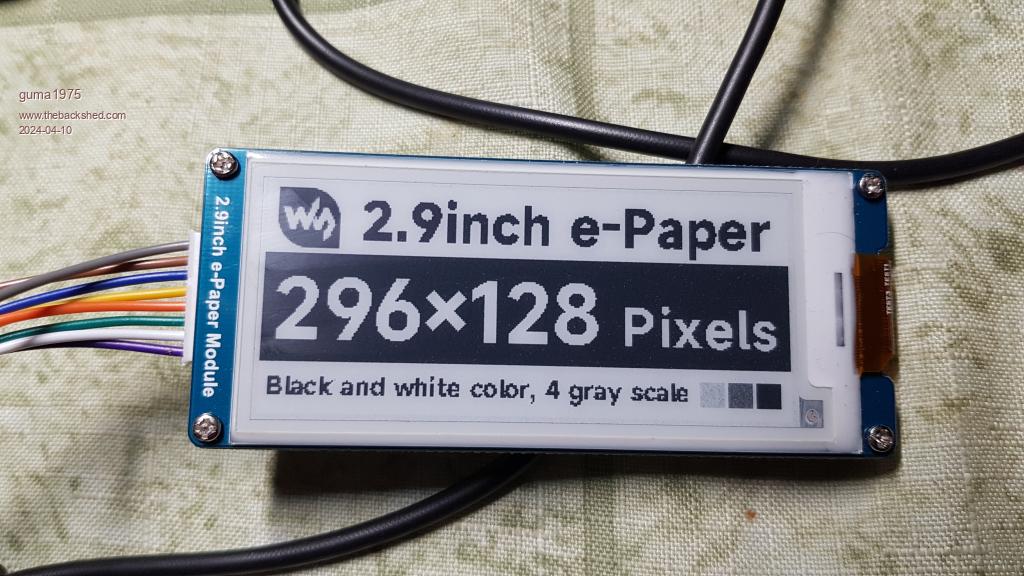

' PicoMite driver for 2.9" e-INK display
' The MMBasic graphics commands update a memory image of the display and the user should call paperREFRESH
' to update the physical display
' Updates take just less than 3 seconds
'
' EPD2IN9 commands
Const DRIVER_OUTPUT_CONTROL =&H01
Const BOOSTER_SOFT_START_CONTROL =&H0C
Const GATE_SCAN_START_POSITION =&H0F
Const DEEP_SLEEP_MODE =&H10
Const DATA_ENTRY_MODE_SETTING =&H11
Const SW_RESET =&H12
Const TEMPERATURE_SENSOR_CONTROL =&H1A
Const MASTER_ACTIVATION =&H20
Const DISPLAY_UPDATE_CONTROL_1 =&H21
Const DISPLAY_UPDATE_CONTROL_2 =&H22
Const WRITE_RAM =&H24
Const WRITE_VCOM_REGISTER =&H2C
Const WRITE_LUT_REGISTER =&H32
Const SET_DUMMY_LINE_PERIOD =&H3A
Const SET_GATE_TIME =&H3B
Const BORDER_WAVEFORM_CONTROL =&H3C
Const SET_RAM_X_ADD_START_END_POS =&H44
Const SET_RAM_Y_ADD_START_END_POS =&H45
Const SET_RAM_X_ADDRESS_COUNTER =&H4E
Const SET_RAM_Y_ADDRESS_COUNTER =&H4F
Const TERMINATE_FRAME_READ_WRITE =&HFF
Const CE0 = 4
Const DC = 5
Const RST =6
Const BUSY = 7
Dim integer lut_full_update(29)=(2,2,1,&H11,&H12,&H12,&H22,&H22,&H66,&H69,&H69,&H59,&H58,&H99,&H99,&H88,0,0,0,0,&HF8,&HB4,&H13,&H51
, &H35,&H51,&H51,&H19,1,0)
'
SetPin gp10,gp11,gp12,spi2
userdisplayinit(0)
Line 0,0,MM.HRes-1,MM.VRes-1
Line MM.HRes-1,0,0,MM.VRes-1
Box 0,0,MM.HRes,MM.VRes
Text MM.HRes/2,MM.VRes/2,"Driven by PicoMite",CMU,3
paperRefresh
End

Sub userdisplayinit(wipe As integer)
Option explicit
Option default none
SPI2 open 10000000,0,8
Option LCDPANEL USER, 128,296
'if OPTION is already set then ignore the error
'On error skip
Print MM.HRes,MM.VRes
'don't error if Global variables not yet defined
'On error skip
'Erase S$(), tmaskarray(), bmaskarray()
Dim S$(MM.VRes-1) length MM.HRes\8
Dim integer bmaskarray(7)=(128,192,224,240,248,252,254,255)
Dim integer tmaskarray(7)=(255,127,63,31,15,7,3,1)
Local i%
Pin(RST)=1
SetPin RST,DOUT
Pin(DC)=0
SetPin DC,DOUT
Pin(CE0)=1
SetPin CE0,DOUT
SetPin BUSY,DIN
DO_RESET
'don't error if SPI already open
'On error skip
SendCommand(DRIVER_OUTPUT_CONTROL)
SendData((MM.VRes - 1) And &HFF)
SendData(((MM.VRes - 1) >> 8) And &HFF)
SendData(&H00) ' GD = 0; SM = 0; TB = 0;
SendCommand(BOOSTER_SOFT_START_CONTROL)
SendData(&HD7)
SendData(&HD6)
SendData(&H9D)
SendCommand(WRITE_VCOM_REGISTER)
SendData(&HA8); ' VCOM 7C
SendCommand(SET_DUMMY_LINE_PERIOD)
SendData(&H1A) ' 4 dummy lines per gate
SendCommand(SET_GATE_TIME)
SendData(&H08) ' 2us per line
SendCommand(DATA_ENTRY_MODE_SETTING);
SendData(&H03) ' X increment; Y increment
sendLUT()
For i% = 0 To MM.VRes-1
s$(i%)=String$(MM.HRes\8,Chr$(&HFF))
Next i%
If wipe Then 'erase both frame buffers
paperRefresh
paperRefresh
EndIf
End Sub
'
' This routine outputs a rectangle to the display. Thi limiting case is a single pixel
' The calling sequence is defined and must be adhered to
' The parameters are the coordinates of one of the extreme diagonals of the rectangle but we don't know which way diagonal.
'
Sub MM.USER_RECTANGLE(x1%, y1%, x2%, y2%, fc%)
If x1%=0 And y1%=0 And x2%=MM.HRes-1 And y2%=MM.VRes-1 Then
Local b$, i%
If fc% Then
b$=String$(MM.HRes\8,Chr$(0))
Else
b$=String$(MM.HRes\8,Chr$(&HFF))
EndIf
For i% = 0 To MM.VRes-1
s$(i%)=b$
Next i%
Else
Local integer i, j, k, l, t, left_x,right_x, mask,emask, fcol%
Local b$
If fc%<>0 Then
fcol%=0
Else
fcol%=1
EndIf
'print "userrectangle ", x1%, y1%, x2%, y2%, fcol%
If x2% <= x1% Then
t = x1%
x1% = x2%
x2% = t
EndIf
If y2% <= y1% Then
t = y1%
y1% = y2%
y2% = t
EndIf
If x1% < 0 Then x1% = 0
If x1% >= MM.HRes Then x1% = MM.HRes - 1
If x2% < 0 Then x2% = 0
If x2% >= MM.HRes Then x2% = MM.HRes - 1
If y1% < 0 Then y1% = 0
If y1% >= MM.VRes Then y1% = MM.VRes - 1
If y2% < 0 Then y2% = 0
If y2% >= MM.VRes Then y2% = MM.VRes - 1
left_x=x1%\8
right_x=x2%\8
If left_x=right_x Then
If (fcol%) Then
mask =(tmaskarray(x1% Mod 8) And bmaskarray(x2% Mod 8))
Else
mask = notmask%(tmaskarray(x1% Mod 8) And bmaskarray(x2% Mod 8))
EndIf
For t=y1% To y2%
l= Peek(var S$(t),left_x+1)
If (fcol%) Then
l=l Or mask
Else
l=l And mask
EndIf
Poke var S$(t),left_x+1, l
Next t
Else
If (fcol%) Then
mask =tmaskarray(x1% Mod 8)
emask=bmaskarray(x2% Mod 8)
Else
mask = notmask%(tmaskarray(x1% Mod 8))
emask= notmask%(bmaskarray(x2% Mod 8))
EndIf
For t=y1% To y2%
If fcol% Then
l=Peek(var S$(t),left_x+1)
l=l Or mask
Poke var S$(t),left_x+1, l
l=Peek(var S$(t),right_x+1)
l=l Or emask
Poke var S$(t),right_x+1, l
Else
l=Peek(var S$(t),left_x+1)
l=l And mask
Poke var S$(t),left_x+1, l
l=Peek(var S$(t),right_x+1)
l=l And emask
Poke var S$(t),right_x+1, l
EndIf
Next t

If left_x+1<=right_x-1 Then
If fcol% Then
b$=String$(right_x-left_x-1, Chr$(255))
Else
b$=String$(right_x-left_x-1, Chr$(0))
EndIf
For t=y1% To y2%
s$(t)=Left$(s$(t),left_x+1)+b$+Right$(s$(t),MM.HRes\8-right_x)
Next t
EndIf
EndIf
EndIf
End Sub
'
'
'
' output a bitmap to the screen
' the bitmap is supplied as a pointer to an area of memory so we use
' peek(byte bitmap%+x) to access the x'th byte in the bitmap
' each byte is a horizontal row of pixels starting with the most significant bit
' e.g. for an 8x8 bitmap
' Byte0Bit7, Byte0Bit6, Byte0Bit5, Byte0Bit4, Byte0Bit3, Byte0Bit2, Byte0Bit1, Byte0Bit0
' Byte1Bit7, ........., ........., ........., ........., ........., ........., .........
' Byte2Bit7, ........., ........., ........., ........., ........., ........., .........
' Byte3Bit7, ........., ........., ........., ........., ........., ........., .........
' Byte4Bit7, ........., ........., ........., ........., ........., ........., .........
' Byte5Bit7, ........., ........., ........., ........., ........., ........., .........
' Byte6Bit7, ........., ........., ........., ........., ........., ........., .........
' Byte7Bit7, ........., ........., ........., ........., ........., ........., Byte7bit0
'
'
Sub MM.USER_BITMAP(x1%, y1%, width%, height%, scale%, fc%, bc%, bitmap%)'bitmap is in string bitmap$
' print "userbitmap ", x1%, y1%, width%, height%, scale%, fcol%, bcol%
Local INTEGER i, j, k, mask, m, l, ll, t, tt, vCd, hCd, x, y, a%=height% * width%, ln%, c2%, c3%, c4%, fcol%, bcol%
If fc%<>0 Then
fcol%=0
Else
fcol%=1
EndIf
If bc%<>0 Then
bcol%=0
Else
bcol%=1
EndIf
vCd = y1%
If y1% < 0 Then y1% = 0 ' the y coord is above the top of the screen
For i = 0 To height%-1 ' step thru the font scan line by line
ln%=i * width%
For j = 0 To scale%-1 ' repeat lines to scale the font
vCd=vCd+1
If vCd >= 0 Then ' we are above the top of the screen
y=vCd - 1
If vCd > MM.VRes Then GoTo D_UP ' we have extended beyond the bottom of the screen
hCd = x1%
For k = 0 To width%-1 ' step through each bit in a scan line
c2%=ln% + k
c4%=(a% - c2% - 1) Mod 8
t=Peek(BYTE bitmap% + c2%\8)
tt = (t >> c4%) And 1 'we now know if the pixel is on or off
For m = 0 To scale% -1 ' repeat pixels to scale in the x axis
hCd = hCd +1' we have not reached the left margin
If hCd >= 0 Then
If hCd <= MM.HRes Then ' check are we beyond the right margin
x=hCd -1
mask=1<<(7-(x Mod 8))
c3%=notmask%(mask)
ll= Peek(var S$(y),x\8+1)
If tt Then
If fcol% Then
ll = ll Or mask
Else
ll = ll And c3%
EndIf
Else
If bcol%<>-1 Then 'transparent text
If bcol% Then
ll = ll Or mask
Else
ll = ll And c3%
EndIf
EndIf
EndIf
Poke var S$(y), x\8+1, ll
EndIf
EndIf
Next m
Next k
EndIf
Next j
Next i
D_UP:
End Sub
'
Sub DO_RESET
Pin(RST)=0
Pause 200
Pin(RST)=1
Pause 200
End Sub
'
Sub WaitUntilIdle
Do While(Pin(BUSY)= 1)' 1: busy, 0: idle
Pause (100)
Loop
End Sub
'
Sub sendLUT
Local integer i
SendCommand(WRITE_LUT_REGISTER) 'vcom
For i= 0 To 29
SendData(lut_full_update(i))
Next i
End Sub
'
Sub SendCommand(databyte As integer)
Local integer i
Pin(CE0)=0
Pin(DC)=0
i=SPI2(databyte)
Pin(CE0)=1
End Sub
'
Sub SendData(databyte As integer)
Local integer i
Pin(CE0)=0
Pin(DC)=1
i=SPI2(databyte)
Pin(CE0)=1
End Sub
'
Sub SetMemoryArea(x_start As integer, y_start As integer, x_end As integer, y_end As integer) {
SendCommand(SET_RAM_X_ADD_START_END_POS)
'/* x point must be the multiple of 8 or the last 3 bits will be ignored */
SendData((x_start >> 3) And &HFF)
SendData((x_end >> 3) And &HFF)
SendCommand(SET_RAM_Y_ADD_START_END_POS)
SendData(y_start And &HFF)
SendData((y_start >> 8) And &HFF)
SendData(y_end And &HFF)
SendData((y_end >> 8) And &HFF)
End Sub
'
Sub SetMemoryPointer(x As integer, y As integer) {
SendCommand(SET_RAM_X_ADDRESS_COUNTER)
'/* x point must be the multiple of 8 or the last 3 bits will be ignored */
SendData((x >> 3) And &HFF)
SendCommand(SET_RAM_Y_ADDRESS_COUNTER)
SendData(y And &HFF)
SendData((y >> 8) And &HFF)
WaitUntilIdle()
End Sub
'
Sub displayframe
SendCommand(DISPLAY_UPDATE_CONTROL_2)
SendData(&HC4)
SendCommand(MASTER_ACTIVATION)
SendCommand(TERMINATE_FRAME_READ_WRITE)
WaitUntilIdle()
End Sub
'
Sub paperrefresh
Local integer i,j, k, l
Timer =0
setmemoryarea(0,0,MM.HRes-1,MM.VRes-1)
SetMemoryPointer(0,0)
SendCommand(WRITE_RAM)
Pin(DC)=1
For i = 0 To MM.VRes-1
k=Peek(varADDR s$(i))
For j=1 To MM.HRes\8
Pin(CE0)=0
l=SPI2(Peek(byte k+j))
Pin(CE0)=1
Next j
Next i
displayframe
End Sub
'
Function notmask%(x%)
notmask% = (-1 Xor x%) And &HFF
End Function

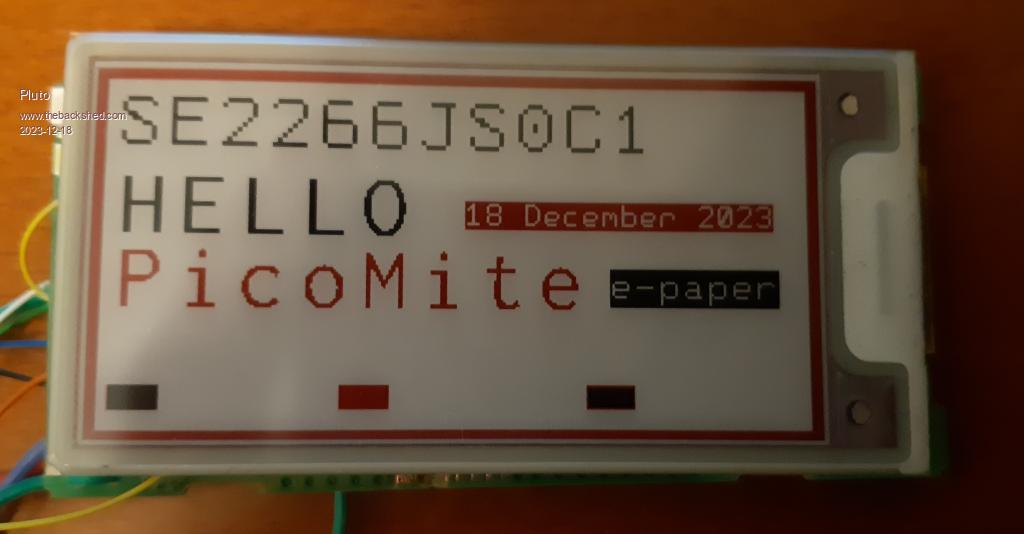

'Testing of e-paper display marked SE2266JS0C1.
'The display is connected to a board with powersupply control and other
'supporting components.
'This program is based on the info from:
'PervasiveDisplays: ApplicationNote_Small_Size_Mono_v02_220606.pdf
'Fred Nissfolk 7.12.2023

PIN(GP5)=0
setpin GP5,DOUT 'Reset
PIN(GP6)=0
setpin GP6,DOUT 'D/C selects between Data and Commands
PIN(GP7)=1
setpin GP7,DOUT 'CS chip select
SETPIN GP4,DIN 'BUSY
PIN(GP8)=1 'power
setpin GP8,DOUT 'Power: P-FET controls Power ON /OFF to DC/DC converter.
SETPIN GP0,GP3,GP2,SPI 'MISO,MOSI,CLK
spi open 100000,0,8
dim as integer Comm,dat,i
'PervasiveDisplays: ApplicationNote_Small_Size_Mono_v02_220606.pdf
'Power on COG driver p.17 of 25
?"power on COG"
pin(GP8)=0 '0=ON, 1=OFF
pause 5
PIN(GP5)=1 'Reset=1
pause 5
PIN(GP5)=0 'reset=0
pause 10
PIN(GP5)=1 'Reset=1
pause 5
SendCommand(&h00)
SendData(h0E)
pause 5
'3. Set environment temperature and PSR p.18
?"Set environment temperature"
SendCommand (&hE5) 'Input temperature
SendData(21)     'Ambient temperature
'Active Temperature
?"Active Temperature"
SendCommand(&hE0)
SendData(&h02)
'Panel Settings
?"Panel settings"
SendCommand(&h00)
SendData(&hCF)  'Size: Other size than 2.9", 3.7”, 4.2”, 4.37”
SendData(&h89)  'Size: Other size than 2.9", 3.7”, 4.2”, 4.37”

'Input image to the EPD
'The data of image frame, one bit represents 1 pixel. (e.g. the first byte
'represents the 1st ~ 8th pixels of the first line, the second byte represents
'the 9th ~ 16th pixels of the first line, …… and so on).
'For 2.66" with 152x296 pixels the nbr of bytes is 152*296/8=5624
?"Input image frame 1"
SendCommand(&h10) 'Send to first frame
For i=1 to 5624/4 'fill the first 1/4 with black pixels
SendData(&hFF)
next i
For i=5624*3/4+1 to 5624 'Fill 3/4 with white
SendData(&h00)
next i

?"Input image frame 2"
SendCommand(&h13) 'Send to second frame
For i=1 to 5624*3/4 'No red pixels on the first 3/4
SendData(&h00)
next i
For i=5624/4+1 to 5624 'Red pixels on the last 1/4
SendData(&hFF)
next i
'Should remain a white area between Black and Red. Yes it does!

'pin(GP8)=1 '0=ON, 1=OFF

'5. Send updating command p21
?"send updating command"
DO WHILE PIN(GP4)=0 ' GP4=0 means BUSY. Wait until not busy.
print "Loop1"
loop
?"Power ON"
SendCommand(&h04) 'Power on command
do WHILE PIN(GP4)=0
print "Loop2"
loop
?"Display refresh"
SendCommand(&h12) 'Display Refresh
do WHILE PIN(GP4)=0
'print "Loop3"
loop

'5. Turn-off DC/DC p.22
?"turn off DC/DC"
SendCommand(&h02) 'Turn off DC/DC
do
'print "Loop4"
loop until PIN(GP4)=1
'Set RES to floating
SETPIN GP5,DIN
'Clear CS, SDIN and SCLK to low level
spi close
pin(GP7)=0
setpin GP3,dout
pin(GP3)=0
SETPIN GP2,dout
PIN(GP2)=0
'Cut off the Vcc/Vdd of COG
PIN(GP8)=1
'Set BUSY pin to output 0
setpin GP4, DOUT
pin(GP4)=0

'Set RES pin back to output 0 from floating
SETPIN GP5,DOUT
pin(GP5)=0

END

'*********** SUBs**********

SUB SendCommand comm as integer
'sub SendCommand
'sends command
?"comm=";comm
local integer i
PIN(GP7)=0 'CS
PIN(GP6)=0 'D/C
i=SPI(comm)
PIN(GP7)=1 'CS
PIN(GP6)=1 'D/C
end sub

SUB SendData dat as integer
local integer i
PIN(GP7)=0 'CS
i=spi(dat)
PIN(GP7)=1 'CS
end sub

> option list
PicoMite MMBasic Version 5.08.00b4
OPTION FLASH SIZE 4194304

'Testing of e-paper display marked SE2266JS0C1.
'The display is connected to a board with powersupply control and other
'supporting components.
'This program is based on the info from:
'PervasiveDisplays: ApplicationNote_Small_Size_Mono_v02_220606.pdf
'Fred Nissfolk 7.12.2023, 18.12.2023
'
'COMMAND BYTES:
'&hE5 input of ambient temperature
'&hE0 activate temperature
'&h00 Panel settings
'&h10 First frame of display data - BLACK
'&h13 Second frame - RED
'&h04 Power on command
'&h12 Display refresh
'&h02 Turn-off DC/DC converter
'
'Using an ILI9341 LCD for creating the screen to be displayed on e-paper.
'Read the pixel information from the LCD into two arrays, first for black and
'then for red pixels. Using the color=PIXEL(x,y) function.

'Pins used for the e-paper. SPI2 for e-paper, SYSTEM SPI for LCD.
PIN(GP5)=0
setpin GP5,DOUT 'Reset
PIN(GP6)=0
setpin GP6,DOUT 'D/C selects between Data and Commands
PIN(GP7)=1
setpin GP7,DOUT 'CS chip select
SETPIN GP4,DIN 'BUSY
PIN(GP8)=1 'power OFF
setpin GP8,DOUT 'Power: P-FET controls Power ON /OFF to DC/DC converter.
SETPIN GP28,GP27,GP26,SPI2 'MISO,MOSI,CLK (SPI2 for e-paper)
spi2 open 20000000,0,8
dim as integer Comm,dat,i,BlackArray(5625),RedArray(5625)
'PervasiveDisplays: ApplicationNote_Small_Size_Mono_v02_220606.pdf
'Power on COG driver p.17 of 25
?"power on COG"
pin(GP8)=0 '0=ON, 1=OFF
pause 5
PIN(GP5)=1 'Reset=1
pause 5
PIN(GP5)=0 'reset=0
pause 10
PIN(GP5)=1 'Reset=1
pause 5
SendCommand(&h00)
SendData(h0E)
pause 5
'3. Set environment temperature and PSR p.18
?"Set environment temperature"
SendCommand (&hE5) 'Input temperature
SendData(21)     'Ambient temperature
'Active Temperature
?"Active Temperature"
SendCommand(&hE0)
SendData(&h02)
'Panel Settings
?"Panel settings"
SendCommand(&h00)
SendData(&hCF)  'Size: Other size than 2.9", 3.7", 4.2", 4.37"
SendData(&h89)  'Size: Other size than 2.9", 3.7", 4.2", 4.37"

'*******************************************************
'** TEXT AND GRAPHICS TO BE DISPLAYED  *****************

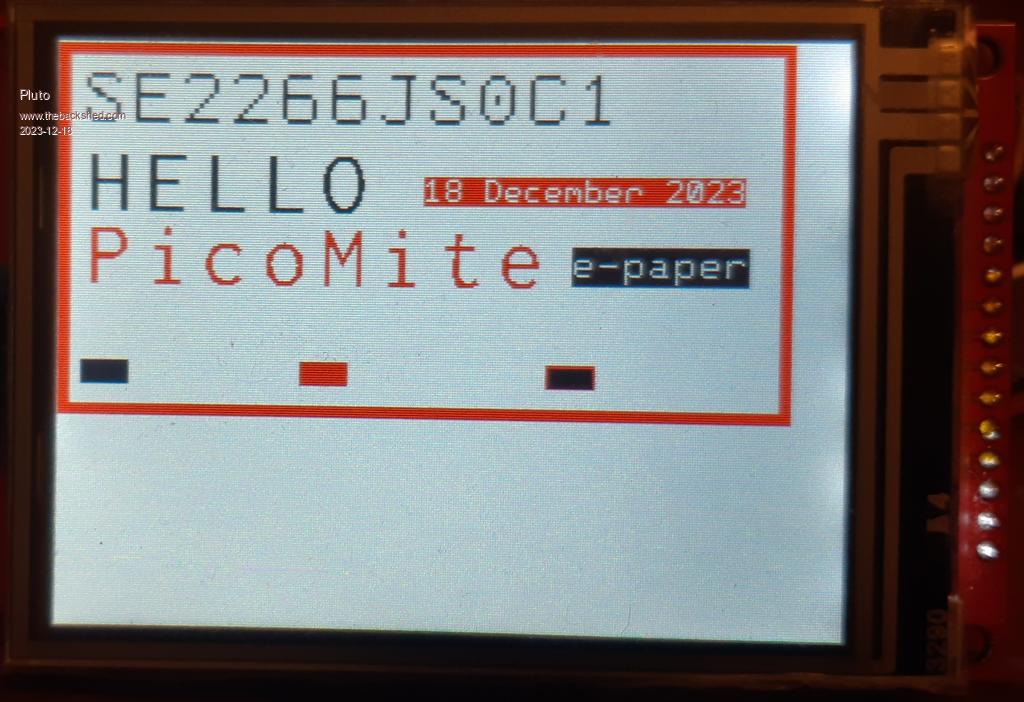

CLS RGB(White)  'clear LCD with WHITE background
BOX 1,1,296,152,5,rgb(red)
BOX 10,130,20,10,,rgb(Black),RGB(Black)
BOX 100,130,20,10,,rgb(RED),RGB(RED)
BOX 200,130,20,10,,rgb(RED),RGB(BLACK)
TEXT 10,25,"SE2266JS0C1","LM",4,2,rgb(black),RGB(white)
TEXT 10,60,"HELLO","LM",5,1,rgb(black),RGB(white)
TEXT 150,60,"18 December 2023","LM",1,1,rgb(white),RGB(red)
TEXT 10,90,"PicoMite","LM",5,1,rgb(RED),RGB(white)
TEXT 210,90,"e-paper","LM",4,1,rgb(White),RGB(BLACK)
'********************************************************
'********************************************************

BlackPixFromLCD 'read the black pixels from LCD's 152*296 area
RedPixFromLCD   'read the red pixels

'Input image to the EPD
'The data of image frame, one bit represents 1 pixel. (e.g. the first byte
'represents the 1st ~ 8th pixels of the first line, the second byte represents
'the 9th ~ 16th pixels of the first line, ?? and so on).
'For 2.66" with 152x296 pixels the nbr of bytes is 152*296/8=5624
?"Input image frame 1 to e-paper"
SendCommand(&h10) 'Command: Send to first frame
For i=1 to 5624
SendData(BlackArray(i)) 'Send BLACK pixels
NEXT i

?"Input image frame 2 to e-paper"
SendCommand(&h13) 'Command: Send to second frame
For i=1 to 5624
SendData(RedArray(i)) 'Send RED pixels
NEXT i

'Send updating command p21
?"send updating command"
DO WHILE PIN(GP4)=0 ' GP4=0 means BUSY. Wait until not busy.
'print "Loop1"
loop
?"Power ON"
SendCommand(&h04) 'Power on command
do WHILE PIN(GP4)=0
'print "Loop2"
loop
?"Display refresh"
SendCommand(&h12) 'Display Refresh
do WHILE PIN(GP4)=0
'print "Loop3"
loop

'Turn-off DC/DC p.22
?"turn off DC/DC"
SendCommand(&h02) 'Turn off DC/DC
do
'print "Loop4"
loop until PIN(GP4)=1
'Set RES to floating
SETPIN GP5,DIN
'Clear CS, SDIN and SCLK to low level
spi2 close
pin(GP7)=0
setpin GP3,dout
pin(GP3)=0
SETPIN GP2,dout
PIN(GP2)=0
'Cut off the Vcc/Vdd of COG
PIN(GP8)=1
'Set BUSY pin to output 0
setpin GP4, DOUT
pin(GP4)=0
PAUSE 150
'Set RES pin back to output 0 from floating
SETPIN GP5,DOUT
pin(GP5)=0
PIN(GP8)=1 'power OFF (external P-FET). 1=OFF, 0=ON
END

'*********** SUBs**********

SUB SendCommand comm as integer
'sub SendCommand
'sends command
?"comm=";comm
local integer i
PIN(GP7)=0 'CS
PIN(GP6)=0 'D/C
i=SPI2(comm)
PIN(GP7)=1 'CS
PIN(GP6)=1 'D/C
end sub

SUB SendData dat as integer
local integer i
PIN(GP7)=0 'CS
'pause 0.01
i=spi2(dat)
'Pause 0.01
PIN(GP7)=1 'CS
end sub



sub BlackPixFromLCD
'epaper is 152*296 pixels. 44992 pixels in total
'pixels grouped in bytes of 8 pixels =>5624 bytes
'epaper width is 152px = 19 bytes
'epaper height is 296px = 296 rows
?"Reading BLACK pixels from LCD"
idx=1
For row=1 to 296 '296
for x=1 to 152 step 8
dataByte=0
For bit=7 to 0 step -1
BLK=0
IF PIXEL(row,152-(x+7-bit))=0 then BLK=1
IF bit>0 then DataByte=DataByte+BLK<<1
IF bit=0 THEN DataByte=DataByte+BLK
next bit
'?bin$(DataByte,8);
BlackArray(idx)=DataByte
idx=idx+1
next x
'?"next row"
Next row
END SUB

sub RedPixFromLCD
'epaper is 152*296 pixels. 44992 pixels in total
'pixels grouped in bytes of 8 pixels =>5624 bytes
'epaper width is 152px = 19 bytes
'epaper height is 296px = 296 rows
?"Reading RED pixels from LCD"
idx=1
For row=1 to 296 '296
for x=1 to 152 step 8
dataByte=0
For bit=7 to 0 step -1
cRED=0
IF PIXEL(row,152-(x+7-bit))=&hFC0000 then cRED=1
IF bit>0 then DataByte=DataByte+cRED<<1
IF bit=0 THEN DataByte=DataByte+cRED
next bit
'?bin$(DataByte,8);
RedArray(idx)=DataByte
idx=idx+1
next x
'?"next row"
Next row
END SUB

> option list
PicoMite MMBasic Version 5.08.00b4
OPTION SYSTEM SPI GP18,GP19,GP16
OPTION FLASH SIZE 4194304
OPTION CPUSPEED  378000 'KHz
OPTION LCDPANEL ILI9341, LANDSCAPE,GP15,GP14,GP13
OPTION TOUCH GP12,GP11
GUI CALIBRATE 0, 3882, 3934, -825, -649
