Forum Index : Microcontroller and PC projects : Bill's 2023 Christmas lights

Author Message
Bill.b

Senior Member

Joined: 25/06/2011
Location: Australia
Posts: 226
Posted: 04:15am 06 Dec 2023
Copy link to clipboard
Print this post

Hi all.  My Christmas lights for this year.

2023 Lights

Most of the LED strip  lights are controlled by Picomites. The tall tree has 8 strips of 130 WS2812 LEDs, The waterfall star in the gum tree has 6 strip of 240 WS2812 LEDS and the front arches has 4 strip of 150 WS2812 LEDs each individual strip is controlled by a separate bitbbang ws2912 commands.

The control circuits for the carnival use Picaxe chips.

If anyone is interested I can post the code I have used.

Bill
In the interests of the environment, this post has been constructed entirely from recycled electrons.

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 926
Posted: 04:32am 06 Dec 2023
Copy link to clipboard
Print this post

Bill that is amazing, they just get better year after year.
0A47

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9307
Posted: 04:43am 06 Dec 2023
Copy link to clipboard
Print this post

Excellent.
Smoke makes things work. When the smoke gets out, it stops!

LeoNicolas

Guru

Joined: 07/10/2020
Location: Canada
Posts: 479
Posted: 05:02am 06 Dec 2023
Copy link to clipboard
Print this post

Pretty nice Bill. Thank you for sharing the video with us.

PeteCotton

Guru

Joined: 13/08/2020
Location: Canada
Posts: 368
Posted: 05:09am 06 Dec 2023
Copy link to clipboard
Print this post

Very cool! Thanks for sharing

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1024
Posted: 05:24am 06 Dec 2023
Copy link to clipboard
Print this post

Thats great Bill, thanks for sharing.
Have to ask, what size Railway is that?
Cheers Aaron
Off The Grid

vegipete

Guru

Joined: 29/01/2013
Location: Canada
Posts: 1109
Posted: 05:35am 06 Dec 2023
Copy link to clipboard
Print this post

Nice. So sparkly! Christmas time and shorts seems odd to a Canadian. ;-)

How do you get power (and data?) through the various rotating axes?
Visit Vegipete's *Mite Library for cool programs.

Bill.b

Senior Member

Joined: 25/06/2011
Location: Australia
Posts: 226
Posted: 05:40am 06 Dec 2023
Copy link to clipboard
Print this post

  Quote  Aaron Asked  what size Railway is that?


I have not a clue.  Just one of the Christmas train sets for around the Christmas tree.
I 3D printed several carrages.
In the interests of the environment, this post has been constructed entirely from recycled electrons.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914
Posted: 09:46am 06 Dec 2023
Copy link to clipboard
Print this post

Excellent work Bill,

I can only dream of doing something like that

I hope Santa brings you a nice toy for being a good boy

Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6797
Posted: 09:49am 06 Dec 2023
Copy link to clipboard
Print this post

Excellent work, Bill. The final result is beautiful. :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

RonnS
Senior Member

Joined: 16/07/2015
Location: Germany
Posts: 120
Posted: 11:29am 06 Dec 2023
Copy link to clipboard
Print this post

  Bill.b said  Hi all.  My Christmas lights for this year.

2023 Lights

Most of the LED strip  lights are controlled by Picomites. The tall tree has 8 strips of 130 WS2812 LEDs, The waterfall star in the gum tree has 6 strip of 240 WS2812 LEDS and the front arches has 4 strip of 150 WS2812 LEDs each individual strip is controlled by a separate bitbbang ws2912 commands.

The control circuits for the carnival use Picaxe chips.

If anyone is interested I can post the code I have used.

Bill


great as always

my big christmas star is still alive (posted here a few years ago)
link
Edited 2023-12-06 21:39 by RonnS

Colin Ames
Newbie

Joined: 04/12/2023
Location: United States
Posts: 8
Posted: 03:24pm 06 Dec 2023
Copy link to clipboard
Print this post

Outstanding!
Colin Ames

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6797
Posted: 05:18pm 06 Dec 2023
Copy link to clipboard
Print this post

Hi Colin, and welcome to the 'shed. :)

This is a coincidence. You share the same name as my youngest brother, here in the UK. :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Bill.b

Senior Member

Joined: 25/06/2011
Location: Australia
Posts: 226
Posted: 12:58am 07 Dec 2023
Copy link to clipboard
Print this post

How do you get power (and data?) through the various rotating axes?


Hi vegipete,

I use a simple slipring and carbon brushes.  Generally I use a piece of blank printed circuit board  on the rotation section.  On some unites where data is transferred I scribe several sections on the disc and use serval brushes. The data is generally ON/OFF Bits.

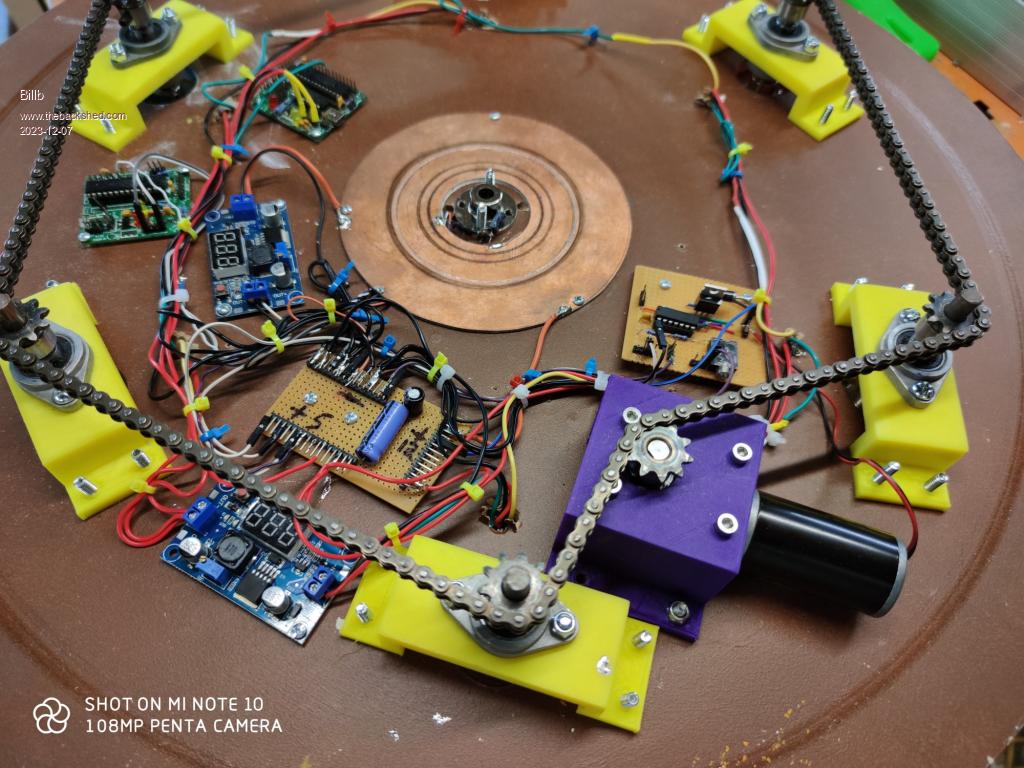

This is the underside of the cup rides rotor. The outer side if the disk is +12V the shaft is the negative and the inner disk is the control bit to start and stop the motor.
the two pic32mx 170 boards have been replaced with picomites to drive the LEDs.



Bill
Edited 2023-12-07 11:16 by Bill.b
In the interests of the environment, this post has been constructed entirely from recycled electrons.

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3150
Posted: 03:03pm 07 Dec 2023
Copy link to clipboard
Print this post

Thanks for showing us the underside of your brilliant handiwork. Outstanding.
PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 216
Posted: 07:41pm 07 Dec 2023
Copy link to clipboard
Print this post



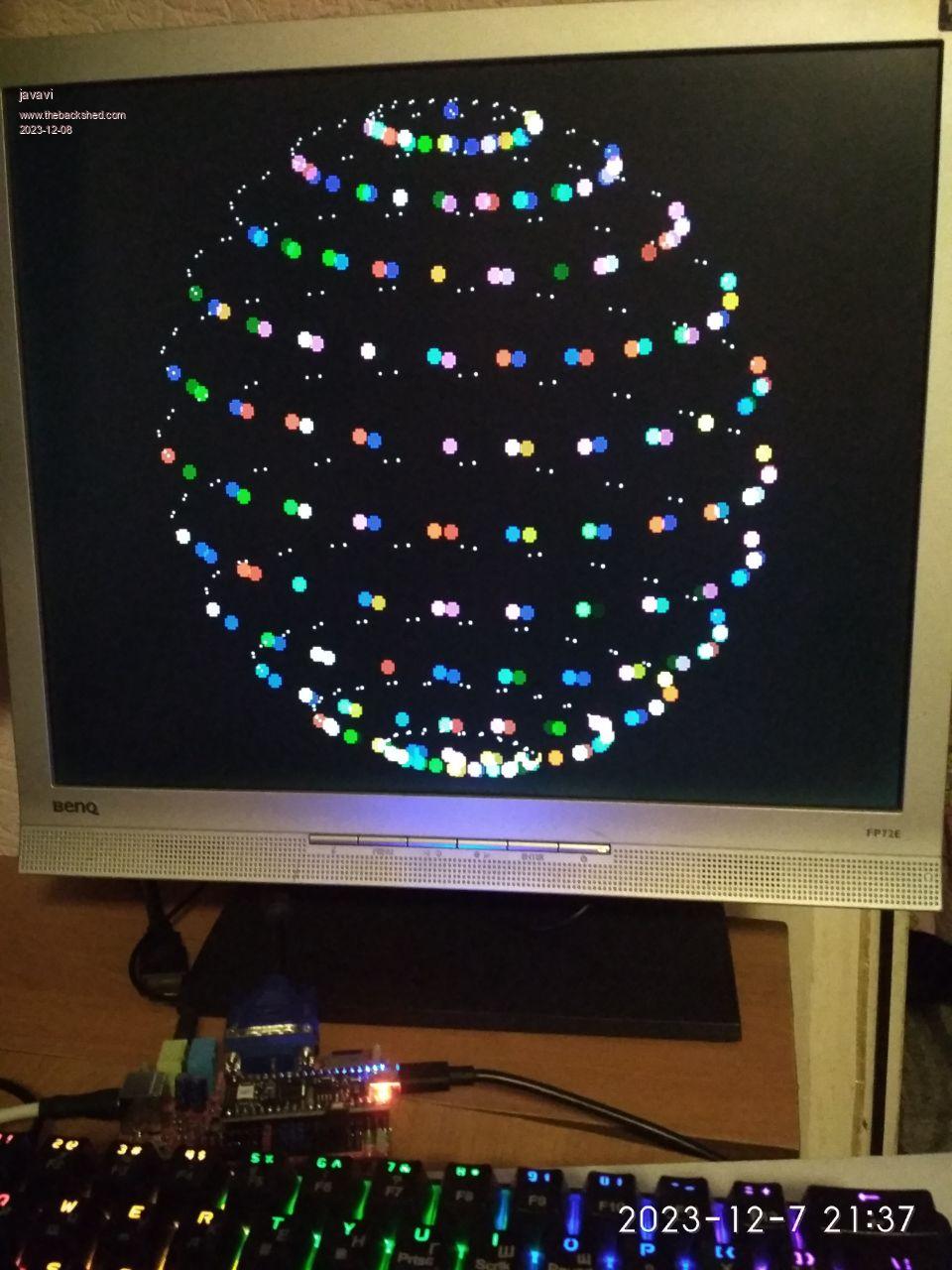

Option ANGLE DEGREES
FRAMEBUFFER CREATE
FRAMEBUFFER WRITE F
RX=MM.HRes: RY=MM.VRes: CX=RX/2: CY=RY/2
Umin=-180: Umax=180: Ustep=15
Vmin= -90: Vmax= 90: Vstep=15
SCALE=CY-CY/10

Do
 For S=0 To 12 Step 3
 CLS
   For V= Vmin To Vmax Step Vstep
   For U= Umin To Umax Step Ustep
     U=U+S
       X=Cos(U)*Cos(V)
       Y=Sin(U)*Cos(V)
       Z=Sin(V)
     U=U-S
     C=Rnd*&hFFFFFF
     Plot_XY
     If Inkey$ <> "" Then End
   Next U: Next V
   FRAMEBUFFER COPY F,N,B
 Next S
Loop

Sub Plot_XY
 X=SCALE*X: Y=SCALE*Y: Z=SCALE*Z
 Y=Y/4
 X1=X-Y+CX: Y1=Z-Y+CY
 If y<0 Then
   Circle X1,Y1,2,,,C,C
 Else
   Pixel X1,Y1
 EndIf
End Sub

Colin Ames
Newbie

Joined: 04/12/2023
Location: United States
Posts: 8
Posted: 08:39pm 07 Dec 2023
Copy link to clipboard
Print this post

  Mixtel90 said  Hi Colin, and welcome to the 'shed. :)

This is a coincidence. You share the same name as my youngest brother, here in the UK. :)

Thanks.
Also a coincidence is that I am also from the UK, Coventry to be precise. Lived there from 1950 until 1988, when I moved to the US.
Colin Ames

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914
Posted: 12:10am 08 Dec 2023
Copy link to clipboard
Print this post

Hi Bill,

I see you are using a few of my MuPs PCBs there!

I am flattered.

Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Bill.b

Senior Member

Joined: 25/06/2011
Location: Australia
Posts: 226
Posted: 02:20am 08 Dec 2023
Copy link to clipboard
Print this post

Hi Mick

That photo is approx 2 years old. The Mups have been replaced with picomites in the current version of the cup ride.

Bill
In the interests of the environment, this post has been constructed entirely from recycled electrons.
