Forum Index : Microcontroller and PC projects : PicoMite VGA Spartan Build

Author Message
OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 926
Posted: 10:06pm 27 Nov 2023
Copy link to clipboard
Print this post

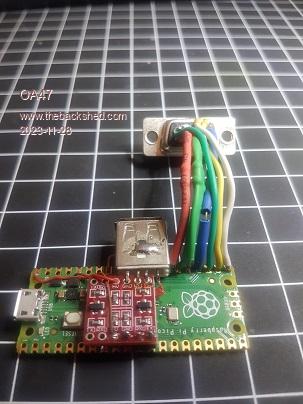

Here is my minimum parts build Pi Pico VGA.



I can double sided tape it to the back of the monitor. I have chosen a monitor that has a USB port and the USB keyboard supports PS2 connection.

0A47
Edited 2023-11-28 14:03 by OA47

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3194
Posted: 04:45am 28 Nov 2023
Copy link to clipboard
Print this post

Wow, so small!!!
It makes the RPi Pico look like a giant.

Geoff
Geoff Graham - http://geoffg.net

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 926
Posted: 05:17am 28 Nov 2023
Copy link to clipboard
Print this post

  Quote  Wow, so small!!!


Geoff, I presume you are talking about the level shifter board and I am only using half of it.

0A47

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6797
Posted: 08:22am 28 Nov 2023
Copy link to clipboard
Print this post

I wanted to put a VGA display & PS2 keyboard on a RP2040-Zero but the wrong pins are available. :(  Only to outdo OA47, of course. :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802
Posted: 08:34am 28 Nov 2023
Copy link to clipboard
Print this post

What's on the underside of the Pico board?

John

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 926
Posted: 08:41am 28 Nov 2023
Copy link to clipboard
Print this post

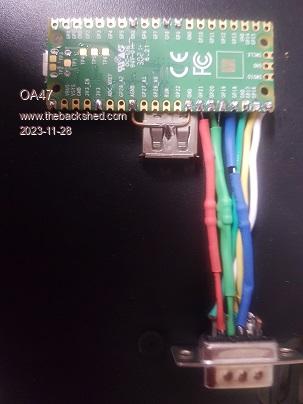

  Quote  What's on the underside of the Pico board?

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802
Posted: 04:28pm 28 Nov 2023
Copy link to clipboard
Print this post

Oh - the resistors are inline with the wires. Sorry, I didn't see that initially.

John

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6797
Posted: 04:42pm 28 Nov 2023
Copy link to clipboard
Print this post

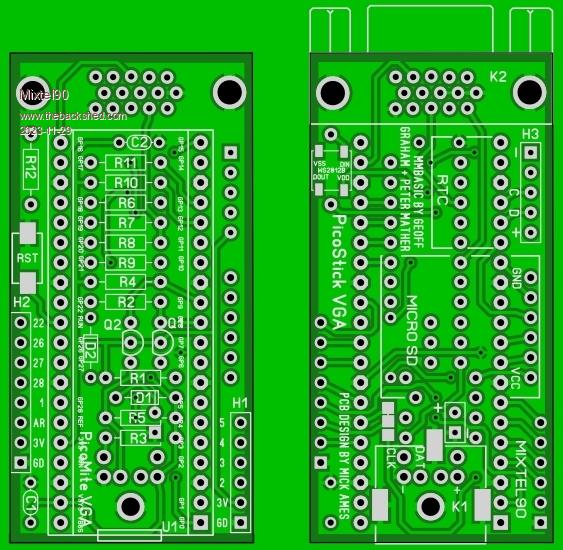

I did a PicoStick some time ago. I cheated and used a PCB though. :)

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

gadgetjack
Senior Member

Joined: 15/07/2016
Location: United States
Posts: 145
Posted: 04:55pm 28 Nov 2023
Copy link to clipboard
Print this post

I have built a couple of Mick's PicoSticks that work great!
