Hi All
adc_test_1.bas

' adc test 1
Dim anaray1!(3000) , anaray2!(3000) , anaray3!(3000)

SetPin 1 , pwm
PWM 0 , 5000 , 55

ADC open 122000 , 2

ADC start anaray1() , anaray2()

Memory

End

Wayne !

amigawizard

Regular Member

Joined: 15/08/2023
Location: Australia
Posts: 43

Posted: 12:02pm 17 Aug 2023

Copy link to clipboard

Print this post

use putty !

adc_tirg_6.bas

' adc test 6

Dim anaray1!(4500) , anaray2!(4500) , anaray3!(4500)

SetPin 1 , pwm
SetPin 2 , pwm
'PWM 0 , 500 , 25 , 2
PWM 0 , 50 , 25 , 5

' ADC open 122000 , 2
ADC open 22200 , 2

ADC start anaray1() , anaray2()

'Memory
'disp

trig3
dist

Print @(4,430) " . . . "
Print @(4,430) t1 , t , , anaray2(t) , anaray2(t+99) , anaray2(t+100) , anaray2(t+101) , , x , anaray1(t) , anaray1(t+200)
Print t + x ; " "

End

Sub disp

For x = 1 To 1255 Step 12
Print @(x,-(anaray1(x)*30)+150) "*" : Print @(x,-(anaray2(x)*50)+350) "-"
Next x

End Sub

Sub dist

For x = 1 To 1350
'' Print @(x,-(anaray1(x+t)*30)+150) "*" : Print @(x,-(anaray2(x+t)*30)+400) "-"

pixel x , -(anaray1(x+t)*30)+150)
pixel x , -(anaray2(x+t)*30)+400)

Next x

End Sub

Sub trig

For t = 1 To 2000
' If anaray1(t) > 2 Then If anaray1(t+1) < 1 Then Exit For
' If anaray1(t) > 1 Then If anaray1(t+1) < 2 Then Exit For
' If anaray1(t) < 2 Then If anaray1(t+1) > 1 Then Exit For
' If anaray2(t) > 1 Then If anaray2(t+1) < 2 Then Exit For
' If anaray2(t) > 1 Then If anaray2(t+100) < 2 Then Exit For
If anaray2(t) < 1 Then If anaray2(t+100) > 2 Then Exit For
Next t
Print t , "here"
End Sub

Sub trig2

For t1 = 1 To 2000
If anaray2(t1) > 1 Then If anaray2(t1+100) < 2 Then Exit For
Next t1

For t = t1 To 2000
If anaray2(t) < 1 Then If anaray2(t+100) > 2 Then Exit For
Next t

End Sub

Sub trig3

For t1 = 1 To 2000
If anaray2(t1) > 1 Then If anaray2(t1+50) < 2 Then Exit For
Next t1

For t = t1 To 2000
If anaray2(t) < 1 Then If anaray2(t+50) > 2 Then Exit For
Next t

End Sub

End

Wayne !!

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3150

Posted: 02:50pm 17 Aug 2023

Copy link to clipboard

Print this post

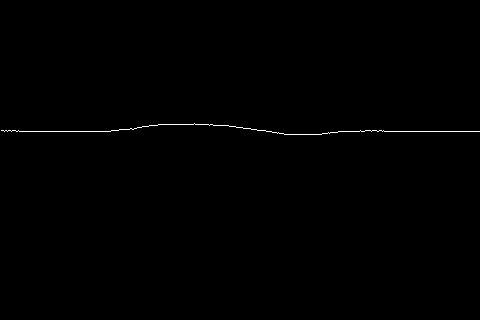

This is what I seen running on a PicoMite with 480x320 ILI9488:

What would I do to see something more interesting?

PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed

amigawizard

Regular Member

Joined: 15/08/2023
Location: Australia
Posts: 43

Posted: 03:15pm 17 Aug 2023

Copy link to clipboard

Print this post

@ Lizby

pixel x , -(anaray2(x+t)*90)+150)

and connect pin1 to pin32

*90 set the gain

F2 rerun !

Wayne !!!

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3150

Posted: 03:32pm 17 Aug 2023

Copy link to clipboard

Print this post

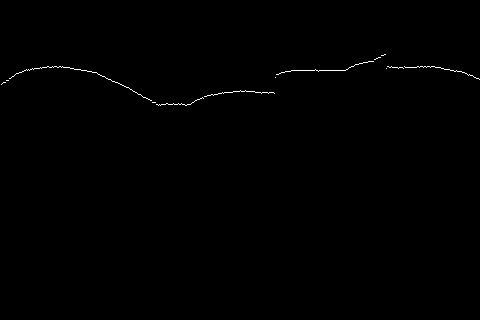

Ok, thanks. With that, I get this:

PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed

amigawizard

Regular Member

Joined: 15/08/2023
Location: Australia
Posts: 43

Posted: 04:15pm 17 Aug 2023

Copy link to clipboard

Print this post

@ lizby

pixel x , -(anaray2(x+t)*90)+150)

pixel x , -(anaray2(x+t)*gain)+offset)

pixel x , -(anaray2(x5 +t)*90)+150)

try For x = 1 To 480

Wayne !!!!

amigawizard

Regular Member

Joined: 15/08/2023
Location: Australia
Posts: 43

Posted: 12:54pm 22 Aug 2023

Copy link to clipboard

Print this post

this is to be run with Putty !

ch = 32

Sub DoDC CH

'' ADC close
ch = CH
SetPin ch , ain
Tstop = 0
SetTick 18.1 , tick , 2
Timer = 0

mDC
Print Timer
Tstop = 2
SetTick 0 , 0 , 2

'Print " DC = " ; DC ; " Vdc "
Print Format$( DC , " DC = %2.4f Vdc " )

End Sub

Sub tick

Tstop = 1

End Sub

Sub mDC

nDC = 0

For n = 1 To 400
nDC = nDC + Pin(ch)
If Tstop = 1 Then Exit For
Next n
Print DC , nDC , nDC / n , n , Pin(ch)
DC = (nDC / (n ) )
'' Print

End Sub

DC Voltage Meter

this one remove`s 50 Hz and averages (200+) samples

Wayne !!!!!

amigawizard

Regular Member

Joined: 15/08/2023
Location: Australia
Posts: 43

Posted: 03:42pm 22 Aug 2023

Copy link to clipboard

Print this post

update !!

Sub dcx

ch = 32
SetPin ch , ain
m = 0
Timer = 0
Do While Timer < 19.86 '20 ms
Dc = Dc + Pin(ch)
Inc m
Loop
Print ,, Timer, m
Dc = Dc / m

Print Dc
End Sub

Option F9 "dcx" + chr$(13) + chr$(10)

Wayne !!!!!!
