Forum Index : Microcontroller and PC projects : PICO - Waveshare RGB 5x5 LED grid module for $7...

Author Message
Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 06:49am 03 Aug 2023
Copy link to clipboard
Print this post

This is quite interesting.
I think I will get at least one to play with with my latest order.

WS RP2040 5x5 LED matrix module thing....

The LED's are daisy-chained WS2812's on GP16.
Smoke makes things work. When the smoke gets out, it stops!

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 07:12am 03 Aug 2023
Copy link to clipboard
Print this post

Pretty! :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4247
Posted: 12:08pm 03 Aug 2023
Copy link to clipboard
Print this post

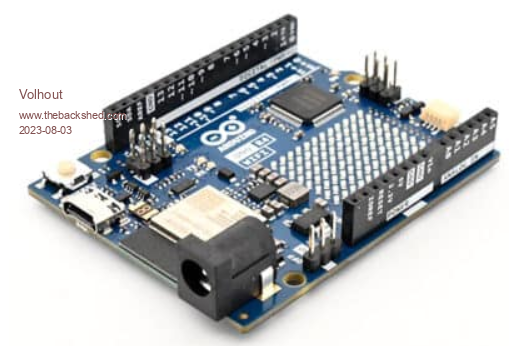

Completely in line with the new Arduino UNO R4.
Why not waste 96 LED's ....


PicomiteVGA PETSCII ROBOTS
