Hello,

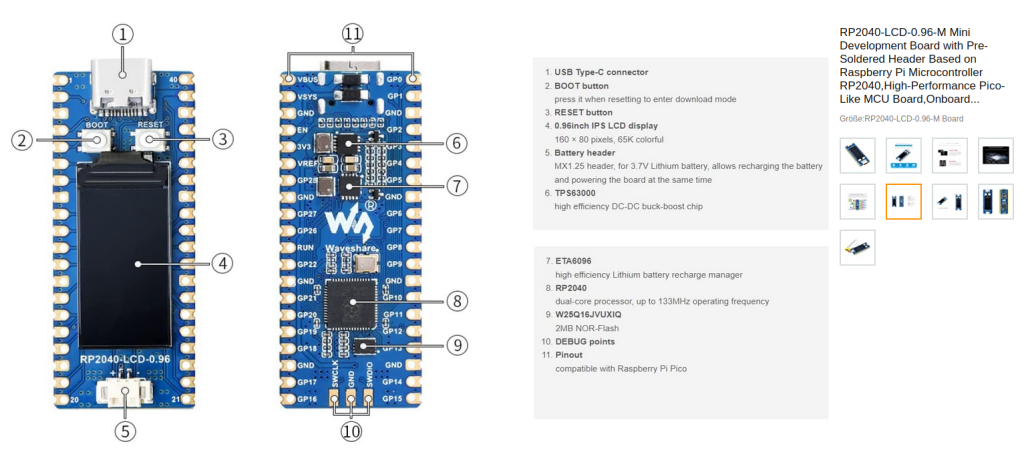

on amazon I found this: RP2040-LCD-0.96-M

Does anyone know whether it runs with PicoMite?

-andreas

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 09:49am 29 May 2023

Copy link to clipboard

Print this post

On first glance I think so. The display uses GP8, GP9, GP10, GP11, GP12, GP25 so no PS2 keyboard. No guarantee for any speed over 133MHz though!
Edited 2023-05-29 19:55 by Mixtel90

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

disco4now

Guru

Joined: 18/12/2014
Location: Australia
Posts: 897

Posted: 10:03am 29 May 2023

Copy link to clipboard

Print this post

Probably this.
It seems to be an SPI display, uses GP25 for the BL. Is GP25 OK to use once you do OPTION HEATBEAT OFF ?

Latest F4 Latest H7

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 10:15am 29 May 2023

Copy link to clipboard

Print this post

Should be able to, yes. There is no LED on that board so there's no other hardware to mess the pin up.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 04:11pm 29 May 2023

Copy link to clipboard

Print this post

Looks interesting but does it work with mmbasic indeed? and cost?

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 06:21pm 29 May 2023

Copy link to clipboard

Print this post

I can't see anything that would prevent MMBasic from running on it. However:

The display is ST7735S, which has MMBasic support.

There is no heartbeat LED. GP25 is connected to the backlight.

The only speed specified is 133MHz. It may or may not overclock.

If you are willing to take the risk then go ahead. :)
Pi Hut list it for 15.10 UKP
Edited 2023-05-30 04:28 by Mixtel90

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 06:44pm 29 May 2023

Copy link to clipboard

Print this post

Mixtel90 said I can't see anything that would prevent MMBasic from running on it. However:

The display is ST7735S, which has MMBasic support.

There is no heartbeat LED. GP25 is connected to the backlight.

The only speed specified is 133MHz. It may or may not overclock.

If you are willing to take the risk then go ahead. :)
Pi Hut list it for 15.10 UKP

Hmmmm? £15.10 seems ok... if it works ok. Why over clock not work? pi hut... must be ok?
cheers stan

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 07:37pm 29 May 2023

Copy link to clipboard

Print this post

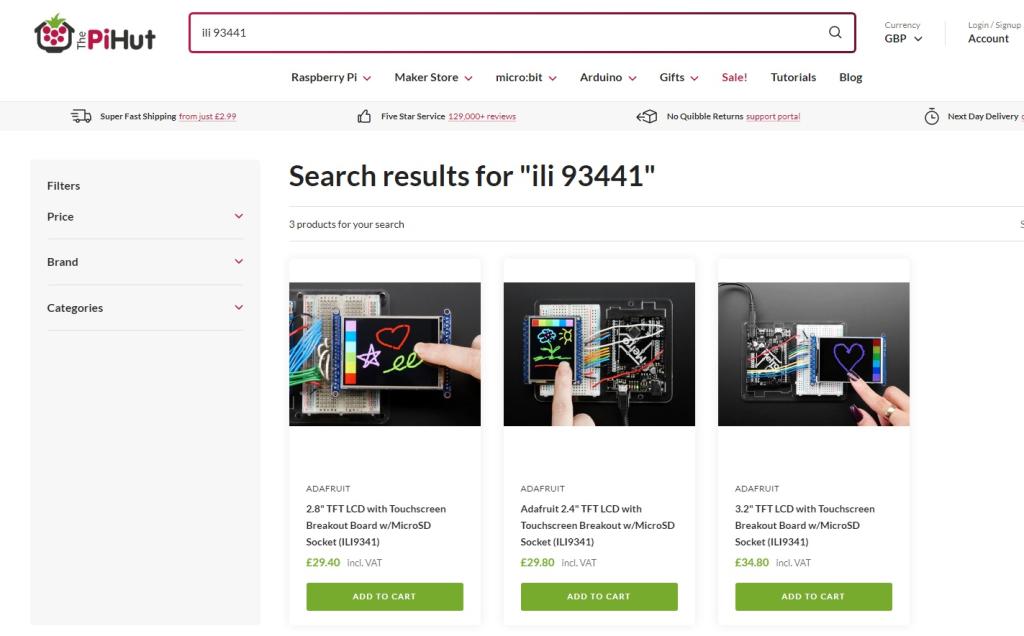

nearly ordered one, £3 postage. the display is £8.10. wow ili9341 £24+.
Edited 2023-05-30 06:29 by stanleyella

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207

Posted: 08:31am 30 May 2023

Copy link to clipboard

Print this post

I have ordered one (berrybase 17,90€ minus 1€ discount for 100 "Berrys") - let's see how it works

-andreas

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 06:31pm 30 May 2023

Copy link to clipboard

Print this post

Let us know how it goes @andreas It looks nice but someone got to test with mmbasic if it isn't plug n play. not me sorry but if ok I may get one. Looks neat but in reality ??? the display 80 pixels

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 06:48pm 30 May 2023

Copy link to clipboard

Print this post

160x80 isn't exactly a gaming display, Stan. :) Good for coloured text and simple animations though.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207

Posted: 07:17pm 30 May 2023

Copy link to clipboard

Print this post

stanleyella said Let us know how it goes @andreas It looks nice but someone got to test with mmbasic if it isn't plug n play. not me sorry but if ok I may get one. Looks neat but in reality ??? the display 80 pixels

I think I will get it end of the week and will tell you

-andreas

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207

Posted: 07:24pm 05 Jun 2023

Copy link to clipboard

Print this post

Hello,

the RP2040-LCD-0.96-M is Picomite compatible

PicoMite MMBasic Version 5.07.07
OPTION SYSTEM SPI GP10,GP11,GP12
OPTION COLOURCODE ON
OPTION HEARTBEAT OFF
OPTION DISPLAY 50, 100
OPTION LCDPANEL ST7735S, LANDSCAPE,GP8,GP0,GP9,GP25

(this is out of experimentation, if someone knows a better setup for system spi and lcdpanel I would be very glad to hear!)

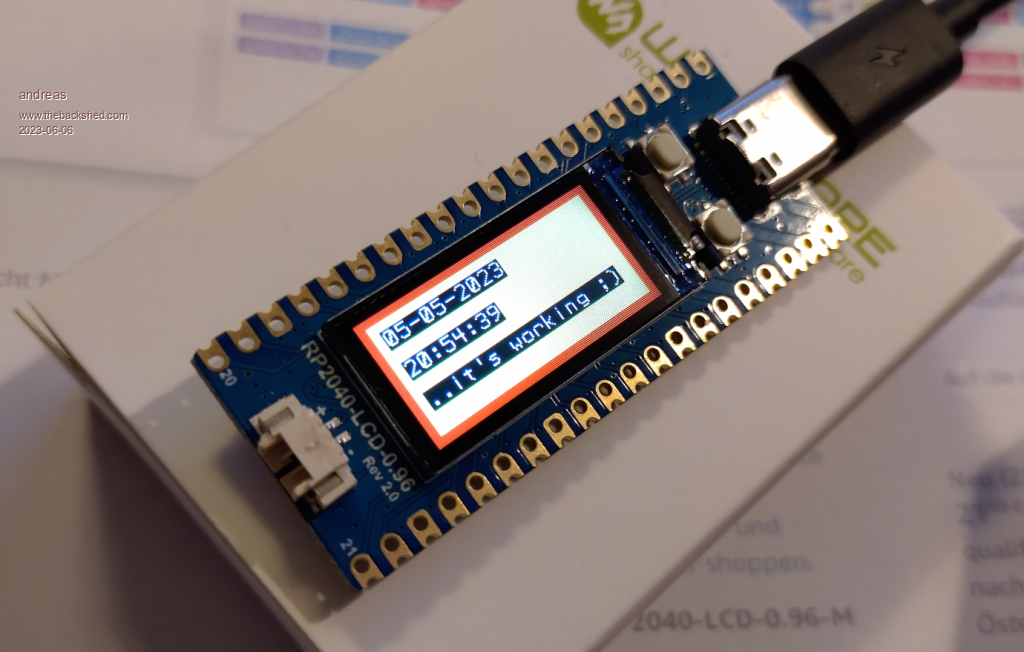

Brightness can be tuned by "BACKLIGHT N" N=[0..100]. In the picture backlight is 40%.

> LIST
Box 0,0,160,80,5,RGB(red),RGB(yellow)
Text 10,10,Date$
Text 10,30,Time$
Text 10,50,"..it's working ;)"

> memory
Program:
1K ( 1%) Program (4 lines)
123K (99%) Free

Saved Variables:
16K (100%) Free

RAM:
0K ( 0%) 0 Variables
0K ( 0%) General
152K (100%) Free

> flash list
Slot 1 available
Slot 2 available
Slot 3 available
Slot 4 available

-andreas

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798

Posted: 08:02pm 05 Jun 2023

Copy link to clipboard

Print this post

Great to see it working. :)

You've no choice of IO pins for either system SPI or the display IO pins (including GP25) as they are all hard-wired on the module.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

homa

Guru

Joined: 05/11/2021
Location: Germany
Posts: 351

Posted: 08:04pm 05 Jun 2023

Copy link to clipboard

Print this post

andreas said
the RP2040-LCD-0.96-M is Picomite compatible

Hallo Andreas, das ist fein!
Danke fürs teilen / thank you for sharing.

Matthias

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 10:26pm 05 Jun 2023

Copy link to clipboard

Print this post

Sehr ordentliches Gerät. Ich denke, ich werde mir eins zulegen :)
Nice you got it working :) :)

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 11:42pm 05 Jun 2023

Copy link to clipboard

Print this post

anymore info for what pins are user...i2c or any pins that can be used with mmbasic picomite non vga? please, Can the display do more than text, like plot/draw?
sorry there's a box command so must. oops :( ordering one, tidy module.
Edited 2023-06-06 10:37 by stanleyella

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129

Posted: 01:18am 06 Jun 2023

Copy link to clipboard

Print this post

Your original link is $53 with postage, ordered one from pi hut and a spare pico with headers, including vat+p&p £22.

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207

Posted: 03:57am 06 Jun 2023

Copy link to clipboard

Print this post

Mixtel90 said Great to see it working. :)

You've no choice of IO pins for either system SPI or the display IO pins (including GP25) as they are all hard-wired on the module.

Hello Mick,

yes the pins on the board are fixed, but there is one degree of freedom for the 4th parameter of the OPTION LCDPANEL:

OPTION LCDPANEL ST7735S, LANDSCAPE,GP8,GP0,GP9,GP25

I took GP0 to write anything, but I'm loosing a gp port this way. Thank you by the way for the display type tip - it has shortened my experiments considerably.

-andreas
Edited 2023-06-06 13:59 by andreas

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207

Posted: 04:16am 06 Jun 2023

Copy link to clipboard

Print this post

Who is the first, who writes a barricade game for the tiniest basic computer of the world?

-andreas

(is it possible to use the two buttons already on the board? ;)
