Forum Index : Microcontroller and PC projects : New Pico clone with SD on board

Author Message
Pilot352
Newbie

Joined: 12/08/2020
Location: United States
Posts: 34
Posted: 12:38pm 20 Apr 2023
Copy link to clipboard
Print this post

Maybe this has been noted before but it looks cool...

https://www.youtube.com/watch?v=ma40w3_8dtg


8M of RAM and the SD card is mounted on the same footprint as a Pico. Same pin-out as well. Not available yet in the states but interesting.

-Tim

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 02:21pm 20 Apr 2023
Copy link to clipboard
Print this post

It would be interesting to know if it has slower memory like the YD-RP2040.
Edited 2023-04-21 00:22 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 04:59pm 20 Apr 2023
Copy link to clipboard
Print this post

Where to buy one? looks brill. what's lei as money? does mmbasic work?
Again looks good but where to buy if it works with mmbasic

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 05:26pm 20 Apr 2023
Copy link to clipboard
Print this post

Buy one and test it for us. Be sure to let us know how you get on. :)

You can probably import one from Romania (with 22UKP postage costs, then customs duty, and VAT as well) if you contact them. (If they'll even post to the UK). :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 05:49pm 20 Apr 2023
Copy link to clipboard
Print this post

@Mixtel90 get your point, not £5 but...

Pilot352
Newbie

Joined: 12/08/2020
Location: United States
Posts: 34
Posted: 06:02pm 20 Apr 2023
Copy link to clipboard
Print this post

More info....

https://ardushop.ro/en/home/2652-marble-pico.html


Like I said, so far, it doesn't ship to the US. however, one of my co-workers is Romanian and is trying to get a few for "evaluation" :)

-Tim

cdeagle
Senior Member

Joined: 22/06/2014
Location: United States
Posts: 261
Posted: 08:29am 21 Apr 2023
Copy link to clipboard
Print this post

Here are links to two boards with Micro SD capability.

StackyPi from SB Components

https://shop.sb-components.co.uk/products/stackypi

I'm using these options with the StackyPi

OPTION SYSTEM SPI GP10,GP11,GP12
OPTION FLASH SIZE 8388608
OPTION SDCARD GP9

Adafruit PiCowbell Adalogger for Pico - MicroSD, RTC & STEMMA QT

https://www.adafruit.com/product/5703

I don't think MMBASIC supports the RTC on the Adafruit board.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 09:34am 21 Apr 2023
Copy link to clipboard
Print this post

I'm now wary of the clone boards with extra things on them. Every extra item introduces another layer of incompatibility with the standard unless you defeat it, in which case you've bought something you don't need. An *identical* Pico design, just with more flash, is probably the best thing to get.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

pwillard
Senior Member

Joined: 07/06/2022
Location: United States
Posts: 292
Posted: 12:38pm 24 Apr 2023
Copy link to clipboard
Print this post

Unless some big retail company like Sparkfun, Microcenter, or Adafruit in the US starts to carry these, the US market is just not able to adopt these. A bummer.

darthvader
Regular Member

Joined: 31/01/2020
Location: France
Posts: 76
Posted: 10:30am 29 Apr 2023
Copy link to clipboard
Print this post

@Mixtel90
  Quote  It would be interesting to know if it has slower memory like the YD-RP2040

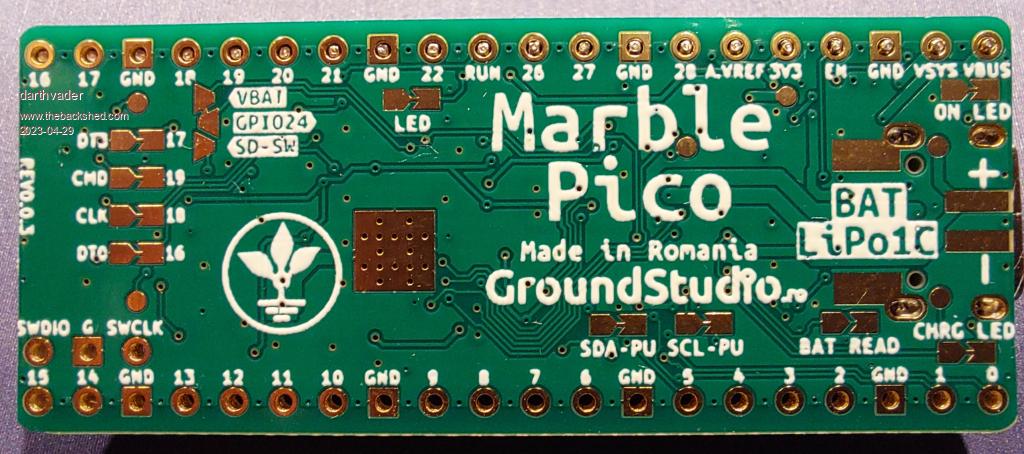

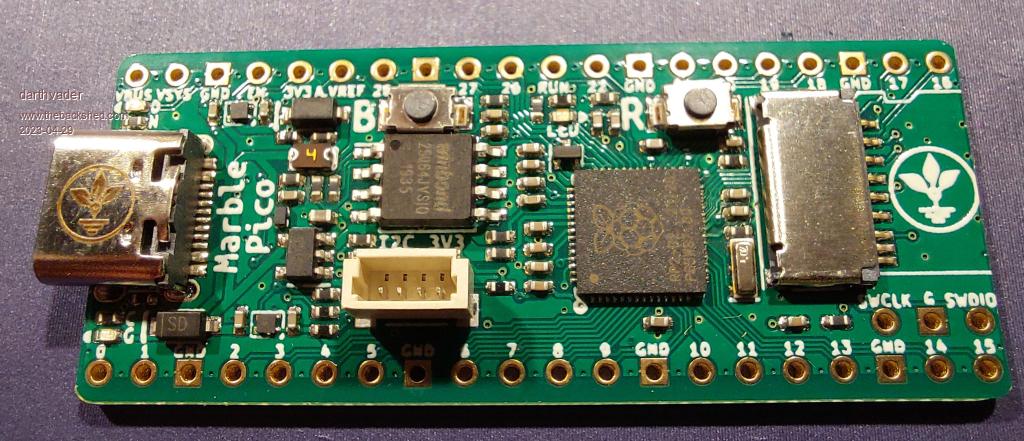

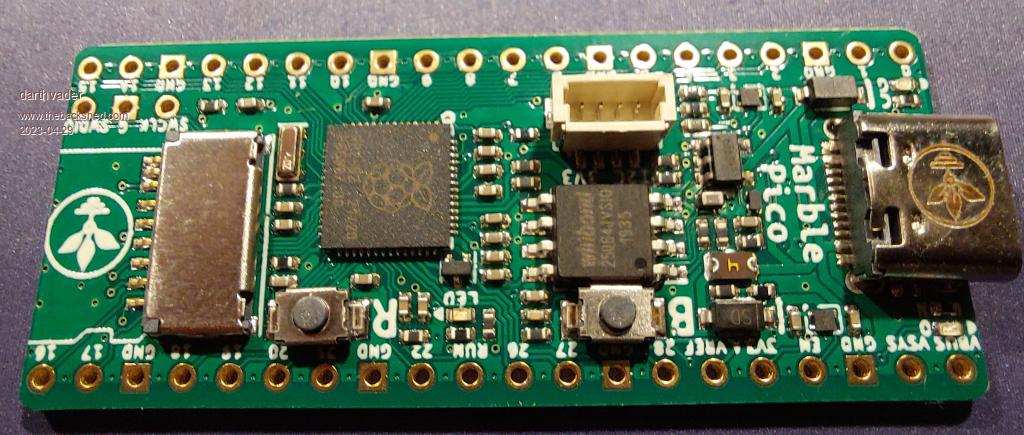

Ordered last Sunday , I get them today , the memory chip is a 133mhz 25Q64JVSIQ

@stanleyella
  Quote  Where to buy one?

Ardushop

  Quote  what's lei as money?

It's Romanian money , 1 lei = 0.2€

I get 6 of them , the price are :

142.66 lei for 6 marble pico
109.78 lei Shipping to France
40.31 lei as Taxes

Total of 252.44 lei , that is approx 50.71€

Now i need to find some time to test them












Cheers ...
Theory is when we know everything but nothing work ...
Practice is when everything work but no one know why ;)

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 05:03pm 30 Apr 2023
Copy link to clipboard
Print this post

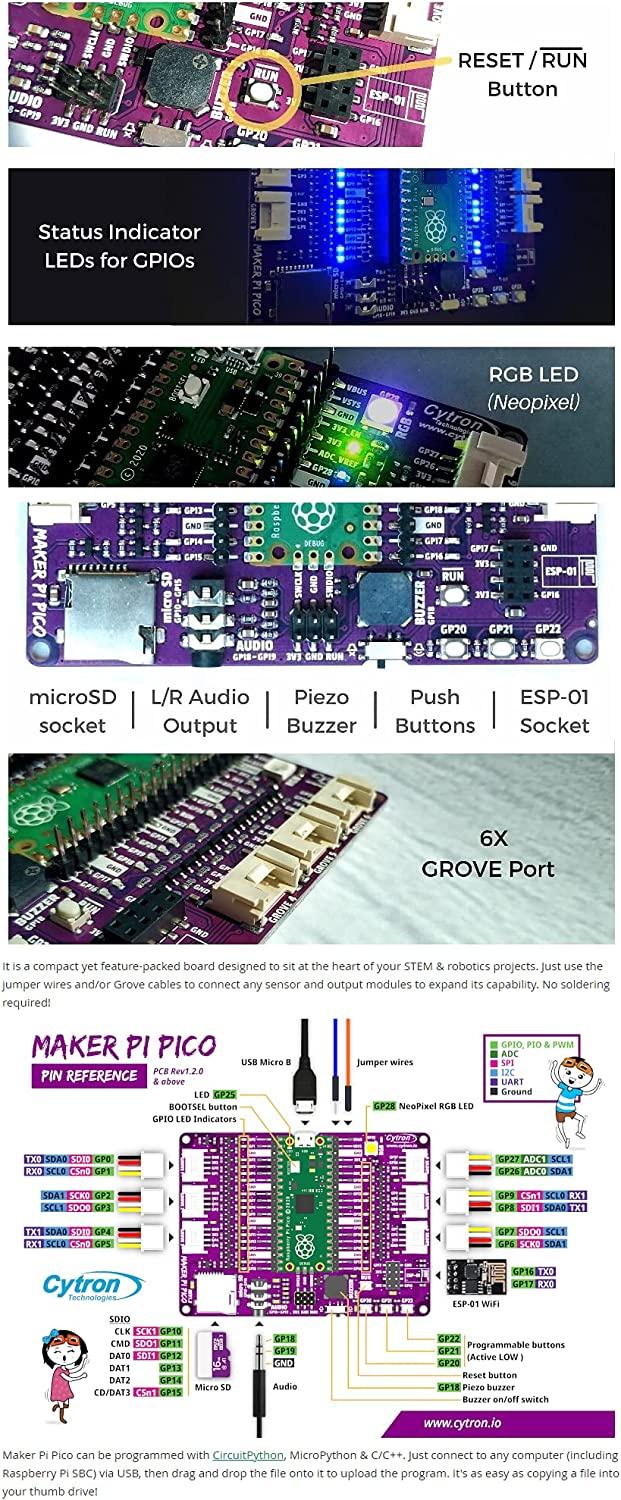

May I add the "Maker Pi Pico" board ;-)

Just discovered & ordered it (rasppishop.de € 13,99 + € 4,99 S&H)- so I can't tell any more, but the features seem to be interesting.

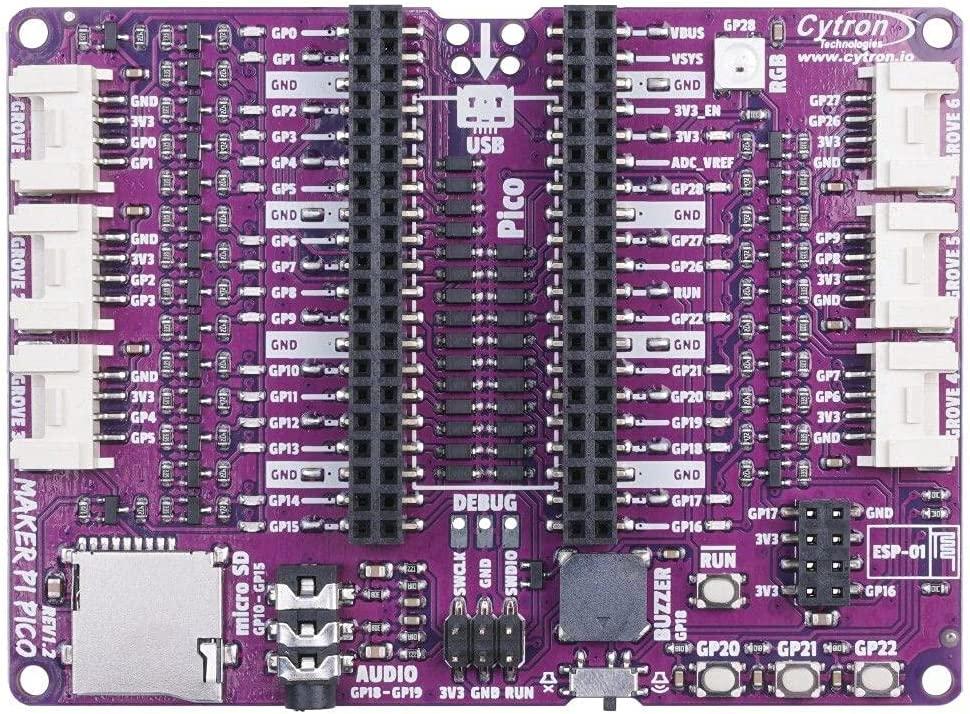

and there is a version with socket:




-andreas
Edited 2023-05-01 03:25 by andreas

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 05:11pm 30 Apr 2023
Copy link to clipboard
Print this post

I think matherp has one of those, Andreas. :)
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 05:27pm 30 Apr 2023
Copy link to clipboard
Print this post

  Mixtel90 said  I think matherp has one of those, Andreas. :)


Thanks for info!

Then I suppose PicoMite/WebMite runs on it or is the fixed assignments of some pins to external devices a problem?

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 05:31pm 30 Apr 2023
Copy link to clipboard
Print this post

No idea. I think he found a couple of problems with it, but I've no idea if he fixed them.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9129
Posted: 05:40pm 30 Apr 2023
Copy link to clipboard
Print this post

It is perfectly useful as a breakout. The only issue I remember was that trying to use the buzzer reset the Pico

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 06:36pm 30 Apr 2023
Copy link to clipboard
Print this post

  matherp said  It is perfectly useful as a breakout. The only issue I remember was that trying to use the buzzer reset the Pico


I can't wait to get it

-anreas

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 06:48pm 30 Apr 2023
Copy link to clipboard
Print this post

  matherp said  The only issue I remember was that trying to use the buzzer reset the Pico

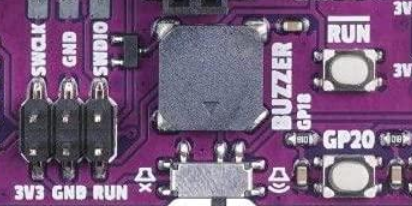

May be there was a shortcut or inductive spikes because the piezo is in the near of the reset button and connection between the reset button and the run header runs under the buzzer from top to left side. May be this connection works like an "antenna".



-andreas

JanVolk
Senior Member

Joined: 28/01/2023
Location: Netherlands
Posts: 145
Posted: 08:59pm 30 Apr 2023
Copy link to clipboard
Print this post

This was my first Raspberry Pi Pico board and MAKER PI PICO board and works perfectly to experiment with and has plenty of spare parts on it all supported by PicoMite Basic.
I modified it a bit by interrupting the LED voltage on the bottom by interrupting the relevant pad. Now it appears that the pins of the external DEBUG are not connected by default, so I use the SWCLK pin to connect to the 3V3 of the LEDs GP14 and GP15 on top of the PCB with a thin insulated wire via the free path.
This way I can make a jumper link on top of the print to provide the LEDs with 3V3 power or not. And insulate the bottom of the interruption with a drop of second glue.
Good luck.

JanVolk
Senior Member

Joined: 28/01/2023
Location: Netherlands
Posts: 145
Posted: 09:19pm 30 Apr 2023
Copy link to clipboard
Print this post

Please note this only applies to the MAKER PI PICO board with separate Raspberry Pi Pico.
I also placed nylon spacers against short circuits and mounted a DS3231 RTC print via the nylon bushes and support bushes on the bottom so that date and time can be kept on the SD card.
Good luck

Pilot352
Newbie

Joined: 12/08/2020
Location: United States
Posts: 34
Posted: 11:47am 08 Jun 2023
Copy link to clipboard
Print this post

As I mentioned in an earlier post, I have a friend from Romania who said they would see if they can get a few. Well, I just got four of them yesterday and I will be evaluating them in the next week or so. Stay tuned...

-Pilot
