Forum Index : Microcontroller and PC projects : PicoMite/PicoMiteVGA/WebMite V5.07.07 release candidates
Page 1 of 13   |
|||||
| Author | Message | ||||
| matherp Guru  Joined: 11/12/2012 Location: United KingdomPosts: 9130 |
V5.07.07RC1 https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip Note rename of PicoMiteWeb to WebMite in preparation for magazine articles Fixes bug in PLAY SOUND when switching from B to L or R Implements PLAY FLAC - same as PLAY WAV but for FLAC files I did have one more go at mp3 but the m0+ core just can't hack it Known issues: There is something strange with DATA/READ statements in the Library. This is with Gerry for further investigation and will be sorted or the limitations documented before final release |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9130 |
V5.07.07RC2 https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip Bug in DATA/READ in library now fixed - thanks Gerry Now works like MM2 Change to using a MCP48n2 DAC for audio output OPTION AUDIO SPI CSpin, CLKpin, SDIpin Tie LDAC to GND This saves a pin and with a tweak to timing is now working Minor tweaks to PLAY WAV and PLAY FLAC to avoid unnecessary extra interrupts |
||||
| okwatts Regular Member  Joined: 27/09/2022 Location: CanadaPosts: 59 |
IN reference to an oddity that I noticed between different versions(Picomite vs Webmite) in beta34, this still exists in RC2. picocom v3.1 port is : /dev/ttyACM1 flowcontrol : none baudrate is : 115200 parity is : none databits are : 8 stopbits are : 1 escape is : C-a local echo is : no noinit is : no noreset is : no hangup is : no nolock is : no send_cmd is : sx -vv receive_cmd is : rx -vv imap is : omap is : emap is : crcrlf,delbs, logfile is : none initstring : none exit_after is : not set exit is : no Type [C-a] [C-h] to see available commands Terminal ready > option list PicoMite MMBasic Version 5.07.07RC2 OPTION FLASH SIZE 16777216 > xmodem receive *** file: mmandel2.bas $ sx -vv mmandel2.bas Sending mmandel2.bas, 9 blocks: Give your local XMODEM receive command now. Xmodem sectors/kbytes sent: 0/ 0kRetry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: NAK on sector Retry 0: Retry Count Exceeded Transfer incomplete *** exit status: 128 *** Error : Remote did not respond > > files A:/ <DIR> . <DIR> .. 00:00 01-01-2000 4 bootcount 2 directories, 1 file > memory Program: 0K ( 0%) Program (0 lines) 128K (100%) Free Saved Variables: 16K (100%) Free RAM: 0K ( 0%) 0 Variables 0K ( 0%) General 156K (100%) Free > picocom v3.1 port is : /dev/ttyACM0 flowcontrol : none baudrate is : 115200 parity is : none databits are : 8 stopbits are : 1 escape is : C-a local echo is : no noinit is : no noreset is : no hangup is : no nolock is : no send_cmd is : sx -vv receive_cmd is : rx -vv imap is : omap is : emap is : crcrlf,delbs, logfile is : none initstring : none exit_after is : not set exit is : no Type [C-a] [C-h] to see available commands Terminal ready > option list PicoMiteWEB MMBasic Version 5.07.07RC2 > xmodem receive *** file: mmandel2.bas $ sx -vv mmandel2.bas Sending mmandel2.bas, 9 blocks: Give your local XMODEM receive command now. Xmodem sectors/kbytes sent: 0/ 0kRetry 0: NAK on sector Retry 0: NAK on sector Bytes Sent: 1152 BPS:62898 Transfer complete *** exit status: 0 *** Saved 1137 bytes > > files A:/ <DIR> . <DIR> .. 00:00 01-01-2000 4 bootcount 2 directories, 1 file > memory Program: 1K ( 1%) Program (46 lines) 79K (99%) Free Saved Variables: 16K (100%) Free RAM: 0K ( 0%) 0 Variables 0K ( 0%) General 106K (100%) Free > Is it just me or have others noted this. |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9130 |
This is correct XMODEM R loads the program into memory MMEDIT uses XMODEM R fname$ which saves the file to the A: drive unless otherwise specified in fname$ This is all explained in the manual |
||||
| JanVolk Senior Member  Joined: 28/01/2023 Location: NetherlandsPosts: 145 |
Peter, Thanks for the hard work and the wonderful version and now running on 4 of my systems with the latest versions and no problems seen yet.  Now to update the manual, everything has been translated into Dutch and is already over 375 pages and is only for the standard PicoMite. Haven't worked with the PicoMiteVGA yet, but collected the hardware and have been working on the PicoMiteWeb version and it also runs fine, but still a lot to learn. Jan. |
||||
TassyJim Guru Joined: 07/08/2011 Location: AustraliaPosts: 6101 |
Webmite new name has not filtered through to the option list etc > OPTION LIST PicoMiteWEB MMBasic Version 5.07.07RC2 > print mm.device$ PicoMiteWeb > (Just to show I am awake) Jim VK7JH MMedit MMBasic Help |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9130 |
Thanks Jim - I've updated the download - still RC2 |
||||
| okwatts Regular Member Joined: 27/09/2022 Location: CanadaPosts: 59 |
It maybe that I am not understanding but the xmodem receive used to work for version 5.07.06, it did not save to the flash but it did reside in "memory" and could be listed as in the webmite instance but this is not the case for the Picomite version in RC2. I have not checked with PicomiteVGA to see which way it behaves. |
||||
| TassyJim Guru Joined: 07/08/2011 Location: AustraliaPosts: 6101 |
XMODEM RECEIVE works as usual here on my 'standard' picomite > Processing file: C:\Users\Jim\Documents\myapps\maximite\apps - Copy\desk_clock.bas > 2 directories, 1 file Blocks: 4 XMODEM RECEIVE "desk_clock.bas" Transfer completed OK! Finished 2 directories, 2 files > MMEdit uses AUTOSAVE to save to active program memory (much quicker) so I haven't tested that. Jim Edited 2023-04-05 08:07 by TassyJim VK7JH MMedit MMBasic Help |
||||
| okwatts Regular Member Joined: 27/09/2022 Location: CanadaPosts: 59 |
Perhaps it's a linux thing using picocom and the sx protocol but it does work for WebMite but not PicoMite and PicoMiteVGA (just checked that). In the last two instances xmodem fails but if I include the filename the file is created but is empty. For these last cases it did work as advertised in 5.7.06 Mysteries I guess, but if I use MMedit on linux it does work. Not knowing the source and what may have changed between versions I can only report my experience. EDIT Okay it does appear that in linux with my setup there is an issue that wasn't apparent before. I just tried in Teraterm on WIn 10 and it works fine! Let that be a lesson to me. Edited 2023-04-05 09:29 by okwatts |
||||
| robert.rozee Guru Joined: 31/12/2012 Location: New ZealandPosts: 2350 |
try: sudo apt-get remove modemmanager modemmanager is a most hateful package that has no place on a modern linux computer. it handles automatic configuration of an AT compatible dialup modem plugged into a serial port, which is something almost nobody uses any more. it also sometimes 'messes' with serial port traffic when trying to decide if a modem is there. cheers, rob :-), Edited 2023-04-05 10:53 by robert.rozee |
||||
homa Guru Joined: 05/11/2021 Location: GermanyPosts: 351 |

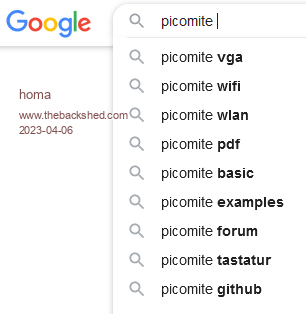

Hello Peter. First, thanks for the new release candidates! I was most happy about the new FLAC support. Also that now for a DAC was decided. Order to rebuild is already out. What I do not understand now is the new naming or renaming? PicoMite/PicoMiteVGA/WebMite The basic name PicoMite with the additions VGA or WEB are ideal to differentiate. Nevertheless, the platform for the microcontroller "Raspberry Pi Pico (W)" becomes clear by the naming. WebMite does not do this in my opinion! And google once for "picomite" ... it comes then also the suitable suggestions!  But it is of course your and Geoff his decision. And I will live with it :-) But a meaningful public relations should be logical and long-term. By the way in the German make it was tagged with Webserver on PicoMite Matthias |
||||
| homa Guru Joined: 05/11/2021 Location: GermanyPosts: 351 |
There is a problem with the cursor on the VGA display in Edit mode. In the case of New, it does not appear or only appears when lines of commands have been entered. Then the cursor reappears in between. It is displayed in the terminal, but slips when it is displayed in the line. Especially at the end of the source... > option list PicoMiteVGA MMBasic Version 5.07.07RC2 OPTION SYSTEM I2C GP14,GP15 OPTION COLOURCODE ON OPTION KEYBOARD GR OPTION SDCARD GP13, GP10, GP11, GP12 OPTION AUDIO GP4,GP5, ON PWM CHANNEL 2 > |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9130 |
Thanks for the report - will fix |
||||
| homa Guru Joined: 05/11/2021 Location: GermanyPosts: 351 |
Found another error:  Keyword: colour defects |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9130 |
That is correct. Colouring only happens for defined commands and functions. Pause happens to be a valid command. Resume isn't |
||||
| aFox Regular Member Joined: 28/02/2023 Location: GermanyPosts: 76 |
I agree with Matthias. WebMite sounds like a fork of PicoMite but it is only a different version. The link to the Pico is lost also. Gregor Edited 2023-04-09 08:56 by aFox |
||||
| Amnesie Guru Joined: 30/06/2020 Location: GermanyPosts: 396 |
I feel the same. WebMite has lost the Pico... This is not good for a search engine and since every iteration is somehow linked to the "Pico" word it indeed makes sense. But just my opinion :) Maybe there is a good reason for that? Greetings Daniel |
||||
| matherp Guru Joined: 11/12/2012 Location: United KingdomPosts: 9130 |
V5.07.07RC3 https://geoffg.net/Downloads/picomite/PicoMite_Beta.zip WARNING: This version will erase all options and flash memory but NOT flash files Fixes bug in editor in VGA version not showing cursor Enhancements to WEB SCAN: Duplicates no longer shown WEB SCAN [array%()] Optionally sends the output to a long string TRACE command is now Library aware. The test for the Library is corrected when TRACE ON is applied, for TRACE LIST, [Lib] is shown for the line number in the library. LIBRARY command can now be use in compound statements allowing better use in programmable functions |
||||
| Andrew_G Guru Joined: 18/10/2016 Location: AustraliaPosts: 847 |
Thanks Peter! Cheers, Andrew |
||||
