Forum Index : Microcontroller and PC projects : PicoMiteWeb and Pico Breadboard Kit

Author

Message

ebsebs
Newbie

Joined: 24/02/2012
Location: United States
Posts: 9

Posted: 01:03am 18 Mar 2023

Copy link to clipboard

Print this post

I just got this Pico Breadboard kit (https://www.amazon.com/dp/B0BF5G8ZQJ) and I'm trying to use the LCD panel with a Raspberry Pi Pico W running PicoMiteWeb.

The LCD panel connections are shown in the next to last picture in the Amazon listing (https://m.media-amazon.com/images/I/61mcpYimVYL._AC_SL1000_.jpg) and I'll list them here:

Pi Pico LCD
------- ---
GPIO14 RST (RESET)
GPIO13 CS (CHIP SELECT)
GPIO6 RS (is this DATA/COMMAND?)
GPIO15 WR (WRITE?)
GPIO7 SDI (SERIAL DATA IN, MOSI?)

I tried these commands, but they don't work. I think I may have the wrong pin specified for the LCD DC pin.

OPTION SYSTEM SPI GP6, GP7, GP4
OPTION LCDPANEL ILI9341, L, GP15, GP14, GP13

I also tried this, but I got an error message about 'GP6 is reserved on startup'.

OPTION LCDPANEL ILI9341, L, GP6, GP14, GP13

Is there someone who knows more about this board/LCD and can suggest how to get it working? Or is it likely that it just won't work with PicoMiteWeb because of the pin assignments?

Thanks for any and all suggestions!
Edited 2023-03-18 11:10 by ebsebs

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1873

Posted: 01:37am 18 Mar 2023

Copy link to clipboard

Print this post

I don't think the Pico-W is designed to use an LCD panel.

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

Andy-g0poy
Regular Member

Joined: 07/03/2023
Location: United Kingdom
Posts: 59

Posted: 02:11am 18 Mar 2023

Copy link to clipboard

Print this post

You might find this useful:
https://wiki.52pi.com/index.php?spm=a2g0o.detail.1000023.1.656894acdmXq8v&title=EP-0164

You might find this useful:
https://wiki.52pi.com/index.php?spm=a2g0o.detail.1000023.1.656894acdmXq8v&title=EP-0164

right at the bottom is a link to some python code that gives a few clues.

Poking through this I got:

option lcdpanel ili9341, L , 15, 14, 13
which agrees with your setting.

an d

option system spi 6, 7, 8

which does not. I can't see where you got pin 4 from as that's not listed on the connections.

Not sure about the GP6 error, but if you just tried to redefine the spi settings, that does not work, you have to rest the settings first then redo the lot.

Andy

ebsebs said I just got this Pico Breadboard kit

Pi Pico LCD
------- ---
GPIO14 RST (RESET)
GPIO13 CS (CHIP SELECT)
GPIO6 RS (is this DATA/COMMAND?)
GPIO15 WR (WRITE?)
GPIO7 SDI (SERIAL DATA IN, MOSI?)

palcal

Guru

Joined: 12/10/2011
Location: Australia
Posts: 1873

Posted: 02:46am 18 Mar 2023

Copy link to clipboard

Print this post

Pete Willard has written a manual so far for the Pico-W you can find it HERE

From that I found this

Quote The maximum number of connections is currently limited to 8.
 This variant of MMBASIC for the PICOMITE drops support for the GUI commands and related
functionality. This capability has been replaced with the ability to utilize HTML code to create GUI
interfaces and web browsers to interface with them.

Edited 2023-03-18 12:47 by palcal

"It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all"

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2141

Posted: 04:05am 18 Mar 2023

Copy link to clipboard

Print this post

Perhaps it would be best to start with the standard PicoMite firmware as that is known to work well with the ILI9341. Then when you have the pin assignments sorted try the PicoMiteWeb firmware again.

The PicoMiteWeb firmware is still in alpha testing phase, so there may be some things not yet perfected.
Edited 2023-03-18 14:08 by phil99

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9139

Posted: 08:35am 18 Mar 2023

Copy link to clipboard

Print this post

PicoMiteWeb works perfectly with LCD panels exactly like the PicoMite. I have one running on Mixtel's backpack PCB with a ili9341, touch and sdcard no issues.

HOWEVER, that PCB appears to be another moron-level design that uses different pins for SPI on touch and the LCD AND, even worse, the LCD pins aren't even on H/W SPI compatible pins (GP7/GP15 both with bizarre naming)
Edited 2023-03-18 18:41 by matherp

ebsebs
Newbie

Joined: 24/02/2012
Location: United States
Posts: 9

Posted: 08:51pm 18 Mar 2023

Copy link to clipboard

Print this post

Hi Peter,

That was the answer I didn't want, but it was the one I was expecting.

Thanks for confirming that PicoMiteWeb does indeed work with LCD/touch panels, just not with this design.

I guess this board goes back to Amazon and I'll get a separate LCD panel and hook it up myself.

Thanks to everyone who responded so quickly and helped me figure this out.

ebsebs
Newbie

Joined: 24/02/2012
Location: United States
Posts: 9

Posted: 05:14pm 19 Mar 2023

Copy link to clipboard

Print this post

Peter,

Can you (or anyone else) suggest a similar 2.8" LCD panel that's easy to interface with the Pi Pico and PicoMiteWeb?

Some buttons would also be handy, but I'm mainly interested in the LCD.

Thanks!

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9139

Posted: 06:18pm 19 Mar 2023

Copy link to clipboard

Print this post

Easiest by far is this

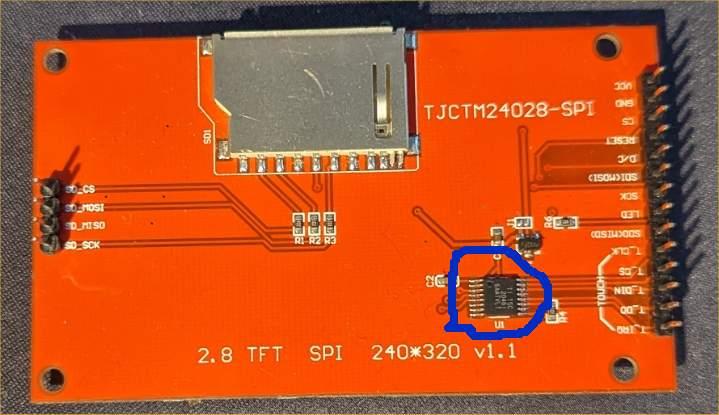

Otherwise a ILI9341 off ebay but if you want touch make sure it has the chip fitted

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6814

Posted: 07:21pm 19 Mar 2023

Copy link to clipboard

Print this post

I'm just experimenting with an idea for mounting the Waveshare board onto a PCB rather than plugging the PicoMite into it. That way you can get at the spare IO connections.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

ebsebs
Newbie

Joined: 24/02/2012
Location: United States
Posts: 9

Posted: 11:24pm 19 Mar 2023

Copy link to clipboard

Print this post

Peter,

I think I'm going to get the 3.5" version of the Waveshare PicoRes-Touch board, with the 480x320 pixel panel.

It uses an ILI9488 controller that looks like it's connected to the MM SPI2 pins (GP10/GP11/GP12 for CLK/MOSI/MISO respectively) and GP8/GP9/GP13/GP15 for LCD DC/CS/BL/RST.

That all seems fine to me, but is there anything I'm missing?

Regards,

Eric

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2141

Posted: 12:11am 20 Mar 2023

Copy link to clipboard

Print this post

Search TBS for that panel. There may be more than one version and complications in using it.
eg.
https://www.thebackshed.com/forum/ViewTopic.php?TID=11419&PID=194418#194418#194418

The AliExpress versions of the ILI9488 can be adapted more readily.
https://www.thebackshed.com/forum/ViewTopic.php?TID=15523&PID=197310#197310#197310
Edited 2023-03-20 10:18 by phil99

ebsebs
Newbie

Joined: 24/02/2012
Location: United States
Posts: 9

Posted: 03:07am 20 Mar 2023

Copy link to clipboard

Print this post

@phil99

Thanks so much for the heads-up!

That is WAY too much bother just to get an LCD panel working.

Unless someone tells me that the ILI9488 boards have all been revised and now are working perfectly

I guess I'll go back to the 2.8 inch boards with the ILI9341, which don't seem to have these problems.

Or do they??
Edited 2023-03-20 13:08 by ebsebs

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2141

Posted: 07:19am 20 Mar 2023

Copy link to clipboard

Print this post

I have the AliExpress versions of the ILI9488 and it works very well with the 10k + diode mod. Many find just the 680R mod satisfactory.

ebsebs
Newbie

Joined: 24/02/2012
Location: United States
Posts: 9

Posted: 03:16pm 20 Mar 2023

Copy link to clipboard

Print this post

@phil99 and @matherp

Thanks for the information on the ILI9488 boards, but right now I really just want a "plug and play" solution, without having to tack on components.

Can anyone tell me if the 2.8" ILI9341 WaveShare board works without modification?

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9139

Posted: 03:40pm 20 Mar 2023

Copy link to clipboard

Print this post

The waveshare ili9488 is fine, fully supported, but doesn't support blit
The 2.8" is fully supported with blit

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6814

Posted: 03:41pm 20 Mar 2023

Copy link to clipboard

Print this post

If you mean the one linked to by matherp above then, yes it works just as it is. If it's not that one then I don't know. :)

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

ebsebs
Newbie

Joined: 24/02/2012
Location: United States
Posts: 9

Posted: 07:43pm 20 Mar 2023

Copy link to clipboard

Print this post

@matherp and @Mixtel90 and @phil99,

I just ordered one of the 3.5" panels. Thanks for all your help.

Regards,
Eric

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6814

Posted: 08:10pm 20 Mar 2023

Copy link to clipboard

Print this post

I'm not sure, but I think that uses the ILI9488 driver. Someone else may know the settings for that board.

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs
