Forum Index : Microcontroller and PC projects : PicoMite is fun
| Author | Message | ||||
| pwillard Senior Member  Joined: 07/06/2022 Location: United StatesPosts: 292 |
Ok, so I'm a noob. But so far, my experience with the picomite (over serial until I get some additional parts) has been great. 1) I never hated basic 2) I got my first "boot to basic" computer back in 1982 2) This has been a very nostalgic experience so far. My 80's era home computer could only wish to do what my Pico can do... so I've been giving myself challenges. My latest challenge is to get this to work: TM1637  It's a bit tricky since it's basically a shift register (but not actually SPI) since it combines MISO and MOSI into a single bi-directional pin. It sends an ACK after 8 bits of sent data from the MCU. So, direction switching is needed. I have the beginnings of the code done... but the PICO seems up to the task of doing this handshake very "manually". Anyway... off to the workbench to experiment some more. Edited 2022-06-09 20:03 by pwillard |
||||
| matherp Guru  Joined: 11/12/2012 Location: United KingdomPosts: 9110 |
This thread may give you some ideas |
||||
| pwillard Senior Member Joined: 07/06/2022 Location: United StatesPosts: 292 |

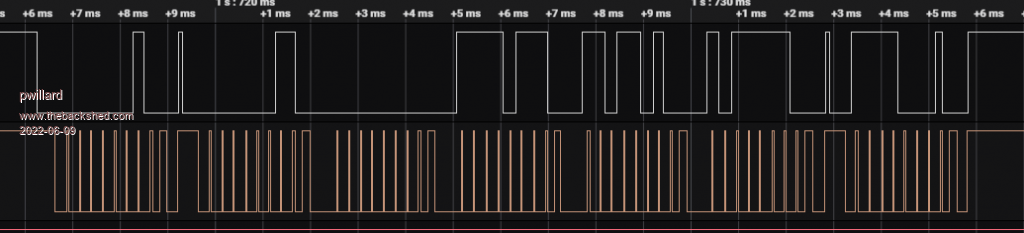

 Haha... Now, why didn't I find that? And it's cool that my write-byte code is similar, so I'm on the right track. That datasheet is bloody awful. Much thanks Follow-up: Using the example code provided, with some quick edits and a couple of added 'pause 0.01' commands... I got it working on my Pico. It was kind of gibberish until I added delays near the clock pulses. You saved me a ton of experimenting and it's appreciated. Edited 2022-06-09 23:25 by pwillard |
||||
| DaveJacko Regular Member  Joined: 25/07/2019 Location: United KingdomPosts: 76 |
hi, pwillard would you mind posting your code? I had this display working on the micromite, but despite putting a pause 0.01 after every clock or data change, I'm still getting many spurious segments  Thanks if you do, and thanks if you don't regs Dave |
||||
| pwillard Senior Member Joined: 07/06/2022 Location: United StatesPosts: 292 |
I'll need to track it down... OK, this is not something I'm using at the moment... but it worked the last time I tried it (pretty sure) tm1637 pico time Edited 2024-05-09 23:40 by pwillard |
||||
| DaveJacko Regular Member Joined: 25/07/2019 Location: United KingdomPosts: 76 |
thanks Pete ! |
||||
palcal Guru Joined: 12/10/2011 Location: AustraliaPosts: 1873 |
@ DaveJacko, did you get this code to work, I'm connecting and getting the time but the display is blank. @ pwillard any ideas "It is better to be ignorant and ask a stupid question than to be plain Stupid and not ask at all" |
||||
| DaveJacko Regular Member Joined: 25/07/2019 Location: United KingdomPosts: 76 |
No joy I have my own code that ** worked 100% on the Micromite, ** but produces largely random segments on the Pico. I found that adding 5k pullups maybe improves things a bit. althought there are 10k's on module I'm going to add delays after every pin-change, maybe try lower cpuspeed here's the code.. ' Time Bomb countdown demo 7 seg driver ' Dave J 2024 mins=1 'countdown starts at secs=9 'dat=gp14 'clk=gp15 init mnlp: Pause 500 colon=colon Xor &H80 If colon Then secs=secs-1 If secs=-1 Then secs=59 mins=mins-1 EndIf If mins=-1 Then mins=0:secs=0 EndIf s$=Str$(secs,2,0,"0") m$=Str$(mins,2,0,"0") start wrtb(&H40) 'comm1 stop ' Write COMM2 + first digit address ?? start wrtb(&HC0) 'comm2 wrtb(dgt%(Asc(Mid$(m$,1,1))-48)) wrtb(dgt%(Asc(Mid$(m$,2,1))-48)Or colon) wrtb(dgt%(Asc(Mid$(s$,1,1))-48)) wrtb(dgt%(Asc(Mid$(s$,2,1))-48)) stop GoTo mnlp '------------------- subs Sub wrtb(b As integer) '--- write byte tb=b For i=0 To 7 SetPin gp15,dout 'clk lo If (tb And 1) Then 'set bit SetPin gp14,din Else SetPin gp14,dout EndIf SetPin gp15, din 'clk hi tb= tb >> 1 Next i SetPin gp15, dout 'clk lo SetPin gp14, din 'release dat SetPin gp15, din 'clk hi 'check ack here? SetPin gp15, dout 'clk lo End Sub Sub start '-------- start SetPin gp14,dout 'dat lo End Sub Sub stop '--- stop SetPin gp14, dout 'dat lo SetPin gp15, din ' clk hi ' SetPin gp14, din ' dat hi End Sub Sub init '---- initialise TM1637 Pin(gp14)=0 Pin(gp15)=0 SetPin gp14,din,pullup SetPin gp15,din,pullup Dim dgt%(9)=(&H3F,&H06,&H5B,&H4F,&H66,&H6D,&H7D,&H07,&H7F,&H6F) ' ,&H77,&H7C,&H39,&H5E,&H79,&H71) 'A..F ' degree symbol is &H63, C is &H39 ' colon - or 2nd digit with &H80 start 'reset, enable, brightness wrtb(&H80+8+7) '0=dim stop End Sub |
||||
