Forum Index : Microcontroller and PC projects : MM.DEVICE$. For Picomite?

Author Message
Turbo46

Guru

Joined: 24/12/2017
Location: Australia
Posts: 1687
Posted: 05:59am 21 Apr 2026
Copy link to clipboard
Print this post

Does anyone know where to find What MM.DEVICE$ returns for each Pico platform? It's not in the manual.

Thanks
Bill
Keep safe. Live long and prosper.

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 3156
Posted: 06:08am 21 Apr 2026
Copy link to clipboard
Print this post

Here is a couple of them.
> ? MM.DEVICE$
PicoMiteVGA RP2350A
> option list
PicoMiteVGA MMBasic RP2350A Edition V6.02.01

> ? MM.DEVICE$
PicoMite
A:> option list
PicoMite MMBasic RP2040 V6.02.01

> ? MM.DEVICE$
WebMite
> option list
WebMite MMBasic RP2040 Edition V6.00.03

Edited 2026-04-21 16:09 by phil99

Supertech

Regular Member

Joined: 13/11/2016
Location: Australia
Posts: 63
Posted: 06:27am 21 Apr 2026
Copy link to clipboard
Print this post

It may be found in the current manual, found here, and certainly is NOT missing,

https://geoffg.net/Downloads/picomite/PicoMite_User_Manual.pdf

Page 95,

3rd item down list on left,

MM.DEVICE$

And I use it regularly on 4 different hardware's that does as it says although I have found not so informative on early RP2040 modules.

'Seek and ye shall find' old but good saying.

Regards. Supertech.

mozzie
Senior Member

Joined: 15/06/2020
Location: Australia
Posts: 278
Posted: 07:06am 21 Apr 2026
Copy link to clipboard
Print this post

G'day Bill,
Looks like the returns for MM.Device$ went missing from V5.08.00 to V6.00.01

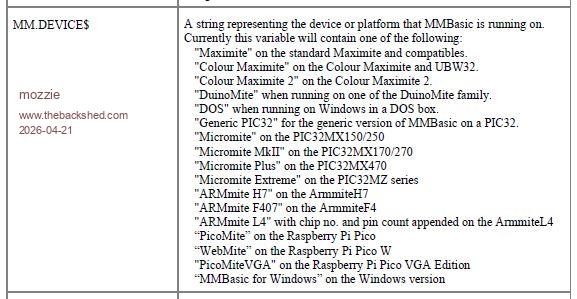

This is the last version found:



I too would have sworn they were in the manual, defective grey matter once again

Regards, Lyle.

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6508
Posted: 07:07am 21 Apr 2026
Copy link to clipboard
Print this post

I haven't kept up with the latest work but this is my list for MMEdit.

; This file is 'devicelist.txt' and resides in the Data folder.
; The file is used by MMEdit and MMCC
; In MMEdit select the syntax to match your device as returned with MM.DEVICE$
; In MMEdit, choosing the wrong syntax will result in keywords not showing in the correct colour
; In MMEDit, the syntax is only for visual effects and does not have any other purpose.
; In MMCC, the syntax is used to determine the commands required to transfer files by XMODEM or AUTOSAVE

; New devices can be added and mapped to an existing syntax or a newly created syntax.
; If you add a new syntax, the file 'devicetypes.txt' will also need editing
; Lines starting with ; are comments and the remaining lines are TAB delimited
; blank lines are ignored.
; MM.DEVICE$            Syntax

ARMmite F407            ARMmite
Armmite F407xGT         ARMmite
ARMmite H7              ARMmite
ARMmite L4              ARMmite
Colour Maximite         maximite
Colour Maximite 2       CMM2
Colour Maximite 2 G2    CMM2
DOS                     DOS
DuinoMite               maximite
Generic PIC32           maximite
Maximite                maximite
Micromite               micromite
Micromite Extreme       micromite+
Micromite MkII          micromite
Micromite Plus          micromite+
MMBasic for Linux       MMB4W
MMBasic for Windows     MMB4W
PicoMite                picomite
PicoMite RP2350A        picomite
PicoMite RP2350B        picomite
PicoMiteHDMI RP2350A    picomiteVGA_HDMI
PicoMiteHDMI RP2350B    picomiteVGA_HDMI
PicoMiteHDMIUSB RP2350A picomiteVGA_HDMI
PicoMiteHDMIUSB RP2350B picomiteVGA_HDMI
PicoMiteVGA             picomiteVGA_HDMI
PicoMiteVGA RP2350A     picomiteVGA_HDMI
PicoMiteVGA RP2350B     picomiteVGA_HDMI
PicoMiteVGAUSB          picomiteVGA_HDMI
PicoMiteVGAUSB RP2350A  picomiteVGA_HDMI
PicoMiteVGAUSB RP2350B  picomiteVGA_HDMI
WebMite                 webmite
WebMite RP2350A         webmite
ATTiny85                ATTiny85


Jim
VK7JH
MMedit

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3356
Posted: 12:15pm 21 Apr 2026
Copy link to clipboard
Print this post

With so many variations of MMBasic it became more and more impractical to list the various values of MM.DEVICE$ and keep the list accurate and complete.  That is why the listing disappeared from the manual.

MM.DEVICE$ is quite handy if you want to check that the program is running on the platform that you wrote it for.  In that case you can print its value on the console, then embed the response in the program.  But, I agree, it is not that easy if you want to check if your program is running on a platform that you do not have access to.

Geoff
Geoff Graham - http://geoffg.net

Turbo46

Guru

Joined: 24/12/2017
Location: Australia
Posts: 1687
Posted: 12:22pm 21 Apr 2026
Copy link to clipboard
Print this post



This is from the just downloaded manual. I want to configure a program to cater for various mites and this is no help.

Thanks Jim, I'll go with your information for now. It looks like the only way to find out is to program the Picomites with each version of the firmware and see what:

? MM.DEVICE$

Reports.

Bill
Keep safe. Live long and prosper.

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 4304
Posted: 12:41pm 21 Apr 2026
Copy link to clipboard
Print this post

Jim,

I think you should change the MMB4L string.

For MMBasic for Linux x86_64 v0.7-alpha.1

? mm.device$
MMB4L

John
