disco4now

Guru

Joined: 18/12/2014
Location: Australia
Posts: 897
Posted: 12:06pm 18 Aug 2023
Copy link to clipboard
Print this post

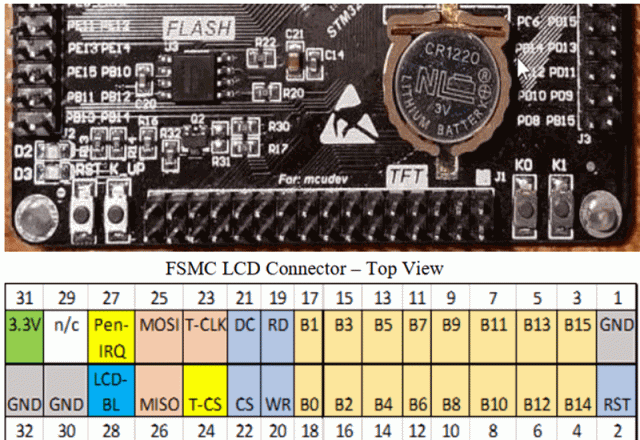

I think the LCD Panel looks corrected. The pins you have on the processor side don't look correct. Further up in this thread there is a link to the manual. Get the latest it has a view of the 34 pin FSMC connector in the Display Panels section.
Looks like this.

Latest F4 Latest H7

flip
Senior Member

Joined: 18/07/2016
Location: Australia
Posts: 114
Posted: 12:34pm 18 Aug 2023
Copy link to clipboard
Print this post

Thanks again. you're right.

I checked and what I ordered as per recommended showed OLD-TFT and
looks like your pin-out....but what I actually got showed New-TFT with different pinout.

I think some cable cross-overing will fix it, but it is a nuisance.
Out of interest (in case this is a trend) I ordered mine 8th Aug and received today...maybe it was just me.

Thanks again.
Regards Phil

okwatts
Regular Member

Joined: 27/09/2022
Location: Canada
Posts: 59
Posted: 12:37am 28 Aug 2023
Copy link to clipboard
Print this post

Just to confirm what flip noticed with the OLD-TFT and the New-TFT I had a similar experience posted in https://www.thebackshed.com/forum/ViewTopic.php?FID=16&TID=16131.
It's a challenge to order unless you get a matched pair.

TrevorH
Senior Member

Joined: 06/04/2018
Location: United Kingdom
Posts: 144
Posted: 10:20pm 28 Aug 2023
Copy link to clipboard
Print this post

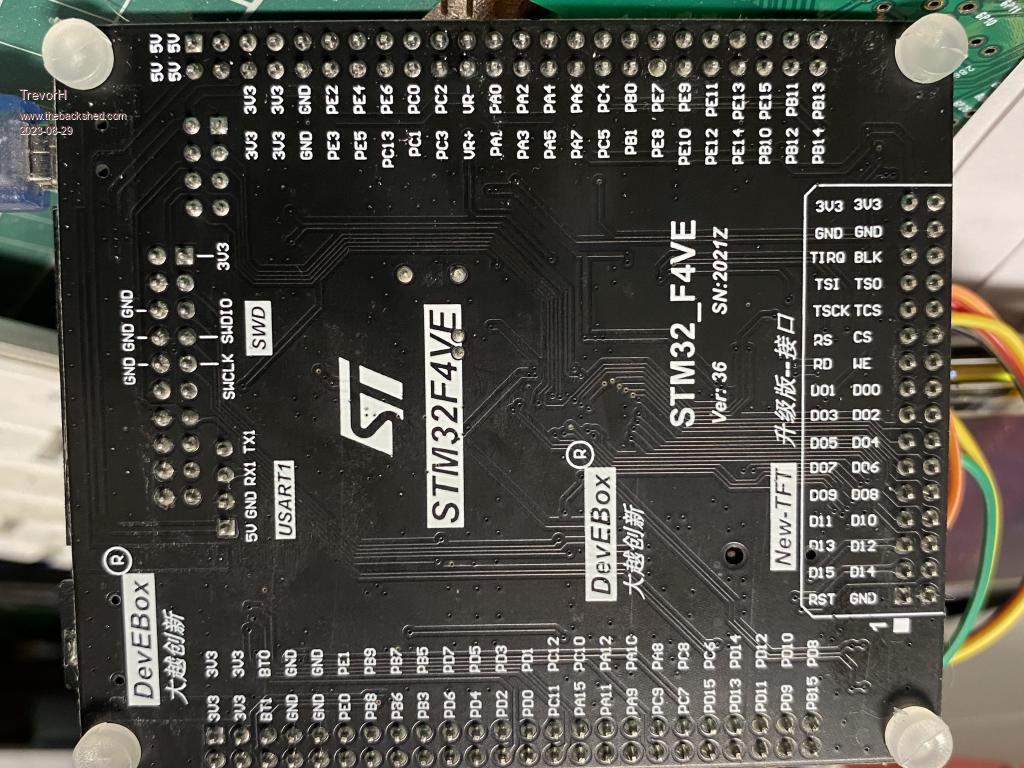

Just to confirm flip's findings, my processor is a Version36 and has the display pinout differences shown. will try to upload a picture (not used this facility yet)

TrevorH

pwillard
Senior Member

Joined: 07/06/2022
Location: United States
Posts: 292
Posted: 12:11am 29 Aug 2023
Copy link to clipboard
Print this post

Its a little tricky if you have no clue about the programmer... but I eventually got it.
Edited 2023-08-29 10:14 by pwillard

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2136
Posted: 12:29am 29 Aug 2023
Copy link to clipboard
Print this post

This one works:-
STM32CubeProgrammer API v 2.6.0
STM32CubeProgrammer release v2.14.0

The user manual can be downloaded by clicking the "?" at bottom left of CubeProgrammer window.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 07:20am 29 Aug 2023
Copy link to clipboard
Print this post

Mina says OLD TFT (not just TFT) on top and bottom of the board and the pin layout is the same as the above manual diagram. The version is V33.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs
