Assume you have an array A!() that is size X (1024)
Your display area is S (320)

Then you create (DIM) an array T!() that is size X-S (in this case 1024-320=704)
DIM T!(X-S)

You copy the first X-S values from array A!() into T!()
You do a dummy=MATH(MIN T!(),trigger)
trigger will be a pointer that is between 0 and X-S in array T!()

Use the same trigger as a pointer in array A!() and you will always have sufficient display points for your window.

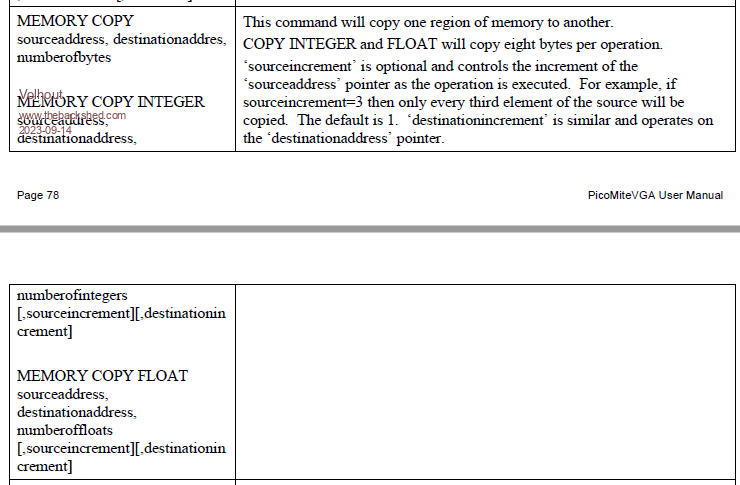

copying part of an array into another can be done using MEMORY COPY FLOAT



The memory address you get from PEEK(VARADDR   )



So the code for that would be (untested !! currently no pico at hand)

MEMORY COPY FLOAT PEEK(VARADDR A!()), PEEK(VARADDR T!()), X-S


This would be a relatively fast way of doing it...

Volhout
Edited 2023-09-14 17:21 by Volhout
PicomiteVGA PETSCII ROBOTS

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 05:26pm 15 Sep 2023
Copy link to clipboard
Print this post

  Volhout said  Assume you have an array A!() that is size X (1024)
Your display area is S (320)

Then you create (DIM) an array T!() that is size X-S (in this case 1024-320=704)
DIM T!(X-S)

You copy the first X-S values from array A!() into T!()
You do a dummy=MATH(MIN T!(),trigger)
trigger will be a pointer that is between 0 and X-S in array T!()

Use the same trigger as a pointer in array A!() and you will always have sufficient display points for your window.

copying part of an array into another can be done using MEMORY COPY FLOAT



The memory address you get from PEEK(VARADDR   )



So the code for that would be (untested !! currently no pico at hand)

MEMORY COPY FLOAT PEEK(VARADDR A!()), PEEK(VARADDR T!()), X-S

easy for some but thanks sir.I'll sort it asap. doh I'm dim:( sorry

This would be a relatively fast way of doing it...

Volhout

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135
Posted: 10:48pm 15 Sep 2023
Copy link to clipboard
Print this post

Look at the bottom of the previous page. What Volhout described above is tested and working in my scope program. It can be adapted to yours quite easily.

carlschneider
Senior Member

Joined: 04/08/2023
Location: South Africa
Posts: 158
Posted: 03:33am 16 Sep 2023
Copy link to clipboard
Print this post

Hi there

I have been browsing with interest and wonder if any consideration has been given to DSO capabilities?

This link  may be the seed...
Cheers Carl
Retirement is tough on Hobbies without a day job

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135
Posted: 04:01am 16 Sep 2023
Copy link to clipboard
Print this post

  Quote  wonder if any consideration has been given to DSO capabilities?

All the scope programs in this thread are rudimentary DSOs. Make the buffer arrays much bigger and add a means to scan back and forth and you have a proper DSO.

@Stan,
Here is the last scope program you posted with the trigger replaced with the Memory Copy version. it now gives a nice stable display.
Dim integer indx%,x%
Dim float samples!(640), samples2(320) '320 = 640-screen width

samp1.addr = Peek(VARADDR samples!()) 'find the memory address of the start of the in/out array
samp2.addr = Peek(VARADDR samples2()) 'find the memory address of the start of the temp array

SetPin (31), AIn 'this is adc input pin
ADC open 50000,1 'this is sampling rate
FRAMEBUFFER CREATE F:FRAMEBUFFER LAYER L:FRAMEBUFFER WRITE L 'all graphics to layer L
Line 159,0,159,239,,RGB(blue)
Line 0,119,319,119,,RGB(blue) 'draw cross to layer L
FRAMEBUFFER WRITE F 'all graphics to framebuffer

Do
  ADC start samples!() 'get new samples
  Math scale samples!(),199/3.3,samples!():Math add samples!(),20,samples!()

 'trigger
 ' c%=0
 ' Do :If samples!(c%+1) > 0.1 Then If samples!(c%) < 0.2 Then Exit
 ' Inc c%:Loop While c%<240

 'trigger
  Memory copy FLOAT samp1.addr, samp2.addr, 321 'copy to shorter temp array
  low! = Math(Min samples2(),indx%)  ':Print low!,indx% 'find the index of the minimum
  Memory copy FLOAT samp1.addr + indx% * 8, samp1.addr, 321 'copy back to intput array, starting at indx%

  FRAMEBUFFER COPY L,F 'copy cross on layer L to framebuffer
  For x%=1 To 320 'screen width
    Line x%,240-samples!(x%),x%,240-samples!(x%-1),,RGB(red)  'draw new sample from sample(c%)
    Pixel x%,240-samples!(x%),RGB(white) 'plot new sample from sample(c%)
  Next x%

  FRAMEBUFFER COPY F,N 'copy frame buffer to display
Loop
 Edit.
To eliminate the output array the temp array is copied back to the input array.
Edited 2023-09-16 15:39 by phil99

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 07:01am 16 Sep 2023
Copy link to clipboard
Print this post

  carlschneider said  Hi there

I have been browsing with interest and wonder if any consideration has been given to DSO capabilities?

This link  may be the seed...


Sort of. :)
It can look like a 'scope and behave somewhat like a 'scope (especially if you add an analogue front end to give Y shift and gain switching switching) but it's very rudimentary performance-wise. Even the infamous DSO130 kit from ebay has better frequency performance, I think. This is definitely a fun project, but with an absolute max 500 ksps with one trace or 250 lsps with two it's not going to set records, even as an audio 'scope.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 03:41pm 17 Sep 2023
Copy link to clipboard
Print this post

  phil99 said
  Quote  wonder if any consideration has been given to DSO capabilities?

All the scope programs in this thread are rudimentary DSOs. Make the buffer arrays much bigger and add a means to scan back and forth and you have a proper DSO.

@Stan,
Here is the last scope program you posted with the trigger replaced with the Memory Copy version. it now gives a nice stable display.
Dim integer indx%,x%
Dim float samples!(640), samples2(320) '320 = 640-screen width

samp1.addr = Peek(VARADDR samples!()) 'find the memory address of the start of the in/out array
samp2.addr = Peek(VARADDR samples2()) 'find the memory address of the start of the temp array

SetPin (31), AIn 'this is adc input pin
ADC open 50000,1 'this is sampling rate
FRAMEBUFFER CREATE F:FRAMEBUFFER LAYER L:FRAMEBUFFER WRITE L 'all graphics to layer L
Line 159,0,159,239,,RGB(blue)
Line 0,119,319,119,,RGB(blue) 'draw cross to layer L
FRAMEBUFFER WRITE F 'all graphics to framebuffer

Do

Ta but errors
>
RUN
[7] samp1.addr = Peek(VARADDR samples!()) 'find the memory address of the start of the in/out array
Error : SAMP1.ADDR is not declared
>
dunno how to declare it, if I try says already declared.
  ADC start samples!() 'get new samples
  Math scale samples!(),199/3.3,samples!():Math add samples!(),20,samples!()

 'trigger
 ' c%=0
 ' Do :If samples!(c%+1) > 0.1 Then If samples!(c%) < 0.2 Then Exit
 ' Inc c%:Loop While c%<240

 'trigger
  Memory copy FLOAT samp1.addr, samp2.addr, 321 'copy to shorter temp array
  low! = Math(Min samples2(),indx%)  ':Print low!,indx% 'find the index of the minimum
  Memory copy FLOAT samp1.addr + indx% * 8, samp1.addr, 321 'copy back to intput array, starting at indx%

  FRAMEBUFFER COPY L,F 'copy cross on layer L to framebuffer
  For x%=1 To 320 'screen width
    Line x%,240-samples!(x%),x%,240-samples!(x%-1),,RGB(red)  'draw new sample from sample(c%)
    Pixel x%,240-samples!(x%),RGB(white) 'plot new sample from sample(c%)
  Next x%

  FRAMEBUFFER COPY F,N 'copy frame buffer to display
Loop
 Edit.
To eliminate the output array the temp array is copied back to the input array.

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200
Posted: 05:33pm 17 Sep 2023
Copy link to clipboard
Print this post

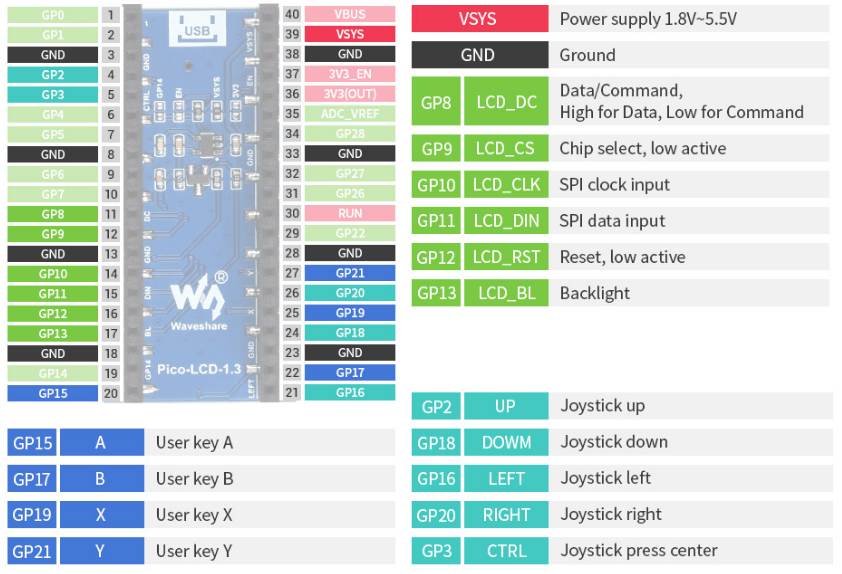

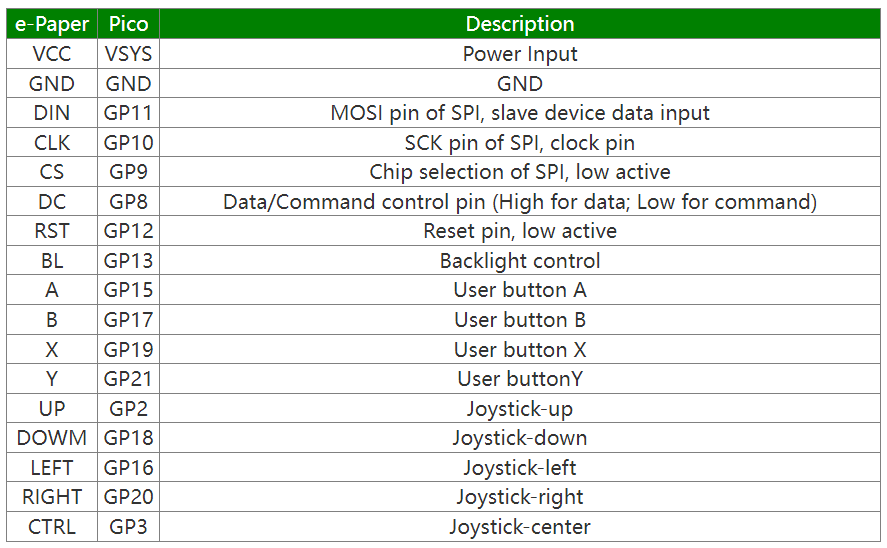

In case you'd like to use the Waveshare Pico-LCD-1.3 display carrier, I've just received a couple, and have figured out how to use the OPTIONs to set the SYSTEM SPI and LCDPANEL configuration. I'm going to try using this board as a scope display, since it already has four pushbuttons (and an x-y joystick on it!)

PicoMite MMBasic Version 5.07.07
OPTION SYSTEM SPI GP10,GP11,GP28
OPTION LCDPANEL ST7789, LANDSCAPE,GP8,GP12,GP9,GP13


There is no SD card socket, so reading data is not an option, and MISO pin isn't present. Only CLOCK (GP10) and MOSI (GP11) are specifiable. There is no MISO pin, but setting MISOpin tp GP28 (otherwise unused) works (so far).

The carrier uses an ST7789VW controller (at 240x240 full color), which I've used in the past on one of their larger carrier boards *with* an SD card socket.

Their documentation is at this link.

The board schematic is at this link.




Edited 2023-09-18 03:44 by NPHighview
Live in the Future. It's Just Starting Now!

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9124
Posted: 05:44pm 17 Sep 2023
Copy link to clipboard
Print this post

You need to use something like

Option system spi gp10,gp11,gp28
option lcdpanel st7789,l,gp8,gp12,gp9,gp13

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4043
Posted: 06:08pm 17 Sep 2023
Copy link to clipboard
Print this post

I'm not entirely sure which pins you need free for this rudimentary DSO, but it looks to me like the Game*Mite might be a suitable device (bigger display and chunkier controls than the Pico-LCD-1.3) if you want to build a portable one but don't (yet) want to make a custom PCB.

Best wishes,

Tom
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200
Posted: 06:34pm 17 Sep 2023
Copy link to clipboard
Print this post

Thanks, Peter & Tom -

Peter - through brute force process of elimination, I was able to figure out the SPI settings, but I really appreciate your monitoring the forum!

Tom - I need GP18 (pin 24 or other), GP26/27 (pins 31 and 32) accessible via some sort of connectors. While this board has a larger :-) display than the 0.96, and has buttons and joystick, it doesn't bring out those leads. I'm about to try soldering "pin and cup" style through-connectors to see if I can't somehow accommodate both.  I'll contact you via messaging to find out how I might be able to get my hands on a Game*Mite.

With Peter's suggested configuration, this display does work nicely with both the Pico and PicoW, so for now, I'm playing with some of my other sample programs like the NTP-based analog clock. I'm even delving deep into my past (circa 1980) for code (in PL/M - gaack!) that I wrote to manage the data & display for a four-channel patient monitoring system. OCD and all, I tend to keep that stuff in my excessively organized filing system.

Thank you both!
Live in the Future. It's Just Starting Now!

thwill

Guru

Joined: 16/09/2019
Location: United Kingdom
Posts: 4043
Posted: 06:38pm 17 Sep 2023
Copy link to clipboard
Print this post

  NPHighview said  Tom - I need GP18 (pin 24 or other), GP26/27 (pins 31 and 32) accessible via some sort of connectors. While this board has a larger :-) display than the 0.96, and has buttons and joystick, it doesn't bring out those leads. I'm about to try soldering "pin and cup" style through-connectors to see if I can't somehow accommodate both.  I'll contact you via messaging to find out how I might be able to get my hands on a Game*Mite.


All three of those pins are free and available through J1 (7x2M right-angle header) of the Game*Mite .

Best wishes,

Tom
Edited 2023-09-18 05:19 by thwill
Game*Mite, CMM2 Welcome Tape, Creaky old text adventures

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 06:48pm 17 Sep 2023
Copy link to clipboard
Print this post

That's quite neat in some ways and quite horrible in others. :)  It very neatly kills all access to every GPIO pin unless you solder to them or fit long-tail headers to the Pico.
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2129
Posted: 07:58pm 17 Sep 2023
Copy link to clipboard
Print this post

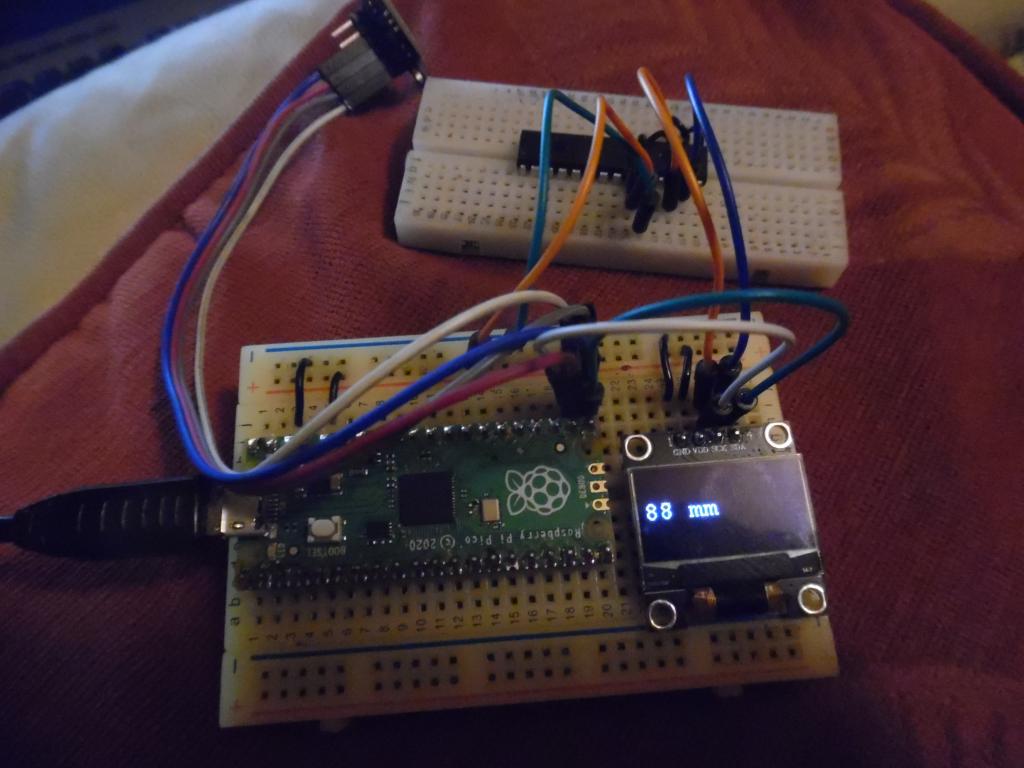

NPH. You said you were checking other Waveshare boards. Been meaning to check their site. https://www.waveshare.com/product/raspberry-pi/boards-kits/raspberry-pi-pico-cat/pico-lcd-1.3.htm
ssd1306 is just 2 wires. my 1st scope 8 bit. still neat display
i2c is nice, like a port expander, range finder and display off same 2 pins, no pull-ups.


Edited 2023-09-18 07:20 by stanleyella

NPHighview

Senior Member

Joined: 02/09/2020
Location: United States
Posts: 200
Posted: 08:08pm 17 Sep 2023
Copy link to clipboard
Print this post

Yes, that's the one I just got working (see above for OPTIONs). A little more difficult to connect test & analog inputs, though I have an idea...
Live in the Future. It's Just Starting Now!

phil99

Guru

Joined: 11/02/2018
Location: Australia
Posts: 2135
Posted: 10:18pm 17 Sep 2023
Copy link to clipboard
Print this post

  Stan said  Error : SAMP1.ADDR is not declared
>
dunno how to declare it, if I try says already declared.

Either one of these methods:-

1) In MMEdit disable OPTION EXPLICIT and OPTION DEFAULT NONE.
They are useful for large convoluted programs but for small programs they remove the flexibility of MMBasic.
or
2) Add DIMs for all un declared variables to the start of the program, not at the command prompt.
Dim Integer indx%, x%, samp1.addr, samp2.addr
Dim Float samples!(640), samples2(320) '320 = 640-screen width

carlschneider
Senior Member

Joined: 04/08/2023
Location: South Africa
Posts: 158
Posted: 04:03pm 18 Sep 2023
Copy link to clipboard
Print this post

An observation, no doubt covered before, but for what it's worth, regarding the Webmite and ADC reading stability.

I noticed that my ADC results were varying considerably recently, even though I was taking 20 samples and finding the mean. The input to the ADCs are fixed resistor dividers in the dev stage, so input is stable. I've also used the third ADC to find the floor noise, which I subtract from the other two ADC readings.

The apparent instability in the ADC outputs was observed on the OLED display, recently installed and configured in the code dev. From comments previously read here I then hauled out my really really cheap multimeter and measured the 3.3V rails, which had drooped to 3.15V and varied about 0.01V around that.

Fortunately I had a spare 100µF electrolytic cap on hand, which across the rails on the breadboard, brought the rails back up to the unloaded 3.32V originally measured; and now the ADC readings are rock steady again.

Thanks to all for their comments on this thread.
Cheers Carl
Retirement is tough on Hobbies without a day job
