Forum Index : Microcontroller and PC projects : Q: Pico Multiprocessor

     Page 2 of 2
Author Message
hhtg1968
Senior Member

Joined: 25/05/2023
Location: Germany
Posts: 123
Posted: 05:57am 11 Jun 2023
Copy link to clipboard
Print this post

ok. i did not read the descripting texts very exactly...

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6798
Posted: 06:05am 11 Jun 2023
Copy link to clipboard
Print this post

Found it - it's on my Dropbox after all.
Mixtel90's PCBs / PPear Construction Pack.zip
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 08:47am 11 Jun 2023
Copy link to clipboard
Print this post

WebMiteLCD as NTP-Clock

is constantly updating the timeline:

ndreas@weizenbaum:~$ telnet webmitef
Trying 192.168.178.87...
Connected to webmitef.fritz.box.
Escape character is '^]'.

> list
' WebMiteF - The Big Communicator
' dm-lines starting with "!" will be executed as BASIC code from the LCD unit

Sub dm(t$) ' display message
 SetPin gp1,gp0,com1
 Open "com1:115200" As #1
 Print #1,t$
 Pause 10
 Close #1
End Sub

Sub clearLCD() ' clear LCD
 dm("!CLS")
 dm("!linepointer = 0")
End Sub

Sub sameline() ' of next print
 dm("!if linepointer > 20 then linepointer = linepointer-20")
 dm("!if linepointer = 0 then linepointer = 60")
 dm("!if linepointer = 10 then linepointer = 70")
End Sub

' Testprogram(m)
clearLCD

dm("WebMiteLCD-F")
dm("")
dm("Telnet address:")
dm("")
dm(MM.Info(ip address))
dm("")

'dm("!Box 0,40,30,30,,rgb(red)")
'dm("!Circle 50,55,15,1,1,rgb(yellow)")

On ERROR SKIP 1
WEB ntp 2,"192.168.178.1" ' get time from ntp server TZ=Berlin

dm(Date$+" "+Time$)
Do ' show date & time every sencond
 Pause 1000
 sameline()
 dm(Date$+" "+Time$)
Loop
>


-andreas

Plasmamac

Guru

Joined: 31/01/2019
Location: Germany
Posts: 554
Posted: 08:55am 11 Jun 2023
Copy link to clipboard
Print this post

Btw is it safe to bridge the pins from two Boards to the other ?
i mean no problems with undefined status at startup ? i cant Test this because no Oszi atm.
gtx
Edited 2023-06-11 18:56 by Plasmamac
Plasma

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 09:13am 11 Jun 2023
Copy link to clipboard
Print this post

after booting the WebMitLCD uses 90 mA while showing date & time

-andreas

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 09:18am 11 Jun 2023
Copy link to clipboard
Print this post

  Plasmamac said  Btw is it safe to bridge the pins from two Boards to the other ?
i mean no problems with undefined status at startup ? i cant Test this because no Oszi atm.
gtx


please read the full threat before destroying your picos ;-)

I have only connected GND pins because they are left side to right side at the same relative positions!

Additionally I connected VSYS (WebMite) to VSYS (RP2040LCD) and GP01 (WebMite) to GP00 (RP2040LCD) and GP00 (WebMite) to GP01 (RP2040LCD).

ALL OTHER PINS ARE NOT CONNECTED (I dragged out the header pins after soldering GND pins!)

-andreas
Edited 2023-06-11 19:21 by andreas

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 09:42am 11 Jun 2023
Copy link to clipboard
Print this post

  andreas said  after booting the WebMiteLCD uses 90 mA while showing date & time

-andreas

andreas

Senior Member

Joined: 07/12/2020
Location: Germany
Posts: 207
Posted: 11:31am 11 Jun 2023
Copy link to clipboard
Print this post

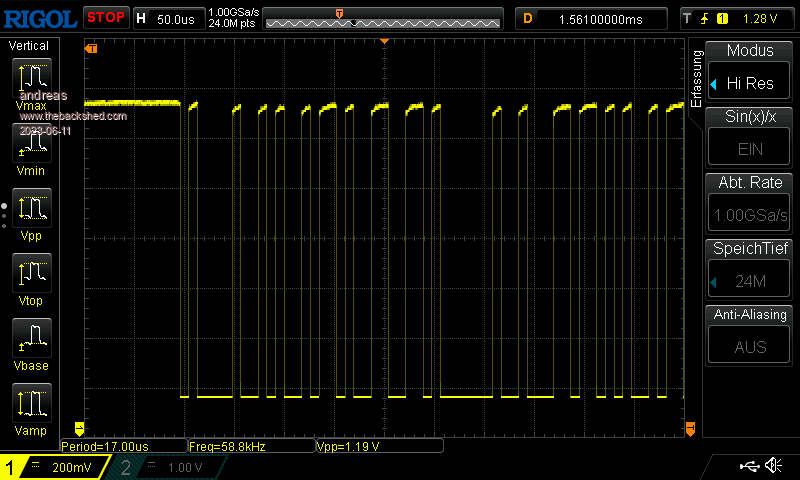

Watching the serial communication on PIN GP01 (RX) of the RP2040LCD (receiver)
It seems to show the starting of a communication.



-andreas
