Based on a John Deere type, I wanted to make a usable electric garden tractor.

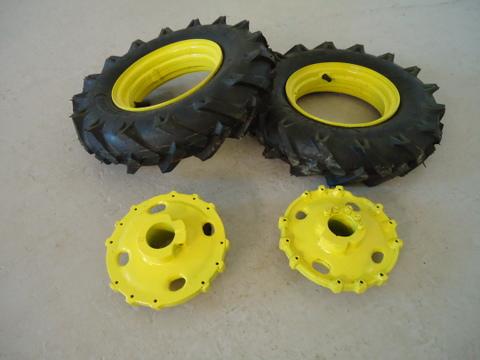

Started with the flanges of the rear wheels.

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 11:29am 17 Jan 2024
Copy link to clipboard
Print this post

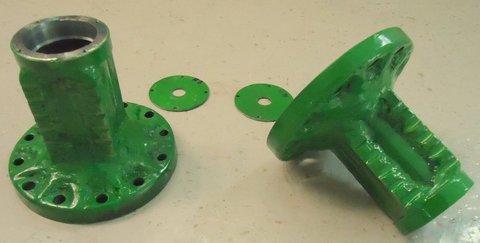

Shaping the axles.

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 11:05am 18 Jan 2024
Copy link to clipboard
Print this post

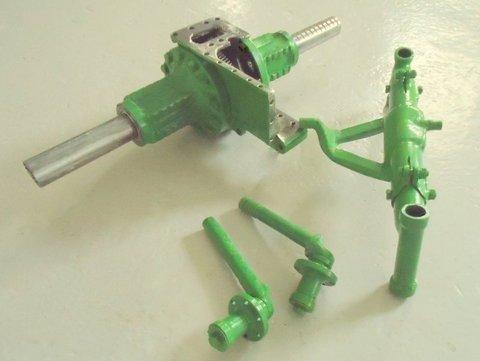

The scale is approximately 1:5 so that the tractor can really be used for work in the garden.

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 12:37pm 18 Jan 2024
Copy link to clipboard
Print this post

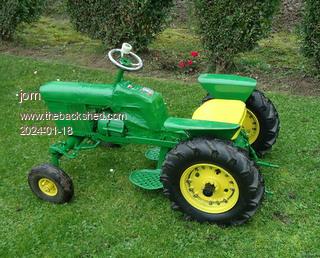

A set up with a 36 volt motor.


Edited 2024-01-19 06:57 by jorn

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 10:21am 19 Jan 2024
Copy link to clipboard
Print this post

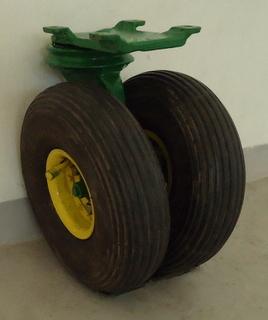

For a smaller turning circle I made a narrowfront-axle.

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 11:40am 20 Jan 2024
Copy link to clipboard
Print this post

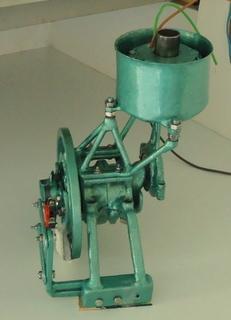

In my tractor model actually fits a water-cooled 4-cylinder engine. That's why I thought about a 4 cyl. solenoid.
I started with a 1 cylinder test setup.


Edited 2024-01-20 21:43 by jorn

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1022
Posted: 12:15am 21 Jan 2024
Copy link to clipboard
Print this post

Nice work,  solenoids do work and the timing could be from the crankshaft etc, but how are you going to limit the power to them, PWM speed comptroller or something better?

Ah found it, you used an electric wheel barrow motor instead.
Edited 2024-01-22 12:21 by Revlac
Cheers Aaron
Off The Grid

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 10:05am 22 Jan 2024
Copy link to clipboard
Print this post

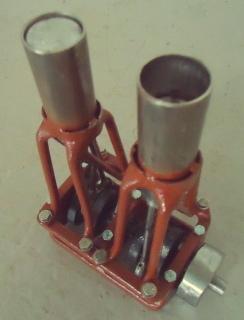

The shaping of a four-cylinder solenoid engine for my tractor is an ongoing project with test setups.

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 10:33am 22 Jan 2024
Copy link to clipboard
Print this post

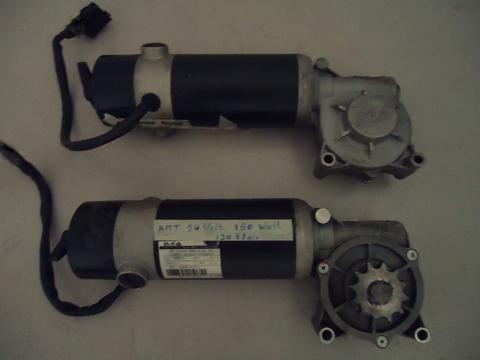

Later I mounted on the rear wheels of my tractor  1 motor for each wheel.

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 09:58am 23 Jan 2024
Copy link to clipboard
Print this post

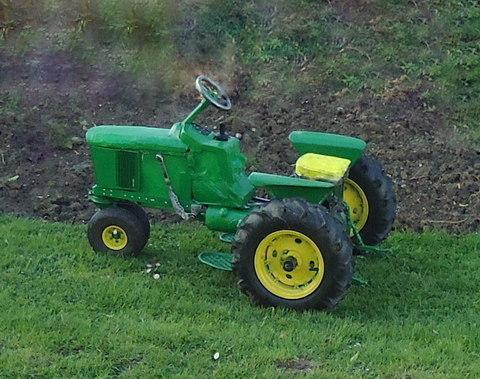

It is fun to do all kinds of work with this little tractor.
I want to mount a sickle bar mower with double knife.

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1022
Posted: 11:00am 23 Jan 2024
Copy link to clipboard
Print this post

Nice work,
sickle bar mower should work well, they don't take much power to drive them.
Cheers Aaron
Off The Grid

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 03:22pm 13 Feb 2024
Copy link to clipboard
Print this post

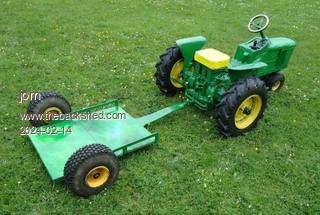

What also comes in very handy is my cart with a low loading floor.
