Gizmo Admin Group  Joined: 05/06/2004 Location: AustraliaPosts: 5078 |
Be carefull Vasi. One hand behind you back, dont lean against anything metalic, and wear insulating shoes. Glenn The best time to plant a tree was twenty years ago, the second best time is right now. JAQ |
||||
vasi Guru  Joined: 23/03/2007 Location: RomaniaPosts: 1697 |
A movie for the U-bolt solution http://youtu.be/v0BIFK3it1U Hobbit name: Togo Toadfoot of Frogmorton Elvish name: Mablung Miriel Beyound Arduino Lang |
||||
| vasi Guru Joined: 23/03/2007 Location: RomaniaPosts: 1697 |

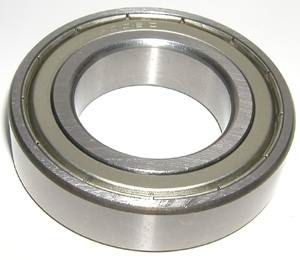

Hi guys, What do you think, this bearing is enough (6x19x6mm) for x,y,z axes?
[code] 626ZZ Shielded Ball Bearing, each 626ZZ bearings is closed with 2 Metal Shields, one Shield from each side, to protect the bearing from dust or any possible contamination, also 626ZZ bearing is pre-lubricated with grease, Bearing 626ZZ has industrial packaging. Item: 626ZZ Ball Bearings Type: Deep groove Radial Ball Bearings Quality: Electric motor quality Cage: Chrome Steel Material: Chrome Steel Closures: Double Metal Shields Lubrication: Self Lubricated (Grease) Bearing Dimensions: 6mm x 19mm x 6mm/Metric ID (inner diameter)/Bore: 6mm OD (outer diameter): 19mm Width/Height/thickness: 6mm Size: 6 x 19 x 6 mm Quantity: One Bearing Dynamic load rating Cr: 2,600 N Static load rating Cor: 1,050 N Limiting Speed: Grease Lubrication: 35,000 RPM Equivalents: 626-2Z/626-Z Bearings [/code] Hobbit name: Togo Toadfoot of Frogmorton Elvish name: Mablung Miriel Beyound Arduino Lang |
||||
